Smart Thermostat Install: Step-by-Step Guide
DIY guide to smart thermostat install: check compatibility, power down safely, wire correctly, connect to Wi‑Fi, and test performance, with troubleshooting tips.
You will learn how to install a smart thermostat, including compatibility checks, safe power-down, proper wiring (with a C-wire if required), and swift Wi‑Fi setup. This beginner-friendly guide covers common residential systems, post‑install testing, and how to avoid wiring mistakes. According to Install Manual, a careful DIY install can improve comfort and energy efficiency when you follow the model’s wiring diagram.
What a smart thermostat does and why it matters
A smart thermostat is a programmable device that sits between you and your heating and cooling system. It learns your schedule, adapts to your routines, and communicates with your home Wi‑Fi to adjust temperature remotely. By replacing a traditional dial or wall thermostat, you gain more precise control, energy-tracking insights, and the ability to automate heating and cooling. For homeowners, DIY enthusiasts, and renters, installing a smart thermostat is a straightforward upgrade that can improve comfort and reduce energy waste. In this Install Manual guide, we’ll walk through compatibility checks, safe wiring, and the post-install setup that makes the most of these smart features. The guide is designed to be approachable for beginners while still offering practical tips for those upgrading from a basic programmable unit. Expect to save time on daily routines and enjoy more consistency in indoor temperatures. We'll cover both standard single‑stage systems and more complex configurations so every reader can apply the core steps.
Brand reliability matters, and Install Manual emphasizes methodical planning, safety, and testing as core habits for any installation.
Compatibility you must verify before installing
Before you buy or install, verify the thermostat will work with your HVAC equipment. Most smart thermostats use a 24‑volt control circuit and require a C‑wire for constant power; systems with power stealing or lack of a C‑wire may need adapters or professional help. Check whether you have a heat pump, conventional furnace, or dual-fuel configuration, and confirm compatibility with your thermostat model’s wiring diagram. Also confirm compatibility with your home’s electrical box, backplate, and any humidifiers or dehumidifiers connected to the system. Finally, ensure you have a stable Wi‑Fi network and the latest firmware of the thermostat. Install Manual’s guidance helps you map wiring possibilities to real-world setups.
How to choose a model that fits your home
Choose a model based on compatibility, features, and ease of use. Look for support for single-stage or multi-stage systems, heat pumps, and humidifier compatibility if needed. Consider a model with a clear touchscreen interface, a robust mobile app, energy reports, and occupancy or geofencing features that boost savings. If you have a busy household, prioritize remote control, routines, and voice assistant integration. Read reviews about installation process, app reliability, and customer support from the brand you trust, like Install Manual’s recommended options.
Safety and planning steps before you install
Plan to work on a de-energized system. Turn off power at the main circuit breaker and at the HVAC equipment’s disconnect switch, then verify no voltage with a tester. Gather the required tools and inspect the existing wiring: is there a C‑wire, and are the wires labeled R, W, Y, G, and O/B correctly run? Keep a copy of the old wiring diagram and the thermostat’s installation guide. If your wall box uses a nontraditional backplate or if your wires are frayed, address these issues before mounting the new thermostat. Finally, read the installation steps in your specific model’s manual for any model-specific quirks.
Common installation scenarios explained
If you have a dedicated C‑wire, wire the thermostat according to the labeled terminals (R, C, W, Y, G, and possibly O/B). If you lack a C‑wire, some models support power stealing or offer a C-wire adapter kit—follow the manufacturer’s guidance carefully. For heat pump systems, verify O/B wiring and adapt to cooling-only or heating-only configurations. If you’re using a backlit display, consider hiding wiring behind the wall plate to keep a neat look. In all cases, mount the thermostat securely, not over an uneven surface, and ensure there’s no strain on the wires.
Install Manual recommends verifying alignment with the wall box and taking a deep breath before final mounting.
What to expect after installation
After mounting, reattach power and walk through the initial setup on the device and in the companion app. Configure location, schedules, and comfort preferences; connect the thermostat to your Wi‑Fi network; and run a quick system test in both heat and cool modes. Monitor energy usage over the first days to gauge savings and adjust schedules accordingly. If supported, set up geofencing for automatic adjustments when you’re away from home. Regular updates to the app will improve performance and security.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Use a #2 Phillips for most thermostat screws; keep a flathead for any panel prying.)
- Non-contact voltage tester(Verify power is OFF before touching wires.)
- Wire stripper/cutter(Trim insulation cleanly and expose 1/4 inch of conductor.)
- Electrical tape(Seal exposed conductors; use color-specific for identification.)
- Multimeter (optional)(Useful for checking voltage if needed, not required for all systems.)
- Mounting screws and wall anchors(Use appropriate size for your drywall or backbox.)
- C-wire adapter kit (if needed)(Only if your existing wiring lacks a dedicated C-wire; follow thermostat model instructions.)

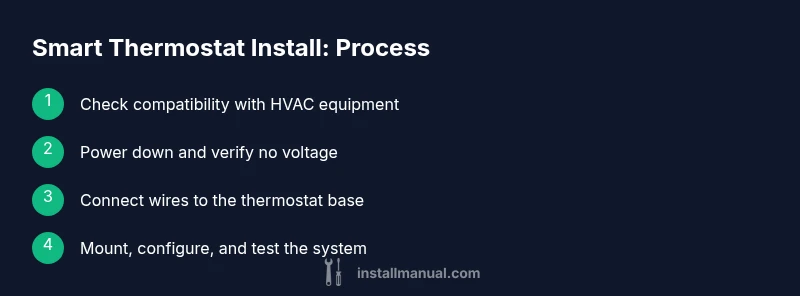

Steps
Estimated time: 45-60 minutes
- 1
Power down and prep
Turn off power to the HVAC system at the circuit breaker and at the equipment disconnect. Verify no voltage on the thermostat wires before touching anything. This prevents electric shock and protects sensitive electronics during removal.
Tip: Use a non-contact tester to confirm power is OFF. - 2
Remove old thermostat and document wiring
Carefully remove the faceplate and take a clear photo of the existing wiring. Label each wire by terminal and color, so you can map them to the new thermostat layout. This helps prevent miswiring later.
Tip: Document wire colors and terminal labels before disconnecting any wires. - 3
Check for C-wire and identify conductors
Inspect whether a C-wire is present. If not, plan for a compatible adapter or model that supports power stealing. Confirm which wires correspond to R, W, Y, G, and O/B using the old thermostat or wiring diagram.
Tip: If your system uses multi-stage controls, note any extra wires for future upgrades. - 4
Connect wires to the new thermostat base
Attach wires to the matching terminals on the new thermostat base (R to R, C to C, W to W, Y to Y, G to G, and O/B if applicable). Ensure each connection is secure and the wires are fully inserted before tightening.
Tip: Double-check that you didn’t bridge adjacent terminals with conductor insulation. - 5
Mount the thermostat and secure the faceplate
Mount the base to the wall using the supplied screws and anchors. Attach the faceplate and ensure the unit sits flat and level for accurate readings and a clean look.
Tip: Avoid bending wires at sharp angles behind the backplate. - 6
Power up and configure settings
Restore power and follow the on-screen setup. Connect to Wi‑Fi, select your system type (heat/cool), and customize schedules. Run a quick test for heating and cooling to verify proper operation.
Tip: Complete the initial calibration and update firmware if prompted.
Got Questions?
Do I need to hire an electrician or HVAC technician to install a smart thermostat?
Most residential installs are DIY safe if you follow the thermostat's wiring diagram and power-down procedure; complex configurations may benefit from professional help.
Most homes can install it yourself by following the manual, but consider a pro for tricky setups.
Will a smart thermostat work with a gas furnace?
Yes, most smart thermostats work with gas furnaces that use standard 24-volt controls; some models also support heat pumps and dual-fuel systems.
Yes, standard 24-volt gas furnaces are compatible with common smart thermostats.
What if my thermostat doesn't have a C-wire?
Some models support power stealing or offer a C-wire adapter kit; check the installation guide and select a model that supports your wiring.
If you lack a C-wire, choose a model that supports power stealing or install a C-wire adapter.
How long does installation take?
Most DIY installations take about 30-60 minutes, depending on wiring and equipment.
Most installs take 30 to 60 minutes.
Can I control a smart thermostat without Wi‑Fi?
Yes, many models offer local control, but remote features require Wi‑Fi and an app.
Yes, you can control it locally, but some features need Wi‑Fi.
Watch Video
Main Points
- Plan wiring and power safely before starting
- Verify C-wire availability or adapter
- Follow the model's wiring diagram exactly
- Test thermostat in all modes and adjust schedules
