How to Install Nest Thermostat: A Step-by-Step Guide
Learn how to install a Nest Thermostat with a clear, safety-focused process. This guide covers compatibility checks, wiring, app setup, and tips to maximize energy savings for homeowners and DIY enthusiasts.
This guide shows you how to install a Nest Thermostat in your home, covering compatibility checks, wiring, and setup. Expect a step-by-step process, required tools, and safety notes to avoid damage. According to Install Manual, verify your HVAC system is compatible with the Nest, power down the furnace or air handler, and follow the wiring diagram exactly to ensure a reliable, energy-saving installation.
Understanding Nest Thermostat compatibility and goals
Installing a Nest Thermostat isn’t just about snapping a device onto a wall. It’s about aligning your HVAC system with smart control to improve comfort, reduce energy waste, and gain reliable remote access. The Nest works with most single-stage heating, cooling, or heat pump setups that use standard 24-volt controls. Before you begin, clarify two things: (1) is your system compatible with a smart thermostat, and (2) do you have a C-wire or an accessible alternative to power the thermostat consistently. This initial assessment helps prevent post-install power issues or incomplete setup. As you plan, keep in mind that a good installation relies on clean wiring, stable power, and a solid mounting surface. For homeowners and DIY enthusiasts, this is where Install Manual’s guidance begins—clear, practical steps that respect safety and warranty considerations while keeping your project on track.
Preparation and per-visit planning
Before you touch a screwdriver, map out the path from the thermostat location to the HVAC control board. Confirm the wall area can accommodate the Nest base and that you have a nearby power source and a secure mounting surface. It's helpful to photograph existing wiring for reference and to label each wire as you remove it. If you discover a non-standard wire or an uncommon color scheme, don’t guess—consult the system wiring diagram and the Nest compatibility checklist. A measured plan reduces the chance of miswiring and makes the final setup faster and more reliable.
Tools and materials you will need
Gather essential tools and materials for a smooth install. You’ll typically need a screwdriver (Phillips #2 and flat-head), a non-contact voltage tester, a smartphone with the Nest app installed, and a mounting plate. If your HVAC system lacks a common (C) wire, have a C-wire adapter or spare conductor on hand. Keep electrical tape and wire nuts ready to secure any exposed conductors. Having these items organized reduces last-minute trips to the toolbox and keeps the workflow steady throughout the install.
Safety prerequisites and electrical basics
Working with 24-volt HVAC wiring requires respect for electricity and mechanical safety. Power down the system at the breaker panel to prevent shocks. Verify that the power is off using the voltage tester before touching any wires. If you encounter a live wire or uncertainty about a wire’s role, pause and reassess rather than forcing a connection. The Nest won’t function properly if the control circuit is compromised, and attempting to force a connection can damage your system or void warranties. When in doubt, consider a professional consultation to confirm wiring safety and compatibility.
Step-by-step wiring and installation (high-level)
This section outlines the core actions you’ll perform, without duplicating the step-by-step section below. Start by removing the old thermostat cover and taking note of each connected wire. Confirm the letter or color code for each wire and verify it matches the HVAC control board labels. Attach the Nest base to the wall, ensuring it sits level and securely with the included mounting screws. Connect wires to the corresponding Nest terminals (R, Y, G, W, C, etc.) according to the Nest wiring diagram, and gently tuck the cables into the wall cavity. Finally, attach the Nest display and replace the faceplate. If a wire doesn’t have a direct Nest terminal, consult the compatibility guide for safe alternatives.
Connecting to the Nest app and network
Power up the HVAC system after wiring is complete and the Nest base is attached. Use the Nest app on your smartphone to connect the thermostat to your Wi-Fi network. The app will guide you through account setup, device name, location, and preferred language. You’ll be prompted to configure your heating and cooling preferences, set up schedules, and enable any energy-saving features. A strong Wi-Fi signal around the thermostat location helps prevent connectivity hiccups, so consider relocating the router or using a mesh network if needed.
Testing, calibration, and optimization
With wiring complete and the app connected, test the thermostat across modes: heating, cooling, and auto-changeover if supported. Confirm the system responds to thermostat commands within seconds and that temperature readings align with ambient room conditions. Calibrate the thermostat if your readings appear consistently off, and review the energy reports in the app to adjust schedules for maximum savings. Make minor adjustments to fan settings and hold times to optimize comfort and responsiveness.
Common pitfalls and troubleshooting
Many installation issues stem from insufficient power, mislabeling wires, or incorrect routing of cables behind the wall. If the thermostat shows a blank screen, recheck the power wire and C-wire presence. If it fails to connect to Wi-Fi, verify your network password and ensure the router isn’t filtering the Nest’s MAC address. Persistent issues may require reseating wires or restoring the thermostat to factory defaults and starting the setup again. For complex configurations, such as multi-stage systems or unusual heat pumps, consulting the manufacturer’s support resources is advisable.
Energy savings, maintenance, and long-term tips
A properly installed Nest Thermostat can reduce energy usage by optimizing heating and cooling cycles. Review the app’s energy insights to identify times of peak consumption and adjust schedules accordingly. Regularly check for firmware updates that improve performance and security. Keep the thermostat and wall plate clean, and ensure the outdoor sensor (if present) isn’t obstructed by dust or debris. Consider pairing Nest with other smart-home devices for coordinated energy management and enhanced comfort.
Final thoughts and how Install Manual helps
Installing a Nest Thermostat is a scalable DIY project for homeowners and renters who value energy efficiency and convenience. The process hinges on careful preparation, safe handling of electrical components, and accurate wiring. Following a structured guide like this—supported by practical tips, safety notes, and troubleshooting steps—helps ensure a successful outcome. The Install Manual team emphasizes patience, double-checking connections, and using the official Nest wiring diagram to avoid common mistakes.
Tools & Materials
- Screwdriver set (Phillips #2 and flat-head)(Phillips #2 for thermostat mounting screws; flat-head for prying if needed)
- Non-contact voltage tester(Verify 24V lines without touching live metal)
- Nest Thermostat and mounting plate(Model-appropriate base with mounting screws)
- Smartphone with the Nest app installed(iOS or Android; ensure latest app version)
- C-wire adapter or spare conductor(Needed if there is no dedicated C-wire)
- Electrical tape and wire nuts(Secure exposed conductors and terminate safely)

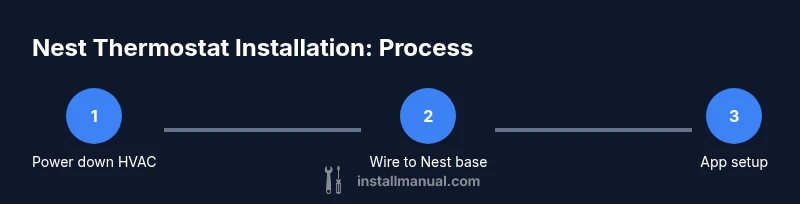

Steps
Estimated time: 60-90 minutes
- 1
Power down the system
Turn off the HVAC power at the main breaker. Use the voltage tester to confirm there’s no current in the wiring before you touch anything. This prevents shocks and equipment damage during removal and wiring.
Tip: Label the breaker if you’re working on multiple circuits to avoid accidental re-energizing. - 2
Remove old thermostat and take pictures
Carefully remove the faceplate and note which wires are connected to each terminal. Take clear photos from multiple angles for reference when wiring the Nest base.
Tip: If wires are stuck behind the wall, gently pull them out with the old cover attached to avoid bending conductors. - 3
Identify and label wires
Label each wire by terminal (R, Y, G, W, C, etc.) using masking tape. This labeling helps prevent mix-ups when you connect wires to the Nest base.
Tip: If you’re unsure about a wire, trace it to the control board or consult the HVAC diagram. - 4
Check for a C-wire and plan wiring
Inspect whether a common (C) wire is present. If absent, decide whether to use a C-wire adapter, a spare conductor, or the Nest Power Connector as recommended for your model.
Tip: Avoid forcing a C-wire where there isn’t an available conductor; use the adapter method instead if advised by the Nest documentation. - 5
Mount the Nest base
Attach the Nest base to the wall using the mounting plate and screws. Ensure the base is level and sits flush against the wall to avoid gaps that can affect sensor readings.
Tip: If the wall is masonry or plaster, use appropriate anchors for a secure mount. - 6
Connect wires to Nest terminals
Insert each labeled wire into the corresponding Nest terminal (R, Y, G, W, C, etc.) according to the wiring diagram. Avoid bending wires sharply and secure each wire so it won’t pull loose.
Tip: Double-check that the wires are fully seated and that no insulation is under the terminal clamps. - 7
Attach the Nest display
Snap the display onto the base until it clicks. Ensure it’s firmly seated and aligned with the base to ensure proper sensor contact.
Tip: Handle the display gently; it’s designed for frequent removal during setup. - 8
Power up and connect to Wi‑Fi
Restore power and use the Nest app to connect the thermostat to your Wi‑Fi network. Create or sign in to your Google account, name the thermostat, and set your location for accurate weather and scheduling.
Tip: Choose a strong Wi‑Fi password and a secure network to protect the device. - 9
Configure and test across modes
In the app, configure heating and cooling settings, set up schedules, and test switching between modes. Ensure the system responds promptly and readings align with room temperature.
Tip: Run a short test cycle for each mode to verify control and sensor accuracy.
Got Questions?
Is a Nest Thermostat compatible with my HVAC system?
Most single-stage heating and cooling systems with standard 24V control wires are compatible. If you have a multi-stage system or a heat pump with auxiliary heat, check the Nest compatibility guide and your system’s wiring diagram before proceeding.
Most standard HVAC systems work with Nest, but check the wiring diagram to confirm compatibility before installation.
Do I need a C-wire for Nest?
A common wire (C-wire) provides continuous power for the thermostat. If your current wiring lacks a C-wire, you may use a Nest Power Connector or a C-wire adapter as recommended by the Nest guidelines.
A C-wire ensures reliable power; use an adapter if there isn’t a C-wire present.
Can I install a Nest Thermostat by myself, or should I hire a pro?
Many homeowners can install Nest Thermostat themselves by following a compatible wiring diagram and safety steps. If you’re uncertain about wiring, electrical safety, or a complex system, hiring a qualified technician is a wise option to protect your equipment and warranty.
DIY is often feasible, but consult a professional for complex systems or safety concerns.
How long does installation typically take?
For a standard, single-zone system with a clear wiring path, expect about 60 minutes from power down to first run. More complex setups or unfamiliar wiring can take longer, up to 90 minutes.
Most installations take about an hour, with longer times for complex wiring.
Will installing a Nest affect my HVAC warranty?
Installing a third-party thermostat generally does not void a typical residential HVAC warranty when installed correctly following the manufacturer’s guidelines. If in doubt, check your system’s warranty terms or consult the installer.
Warranties usually stay intact if installed according to guidelines; verify with the maker.
What should I do if Nest won’t connect to Wi‑Fi?
First, confirm your network credentials are correct and that the 2.4 GHz band is enabled if required by your model. Move closer to the router or use a mesh system to improve signal. Restart the router and the thermostat during setup if needed.
Check credentials, ensure network signal, and try a quick restart of devices.
Can I use Nest with a heat pump with auxiliary heat?
Nest supports many heat pump configurations, but you may need additional wiring or compatibility checks for the aux heat. Review the Nest wiring diagram for your exact model and system type.
Heat pumps can work with Nest, but verify wiring and compatibility for aux heat.
What if I don’t have a wall space with a flat surface?
If the wall surface isn’t flat, use the included mounting spacer or a compatible mounting plate to achieve a level installation. Ensure no protrusions will cause misalignment or sensor issues.
Use spacers or a mounting plate to normalize irregular walls.
Main Points
- Verify HVAC compatibility before starting.
- Power down and secure wiring to prevent shocks.
- Label wires and follow the Nest diagram exactly.
- Test all modes and calibrations for reliable operation.
