Install Ecobee Thermostat: A DIY Step-by-Step Guide
A comprehensive DIY guide to installing an Ecobee thermostat, covering compatibility, wiring, app setup, and everyday use for homeowners and DIY enthusiasts.
By following these steps, you will replace your old thermostat with an Ecobee and gain better energy control. You’ll need basic tools, a 24V HVAC system with a C-wire or the Ecobee Power Extender Kit, and Wi‑Fi. This guide covers compatibility checks, wiring mapping, mounting, and app setup. Whether you’re upgrading for smart scheduling or remote monitoring, the process remains the same: power safety first, accurate wiring, and proper configuration in the Ecobee app.
Why Ecobee Thermostats Stand Out for Home Comfort
Ecobee thermostats offer more than a simple temperature readout. They bring advanced scheduling, remote control, room sensors, and voice assistant integration to a single device. According to Install Manual, the upgrade pays off through better comfort management and measurable energy savings when used with a compatible HVAC system. You’ll gain smarter occupancy-based scheduling, which adapts to when people are home, away, or at night. Ecobee also supports multiple thermostat configurations, from single-stage heating and cooling to more complex multi-stage systems. The result is a centralized, hands-on management hub for comfort, energy, and convenience. When you compare Ecobee to a basic digital thermostat, you’re trading a fixed schedule for a dynamic, learning system that can adjust in real time based on temperature readings, occupancy, and external weather data. For homeowners, this means fewer hot or chilly spots, fewer manual adjustments, and improved energy awareness. Keep in mind that installation quality and correct wiring are essential to realizing these benefits; the best outcomes come from careful compatibility checks and a clean setup that’s aligned with your HVAC configuration.
Compatibility and Prep: Check Before You Start
Before purchasing or starting, verify your HVAC is compatible: 24V control, common C-wire, and standard wiring terminals (R, C, W, Y, G). Ecobee supports most 24V systems including gas, electric, heat pumps, and dual-fuel setups. If you do not have a C-wire, you can use the Ecobee Power Extender Kit (PEK) to provide a reliable power source without rewiring. Review your current thermostat’s wiring diagram and confirm whether your furnace or air handler has a dedicated C terminal. If the system uses multiple stages (stages 2 or 3) or a heat pump, check Ecobee’s compatibility charts and any extra wiring requirements. Planning ahead reduces surprises during install and helps you map wires correctly for a clean, professional result. According to Install Manual, taking a few minutes to sketch wiring layouts and verify the control board can save hours of troubleshooting later. Finally, gather model-specific accessories (backplate, screws, and mounting hardware) and ensure you have a stable, clean workspace.
Wiring Basics and Power Options
Most Ecobee installations rely on 24V AC control signals from the HVAC system. The typical set of wires includes R (24V power), C (common), W (heat), Y (cool), and G (fan). In cases where Rc/Rh bridges are present, you’ll often configure Ecobee to use a single R terminal and connect the other wires to their matching terminals on the Ecobee base. If your system lacks a C-wire, Ecobee’s PEK can simulate a common wire and deliver the necessary power to the thermostat via the existing cables. When dealing with heat pumps, dual-fuel setups, or multi-stage equipment, follow Ecobee’s wiring guide to place wires on the correct terminals and avoid bridging unless explicitly recommended. Make sure to power down the system before touching any wiring, and keep protective caps on exposed conductors to prevent shorts. This step reduces risk and protects both your equipment and you during installation.
Model Selection and System Compatibility
Ecobee offers several models with varying sensor counts and compatibility features. Start by confirming your HVAC’s compatibility with the Ecobee model you intend to install, noting the number of wires and control stages. For most single-stage systems, the basic Ecobee package delivers robust performance with room sensors and remote access. If you have a multi-stage furnace or a heat pump, verify that the chosen model supports multi-stage operation and provide appropriate wiring. Consider whether you want HomeKit, Alexa, or Google Assistant integration, since some models offer built-in or extended smart home support. According to Install Manual, choosing a compatible model upfront minimizes post-install rework and ensures that you can access all the features you expect from a smart thermostat.
Tools, Safety, and Preparation
Gather essential tools: a Phillips #2 screwdriver, a small flathead if needed, a non-contact voltage tester, wire labels, and a level for mounting. Prepare a clean workspace, turn off power at both the furnace and the thermostat, and confirm there is no voltage in the wires with a tester. If you encounter unfamiliar wire colors or unmarked conductors, take a photo for reference and avoid guessing. Wearing safety glasses and using a sturdy ladder or step stool helps you work safely at wall height. This section emphasizes planning and safety as foundations for a smooth installation, reducing risk of damage to walls and equipment. Remember, a careful approach saves time and avoids costly mistakes in the long run.
Wall Prep and Backplate Mounting
Carefully remove the old thermostat and any mounting plate, then prepare the wall for the new Ecobee backplate. Use a level to ensure the backplate sits perfectly straight, and mark screw locations. If the wall has drywall, consider drilling pilot holes to reduce the risk of crumbling the wall. Ecobee’s backplate typically includes drywall anchors; if not, use wall anchors appropriate for your wall type. A clean, stable mounting surface helps prevent misalignment, which can lead to poor seal and air leaks around the thermostat. Before final mounting, double-check that all wires can reach their respective terminals without bending sharply. A well-mounted base improves sensor alignment and overall performance.
Wiring the Ecobee Base and PEK Installation
With power off and a labeled wire map in hand, attach wires to the Ecobee base according to the terminal labels (R, C, W, Y, G, etc.). If your system lacks a C-wire, install the Power Extender Kit exactly as instructed in Ecobee’s guide, ensuring the PEK wires connect to the furnace control board or power source as required. Avoid leaving exposed conductors; use wire nuts or tape where appropriate. After wiring, gently tug each wire to ensure a solid connection and make sure there are no stray strands that could cause a short. Once wired, you can mount the Ecobee display into the backplate and prepare to restore power for setup.
Power Restore, Wi‑Fi, and App Setup
Power the system back on at both the furnace and the thermostat. The Ecobee unit should boot and prompt you to connect to Wi‑Fi. Choose a 2.4 GHz network for compatibility and enter your network credentials. Sign in to or create your Ecobee account to enable remote access and cloud syncing. The initial setup will guide you through choosing your system type, configuring your schedule, and enabling features like occupancy sensing. If you encounter a connection issue, check your router settings, ensure you’re not blocking Ecobee’s services, and verify that your device’s location permissions are correctly configured. A successful connection builds the foundation for accurate scheduling and remote control across devices.
Schedule, Sensors, and System Testing
After the initial setup, configure your daily schedule, room sensors, and desired comfort levels. Place room sensors in commonly used areas away from direct heat sources or drafts. Verify that the thermostat correctly triggers heating and cooling, and test fan operation across modes. If you have a heat pump, ensure auxiliary heat behavior aligns with the climate and your comfort preferences. This final phase ensures that your Ecobee will deliver reliable comfort, energy savings, and convenient remote access. Regularly review sensor placement and schedule settings to maintain peak performance over time.
Tools & Materials
- Screwdriver set (Phillips #2 and flathead)(Standard thermostat screws; choose the appropriate screwdriver size)
- Non-contact voltage tester(Use to confirm power is off before touching wiring)
- Wire labels or tape(Label wires by terminal (R, C, W, Y, G, etc.))
- Ecobee Power Extender Kit (PEK)(Install if your system has no C-wire or the C-wire is insufficient)
- Mounting screws and anchors(Usually included with Ecobee, ensure compatibility with wall type)
- Electrical tape(Secure wire labels and cover exposed conductors)
- Level tool(Helps ensure the backplate is perfectly horizontal)
- Notepad or photo guide(Capture existing wiring layout for reference)

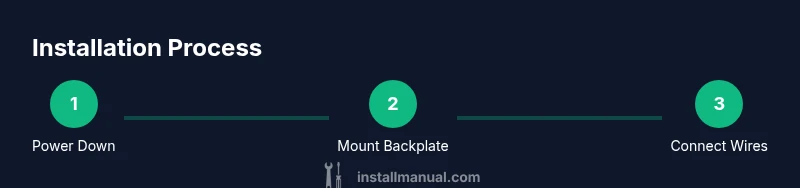

Steps
Estimated time: 60-90 minutes
- 1
Power down HVAC system
Turn off power at the furnace control board and at the thermostat circuit. Use a non-contact tester to confirm there is no voltage before touching wires. This prevents electric shock and protects control circuitry during the swap.
Tip: Double-check power at both the furnace and thermostat to avoid surprises. - 2
Remove the old thermostat
Gently pull the thermostat away from the wall to expose the wiring. Note how each wire connects to its terminal and disconnect only after labeling. This preserves wiring context for the Ecobee base.
Tip: Take a quick photo of the wiring layout before removing any wires. - 3
Label wires and document connections
Label each wire by its terminal (R, C, W, Y, G, etc.) and record the corresponding terminal on the old stat. This map will guide you when wiring the Ecobee base and prevents miswiring.
Tip: If you’re unsure about a wire, leave it connected and seek a second opinion before detaching. - 4
Check compatibility and determine C-wire needs
Review the HVAC system type and verify it’s compatible with Ecobee. If no C-wire exists or is unreliable, plan to use the PEK. Confirm multi-stage or heat-pump configurations if present.
Tip: Refer to Ecobee’s compatibility guide to identify required features for your system. - 5
Remove mounting plate and prep wall
Remove the old mounting plate and clean the wall surface. If there are holes, patch or sand as needed to provide a flat base. A level mount ensures accurate sensor readings and a neat appearance.
Tip: Use painter’s tape to mark screw locations and keep holes aligned. - 6
Install Ecobee backplate and align
Position the Ecobee backplate on the wall, ensuring it is level. Secure with screws, keeping the wall surface clean and free of debris that could affect contacts.
Tip: Check alignment from multiple angles to ensure levelness before tightening. - 7
Connect wires to Ecobee base
Insert labeled wires into the corresponding Ecobee terminals (R, C, W, Y, G, etc.). Ensure each wire is fully seated and there’s no frayed copper.
Tip: If a wire is stiff, gently bend it back to reduce strain on the terminal. - 8
Install PEK if required
If using PEK, follow Ecobee’s wiring diagram to connect it to the furnace control board. This supplies consistent power to the thermostat when a C-wire isn’t available.
Tip: Do not skip instructions for PEK; improper connection can cause power issues. - 9
Mount the Ecobee and restore power
Snap the Ecobee onto the backplate and restore power at the furnace and thermostat. The device should power up and begin the on-screen setup prompts.
Tip: Wait about 60 seconds for the device to boot before proceeding. - 10
Connect to Wi‑Fi and sign in
Select your Wi‑Fi network (prefer 2.4 GHz if available) and enter credentials. Sign in to your Ecobee account to enable cloud syncing and remote access.
Tip: If you have a guest network, whitelist Ecobee services in your router settings. - 11
Configure system type and preferences
Choose your system type (gas, electric, heat pump) and configure temperature and fan behavior. Enable occupancy sensing and set preferred temps for different times of day.
Tip: Keep the schedule simple at first and adjust gradually after a few days. - 12
Test operation and finalize
Run through heating and cooling tests to confirm proper cycling, heat anticipation, and sensor readings. Reposition sensors if readings feel off, and confirm app responsiveness.
Tip: Document any anomalies and revisit wiring if issues persist.
Got Questions?
Do I need a C-wire for an Ecobee thermostat?
Many Ecobee installations work with a C-wire, but the PEK can provide power when a C-wire is absent. Always verify compatibility with your HVAC before starting.
Most Ecobee setups need a C-wire, but you can use the Power Extender Kit if your system lacks one. Check compatibility first.
Will Ecobee work with my existing HVAC system?
Ecobee supports most 24-volt HVAC systems, including single-stage and some multi-stage configurations, gas furnaces, electric furnaces, and heat pumps. Review Ecobee’s compatibility guide for your exact model.
Ecobee works with many 24-volt systems. Check your wiring and the Ecobee compatibility list for your setup.
Is professional installation required?
Most homeowners can install Ecobee themselves if they’re comfortable with basic electrical work and wiring. Complex systems like high-voltage or certain multi-stage setups may benefit from professional help.
DIY is common for Ecobee installs, but consider professional help for complex HVAC systems.
How long does installation take?
A typical installation takes about 60 to 90 minutes, depending on system complexity and whether a PEK is needed.
Most people finish in under 2 hours, depending on your system.
How do I connect Ecobee to Wi‑Fi?
During setup, select your 2.4 GHz network and enter credentials. Ensure your router allows Ecobee services and that you’re granting necessary permissions for remote access.
Connect the thermostat to your Wi‑Fi during setup by selecting your network and entering the password.
What should I do if sensors read incorrectly?
If sensor readings seem off, relocate sensors away from heat sources, drafts, and sun exposure. Recalibrate by adjusting placement and re-checking the readings after a day.
Move sensors away from heat and drafts and recheck readings after a day.
Watch Video
Main Points
- Verify HVAC compatibility before buying
- Label wires to prevent miswiring
- Use PEK if no C-wire exists
- Test heating and cooling after setup
