Thermostat Install Near Me: Step-by-Step Guide
Learn how to install a thermostat near you with step-by-step instructions, safety checks, and troubleshooting tips. This guide covers tools, wiring basics, compatibility, and configuration to improve comfort and energy efficiency.
You can install a connected thermostat near you by choosing a compatible model, turning off power, mounting the thermostat, wiring to the HVAC control board, and testing the system. This guide covers safety checks, wiring basics, and configuration steps, plus common troubleshooting. Expect 60-90 minutes for a typical home installation, depending on wiring and existing HVAC setup.
What you’ll learn and why it matters
If you’ve searched for 'thermostat install near me', you’re likely aiming for a reliable method to upgrade to a programmable thermostat to save energy and improve comfort. This guide walks homeowners, renters, and DIY enthusiasts through a safe, code-compliant installation, from selecting a compatible thermostat to final testing. You’ll learn how to assess your current wiring, determine if a C-wire is required, and plan for potential alternatives when wiring is limited. Throughout, Install Manual provides practical, brand-supported guidance to keep you on track and safe.
Tools and safety prerequisites
Before you start, gather essential tools and check local code requirements. You’ll need a screwdriver set (Phillips and flathead), a non-contact voltage tester, a wire stripper/culler, electrical tape, a ruler or level, and a small drill with bits if you’re mounting on a wall that requires wall anchors. A modern thermostat requires a C-wire for power in many models; if your system lacks a C-wire, you’ll either run one or choose a power-stealing or battery-powered option. Always verify your HVAC power is off and confirm with a voltage tester before touching wires. Safety first.
Compatibility and planning for different systems
Thermostats come in wired and wireless varieties. Most homes with forced-air furnaces or central AC can accept a modern smart thermostat, but support varies by control board and equipment. Check that your HVAC system uses standard wiring colors and that the thermostat’s wiring terminal labels (R, C, W, Y, etc.) align with your unit. If you’re renting, ensure landlord permission and consider a model that’s easy to remove without damage. When in doubt, consult your equipment manual or Install Manual’s compatibility notes for guidance.
Wiring basics and mounting considerations
The core task is connecting the thermostat’s terminals to the same control wires from your HVAC system. Typical wires include R (power), C (common), W (heat), Y (cool), and G (fan). If you don’t have a C-wire, you may need to pull one from the furnace/air handler or use a compatible power connector. Mounting should be level and secure; use the mounting plate supplied with the thermostat and confirm that the wall surface holds the screws firmly. For safety, avoid over-tightening screws and confirm there are no exposed conductors.
Configuring, testing, and safety checks
After mounting, attach the wires to the corresponding terminals on the thermostat base, reattach the faceplate, restore power at the breaker, and run the initial setup sequence. Follow the thermostat’s prompts to configure system type (gas, electric, heat pump), fan control, and scheduling. Use the test mode to cycle heat, cool, and fan, and verify that the display shows the expected readings. If the system doesn’t respond, double-check wire connections and ensure the thermostat is receiving power.
Troubleshooting and maintenance tips
If the thermostat won’t power up, verify the 24V supply from the furnace/air handler and confirm the C-wire is connected. For incorrect readings, recalibrate sensors and check for air leaks in the return ductwork that could affect temperature sensing. Schedule routine maintenance for your HVAC system and update the thermostat firmware when available. Document your wire colors and terminal letters for future upgrades and replacements.
Quick rental and DIY considerations
Renters can often swap in a non-invasive, battery-powered thermostat or a model that does not require dedicated wiring. If you must pass through a landlord, use adhesive mounting plates and ensure you leave the walls intact upon removal. For all installations, follow local electrical safety rules and manufacturer instructions. The goal is a safe, efficient thermostat that improves comfort without damaging walls or voiding leases.
Tools & Materials
- screwdriver set (Phillips and flathead)(Prefer #2 Phillips for wall plates)
- non-contact voltage tester(Confirm power is off before wiring)
- wire stripper/cutter(Trim insulation cleanly without nicking conductors)
- level or ruler(Ensure the thermostat is mounted straight)
- tape, wire nuts, and electrical tape(Secure and insulate exposed wires)
- drill with bits and wall anchors (if mounting on drywall)(Use anchors for extra support)
- new thermostat (wiring-compatible model)(Ensure it supports your HVAC type and C-wire)
- stranded thermostat wire (at least 18-24 AWG)(Check length to reach furnace/air handler)

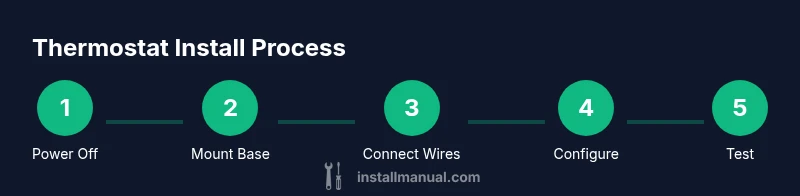

Steps
Estimated time: 60-90 minutes
- 1
Power down and verify
Switch off the circuit breaker and test to confirm no voltage at the old thermostat wires. This prevents shock and protects the HVAC control board during removal.
Tip: Use the non-contact tester on both the thermostat wires and the furnace terminals to confirm power is off. - 2
Remove old thermostat
Carefully detach the thermostat faceplate and mounting screws. Label wires if needed to keep track of R, C, W, Y, and G connections for the new unit.
Tip: Take a photo of the wiring before disconnecting to reference colors and terminal positions. - 3
Check for C-wire availability
Inspect whether a common wire (C) is present and accessible. If not, plan to run a new C-wire or use a model that can operate without it.
Tip: If you don’t have a C-wire, avoid forcing it; use a power extender kit if supported by your thermostat. - 4
Mount the new base
Attach the thermostat base to the wall with screws and ensure the base is level. Use the provided mounting plate and confirm it sits flush against the wall.
Tip: Double-check wall stability and avoid overtightening that could crack the plate. - 5
Connect the wires
Insert each wire into its corresponding terminal (R, C, W, Y, G) according to the thermostat’s wiring diagram. Use wire nuts for any extra length.
Tip: Trim wire ends neatly and fully insert into terminals to avoid loose connections. - 6
Configure the thermostat
Power the system back on and run the initial setup: system type, heat/cool configuration, fan settings, and schedule preferences.
Tip: Follow on-screen prompts; if you have a heat pump, select heat pump mode and enable auxiliary heat if required. - 7
Test and finalize
Test heating and cooling modes, verify temperature readings, and ensure Wi-Fi connectivity if applicable. Confirm the unit updates firmware if connected.
Tip: Keep a quick reference of wire colors and terminal names for future upgrades.
Got Questions?
Do I need to hire an HVAC technician to install a thermostat?
Most straight-forward thermostat installations can be done by a confident DIYer, especially with battery-powered models or those requiring a C-wire. If you have a complex system, gas furnace, or unfamiliar wiring, consider professional help.
Most DIYers can install a standard thermostat, but get help for complex systems or gas furnaces.
What if my existing wiring doesn’t include a C-wire?
If you lack a C-wire, you have options: run a new wire, use a power extender kit, or choose a thermostat designed for systems without a dedicated C-wire. Check the thermostat’s installation guide for compatible solutions.
Without a C-wire, use a power extender kit or choose a compatible model.
Can I install a thermostat myself in a rental unit?
Yes, many renters can swap in compatible models that don’t require permanent wiring. Use a non-invasive mounting solution and ensure you can leave walls undamaged when you move out.
Rentals can often use non-invasive thermostats; check with your landlord.
What maintenance is needed after installation?
Update firmware when available, test sensors seasonally, and clean the thermostat housing to prevent dust buildup. Regular HVAC maintenance supports consistent performance.
Keep firmware updated and test sensors seasonally.
What safety precautions should I follow during installation?
Always turn off power at the breaker, test for voltage, and avoid touching live wires. If you’re unsure about wiring, consult a professional.
Power off, test for voltage, and call a pro if unsure.
Watch Video
Main Points
- Plan wiring before starting to avoid dead ends.
- Always power off and verify circuits to stay safe.
- Label wires and photograph connections for future updates.
- Check C-wire availability or adapt with compatible models.
