How to Install a Thermostat: A Step-by-Step Guide
A detailed, safe guide for homeowners and DIYers on installing a thermostat. Learn tools, wiring basics, step-by-step instructions, and testing to ensure efficient HVAC control.
You will learn how to install a thermostat safely and correctly. This guide covers selecting a compatible model, turning off power, labeling wires, wiring the R, C, W, Y, and G terminals, mounting the unit, configuring basic settings, and testing the system to ensure reliable heating and cooling. It also highlights safety steps, common mistakes, and what to do if something seems off.
Why install a thermostat
A thermostat controls when your HVAC system turns on and off, giving you precise comfort and energy savings. For homeowners and DIY enthusiasts, installing a programmable or smart thermostat is a practical upgrade that often pays for itself in a season or two. The Install Manual team has found that a correctly installed thermostat can improve home comfort, help you tune climate settings, and reduce energy waste. By upgrading, you gain better control over daily schedules and seasonal changes, avoiding heating or cooling when you’re away. This section explains the core reasons to install a thermostat and how it fits into typical residential systems.
Compatibility and safety considerations
Before starting, verify that your HVAC system is compatible with the thermostat you plan to install. Most homes use 24-volt control wiring, but some older or specialized systems run on different voltages. Check your furnace or air handler’s label or the existing thermostat wiring to confirm voltage, terminal letters, and whether a C-wire is present. If you’re unsure, consult the system manual or a licensed professional. Safety comes first: switch off power at the circuit breaker for the HVAC circuit, and use a non-contact tester to confirm there’s no live voltage on the wires you’ll handle. The Install Manual analysis shows that following cautionary steps and confirming compatibility reduces installation errors and ensures smooth operation.
Wiring basics you should know
A standard 4- or 5-wire thermostat typically uses R (power), C (common), W (heat), Y (cool), and G (fan). The R wire supplies 24V, and the C wire completes the circuit for modern smart thermostats. If your system lacks a C-wire, some models can operate on power-d stealing methods or include a PEK, but compatibility varies. Always consult the thermostat’s installation guide for exact terminal labeling and wiring diagrams. Understanding these basics helps you map your existing wires to the new thermostat accurately and reduces the risk of miswiring.
Tools and safety checks you’ll use during the install
Gather the tools you’ll need before you start, and set a safe work environment. Ensure you have good lighting, a clean workspace, and a way to securely mount the device on the wall. If you encounter any damaged insulation or frayed wires, stop and seek professional help. As you progress, keep a photo record of the existing wiring configuration; this will serve as a reference when reconnecting wires to the new thermostat.

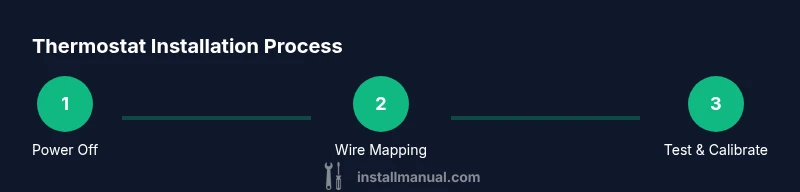

Step-by-step overview and expected outcomes
This project typically takes 30–90 minutes for a standard residential setup. You’ll end with a powered thermostat that is ready for initial configuration and test runs. Success means your thermostat accurately reads temperatures, controls heating and cooling properly, and remains securely mounted. The goal is to have a reliable, energy-efficient thermostat that is easy to program and maintain in the long term.
tools_misunderstood_notee?null?null?null:null] ,
Tools & Materials
- New thermostat (24V compatible, with C-wire capability)(Ensure it supports your HVAC system type and has a C-wire terminal if needed.)
- Screwdriver set (Phillips and flathead)(Needed to remove faceplate and secure mounting plate.)
- Non-contact voltage tester(Verify no live power before touching wires.)
- Wire labels or masking tape(Label each wire as you disconnect to aid wiring mapping.)
- Electrical tape(Seal connections and tidy wiring as you go.)
- Wire stripper or cutter(Useful for trimming insulation if wires are bulky.)
- Level (optional)(Helps keep the mounting plate perfectly horizontal.)
Steps
Estimated time: 45-75 minutes
- 1
Power off HVAC circuit
Locate the circuit breaker for the HVAC system and switch it to the OFF position. Use a non-contact tester to confirm there is no voltage on the thermostat wires before touching them.
Tip: Double-check the main power switch before you remove any faceplate. - 2
Remove old thermostat faceplate and base
Carefully detach the front cover and the mounting plate from the wall. Take note of how the base is attached and how the wires were connected, as this helps with mapping to the new thermostat.
Tip: If screws resist, gently loosen them to avoid stripping. Take a clear photo from multiple angles. - 3
Label wires and verify terminals
Label each wire with its current function (R, C, W, Y, G) and compare with the new thermostat’s terminal labels. If your old thermostat had different labeling, rely on the wire color and the label to map correctly.
Tip: A written or taped note near each wire reduces mix-ups during reattachment. - 4
Disconnect wires from the old thermostat
Gently loosen and remove each wire from its terminal. Keep wires organized and contained to prevent any contact with metal surfaces.
Tip: Do not pull wires by the cable; loosen the terminal screws first to avoid damage. - 5
Prepare the wall and check for a C-wire
Inspect the wall box for space and wires. Confirm whether a C-wire is present; if not, plan for a power-sharing option or a thermostat that works without a C-wire, per the model’s instructions.
Tip: If there’s no C-wire, consider a model that supports alternative power options or adding a C-wire with professional help. - 6
Mount the new thermostat base
Attach the new thermostat’s mounting plate to the wall using the original screws or hardware provided with the thermostat. Make sure the base is plumb and level.
Tip: A slight tilt can affect temperature readings, so use a level for accuracy. - 7
Connect wires to the new thermostat
Insert each labeled wire into its corresponding terminal on the new thermostat (R, C, W, Y, G, etc.). Tighten screws securely but avoid overtightening which could damage terminals.
Tip: Start with the R wire, then connect the C wire (if present) and the load wires to W/Y/G as applicable. - 8
Attach the faceplate and power on
Plug the faceplate onto the base and restore power at the breaker. The thermostat should power up, allowing you to begin the initial setup on screen.
Tip: If the display is dim or blank, recheck the wiring and power connection before re-seating the faceplate. - 9
Configure basic settings
Set date/time, system type (heating, cooling, or auto), and preferred temperature units. Some models offer simple guided setup; otherwise, follow the manufacturer’s on-screen prompts.
Tip: Review the system type to avoid sending heat to cooling-only equipment. - 10
Test heating and cooling functions
Run a quick test by commanding heat and then cool to verify that the thermostat properly cycles the HVAC equipment. Check for correct temperature readings and airflow.
Tip: Listen for smooth operation; unusual noises may indicate loose wiring or a misconnected terminal.
Got Questions?
Do I need a C-wire for my thermostat?
Many modern thermostats require a C-wire to power the display and electronics. If your system doesn’t have a C-wire, choose a thermostat that works without it or may require an unused conductor added by a professional. Always check the specific model’s requirements.
Most thermostats need a C-wire for continuous power; if you don’t have one, choose a model that supports non-C configurations or consult a professional.
What tools do I need to install a thermostat?
You’ll typically need a screwdriver (Phillips and flathead), wire labels, a non-contact tester, and the new thermostat. Optional items include a level and a wire stripper. Follow the thermostat’s installation guide for exact tool requirements.
A screwdriver, wire labels, a tester, and the new thermostat are usually enough for a basic install.
Can I install a thermostat myself if I have no HVAC experience?
Basic thermostat installation is doable for many homeowners with step-by-step instructions. Complex systems or gas-fired equipment may require a professional electrician or HVAC technician, especially for safety-sensitive wiring.
If you’re comfortable with basic wiring and power safety, you can try; otherwise, call a pro.
Why isn’t my thermostat powering on after installation?
First, ensure the HVAC circuit breaker is on and the thermostat is seated properly on its base. Check the wiring connections at both the thermostat and HVAC control board for loose or reversed wires.
Make sure power is on and all wires are firmly connected to the correct terminals.
How long does installation typically take?
A straightforward install usually takes 30–60 minutes, depending on wiring complexity and whether you need to add a C-wire or modify the wall box.
Most people finish in about 30 to 60 minutes.
Should I hire a professional for thermostat installation?
If you’re unsure about wiring, system compatibility, or dealing with gas-powered equipment, it’s wise to hire a licensed HVAC technician. They can ensure safe, code-compliant installation.
If you’re not confident about wiring or safety, hire a professional.
Watch Video
Main Points
- Plan for a safe power-down and verify tools before starting
- Map wires accurately to R, C, W, Y, G terminals
- Mount the base level and secure connections without over-tightening
- Follow model prompts for initial setup and testing
- Test heating and cooling to confirm correct operation
