Install Exterior Outlet: A Clear Step-by-Step Guide for Homeowners
A practical, homeowner-friendly guide to installing an exterior outlet with GFCI protection, weatherproofing, and code compliance. Learn tools, step-by-step instructions, safety tips, and cost considerations.
Install exterior outlet safely by installing a weatherproof box, GFCI protection, and a secure weatherproof cover. Plan the route away from water, shut off power at the breaker, and test the circuit before and after wiring. This guide covers tools, steps, safety tips, and cost considerations. Follow local code requirements and consult a qualified pro if unsure.
Why exterior outlets matter
Installing an exterior outlet expands your outdoor power options for tools, grills, lighting, and seasonal decor. A well-planned location and weatherproof components deliver safe, reliable power outdoors. According to Install Manual, adding an exterior outlet is a practical upgrade for many homes when you prioritize weatherproofing and correct wiring. The Install Manual team found that durable outdoor installations rely on a properly rated weatherproof box, a GFCI receptacle, and a robust weatherproof cover that seals securely against rain and humidity. In addition to convenience, outdoor outlets must meet local electrical codes to protect you and your property. By thinking through location, materials, and protection from the elements, you reduce maintenance and call-backs over time. When you start, outline your goals (what you’ll power and how often you’ll use it) and check for existing circuits that can share a safe path. Keeping a simple plan helps you order the right parts and avoid unnecessary work later.
Safety first: codes, GFCI, and weatherproofing
Outdoor power outlets require extra protection against moisture and accidental contact. A weatherproof, 1) GFCI-protected receptacle, 2) weatherproof box, and 3) proper sealing are essential. This section covers ground-fault circuit interrupter requirements, box ratings (UL weatherproof), and weather seals. Ensure your installation complies with the NEC and local amendments. The goal is to prevent shocks, short circuits, and water ingress. If you’re unsure about grounding or conduit use, consult a licensed electrician or refer to NFPA guidance and local codes. The Install Manual team emphasizes checking for water exposure and ensuring the enclosure remains accessible for testing while keeping the exterior surface clean.
Planning and layout: location, distance, and path
Choose a location that minimizes wiring length and avoids water sources like sprinklers and downspouts. Plan a clean path from the existing circuit and decide whether to pull NM-B or run conduit with THHN conductors. Mark drilling points carefully, accounting for blockages, studs, and brickwork. Use a pencil to mark the opening and check that the weatherproof cover will fully clear the wall when opened. This planning reduces field edits and keeps your installation neat. The guidance from Install Manual stresses that accurate planning saves time and reduces the chance of damage to siding or insulation during routing.
Selecting components: weatherproof box, receptacle, cover, and wiring
Select components rated for outdoor use: a weatherproof box (in-use or standard, depending on cover), a GFCI receptacle, and a matching weatherproof cover. Choose exterior-rated NM-B or conduit with THHN conductors, depending on your route. Gather clamps, strain relief, gasket seal, and corrosion-resistant screws. Verify the receptacle color coding (hot, neutral, ground) and keep grounds intact. When in doubt, refer to the manufacturer’s wiring diagram and NEC guidelines. The Install Manual guidance highlights the importance of matching components to your climate and enclosure rating to prevent moisture intrusion.
The installation plan: preparing, wiring, and mounting
Assemble now: shut off the circuit, prepare the wall opening, mount the weatherproof box, and secure with screws and sealing. Run wiring or conduit, feed wires into the box, and connect hot to brass, neutral to silver, and ground to green. Tighten all connections, re-check strain relief, and ensure there’s no stress on conductors. Install the GFCI receptacle and seal the box with a gasketed cover. Be sure to torque screws to manufacturer specs and maintain weatherproof integrity. The step-by-step approach prevents loose connections and reduces service calls.
Testing, maintenance, and reliability
Power up and test the outlet using a tester on the GFCI. Verify the test and reset functions work, and check for any moisture inside the box after a rain. Re-seal gaps and ensure the cover closes properly. Schedule periodic inspections for wear, corrosion, or seal degradation, especially in freeze-thaw climates. The Install Manual team notes that regular maintenance dramatically extends outdoor outlet life and reduces the risk of corrosion and failure.
Authoritative references
For readers who want to dive deeper into outdoor electrical safety and code requirements, consult these official sources. The U.S. Department of Energy outlines general safety practices and energy efficiency considerations that apply to outdoor installations. OSHA provides broad workplace electrical safety guidelines that translate well to home projects, including lockout/tagout principles and safe testing procedures. The National Fire Protection Association (NFPA) maintains the National Electrical Code (NEC), which sets the standards for wiring methods, grounding, and equipment used outdoors. Always verify the latest code updates in your jurisdiction and refer to the manufacturer’s installation instructions in tandem with these references.
Tools & Materials
- Outdoor-rated weatherproof electrical box(UL Listed for exterior use; chase for a weatherproof installation)
- GFCI outdoor receptacle(Tamper-resistant recommended, weatherproof when installed)
- Weatherproof outlet cover(Ensure it remains weatherproof when closed)
- Outdoor-rated conduit or exterior NM-B cable(Use conduit in damp or exposed areas)
- Conduit fittings and connectors(Accepts THHN wires; seals tightly)
- THHN conductors or exterior-rated NM-B(Follow NEC color code: black, white, green/bare)
- Non-contact voltage tester(Verify no power before wiring)
- Wire stripper and screwdriver set(Precision tools for clean connections)
- Exterior-grade caulk or sealant(Seal around box edges to keep water out)
- Electrical tape and cable clamps(Secure and insulate wiring as needed)

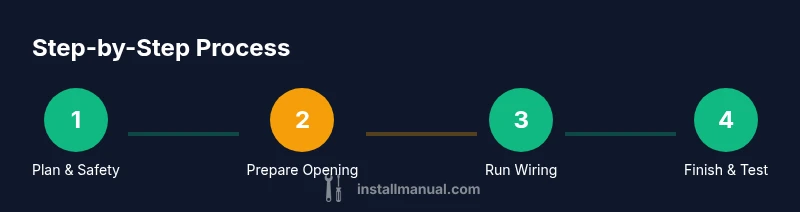

Steps
Estimated time: 60-180 minutes
- 1
Shut off power and verify
Turn off the circuit breaker that feeds the intended outlet and verify with a voltage tester that no voltage is present at the conductors you will touch.
Tip: Double-check with a tester before touching wires. - 2
Plan your outlet location
Choose a dry, accessible wall location with adequate clearance for a weatherproof cover and the cord length you need; mark the rough opening and ensure there’s a clear path for routing.
Tip: Avoid low spots where water collects. - 3
Run wiring or conduit
Pull exterior-rated NM-B cable or install conduit with THHN conductors from your panel to the box location; maintain proper support, strain relief, and protection from physical damage.
Tip: Use conduit in exposed outdoor areas. - 4
Mount the weatherproof box
Cut the opening, secure the box to the wall, and apply exterior caulk to seal gaps around the box.
Tip: Screw from the inside where possible to minimize leaks. - 5
Connect wires to GFCI receptacle
Inside the box, connect hot (black) to the brass terminal, neutral (white) to silver, and connect the ground to the green grounding screw; torque to manufacturer specs.
Tip: Keep neutrals and grounds well separated if you’re not continuing a circuit. - 6
Install weatherproof cover and gasket
Attach a weatherproof cover rated for outdoor use and ensure the gasket seals the opening when closed.
Tip: Choose a cover that avoids trapping heat or moisture. - 7
Restore power and test
Turn the breaker back on and test the outlet with a tester; verify the GFCI test and reset functions work.
Tip: Test the outlet with a tester after turning the power back on and press the GFCI test button. - 8
Documentation and finish
Label the circuit and outlet, tidy cables, and keep a record of the installation for future maintenance.
Tip: Keep installation notes and tolerances for future upgrades.
Got Questions?
Do I need to hire an electrician to install an exterior outlet?
In many cases, a straightforward exterior outlet can be installed by a confident DIYer, but electrical work on exterior walls involves additional safety and code considerations. If you’re unsure about wiring, grounding, or permits, hire a licensed electrician.
You can do it yourself if you’re comfortable with electrical work, but if in doubt, hire a licensed electrician.
Should exterior outlets have GFCI protection?
Yes. Exterior outlets should be GFCI-protected to reduce the risk of shock in wet conditions. Install a weatherproof GFCI receptacle or a standard receptacle with a GFCI breaker.
Yes, you should use GFCI protection for outdoor outlets.
What kind of weatherproof cover is required?
Choose a weatherproof cover rated for exterior use that remains weatherproof when closed. In-use covers provide extra protection for outlets that stay plugged in.
Use a weatherproof cover rated for outdoors, preferably an in-use cover if you’ll leave devices plugged in.
Can I run wiring through walls without conduit?
Outdoor wiring typically requires conduit or exterior-rated cable; many jurisdictions require conduit in damp or exposed areas. Check local amendments and code requirements before routing.
Outdoors, you usually need conduit or exterior-rated cable; follow local rules.
How do I test the outlet after installation?
Turn the power back on and use a tester to check voltage, polarity, and GFCI functionality. Press the test button to confirm the GFCI trips as expected.
Test the outlet with a tester after turning the power back on and press the GFCI test button.
Watch Video
Main Points
- Plan thoroughly before cutting openings.
- Use weatherproof, GFCI-protected components.
- Seal and protect all outdoor wiring.
- Test thoroughly and maintain regularly.
- Document the installation for future safety.
