Electrical Outlet Install: Safe, Step-by-Step DIY Guide
Learn to install an electrical outlet safely with a clear guide. This Install Manual article covers tools, wiring basics, safety checks, and code considerations.
By following this guide, you will install a standard electrical outlet safely and correctly, meeting typical residential electrical code requirements. You’ll learn prerequisites, essential safety steps, and the core wiring connections. This quick plan helps homeowners prepare, verify power is off, and complete a code-compliant outlet installation with confidence. If you are uncertain, pause and seek professional guidance from Install Manual.
Safety First: Understanding Hazards and Codes
Installing an electrical outlet places you in proximity to live wiring and potentially dangerous voltage. Before you touch any conductor, ensure you understand local electrical codes and safety practices. Always switch off the correct circuit on the main panel and verify there is no voltage present at the work site using a reliable tester. Recognize common hazards like energized conductors, improper grounding, and loose terminations that can overheat. This section from Install Manual emphasizes planning, protective equipment, and safe handling of metal boxes and conductors. If you’re unsure about house wiring, consult a licensed electrician before proceeding. Take your time and don’t rush through this critical step to avoid shock or fire risks.
Tools, Materials, and Prep Work
Having the right tools and materials ready saves time and reduces mistakes. You’ll need a compatible electrical box, a new receptacle, a non-contact voltage tester, a set of screwdrivers (flathead and Phillips), needle-nose pliers, wire strippers, electrical tape, a tape measure, a pencil, and a stud finder for locating studs. Include a flashlight, dust mask, and a drywall saw if you’re opening a wall. Choose a box that fits the wall depth and circuit rating. Have replacement wires or pigtails on hand if you’re upgrading an old outlet. Follow manufacturer instructions and local codes to ensure a safe, lasting connection.
Planning Box Location and Wall Opening
Choose an outlet location with accessibility and code compliance in mind. Standard outlets are typically placed 12–18 inches above the floor in living areas, but bathrooms, kitchens, and garages follow different rules. Use a stud finder to avoid hitting pipes or wires, and plan routing so you don’t create sharp bends that damage insulation. If drywall mounting is required, select an appropriate old-work or new-work box and mark the outline before cutting. Dry-fit the box to check alignment with the faceplate, then prepare for wire routing and securing the box.
Wiring Basics and Code Considerations You Should Know
New work may require running conductors from the panel with the correct gauge (commonly 14 AWG for 15A or 12 AWG for 20A) and protective sheathing. If replacing an existing receptacle, work with the current wiring and observe proper grounding. Grounding is mandatory; connect the ground to the outlet’s green screw and the metal box if used. Maintain correct polarity: hot to brass, neutral to silver, and ground to green. When multiple cables share a circuit, use pigtails to connect to the new outlet instead of forcing all wires under a single terminal. Always follow the NEC and local amendments, and consult an electrician if you doubt any step.
Installing the Outlet: Step-by-Step Overview

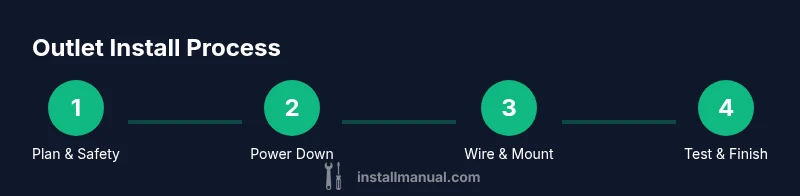

This section provides a high-level view of the installation process to set expectations before you dive into each action. Plan the route for wires, prepare the box and receptacle, and verify that the circuit is de-energized. Next, install the electrical box, route conductors, and make the proper terminations. Finally, mount the receptacle, install the faceplate, restore power, and test for correct operation. Following a methodical approach helps prevent miswiring and ensures a durable, code-compliant result.
Installing the Outlet in a Typical Wall Scenario
In a common, wall-mounted scenario, you’ll replace an existing outlet or install a new box in an accessible location. Start by removing the existing device if present, labeling wires, and ensuring the box is secure. Attach ground and neutrals first, then connect the hot conductor to the brass terminal. Tighten all screws securely but avoid overtightening. Mount the receptacle and faceplate, then snug the screws and test the outlet with a tester to verify proper voltage, grounding, and polarity. If you encounter stripped screws or damaged conductors, pause and reassess rather than forcing the connections.
Testing, Troubleshooting, and Finishing Touches
After restoring power, test the outlet with a non-contact tester and a multimeter if available to confirm voltage and proper grounding. Look for warmth during extended use and verify that the faceplate sits flush against the wall. If the outlet doesn’t test correctly, double-check wiring polarity and ground continuity, inspect for loose screws, and confirm the box is properly secured. Replace any damaged components and re-test. Finally, tidy the workspace, label the circuit in the panel, and store tools safely for the next project.
Authoritative Sources
- OSHA: https://www.osha.gov
- NFPA Codes & Standards: https://www.nfpa.org/codes-and-standards
- U.S. DOE Energy Saver Electrical Safety: https://www.energy.gov/eere/buildings/articles/electrical-safety
Tools & Materials
- Voltage tester (non-contact)(Test power is off at the work site before touching wires.)
- Flathead screwdriver(Use a small or medium screwdriver that fits outlet screws.)
- Phillips screwdriver(Philips #2 is common for outlets.)
- Needle-nose pliers(For bending and gripping wires.)
- Wire strippers(Strip insulation to 3/4 inch length.)
- Electrical tape(For insulating wire leads when needed.)
- New electrical box(Ensure depth fits wall and rating matches circuit.)
- Outlet receptacle(Grounding and polarity must be correct.)
- Cable clamps(Keeps wires secured to the box.)
- Flashlight(Illumination in dark work areas.)
- Stud finder(Helpful for locating mounting points in walls.)
- Utility knife(For opening packaging or trimming drywall edge)
Steps
Estimated time: 45-90 minutes
- 1
Power down and verify
Switch off the circuit at the main panel and use a non-contact tester to confirm the area is de-energized. Do not proceed if voltage is detected. This step protects you from electric shock and prevents accidental wiring mistakes.
Tip: Always double-check the tester against a known live source before starting. - 2
Remove or prepare the outlet location
If replacing an existing outlet, remove the faceplate and device, then photograph or label wires. If installing a new box, mark the location and cut the drywall opening carefully, ensuring space for the box and depth compatibility.
Tip: Label wires as you disconnect them to avoid reversal during reassembly. - 3
Install box and route conductors
Mount the electrical box securely to a stud or to a wall surface with appropriate hardware. Run the circuit conductors into the box, leaving about 8–12 inches of slack for wiring terminations.
Tip: Use clamps to prevent movement and protect insulation from pinching. - 4
Make wire connections to the outlet
Connect the ground wire to the green screw, hot (usually black) to the brass terminal, and neutral (white) to the silver terminal. If multiple wires are present, use a pigtail to connect them to the outlet.
Tip: Polarity matters; reversing hot and neutral can create hazards. - 5
Mount the outlet and secure the box
Carefully push wires into the box, align the outlet, and secure with screws. Attach the faceplate and ensure the outlet sits flush with the wall surface.
Tip: Avoid over-tightening screws which can crack the outlet or box. - 6
Test the finished outlet
Restore power at the panel and test the outlet with a voltage tester and a lamp or tester to verify correct voltage, grounding, and polarity. Address any readings outside normal ranges before finalizing the job.
Tip: If readings are off, recheck connections and grounding before using the outlet.
