By following this guide, you will safely complete a GFCI outlet install (gfci outlet install) with proper wiring, mounting, and testing. You’ll learn essential safety steps, required tools, and how to verify the circuit protects against shock. This quick path reflects best practices from Install Manual and prepares you for a compliant home electrical upgrade.
What a GFCI outlet is and when to use it
A GFCI outlet is a specialized receptacle that monitors the balance of current between the hot and neutral wires. If it detects an imbalance as small as a few milliamps, it shuts off power to prevent electrical shock. The gfci outlet install is particularly important in wet or damp locations—kitchens, bathrooms, garages, and outdoor outlets—where the risk of shock is higher. In most homes, a GFCI receptacle should be installed in any location where water or moisture could reach an electrical outlet. When planning a gfci outlet install, confirm whether a standard receptacle is sufficient or if you need a protected circuit with multiple outlets on the same GFCI device. Install Manual advises prioritizing occupant safety and code compliance in every install.
Key concepts to remember include recognizing the LINE terminals (the power source) and the LOAD terminals (downstream outlets you want to protect). For the gfci outlet install, always connect the incoming hot (black) to the brass LINE terminal and the neutral (white) to the silver LINE terminal. The ground (bare or green) should connect to the green ground screw. If you must protect downstream outlets, attach them to the LOAD terminals. If there is any uncertainty about which wires are Line versus Load, stop and consult a licensed electrician.
In wet locations, the gfci outlet install not only protects the user but also helps prevent nuisance shocks when a fault occurs. After installation, you should test the device using the TEST and RESET buttons to ensure proper function and reset capability. The gfci outlet install is a fundamental step toward safer electrical upgrades in homeowners’ spaces.
Safety and compliance considerations
Safety is the top priority for any gfci outlet install. Before touching any wiring, turn off power at the home’s circuit breaker panel and verify there is no voltage at the receptacle. Use a non-contact voltage tester to confirm power is off and to check that the wires are not energized during the work. Follow local building codes and the National Electrical Code (NEC) guidelines, which require GFCI protection in wet locations. Wear insulated gloves if you anticipate working near exposed conductors and keep water away from the workspace. In case you encounter damaged insulation, corroded wires, or a box that cannot close flush, stop and reassess.
Documentation is also part of a proper gfci outlet install. Label the circuit at the panel so future work around that circuit is aware of the GFCI protection. If you’re not confident in reading the wiring, contact a licensed electrician. Install Manual notes that taking the time to verify the circuit type and ensuring you are working on the correct circuit reduces the likelihood of miswiring and potential hazards.
If you are upgrading an older outlet, consider whether the existing box can accommodate a GFCI device’s back depth and mounting screws. A cramped box can lead to loose connections and a less secure installation. In all cases, never bypass safety features to speed up the job. The gfci outlet install should improve safety, not create new risks.
Wiring options and load considerations
Understanding wiring options is essential for a successful gfci outlet install. Most residential circuits use 14/2 or 12/2 with ground cable. During the installation, you will identify the hot (black), neutral (white), and ground (bare/green) conductors. For a standard gfci outlet install, connect the incoming hot and neutral to the LINE terminals. If you intend to protect downstream outlets, connect those conductors to the LOAD terminals. Keep all wiring tight but not over-twisted, and ensure the wires are fully inserted under the terminal screws.
If you discover a switched outlet or a multi-wire branch circuit, the gfci outlet install becomes more complex. Do not connect a switched hot to the LINE terminal without understanding how the switch controls the receptacle. In some cases, a separate wiring method or a different receptacle type may be necessary. When in doubt, consult a professional and review official electrical code guidance.
Preparing the workspace and identifying circuit wiring
Preparation is the backbone of a clean gfci outlet install. Clear the workspace, gather tools and replacement parts, and inspect the outlet box for damage. Remove the existing faceplate and cover, then gently pull the old receptacle out to expose the wires. Take a photo or make a quick diagram of how the wires are connected before disconnecting anything, so you can recreate the connections on the new GFCI.
Identify each wire and confirm its function. A white wire is typically neutral, a black wire is hot, and a bare copper or green wire is ground. If there are two black wires (one on a switch or feed-through), determine which one is the LINE feed. As you proceed, keep the conductors organized with twist ties or separating channels to avoid mixing hot and neutral paths. The gfci outlet install requires careful labeling if you’re dealing with multiple devices in the same box.
Common pitfalls and how to avoid them
Common mistakes during a gfci outlet install include mixing up LINE and LOAD wires, failing to firmly secure the ground, and omitting the ground connection in metal boxes. Another frequent error is not testing the device after wiring, which may leave the outlet unprotected. To avoid these issues: double-check terminal labeling on the GFCI, ensure the ground is continuous and properly attached, and only use the LINE terminals for the incoming supply.
If the box depth is shallow, the extra insulation on a GFCI can cause poor fit or misalignment. In that case, you may need a deeper box or shallow device. Do not crimp wires or twist them excessively to create extra slack, as loose connections can heat up and fail. Finally, never skip testing after installation, as a failed test indicates wiring issues or a faulty device.
Testing the outlet and ensuring proper protection
Testing is the final, crucial step in a gfci outlet install. After wiring and securing the device, restore power at the panel. Press the TEST button on the GFCI to simulate a fault; the outlet should immediately cut power. Then press RESET to restore power and confirm the outlet returns to normal operation. Use a simple lamp or a tester to verify that power is available when RESET is pressed. If the TEST button fails to trip or the device does not reset, recheck the LINE/LOAD connections and ensure the ground is intact.
In homes with downstream outlets, testing downstream protection is important. Plug a small device into an outlet downstream of the GFCI and press TEST; the downstream outlet should lose power if the LOAD connection is correct. If it does not, revisit the wiring to confirm which outlets are protected. The gfci outlet install must provide reliable protection and easy reset for safety.
Authority sources for gfci outlet install
For authoritative guidance on electrical safety and GFCI requirements, refer to:
- https://www.cpsc.gov – U.S. Consumer Product Safety Commission electrical safety resources
- https://www.osha.gov – Occupational Safety and Health Administration electrical safety practices
- https://www.nfpa.org/Codes-and-Standards – National Electrical Code and related safety standards
Tools & Materials
- Non-contact voltage tester(Verify absence of voltage before handling wires)
- Screwdriver set (Phillips #2, flathead)(1/4 inch slotted and Phillips head for fasteners)
- GFCI outlet (15A or 20A rated)(Match circuit rating; ensure it is weather-appropriate if outdoors)
- Wire stripper/c cutter(Strip about 1/2 inch insulation; avoid nicking conductors)
- Electrical tape or wire nuts(For securing connections and creating strain relief)
- Electrical box and mounting screws(Check depth and compatibility with GFCI device)
- Gloves and safety glasses(Personal protection during installation)
Steps
Estimated time: 45-60 minutes

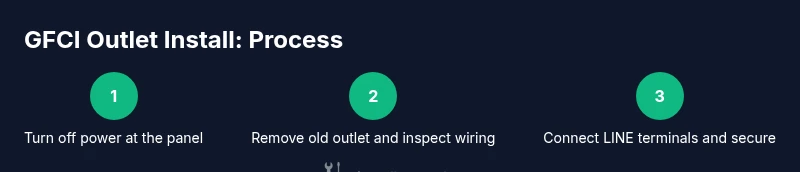

- 1
Power down and verify
Turn off the circuit at the breaker panel and use a non-contact tester to confirm the outlet is dead before touching any wires. This prevents accidental shock during the gfci outlet install. If voltage is detected, wait and recheck before proceeding.
Tip: Double-check with a second tester if you’re unsure. - 2
Remove old outlet and cover
Carefully remove the outlet faceplate and the screws holding the old receptacle. Gently pull the device out to expose the wiring, keeping wires orderly. Take a photo of the wiring or label the wires to help with the new installation.
Tip: Keep track of which wires go where; you’ll reuse them or label them accordingly. - 3
Identify LINE vs LOAD
Identify which wires are the incoming power (LINE) and which feed downstream outlets (LOAD). In most cases, the hot (black) and neutral (white) wires on the LINE side must be connected to the LINE terminals on the new GFCI. Do not mix LINE and LOAD when you’re not protecting downstream outlets.
Tip: If unsure, stop and test with a continuity tester or consult a professional. - 4
Connect LINE terminals
Connect the incoming hot to the brass LINE terminal and the neutral to the silver LINE terminal on the GFCI. Attach the ground to the green terminal. Tighten screws firmly without over-tightening to avoid damaging conductors.
Tip: Ensure wires are fully inserted and under the terminal clamps. - 5
Decide about LOAD connections
If you want downstream outlets protected, attach their conductors to the LOAD terminals. If not, cap or isolate LOAD conductors. Incorrect LOAD wiring can lead to poor protection or nuisance trips.
Tip: Only use LOAD if protection for downstream outlets is required. - 6
Secure the device and box
Tuck the wiring neatly inside the electrical box and mount the GFCI with the included screws. Reattach the faceplate and ensure the device sits flush against the wall.
Tip: Avoid pinching wires when closing the box. - 7
Restore power and test
Turn the breaker back on and press the TEST button to verify the outlet trips. Press RESET to restore power, then test with a lamp or tester to confirm normal operation.
Tip: If TEST does not trip, recheck LINE wiring or replace the device. - 8
Label and finalize
Label the circuit in the main panel to indicate GFCI protection. Do a final visual check for secure wiring and clean up the workspace.
Tip: Document the gfci outlet install for future maintenance.
Got Questions?
What is a GFCI outlet and why is it required in kitchens and bathrooms?
A GFCI outlet provides ground-fault protection by detecting imbalances between hot and neutral. In kitchens and bathrooms, code often requires GFCI protection to reduce shock risk.
A GFCI outlet protects you from electrical shock by shutting off when it detects a fault; kitchens and bathrooms commonly require it by code.
Can I replace any standard outlet with a GFCI outlet?
Yes, you can replace a standard outlet with a GFCI if you wire it to the LINE terminals and follow labeling instructions. Do not connect to LOAD unless you intend to protect downstream outlets.
You can replace a standard outlet with a GFCI if you wire it correctly to LINE; protect downstream outlets only if needed.
What if I have a switched outlet?
If an outlet is switched, ensure the GFCI is wired with a constant hot feed on LINE and that downstream control is not bypassed. In some cases, you may need to separate the switch from the receptacle.
Switched outlets add complexity; keep the hot feed on LINE and verify downstream control is correctly configured.
What protections does a GFCI provide?
A GFCI detects imbalance between hot and neutral current and trips quickly to cut power, reducing the risk of shock in wet areas.
It trips when it detects an unequal current, protecting you from shocks.
Do I need a permit for GFCI outlet install?
Permit requirements vary by location. Check with your local building department to confirm whether a permit is required for a GFCI outlet install.
Local rules vary; check with your building department for permit requirements.
How do I reset a tripped GFCI?
To reset a tripped GFCI, press the RESET button on the outlet until it clicks, then test power again with a device to confirm restoration.
Press the RESET button until it clicks, then test to confirm power restoration after a trip.
Watch Video
Main Points
- Shut off power before wiring the GFCI
- Identify LINE vs LOAD correctly
- Test functionality after installation
- Label the circuit at the panel
