How to Install an Outdoor Outlet: DIY Guide

Outdoor outlet installation: safety, codes, and planning

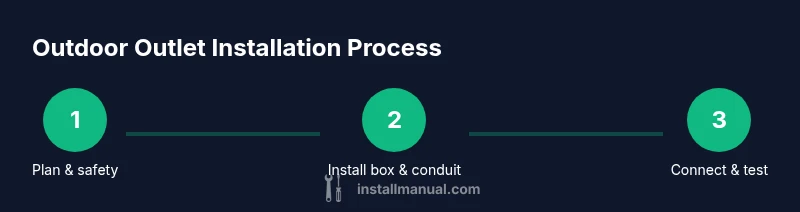

Installing an outdoor outlet starts with safety, permits where required, and understanding local electrical codes. Before you touch any wires, confirm the circuit is de-energized and test with a non-contact tester. Plan the location to minimize exposure to water spray, avoid buried utilities, and choose a route that keeps wiring protected by conduit or a weatherproof enclosure. This section lays the groundwork for a safe, durable outdoor power solution that meets general best practices and common code requirements. The Install Manual team emphasizes weatherproofing, GFCI protection, and a clearly labeled circuit for future maintenance.

Key terms to know include GFCI protection, weatherproof enclosures, and rain-rated outlets. By starting with a solid plan, you’ll reduce the need for rework and minimize risk during installation.

Choosing the right outdoor outlet and enclosure

Outlets used outdoors must be weatherproof and GFCI-protected. Select a duplex outlet rated for exterior use and pair it with a weatherproof, outdoor-rated enclosure that includes a gasketed cover. The box should be mounted securely to a solid surface, not hanging from screws alone. Consider the intended height (commonly 12–18 inches above grade) and whether the outlet will be used with power tools, landscape lighting, or a hose reel. Using a proper enclosure prevents moisture intrusion and keeps connections dry over time.

Look for labels like “outdoor,” “rainproof,” and “in-use” on the cover. If you’ll be using the outlet in a damp area, ensure the outlet accepts wet-location use and can handle the load you plan to draw.

Planning routing, grounding, and weatherproofing for durability

Plan an unbroken, protected route from the main panel to the outdoor box. Use conduit (PVC for underground or EMT for exposed runs) to shield conductors from physical damage. Ensure you pull the correct wire gauge according to circuit rating (typically 14 AWG for a 15A circuit or 12 AWG for a 20A circuit, with professional confirmation). Grounding must be continuous back to the panel; avoid relying on metal siding as a ground path. Weatherproofing requires sealing all conduit penetrations and applying sealant around the box to keep moisture out.

Document the routing path for future maintenance and ensure you have enough conduit length and fittings to create clean, gentle bends without kinks.

Wiring considerations: conduit, grounding, and protection

Install conduit from the panel to the outdoor outlet location, making turns with gentle bends to keep wire pull feasible. When wiring, connect hot to the brass terminal, neutral to the silver terminal, and the ground to the green grounding screw. If your outlet is GFCI, test the test and reset buttons after wiring. Use approved connectors and strain reliefs to prevent wires from pulling loose. Conduit should be sealed at both ends and supported at regular intervals to prevent sagging.

Always turn off the main breaker before opening the panel and verify zero voltage at every access point with a tester. Protect all splices with appropriate wire nuts and tape, and keep indoor conductors away from outdoor exposure to avoid deterioration over time.

Safety checklist and testing steps

Before energizing, re-check that all connections are tight and that the enclosure is fully weatherproofed. Install a GFCI tester to confirm ground fault functionality; test the reset button and ensure the outlet powers on under load. Once energized, test the outlet with a multimeter or voltage tester to verify correct voltage and polarity. If anything reads abnormally, power down and re-check wiring, then consult an electrician if needed.

Record the test results and keep a simple log of dates and readings for future maintenance.

Authority and referenced standards

Standards referenced in outdoor outlet installations include general electrical safety guidelines and code recommendations. Always verify against local amendments and the National Electrical Code (NEC) where applicable. The references below provide background on outdoor electrical safety and code considerations. Visit the sites for the most current guidance and state-specific rules.

• U.S. National Fire Protection Association (NFPA): NEC guidelines and code summaries
• OSHA electrical safety information center: outdoor electrical work safety tips
• Independent standards and technical resources from established safety bodies

Maintenance and long-term care

Periodically inspect outdoor outlets for signs of moisture intrusion, corrosion, or loose fittings. Replace weatherproof gaskets if they become brittle, and ensure the enclosure cover seals tightly after use. Test the GFCI function monthly and after any suspected power surge or fault. Clean the surrounding area to prevent debris buildup that could trap moisture and compromise the enclosure.
