How to Install a GFCI Outlet: Step-by-Step Guide
Learn how to install a GFCI outlet safely with a comprehensive, homeowner-friendly guide, including tools, wiring basics, testing, and troubleshooting for kitchens, bathrooms, and outdoors.
With this guide, you will learn how to install a GFCI outlet safely in standard circuits. You'll need a GFCI receptacle, a voltage tester, a screwdriver, electrical tape, and basic safety gear. We'll walk through turning off power, verifying the circuit, wiring LINE and optional LOAD, mounting, and testing the outlet for proper operation.
What is a GFCI outlet and why install one?
A GFCI outlet, short for ground fault circuit interrupter, is a safety device designed to detect ground faults and cut power within a fraction of a second. It protects people from electric shock, especially in areas with moisture such as kitchens, bathrooms, garages, basements, and outdoor spaces. When you ask yourself how to install a gfci outlet, you’re choosing a proactive safety upgrade that reduces the risk of shock when moisture enters the electrical system. GFCIs monitor the current balance between the hot and neutral conductors; if an imbalance is detected, they trip and shut off power. Modern homes use GFCIs to meet electrical codes, and they can protect downstream outlets when wired with the LOAD terminals. This guide will show you, step by step, how to install a gfci outlet in a typical single-gang box, reinforcing good habits for future DIY projects.
How GFCI protection works
- The device continually monitors current flow.
- If leakage to ground occurs, the device trips.
- The Reset button re-energizes the circuit when safe.
This is an essential safety feature for everyday living spaces and a cornerstone of DIY electrical projects. The phrase how to install a gfci outlet appears frequently here to reinforce the core task and keep the topic front of mind for homeowners who want practical guidance from Install Manual.
Planning the install: where a GFCI is required
According to modern electrical codes, GFCI protection is required in many locations, including kitchens and bathrooms, and in outdoor outlets. If you’re replacing an existing outlet, you may be able to reuse the box and wiring, but you must verify that the wiring and box meet the GFCI’s mounting and depth requirements. For a straightforward install, you’ll typically use a standard 1-gang box, a 15-amp circuit, and a 120-volt GFCI outlet. The goal is to create a protected, reliable connection that rides out minor surges while protecting people from shock. This section introduces the task and sets expectations for homeowners tackling how to install a gfci outlet.
Safety first: prerequisites and personal protective equipment
Before you begin any electrical work, ensure you have the right safety gear: safety glasses, insulated gloves, and a non-conductive workspace. Turn off the circuit at the main panel, then verify no voltage at the outlet location using a non-contact voltage tester or a multimeter. Do not rely on the light switch alone to determine power status. Clear the workspace, remove any clutter, and ensure you can access the wiring without pinching cables. Living spaces near water or moisture increase risk; therefore, proceed with caution and always follow the standard safety procedures when learning how to install a gfci outlet in your home.
Wiring basics: LINE vs LOAD and color codes
GFCI outlets have LINE and LOAD terminals. The LINE terminals connect to power from the panel; the LOAD terminals feed downstream outlets that you want protected. The typical color convention is black or red for hot (LINE), white for neutral, and green or bare copper for ground. Always confirm which wires are line and load using a voltage tester after you have confirmed the power is off. If there is any doubt, label the wires and consult the device’s wiring diagram. This section emphasizes the core wiring concepts you’ll use during the installation.
Where to install: kitchens, bathrooms, outdoors, and beyond
Code requires GFCI protection in kitchens and bathrooms and in outdoor locations. If you’re replacing an old outlet in a damp or wet location, ensure the new GFCI is weather-resistant (for exterior use) and rated for the environment. Indoor, dry locations typically need a standard GFCI unless local codes say otherwise. If the existing wiring is older than 20 years, consider inspecting the conductors for cracking or discoloration. This practical overview helps you decide the best placement for how to install a gfci outlet while keeping safety and compliance in mind.
Testing and commissioning: verifying proper operation
After wiring and mounting, restore power and test the unit. Press the TEST button on the GFCI to ensure it trips and cuts power, then press the RESET button to restore. Use a separate receptacle tester to confirm that power is present on the LINE side and that any downstream outlets protected by LOAD respond correctly to a test. If the GFCI will not trip, recheck connections and consult the device’s wiring diagram. This final step validates your work and confirms the effectiveness of the installation.
Troubleshooting common issues and code considerations
If the outlet trips repeatedly, it may indicate a ground fault, moisture intrusion, or an incorrectly wired LINE/LOAD connection. If the LOAD terminals are not used, keep them empty and cap any exposed conductors with wire nuts. Never connect LINE to LOAD by mistake, as this disables protection. If you’re replacing multiple outlets or adding protection to downstream devices, consider labeling the outlet clearly as GFCI-protected and test periodically to ensure ongoing safety.
Maintenance and long-term safety for GFCI installations
A GFCI outlet should be inspected every few years for signs of wear, corrosion, or loose connections. If the device becomes warm to the touch, or if the reset button is hard to press, replace the unit promptly. Keep the faceplate clean to avoid dust buildup that could interfere with operation. By following these maintenance practices, your how to install a gfci outlet project remains safe and compliant over the long term.
Tools & Materials
- GFCI outlet (15A/125V, weather-resistant for outdoor use)(Ensure it matches the circuit rating and is marked 'gfcI' or 'GFCI' )
- Non-contact voltage tester(Used to confirm power is off before handling wires)
- Voltage tester or multimeter(For confirming line vs load and verifying voltage)
- Screwdriver set (Phillips #2 and flat-head)(Used to loosen/tighten receptacle mounting screws)
- Wire stripper/cliers(For cleanly stripping insulation and trimming conductors)
- Needle-nose pliers(Helpful for bending terminals and securing wires)
- Electrical tape(Seal exposed conductors and insulate wires where needed)
- Wire nuts (assorted sizes)(Cap and secure wire splices safely)
- 1-gang electrical box (plastic or metal)(Deep enough for the GFCI and wires; standard depth is acceptable for most installs)
- Faceplate for the GFCI(Optional but recommended for a finished look)
- Safety glasses and protective gloves(Basic PPE to protect eyes and hands)

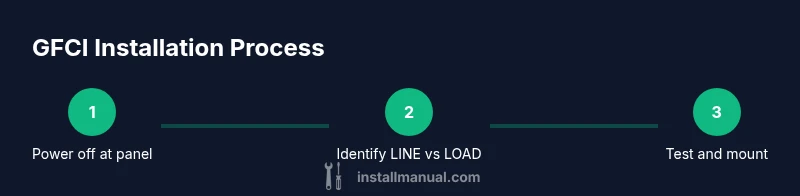

Steps
Estimated time: 60-90 minutes
- 1
Turn off the power at the breaker
Locate the circuit breaker feeding the outlet, flip it to the OFF position, and lock it if possible. Use a non-contact tester to verify there is no voltage at the receptacle location before touching wires. This protects you from shock during the entire process.
Tip: Double-check at the panel and at the outlet box with your tester before proceeding. - 2
Remove the old outlet from the box
Unscrew the faceplate, then remove the mounting screws to free the old receptacle. Gently pull the receptacle toward you to expose the wires, but don’t detach them yet. Note how the wires are connected for reference during reattachment.
Tip: Take a photograph of the wiring setup before disconnecting anything to help with accuracy later. - 3
Identify LINE and LOAD wires
Use a voltage tester to confirm which wires are carrying power (LINE) and which feed downstream outlets (LOAD). Label the LINE wires so you don’t mix them up during installation. Remember that color conventions can vary; test to confirm rather than assume.
Tip: If you’re unsure, keep the original order, and consult the wiring diagram on the GFCI package. - 4
Connect LINE wires to LINE terminals
Attach the hot (typically black or red) wire to the HOTLINE terminal and the neutral (white) wire to the NEUTRAL line terminal on the new GFCI. Ensure a secure screw connection and snugly clamp the wire under the terminal. Ground if present, attaching to the ground terminal on the device.
Tip: Use a small amount of conductor exposed beyond the insulation, but avoid nicking the copper. - 5
Connect LOAD wires if you want downstream protection
If you want to protect downstream outlets, connect the LOAD wires to the LOAD terminals; otherwise, cap them with wire nuts and tuck them back into the box. Verify the downstream wiring remains intact and properly terminated. This step is what differentiates a standard install from a fully protected circuit.
Tip: Do not connect LOAD unless you intend to protect downstream outlets. - 6
Mount the GFCI and secure the box
Gently push the wiring into the box, then align the GFCI with the box opening. Tighten the mounting screws so the device sits flush with the wall but avoid overtightening, which can crack the device. Attach the faceplate to finish the installation.
Tip: If the device sits unevenly, loosen screws slightly and realign before final tightening. - 7
Restore power and test the outlet
Turn the breaker back on. Press the TEST button on the GFCI to ensure it trips, then press RESET to restore power. Use a separate tester to confirm voltage on LINE and verify LOAD-protected outlets respond when tested. If tests fail, recheck wiring or consult a professional.
Tip: Always perform the built-in test before relying on the outlet in daily use.
Got Questions?
Do I need a licensed electrician to install a GFCI outlet?
For a straightforward residential install in dry locations, a confident DIYer can install a GFCI outlet by following safety practices and the device wiring diagram. If you’re unsure about wiring or working in a damp environment, hire a licensed electrician to ensure code compliance and safety.
For simple home installs, a careful DIYer can do this. If you’re unsure, consider hiring a licensed electrician to ensure code compliance.
Can I install a GFCI outlet outdoors?
Yes, but use an outdoor-rated, weather-resistant GFCI and an appropriate weatherproof box. Ensure the wiring and box are protected from moisture and follow local code requirements for outdoor use.
Yes, with an outdoor-rated GFCI and weatherproof enclosure.
What is the difference between LINE and LOAD on a GFCI?
LINE are the power supply wires from the panel; LOAD are downstream wires you want protected. Misplacing these connections can disable protection or leave downstream outlets unprotected. Always wire LINE first, then add LOAD if protection is required.
LINE is the power in; LOAD protects downstream outlets. Wire LINE first, then LOAD if needed.
What tests should I run after installation?
Use the GFCI’s TEST button to verify that it trips and cuts power, then RESET to restore. Also use a receptacle tester to confirm power on LINE and, if used, protected LOAD outlets respond to tests.
Test with the built-in TEST button and a tester to verify protection and power.
What common issues prevent a GFCI from functioning properly?
Common issues include miswiring LINE/LOAD, loose connections, damaged conductors, or moisture intrusion. Recheck wiring, reseat wires, and ensure the box is dry. If problems persist, consult a professional.
Miswiring or moisture can cause trips or no power; recheck connections and consult a pro if needed.
Is GFCI protection required in kitchens and bathrooms by code?
Yes. NEC-based codes require GFCI protection in kitchens, bathrooms, and other moisture-prone areas. Always verify with local codes and ensure the installation meets current electrical standards.
GFCI protection is required in kitchens and bathrooms by code; check local rules.
Watch Video
Main Points
- Know the difference between LINE and LOAD and how to identify them.
- Always verify power is off before handling wires.
- Test GFCI protection with the built-in TEST button and a tester after wiring.
- Follow local codes and consider professional help for complex or outdoor installations.
