Outlet Install: A Step-by-Step DIY Guide for Safe Electrical Outlets

Why outlet install matters

According to Install Manual, a properly installed outlet is more than just providing power. It reduces electrical hazards, improves home safety, and supports reliable access to power in every room. A professional approach to an outlet install aligns with homeowner best practices and local code expectations. Whether you’re replacing an old outlet or adding a new one, taking methodical steps helps prevent shorts, arcing, and tripped breakers. The goal is a secure, flush, and accessible receptacle that will function safely for years. The approach outlined here applies to standard 120V outlets in typical living spaces and emphasizes clean wiring, proper grounding, and compliant box installation.

Planning and safety considerations

Before touching wires, plan the run path from the panel or the existing branch circuit. Consider clearance around the outlet (allow for appliance plugs and furniture), and whether the location is damp or wet; bathrooms, kitchens, and outdoors require GFCI protection. Follow NEC guidelines and any local amendments. Always verify power is truly off using a non-contact tester and a separate voltage tester. If you’re unsure about a circuit’s capacity or if the existing box is damaged, it’s wise to pause and consult a licensed electrician. This planning phase helps prevent overloading circuits and ensures that the outlet will operate safely for everyday use.

Location selection and box types

Choosing the right location and box reduces future rework. Use a single-gang box for standard outlets in dry locations, or a weatherproof/metal box in exposed areas. For retrofit installations, an old-work box can be anchored to the drywall without cutting a full stud bay. Ensure the box is flush with the wall surface and has enough depth for the receptacle and wiring. Correct box depth also helps avoid back-nutting cables and keeps screws accessible for a secure faceplate.

Wiring basics and circuits

Most residential outlets use NM cable (12/2 or 14/2) with a hot (black), neutral (white), and ground (bare or green). Keep the circuit color coding intact and avoid mixing conductors from different circuits. When wiring, maintain a continuous ground path back to the panel. If you’re extending a circuit, you may need to splice wires with wire nuts and install pigtails so each device in the circuit has a clean connection. Grounding and neutral continuity are crucial for safety and for proper outlet operation. Use proper clamps and strain relief where the cable enters the box to prevent movement and damage.

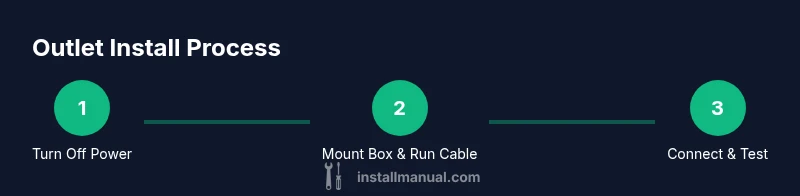

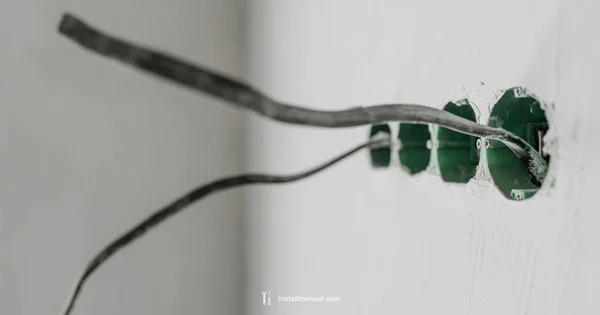

Installing the box and mounting the outlet

With power confirmed off, mount the electrical box at the selected location and secure it firmly to the wall stud or wall surface according to the box type. Run NM cable into the box through a clamp or proper grommet, leaving enough length for connections. Connect the outlet terminals: hot to brass, neutral to silver, and ground to the green grounding screw. Tighten screws so there is no loose connection, but avoid overtightening that could damage the terminal or the box. Once wired, carefully push the receptacle into the box and attach it with mounting screws, then snap on the faceplate for a clean finish.

Testing, finishing, and safety checks

Restore power and test the outlet with a tester to confirm proper wiring and grounding. Check for proper polarity and ensure no arcing or warmth during use. If the tester shows any fault, power down and recheck connections. In damp locations, ensure GFCI protection is installed and functioning. Finally, inspect the wall for holes or gaps and seal as needed to maintain a neat and safe finish. Document the work, especially if this is a rental or a multi-outlet installation, so future occupants or inspectors can verify compliance.
