In this guide, you’ll learn how to install a wall outlet safely and effectively. You’ll identify when to upgrade wiring, gather essential tools, and follow a clear sequence from power-off to testing. By the end, you’ll have a functioning outlet that meets common codes. According to Install Manual, preparation and safety are the keys to a successful install wall outlet project.
Safety First: Electrical Basics for This Project
Installing a wall outlet starts with a firm respect for electricity. Before you touch any wires, shut off power to the circuit at the main panel and verify inactivity with a non-contact voltage tester. Wearing safety glasses and keeping the work area dry minimizes risk. The Install Manual Team emphasizes that safe work practices are non-negotiable; never assume a circuit is dead without testing. After power is confirmed off, plan your approach and visualize the path your cable will take, including how the outlet box will be mounted and how the faceplate will sit flush with the wall. By grounding yourself in these fundamentals, you reduce the chance of shocks, short circuits, or future nuisance tripping.
In this section we lay a safety foundation for anyone who wants to install wall outlet safely. You’ll learn to classify the circuit, select compatible components, and understand why certain rooms require tamper-resistant outlets. The guidance here aligns with industry best practices and is designed for homeowners, DIY enthusiasts, and renters tackling basic electrical upgrades. Remember: safety comes first, then performance, then aesthetics. The goal is a reliable outlet that performs consistently across years of use, not a rushed, dangerous fix.
This introductory safety block sets the tone for a careful, deliberate project. It highlights how an orderly approach helps prevent mistakes that could damage wiring or wiring devices. The Install Manual approach favors planning, testing tools, and double-checking connections before energizing a circuit. If you’re uncertain at any point, pause and consult a local professional; electrical work can have lasting consequences if done improperly.
Tools & Materials
- Non-contact voltage tester(Essential to verify power is off before touching conductors.)
- Screwdrivers (flathead and Phillips)(Have both small and medium sizes; 1/4" and 1/2" drive tips are common.)
- Wire strippers and needle-nose pliers(For stripping insulation and fine-tuning wires.)
- Romex wire (14/2 or 12/2 NM cable)(Choose 14/2 for 15A circuits or 12/2 for 20A circuits.)
- Electrical box (single-gang, old-work or new-work)(Select metal or plastic based on box type and mounting method.)
- Tamper-resistant receptacle(Required in many living spaces and bathrooms by code.)
- Grounding wire and grounding screw(Ensure proper grounding of the receptacle.)
- Wire nuts (twist-on connectors)(Secure splices in non-metallic sheathed cable.)
- Electrical tape(Useful for securing tape and protecting connections.)
- Faceplate (1-gang)(Choose a standard size that fits the box and outlet.)
- Stud finder(Helpful to locate studs for box mounting.)
- Safety glasses(Protect eyes from debris during work.)

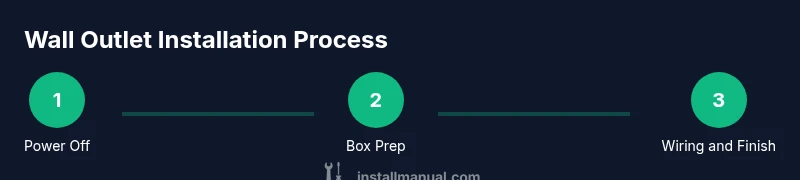

Steps
Estimated time: 60-90 minutes
- 1
Power off and verify
Locate the circuit breaker that feeds the outlet location and switch it off. Use the non-contact voltage tester to confirm there is no voltage at the existing outlet or the wires you’ll encounter. If you’re replacing a receptacle, carefully note the current wiring arrangement before disconnecting anything.
Tip: Always test both prongs and the grounding path to confirm the circuit is dead. - 2
Remove existing outlet and inspect box
Carefully remove the outlet cover and screws holding the outlet in the box. Gently pull the receptacle free to expose the wiring and the box’s back. Check for damage, outdated wiring, or signs of overheating. If the box is damaged or not suitable for a new receptacle, plan to replace the box or switch to a new-work box.
Tip: Record how wires were connected; a photo can help during reassembly. - 3
Choose the right box and run cable
If the current box isn’t suitable, install a new (or updated) single-gang box that fits within the wall cavity and is securely tied to the stud. Run the NM cable from the power source to the box, leaving enough slack for stripping and connections. Ensure the cable routing avoids sharp edges and is protected where it passes through studs.
Tip: Leave at least 8-10 inches of cable extension from the box to work comfortably. - 4
Prepare conductors
Strip about 3/4 inch of sheath and insulation from the ends of the black (hot), white (neutral), and grounding conductor. Arrange wires so that they won’t cross or be pinched once the receptacle is mounted. If you’re splicing in a longer run, join wires with wire nuts before inserting them into the box.
Tip: Twist wires in a neat, clockwise direction to avoid loosening under the screw terminals. - 5
Connect the outlet
Attach the black hot wire to the brass screw and the white neutral wire to the silver screw on the receptacle. Connect the grounding conductor to the green grounding screw. Ensure tight, secure connections without over-tightening. If you’re using a ground wire, secure it to the metal box if required by local code.
Tip: Only touch insulated portions of the wires; avoid contacting the screws directly while wiring. - 6
Mount the receptacle and box
Carefully push the wires back into the box and mount the receptacle onto the box with the screws. Attach the faceplate and ensure the outlet sits flush with the wall surface. Check that the screws are snug but not over-tightened to prevent cracking the plastic or breaking metal components.
Tip: Make sure the faceplate sits flat against the wall; a misaligned plate can leave gaps that look unfinished. - 7
Restore power and test
Turn the circuit breaker back on and test the outlet with a voltage tester. Verify the outlet delivers proper voltage on the hot and neutral slots and test the ground path. If your test device indicates miswiring or a fault, power off again and recheck connections.
Tip: Test with a known-good tester to confirm accuracy. - 8
Finish and document
Install a new faceplate and clean the work area. If this is a kitchen or bathroom outlet, ensure the outlet is tamper-resistant and code-compliant. Label the circuit in your panel if you’ve added or moved wiring for future reference.
Tip: Document changes for future maintenance or inspections. - 9
Consider professional evaluation
If you encounter damaged wiring, uncertain box placement, or uncertain code requirements, a licensed electrician can review and complete the work safely. DIY projects should not compromise code compliance or electrical safety.
Tip: When in doubt, call a pro to avoid costly mistakes.
Got Questions?
Is it legal for a homeowner to install a wall outlet?
In many places, homeowners can perform basic electrical work like installing a wall outlet if local codes allow it and you follow safety practices. However, major rewiring or work in restricted areas may require a licensed electrician. Always check your local regulations before starting.
Homeowners can usually install outlets if the work stays within code and safety rules; when in doubt, contact a licensed electrician.
What wire size and breaker amperage should I use for a new outlet?
Use 14 AWG wire on a 15-amp circuit or 12 AWG on a 20-amp circuit, depending on your panel and circuit design. Match the outlet’s rating to the circuit to prevent overheating and nuisance trips.
Choose 14 gauge for 15-amp circuits or 12 gauge for 20-amp circuits, matching the outlet to the circuit rating.
Do I need a GFCI outlet in a kitchen or bathroom?
Yes. In kitchens and bathrooms, GFCI protection is typically required for outlets to reduce shock risk. If a nearby water source or moist environment exists, a GFCI outlet is essential.
In kitchens and bathrooms, use GFCI outlets to reduce shock risk; follow local code requirements.
What if I can’t access the outlet box behind the wall?
If the box is inaccessible or the wall cavity is damaged, you should replace the box or route wiring differently. Do not force wires through damaged spaces, as this can cause shorts or fire hazards.
If you can’t access the box safely, avoid forcing wires and consult a professional.
Can I install USB or dimmer outlets in place of a standard receptacle?
Yes, you can install USB charging receptacles or dimmer-compatible outlets where appropriate, but ensure compatibility with your circuit rating and local code. Some configurations require updated wiring or faceplates.
You can install USB or dimmer outlets if your circuit and box support them, and you follow the right wiring steps.
Watch Video
Main Points
- Turn off power before starting any electrical work
- Choose the correct box and outlet type for your circuit
- Make secure, tidy connections and test before finalizing
- If unsure, consult a licensed electrician
