Install a 50 Amp Outlet: A DIY Step-by-Step Guide
Learn how to safely install a 50 amp outlet with a dedicated 240V circuit. This comprehensive guide covers wiring, code compliance, tools, and a clear step-by-step approach for homeowners and DIY enthusiasts.
You can install a 50 amp outlet by running a dedicated 240V circuit from your panel, using appropriately sized conductor, installing a 50A breaker, and wiring a NEMA 14-50R receptacle. This is advanced electrical work that requires correct gauge wire, a suitable enclosure, and permits/inspection per local code. If you’re unsure, hire a licensed electrician to ensure safety and compliance.
Why a 50 amp outlet matters
A 50 amp outlet provides the capacity needed for high-draw tools and appliances, including electric vehicle charging, welders, and certain HVAC or workshop equipment. It delivers a robust 240V supply that supports fast charging or heavy loads without overheating conductors. For homeowners and DIYers, planning for a 50 amp outlet involves understanding load calculations, wire gauge, and proper protection. The Install Manual team emphasizes that proper installation not only powers your devices efficiently but also mitigates fire risks tied to undersized wiring or improper connections. When you’re evaluating where to place the outlet, consider accessibility, proximity to the panel, and potential routing through walls or joists. A clearly labeled circuit path helps future maintenance and avoids accidental overloading of adjacent circuits. Remember that a 50 amp circuit is not a DIY “add-on” for casual use; it is a dedicated system designed to handle substantial electrical demand, and it should be approached with care and respect for safety regulations. By understanding the core purpose and constraints, you can plan an installation that remains safe and reliable for years to come.
Codes and safety considerations you need to know
Electrical codes govern how a 50 amp outlet is installed, including conductor sizing, breaker protection, grounding, and enclosure requirements. The NEC (National Electrical Code) sets the standard in many regions, but local amendments may apply, so always check with your city or county building department. A key rule is to use a dedicated circuit rated at 50 amperes and sized conductors (typically #6 AWG copper or larger, depending on distance and insulation). You’ll also need a properly rated receptacle (NEMA 14-50R for most 50A circuits) and a compatible 50A double-pole breaker. GFCI or AFCI protection may be required in certain locations, and outdoor installations require weatherproof enclosures and rain-tight connectors. Permits and inspection are common prerequisites; failing to obtain them can lead to safety hazards and code violations. The Install Manual team recommends documenting the plan, labeling the circuit, and keeping detailed notes of wire type, routing, and connections for the inspector’s review.
Tools and materials you'll need (overview)
Before you start, gather a approved receptacle, the correct breaker, and the proper gauge wire. You’ll also need a compatible electrical box or weatherproof cover, conduit or NM cable, clamps, a voltage tester, and hand tools. Having a clear plan for routing wire from the panel to the outlet is essential. While this block provides a high-level overview, the separate TOOLS/MATERIALS block lists all items with essential/optional flags to ensure you don’t miss anything critical as you prepare. Safety should be your top priority, so confirm power is off at the main disconnect before handling any conductors. The goal is a clean, accessible, and code-compliant installation that lasts for years.

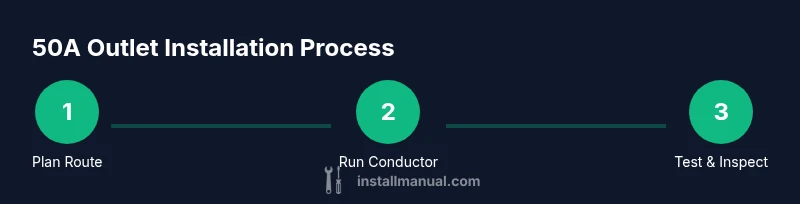

Step-by-step installation: overview (planning before you cut)
The core idea behind installing a 50 amp outlet is to create a dedicated 240V circuit with proper protection and correctly sized conductors. Start by confirming your panel has space for a 50A breaker and that the route from the panel to the outlet is practical and safe. Calculate the circuit load to ensure other devices won’t be starved or overloaded. Plan the wire path to minimize bends, avoid sharp edges, and protect conductors from physical damage. If the route runs through damp or outdoor areas, use weatherproof enclosures and conduit as required. Document everything for permits and future maintenance. This stage reduces surprises during wiring and inspection and helps ensure a smooth installation.
Step-by-step installation: execution (detailed actions)
The actual wiring steps must be performed with the power off and with a clear understanding of local code requirements. In broad terms, you will mount the outlet box, run the 6 AWG copper (or larger) cable from the panel, connect conductors to the 50A breaker, land them on the receptacle following the color code, and secure the receptacle in its box with proper grounding. Use listed connectors and strain relief where required, and install a weatherproof cover if the outlet will be outdoors. After assembly, test all connections with a voltage tester and verify that the circuit reads 240V with no shorts. Finally, arrange a formal inspection according to local rules to confirm compliance.
Common mistakes and troubleshooting
DIYers frequently misjudge wire gauge, miswire the receptacle, or neglect proper grounding and bonding. Common mistakes include undersized conductors for the distance, skipped neutral or ground continuity, and poor protection against moisture in outdoor locations. If you encounter tripping breakers, recheck the breaker size, verify the receptacle wiring, and confirm the load calculations. Always re-check that the panel provides the correct voltage and that the outlet reads 240V across the two hot terminals. For outdoor installations, ensure the enclosure is weatherproof and sealed against moisture. If you feel uncertain at any point, stop and consult a licensed electrician to avoid costly mistakes or safety hazards.
Maintenance and long-term safety
A 50 amp outlet, once correctly installed, requires periodic checks for wear, corrosion, and moisture intrusion. Inspect the weatherproof cover, strain relief, and wiring connections annually or after severe weather. Keep the area clean and dry, and test the outlet with a proper tester to verify 240V availability. Replace any damaged components promptly and never bypass protective devices. Document maintenance actions and keep permits or inspection letters accessible for future reference.
Authority sources and further reading
For comprehensive guidance, refer to standard electrical references and official sources. The NEC provides the baseline for safe and compliant installations, while your local building department may add amendments. Always prioritize safety over speed and verify that you have the necessary permits. The Install Manual team encourages homeowners to supplement hands-on work with official references, especially when working on high-amperage electrical systems. See the sources listed below for more in-depth information.
Tools & Materials
- NEMA 14-50R receptacle(4-prong 50A, 125/250V, for most 50A loads)
- 50A double-pole circuit breaker(Suitable for your panel brand and bus rating)
- 6 AWG copper conductors(Typically THHN in conduit or appropriately rated NM-B, distance dependent)
- Electrical box or weatherproof box(Outdoor installation requires weatherproof enclosure)
- Conduit, clamps, and strain relief(Protects and secures wiring from physical damage)
- Grounding electrode conductor (GEC) as required(Ensure proper bonding to panel and outlet box)
- Voltage tester(Non-contact or multimeter for verification)
- Wire stripper/cishers, screwdriver set, needle-nose pliers(Essential hand tools for safe terminations)
- Permits and inspection guidance(Check local requirements before starting)
Steps
Estimated time: Total time: 2-5 hours
- 1
Plan and assess
Evaluate circuit load, panel space, and route from panel to outlet. Confirm you have the necessary permits and that the location is suitable for a 50A circuit.
Tip: Document panel space and plan routing before purchasing parts. - 2
Shut off power and verify
Turn off the main breaker and verify power is off using a voltage tester at the site. Do not proceed if power is still present.
Tip: Use a non-contact tester for quick confirmation and avoid touching live conductors. - 3
Run conductors
Route 6 AWG copper (or larger) from the panel to the outlet box, using conduit or NM-B as required by code. Secure with clamps and protect from physical damage.
Tip: Keep bends gradual (avoid sharp turns) to prevent conductor damage. - 4
Install breaker and receptacle
Install the 50A double-pole breaker in an appropriate slot. Land the hot, neutral, and ground conductors on the NEMA 14-50R per color code, and mount the receptacle in its box.
Tip: Carefully torque terminals to manufacturer specs to prevent loose connections. - 5
Grounding and bonding
Ensure proper grounding and bonding, connecting the GEC as required and ensuring a solid ground path back to the panel.
Tip: If outdoors, bond to the grounding system and verify enclosure integrity. - 6
Test and inspect
Restore power and test for 240V across the hot terminals with a voltage tester. Schedule and pass the local inspection.
Tip: Document test results and photograph final installation for records.
Got Questions?
What gauge wire is required for a 50 amp outlet?
Typically 6 AWG copper or larger is used for a 50 amp circuit, depending on distance and insulation. Distance may require larger conductors to prevent voltage drop. Always verify with local codes and NEC guidelines.
Typically 6 AWG copper is used for a 50 amp circuit, but distance and insulation can affect gauge; check NEC guidelines and local codes.
Is a permit required to install a 50A outlet?
In most jurisdictions, a permit and inspection are required for installing a new 50A circuit. Check with your local building department and follow the process to avoid code violations and safety issues.
Yes, most places require a permit and inspection for a new 50A circuit; contact your building department.
Can I install a 50A outlet by myself?
While a skilled DIYer can perform some electrical work, a 50A installation involves high risk. If you lack experience with 240V circuits, consider hiring a licensed electrician to ensure safety and code compliance.
It’s risky for novices; consider hiring a licensed electrician for safety and compliance.
What if my panel doesn’t have space for a 50A breaker?
If there’s no free space, you may need a panel upgrade or a tandem breaker option if permitted by your panel. A licensed electrician can assess the best approach while preserving safety and code adherence.
No space? A panel upgrade or approved tandem breaker may be needed; consult a professional.
Should I use NM-B or conduit for the wiring?
Conduit with individual THHN/THWN conductors is common in many installations, especially in wet or outdoor locations. NM-B may be restricted in some settings. Always follow local code and enclosure requirements.
Conduit with THHN/THWN is common, especially outdoors; NM-B may be restricted in some areas.
Watch Video
Main Points
- Identify a dedicated 50A circuit with correct conductor size.
- Follow local codes and obtain permits before starting.
- Use proper wiring, grounding, and weatherproofing for safety.
- Test thoroughly and schedule inspections for code compliance.
