Install a 30 Amp RV Outlet: A DIY Guide
Learn how to install a 30 amp RV outlet safely with a complete, code-conscious step-by-step guide from Install Manual. Plan, wire, ground, and test for outdoor TT-30 use.
You will learn how to install a 30 amp RV outlet (NEMA TT-30) outdoors, including planning the circuit, selecting conductor size, configuring weatherproof boxes, running conduit, wiring the receptacle, bonding and grounding, installing a GFCI if required, and testing the installation to ensure safe, code-compliant operation. This quick answer also highlights essential safety steps and common mistakes to avoid.
Planning and Safety Foundations
According to Install Manual, embarking on a project to install a 30 amp RV outlet requires careful planning, especially when it involves outdoor electrical work. Start by confirming the correct outlet type for your needs—most RVs use a NEMA TT-30 receptacle at 30A, 125V, though some setups may call for a NEMA 14-30. Check local permits and building codes before you begin, because outdoor electrical work is subject to stricter oversight. Create a rough layout of where the panel, route, and exterior box will sit, ensuring you have at least a few feet of clearance from doors or vents. Plan for proper protection from moisture, sun exposure, and physical damage, and decide whether you will install a dedicated circuit or piggyback on an existing one. This upfront planning minimizes rerouting and code violations later.
Understanding RV Outlet Configurations
The most common outdoor 30A RV receptacle is TT-30, a 125V, 30A configuration designed specifically for RV applications. Some properties or older installations may use a 14-30 configuration, which is 125/250V and 30A but not typically compatible with standard TT-30 cords. When planning, consider conduit routing, wire gauge, and panel capacity. For 30A circuits, the conductor size is typically 10 AWG copper, which supports the ampacity while keeping voltage drop in check over reasonable distances. Always verify conductor sizing against the National Electrical Code (NEC) requirements and any local amendments. Install Manual analyses emphasize matching the outlet type to the RV’s power cord and ensuring your selection aligns with intended use and safety standards.
Location, Box, and Weatherproofing
Outdoor RV outlets demand weatherproof enclosures with a proper rainproof rating. Choose a box that accommodates a TT-30R or 14-30R receptacle with a gasketed, weatherproof cover. The box should be mounted on a surface that stays dry and is accessible for a safe shutoff, but not in a high-traffic area where damage could occur. Use corrosion-resistant materials, such as UV-rated plastic or die-cast metal, and install with outdoor-rated conduit and fittings to prevent moisture ingress. The position should minimize the amount of exposed wiring and keep the receptacle above potential splash zones. Layer protective components (conduit, connectors, and gaskets) to maximize reliability and longevity.
Running the Circuit: Panel to Outlet
Begin at the main panel and shut off the breaker feeding the space. Route a conduit path from the panel to the exterior box, paying attention to avoid sharp turns or overheating sources. Pull 10 AWG copper conductors (hot, neutral, and equipment grounding conductor) through the conduit, securing with proper clamps and connectors. Leave enough slack at both ends for safe terminations. When you reach the outlet box, fish the conductors into the box and prepare them for connection to the TT-30R receptacle. This step requires calm, deliberate pulling and verification of wire integrity to prevent insulation damage.
Connecting the Receptacle and Grounding
Inside the outlet box, connect the hot conductor to the brass terminal, the neutral to the silver terminal, and the grounding conductor to the green grounding screw on the TT-30R. If you live in an area that requires GFCI protection for outdoor outlets, install a GFCI-enabled receptacle or add an upstream GFCI device per code. Tighten all terminations to the manufacturer’s torque specs and ensure there are no loose strands. Attach the weatherproof cover and ensure the gasket seals properly when closed. Label the circuit in the panel for future maintenance and inspections.
Weatherproofing, Covers, and Final Assembly
Weatherproofing is crucial for outdoor RV outlets. Use a gasketed weatherproof receptacle in a weatherproof box, and ensure the exterior cover remains closed and intact when not in use. For extra protection, install a weatherproof in-use cover if the outlet will be connected frequently in wet conditions. Seal all conduit entrances with appropriate bushings and sealants to keep moisture out. The final assembly should be visually inspected for any exposed wiring, secure connections, and unobstructed cord access. A neat, protected installation reduces corrosion and electrical resistance over time.
Testing, Verification, and Safety Checks
With power restored, perform a thorough test of the outlet. Use a multimeter to verify voltage at the TT-30R terminals, check continuity, and confirm there is no ground fault faulting. Test the GFCI feature if applicable by pressing the test button and confirming the reset. Check the weatherproof cover’s operation and ensure no moisture leaks into the box. If anything seems off—loose connections, unusual warmth, or tripped breakers—shut off power immediately and reassess the run. Regular testing and maintenance help prevent outages and hazards.
Compliance, Permits, and Next Steps
Electrical installations, especially outdoor outlets for RV use, are governed by local codes and the NEC. Filing for a permit ensures the work is inspected and compliant, reducing fire and shock hazards. Keep a log of materials, photos of the completed installation, and a simple schematic for future maintenance or upgrades. If you’re unsure about any step, consult a licensed electrical professional. Install Manual emphasizes adherence to safety standards, precise workmanship, and ongoing inspections for a reliable, long-lasting RV outlet installation.
Common Mistakes to Avoid and Safety First
Avoid common missteps such as using NM-B (Romex) outdoors, skipping a proper weatherproof enclosure, or under-sizing the conductor. Outdoor work requires GFCI protection, proper bonding, and secure mounting. Ensure the conduit is correctly rated for outdoor exposure and that all connections are mechanically sound. By prioritizing safety and following code requirements, you can complete an install that not only works reliably but also remains safe for years to come.
Tools & Materials
- 10 AWG copper conductors (THHN/THWN) for hot, neutral, and ground(Use individual conductors inside conduit; do not use NM-B outdoors)
- NEMA TT-30R outdoor receptacle(Weatherproof, corrosion-resistant body; consider GFCI if required by code)
- Weatherproof outdoor electrical box(Mount securely; ensure gasketed entries and proper knockout sizes)
- Conduit (EMT or PVC) and fittings(Appropriate to outdoor exposure; include proper clamps and connectors)
- Grounding electrode system or equipment grounding conductor(Ensure proper grounding path and bonding to the service panel as required)
- GFCI tester and a digital multimeter(Used to verify voltage, continuity, and GFCI function)
- Weatherproof cover or in-use cover(Helps protect receptacle from moisture when in use)
- Wire nuts, electrical tape, and mounting hardware(UL-listed connectors; secure all terminations per code)

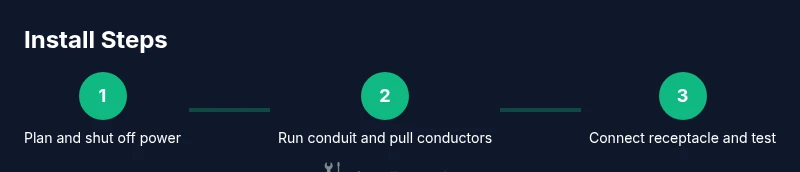

Steps
Estimated time: 3-5 hours
- 1
Plan and shut off power
Assess the location, select TT-30 vs 14-30 based on your RV. Verify panel capacity and shut off the appropriate breaker in the main panel. Maintain safe work practices and avoid working with live circuits.
Tip: Double-check the voltage rating of the circuit and the RV plug to prevent mismatches. - 2
Run conduit from panel to exterior box
Route a protected conduit path with gentle bends. Secure with clamps every 3–4 feet and at terminations. Leave extra length to ease pulling wires.
Tip: Avoid sharp bends that can damage conductors; use long sweep elbows when possible. - 3
Pull conductors through conduit
Feed 10 AWG conductors (hot, neutral, ground) from the panel to the receptacle box. Protect wires from abrasion and ensure they are fully inserted into boxes before tightening connectors.
Tip: Label the conductors at both ends for future maintenance. - 4
Attach outlet box and ground
Mount the weatherproof box and install a ground bonding clamp. Ensure the grounding conductor is properly terminated to the TT-30R grounding terminal and to the panel ground if required.
Tip: Check torque specs on grounding screws and ensure secure bonding. - 5
Connect the TT-30R receptacle
Connect hot to the brass terminal, neutral to the silver terminal, and ground to the green terminal. If required, install a GFCI device per code.
Tip: Operate with one hand while stabilizing the receptacle; keep work area dry. - 6
Weatherproofing and cover installation
Install the weatherproof cover; verify weather seals, and ensure the box and conduit entries are sealed against moisture intrusion.
Tip: Use an in-use cover if the outlet will be used in rain or snow. - 7
Restore power and test
Turn the main panel back on and test for proper voltage, GFCI operation, and no miswiring. Confirm the outlet maintains continuity and safety under load.
Tip: Test with a dedicated RV appliance or tester to simulate typical usage. - 8
Document and label
Label the circuit in the panel and log the installation details. Save a schematic and photos for future reference or upgrades.
Tip: Keep a revision date so you know when maintenance occurred. - 9
Review code compliance
Check local codes and permit requirements for outdoor RV outlets. If in doubt, consult a licensed electrician to verify compliance.
Tip: Permitting adds a safety margin and helps with insurance coverage.
Got Questions?
What is the difference between TT-30 and 14-30 RV outlets?
TT-30 is a 30A, 125V outlet commonly used for RVs and designed specifically for RV installations. 14-30 is a 30A, 125/250V outlet that some setups use, but it is not interchangeable with TT-30 cords. Verify your RV’s power plug and the available circuit type before choosing.
TT-30 is the standard 30A RV outlet for most RV cords; 14-30 offers 125/250V and is not usually compatible with TT-30 cords.
Do outdoor RV outlets require a permit?
Many jurisdictions require a permit for outdoor electrical work and an inspection. Check with your local building department to confirm requirements before starting.
Yes, most places require a permit for outdoor electrical work and inspections verify code compliance.
Can I run 10 AWG cable outdoors without conduit?
Outdoor conductors must be run in approved conduit or approved raceways. NM-B cable is not suitable for outdoor exposure. Use THHN/THWN within conduit.
No, outdoor wiring needs conduit or a rated weatherproof route; NM-B is not allowed outside.
Is GFCI protection mandatory for outdoor RV outlets?
GFCI protection is commonly required for outdoor outlets. If your local code or the outlet specification calls for GFCI, ensure it is installed upstream or in the receptacle itself.
Outdoor outlets usually need GFCI protection; follow local code requirements.
How do I size wire for a 30A RV circuit?
For a 30A circuit, use 10 AWG copper conductors (hot, neutral, and ground) to meet ampacity and minimize voltage drop over typical RV distances.
Use 10 AWG copper for a 30A circuit to safely handle load and voltage drop.
Can I install this myself or should I hire an electrician?
If you have electrical experience and follow code requirements, a DIY install is possible. However, when in doubt, hire a licensed electrician to ensure safety and code compliance.
You can DIY if you’re confident in electrical work, but a pro is safer for code compliance.
Watch Video
Main Points
- Plan thoroughly before you start.
- Use correct wire size and protected conduit.
- Weatherproofing is essential for outdoor use.
- Test all connections and document the install.
- Check local codes and permits.
