Quick AnswerSteps

Goal: Power high-demand tools and equipment by adding a dedicated 240V outlet in your garage. You’ll need a properly sized 240V circuit, a compatible receptacle, safe routing, and adherence to local electrical codes. This guide outlines planning, wiring, and testing steps; consult a licensed electrician if you’re unsure about any part of the process.

Why a 240V Garage Outlet Matters

A 240V outlet in the garage unlocks the ability to run heavier equipment—welders, big compressors, and certain EV charging setups—more efficiently and safely than crowding devices onto a shared 120V circuit. A dedicated 240V circuit minimizes nuisance trips and voltage drops, giving your tools reliable performance. According to Install Manual, many homeowners underestimate load, leading to nuisance trips or overloaded panels. Planning ahead helps you avoid these issues and improves long-term safety and convenience for DIY projects. In addition, a properly installed outlet can boost home value and make future upgrades smoother. Before you begin, confirm the intended load, decide on the outlet type, and check local permit requirements. This upfront work saves time and prevents costly revisions later on.

Planning and Code Considerations

Planning is the backbone of a successful 240V garage outlet install. Start by assessing the expected load and the distance from your main panel to the garage location. This helps determine the circuit size, wire gauge, and breaker rating. Local codes govern the use of AFCI/GFCI protection, permit requirements, and box/ conduit standards. Install Manual analysis shows that most installations fail to obtain permits or misinterpret required protection, which can complicate inspections. Always verify whether your jurisdiction requires AFCI protection on garage 240V circuits and whether a permit is needed for a new circuit. Documented planning also helps when an inspector asks for load calculations or wiring diagrams. Keep a written plan, a rough wiring diagram, and a shopping list handy before you start.

Choosing the Right Receptacle and Circuit

Choosing the correct receptacle type depends on the anticipated load. For lighter 240V needs, a 20A receptacle (such as a NEMA 6-20) may be sufficient, but higher-powered tools and EV charging typically require 30A, 50A, or higher rated outlets (NEMA 14-30, NEMA 14-50, etc.). A 4-wire circuit (two hots, neutral, and ground) is standard for modern 240V loads and ensures compatibility with a wide range of devices. The circuit breaker size should match the outlet and wire gauge, and all components should be listed for 240V use in a garage environment. Consult your local code if you’re unsure which receptacle aligns with your intended use.

Planning the Run: Routing, Boxes, and Protection

Plan a clean, safe run from the panel to the garage location. Use conduit or appropriate cable routing that protects conductors from physical damage in a garage setting. Install a weather/garage-rated box at the outlet location and use proper strain relief where the cable enters the box. Avoid unnecessary bends and keep the run away from water sources or potential splash zones. Grounding and bonding must follow code requirements, with a secure connection to the grounding system. If distance or obstacles require a longer run, consider pulling the correct gauge wire and adjusting the breaker size accordingly to prevent voltage drop.

Safety Prep and Permits

Safety should be your guiding principle. Work with power off, use insulated tools, and double-check that the main disconnect is confirmed de-energized before removing panel covers or handling conductors. A textured garage floor or wet conditions can increase risk; ensure a dry work area and use appropriate PPE. Depending on location, you may need a permit before wiring a new 240V circuit and outlet. Inspections may verify correct wire sizing, grounding, box fill, and protective devices. If you’re unsure about code requirements or panel capacity, stop and consult a licensed electrician to avoid costly errors or dangerous faults.

Tools, Materials, and Safety Checks

Having the right tools and materials is critical for a safe, clean installation. A well-planned job reduces run-time and minimizes mistakes. Start with a list that includes a dedicated 240V circuit breaker, four-wire cable of suitable gauge, a compatible 240V receptacle, a metal or PVC conduit/ raceway, a junction/ outlet box, grounding equipment, wire connectors, and a voltage tester. Check that all components are rated for garage use and 240V operation. Always confirm that your panel has available spaces for a new breaker, and verify clean, dry working conditions before you begin. Review safety steps with everyone in the household after the job is completed.

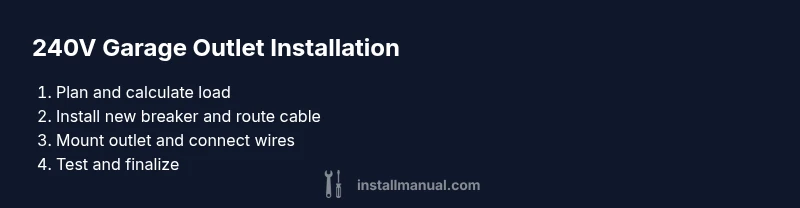

Step-by-Step Overview (High-Level)

Note: The actual step-by-step actions are provided in the dedicated STEP-BY-STEP block. Here we summarize the approach: assess load and plan, power down and verify, install a new breaker, run wiring to the outlet, mount the receptacle, connect wires, test the circuit, and finalize with a cover and labeling. This approach emphasizes safety, code compliance, and thorough testing to ensure reliable operation over time. The Install Manual team emphasizes documenting the work and keeping a clear diagram for future inspections or upgrades.

Common Mistakes and How to Avoid Them

Underestimating load: Plan for future tools and avoid overloading a single circuit.
Skipping permits or inspections: This creates compliance issues and can affect insurance.
Wrong wire size or incompatible receptacle: Verify the load rating and ensure gauge, insulation, and terminations match the outlet.
Poor routing and lack of protection: Use conduit or protective cable routing and secure the wiring properly.
Inadequate grounding or bonding: Ensure a solid ground connection per code to prevent shock hazards. The best prevention is double-checking every connection before energizing the circuit, and if any step feels uncertain, consult a licensed electrician. The Install Manual team recommends treating this as a safety-focused, not a rush-to-complete project.

Tools & Materials

Dedicated 240V circuit breaker (2-pole)(Matched to the outlet rating and panel capacity; verify compatibility with your panel bus.)
Four-conductor cable (hot-hot-neutral-ground) of appropriate gauge(Gauge depends on load and distance; avoid undersizing to prevent voltage drop.)
NEMA 14-30 or NEMA 14-50 receptacle(Choose based on load; 14-30 is common for 30A, 14-50 for higher loads.)
Appropriate electrical box and conduit/ raceway(Garage-rated boxes; use EMT or PVC conduit for protection.)
Grounding hardware and bonding strap(Ensure a solid ground connection per local code standards.)
Voltage tester and basic hand tools(Test de-energized circuits before handling conductors; include insulated screwdrivers, pliers, and wire strippers.)
Cable clamps, wirenuts, and strain relief(Secure connections and protect conductors at entry points.)
Permits (if required) and inspection scheduling(Check local requirements; keep permit documents for inspections.)

Steps

Estimated time: 3-6 hours

1
Assess load and plan circuit
Identify the devices you’ll run on the 240V outlet and estimate peak load. Map a route from the main panel to the desired garage outlet location, and decide on the breaker size and outlet type based on load expectations. Create a simple diagram showing run path, box locations, and any necessary conduit.
Tip: Document potential future needs; planning ahead avoids future rewiring.
2
Shut off power and verify
Turn off the main power or the specific branch you're working on. Use a voltage tester to confirm the circuit is de-energized before touching any conductors.
Tip: Double-check with multiple testers if you’re unsure.
3
Install a new breaker in the panel
Install a properly sized 2-pole breaker in an available slot that matches the outlet’s load. Leave space for future expansion if possible. Restore panel cover only after testing.
Tip: Keep a spare breaker on hand for future upgrades.
4
Run cable from panel to garage
Route the four-conductor cable through protected channels to the outlet location. Use conduit or an approved path, keeping bends gentle and ensuring the cable is insulated and protected from damage.
Tip: Avoid running parallel to water lines or ducts where heat or moisture can affect insulation.
5
Mount box and receptacle
Secure the electrical box at the outlet location, then mount the 240V receptacle. Ensure the box is level and the faceplate sits flush against the wall.
Tip: Use a stud finder to anchor the box for solid mounting.
6
Connect wires to receptacle
Attach hot wires to the correct terminals, connect neutral and ground, and tighten all terminations to manufacturer torque specs. Re-check connections for accuracy.
Tip: Keep conductors organized and labeled for future maintenance.
7
Test the circuit
With the power on, verify voltage at the outlet using a multimeter. Confirm correct polarity and that the outlet responds to testing with your load devices.
Tip: If you see voltage drop or heat, shut down and reassess wire size and connections.
8
Finalize and document
Install a cover plate, label the circuit, and store documentation for inspections. Ensure a clean, accessible location for future checks or upgrades.
Tip: Take photos of the final installation for future reference.

Pro Tip: Use metal conduit in areas with potential physical damage; it provides durable protection and easier grounding.

Warning: Do not energize any conductors without a complete, signed-off wiring path; an incomplete run can cause arcing and fire hazards.

Note: Check whether a permit is required in your area and schedule an inspection after installation.

Got Questions?

Do I need a permit to install a 240V outlet in the garage?

Most jurisdictions require a permit for adding circuits or outlets. Check with your local building department and plan inspections accordingly to ensure code compliance.

What 240V outlet types should I consider?

Common options include NEMA 6-20 for 20A loads, NEMA 14-30 for 30A, and NEMA 14-50 for higher loads. Choose based on expected equipment, and ensure a four-wire connection when needed.

Can I install a 240V outlet myself?

If you have solid electrical knowledge and your local code allows it, you may proceed. For most homeowners, hiring a licensed electrician is safer and helps ensure a compliant install.

What safety protections should be in place?

Ensure AFCI/GFCI protection where required, proper grounding, and correct enclosure rating for garage use. Always de-energize the circuit before work and use insulated tools.

How long does a typical install take?

A typical installation can take several hours depending on routing, panel access, and code requirements. Plan for enough time to check connections and test thoroughly.
