Install a 20 Amp Breaker: DIY Electrical Guide
Learn how to safely install a 20 amp breaker in a residential panel with a step-by-step process, safety tips, and pro guidance from Install Manual.
Goal: safely install a 20 amp breaker in a standard household panel. You’ll verify panel compatibility, confirm wire gauge (12 AWG copper or larger for 20A), shut off power, and follow the steps to insert the breaker and reconnect the load. This guide emphasizes safety, proper tooling, and code compliance to avoid dangerous mistakes.
Why installing a 20 amp breaker matters for home electrical safety
According to Install Manual, installing a correctly sized 20 amp breaker is a foundational safety measure that helps prevent overheating, nuisance trips, and potential fire hazards in your home electrical system. A 20 amp circuit is commonly used for moderate-load devices and branch circuits such as kitchen outlets, small kitchen appliances, and dedicated general-use circuits. Using a breaker with the correct rating ensures the conductors feeding the circuit and the devices plugged into it are protected from overcurrent. The Install Manual team emphasizes that mis-sizing a breaker—installing a 20A breaker on a smaller gauge wire or replacing a 20A slot with an incompatible unit—greatly increases risk. As you plan, confirm you are working with the appropriate panel slot, type, and rating, and understand that code compliance hinges on correct wire sizing and breaker compatibility.
noteTypeRigidityForBlockNoteOnlyButNotAPolicy
descriptionForBlockNoteOnlyToClarifyCrossReferences
Tools & Materials
- Non-contact voltage tester(Test for voltage before touching wires; verify power is off at the intended circuit.)
- Insulated screwdrivers (Phillips and flat-head)(Use insulated handles and appropriate bit sizes for panel screws.)
- Wire strippers/cutters(Prepare and trim 12 AWG copper conductors cleanly.)
- 12 AWG copper wire (for new circuit)(Minimum conductor size for a 20A circuit in typical residential wiring.)
- 20-amp breaker (single-pole or as required by circuit)(Match the panel’s compatible breaker type and slot configuration.)
- Safety glasses and insulated gloves(Personal protective equipment for eye and hand protection.)
- Voltage tester or multimeter(Use for verifying circuits after installation.)
- Clear workspace and good lighting(Reduce mistakes and increase accuracy during tasks.)

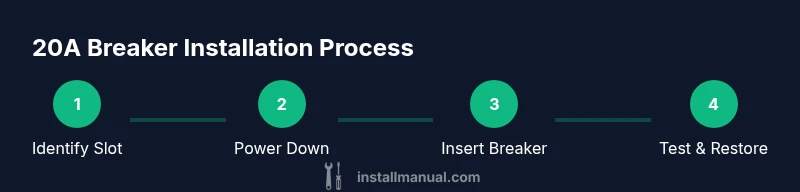

Steps
Estimated time: 30-60 minutes
- 1
Identify the correct breaker slot and type
Begin by locating a suitable, unused slot in the electrical panel that supports a 20 amp breaker. Check the panel label for the correct breaker type (BR, CH, etc.) and confirm that the slot is not already occupied by a tandem or half-size breaker unless the panel allows them. This step ensures compatibility and prevents bus bar damage.
Tip: Do not force a breaker into an incompatible slot; using the wrong type can damage the panel and create a safety hazard. - 2
Turn off main power and verify no voltage
Switch off the main disconnect and use a non-contact voltage tester to confirm that power is truly off at the panel and in the circuit you’ll work on. If the main breaker is compromised or difficult to access, arrange for an alternate shutdown method per local code.
Tip: Lockout/tagout if available to prevent others from accidentally restoring power while you’re working. - 3
Remove the panel cover safely
Carefully remove the screws holding the panel cover and set the cover aside in a safe location. Use one hand to stabilize wires and the other to avoid nicking insulation. Keep the area dry and free of metal jewelry.
Tip: Be mindful of sharp edges inside the panel; wear gloves to protect your hands. - 4
Prepare and connect the load conductor
Strip the insulation from the wire if needed and align the load conductor with the terminal on the new 20A breaker. Tighten the terminal screw securely to ensure a solid connection without over-tightening, which can damage the wire or terminal.
Tip: Maintain neat, untangled wiring to help with future inspections and reduce wear. - 5
Insert the breaker into the bus and secure
Snap the new 20A breaker into the identified slot on the bus bars until it seats firmly. Double-check alignment and then snug the mounting screws or clips per the manufacturer’s torque specification.
Tip: A properly seated breaker will not rock or wobble when gently tested by hand. - 6
Restore power and test the circuit
Replace the panel cover, restore the main power, and test the circuit with a load to confirm proper operation. Use a voltage tester to verify voltage presence at the outlets or devices on the new circuit and observe for any abnormal heat or noise.
Tip: If anything smells burnt or feels unusually hot, power down immediately and consult a licensed electrician.
Got Questions?
Can I install a 20 amp breaker myself?
DIY installation is possible for straightforward scenarios if you have basic electrical knowledge and follow safety practices. However, many jurisdictions require permits and inspections for changes to a residential panel. When in doubt, consult local code or hire a licensed electrician.
Yes, you can do it yourself if you follow safety rules and know your panel, but check your local rules before starting.
Is it legal to replace a 15A breaker with a 20A breaker in an existing circuit?
Only if the circuit conductors are rated for 20A, typically 12 AWG copper or equivalent. If the wiring is smaller (like 14 AWG), you must not install a 20A breaker. Check the panel label and local codes before changing breakers.
You generally cannot replace a 15A with a 20A breaker unless the wires are rated for 20A too.
What gauge wire is needed for a 20A circuit?
Typically 12 AWG copper conductors are used for 20A circuits. Aluminum conductors require different sizing and should be installed by a professional according to code. Always confirm with panel labeling and local codes.
For a 20A circuit, use 12 AWG copper; aluminum requires different sizing and professional oversight.
Do I need a permit to install a 20A breaker?
Many locations require a permit or inspection when modifying electrical panels. Check with your local building department or utility for permit requirements before starting the work.
Most places require a permit or inspection for panel changes, so check local regulations first.
What tools are essential for this task?
You’ll need a voltage tester, insulated screwdrivers, wire strippers, the correct 20A breaker, and appropriate personal protective equipment to perform the installation safely.
Have the right tools ready—voltage tester, insulated screwdrivers, wire strippers, and the right breaker.
What safety precautions should I take after installation?
Label the circuit, keep the panel closed when not testing, and monitor for overheating or arcing on the new circuit. If you notice anything unusual, shut off power and call a pro.
Label the circuit and watch for overheating; if anything seems off, stop and call a professional.
Watch Video
Main Points
- Plan and verify panel compatibility before touching any wiring
- Use 12 AWG copper conductors for 20A circuits; ensure wire size matches breaker rating
- Always power down and test for absence of voltage before handling live wires
- Ensure the breaker is seated firmly in the bus and all connections are secure
- If unsure about panel type or wiring, consult a licensed electrician for safety and code compliance
