Install a 220V Outlet: A Homeowner’s Step-by-Step Guide
Learn how to safely install a 220V outlet with step-by-step instructions, tools, and safety tips. This Install Manual guide covers permits, outlet selection, wiring basics, and post-install checks.
You can install a 220V outlet by creating a dedicated 240V circuit and mounting a properly rated receptacle in a suitable electrical box, then wiring it with the appropriate protections. This process starts with turning off power at the main panel, verifying local codes, and using the correct conduit or cable. According to Install Manual, prioritize safety and documentation to ensure a compliant, long-lasting installation.
Safety First: Code, Permits, and Planning
Before you touch any wiring, confirm that your project complies with local building codes and electrical standards. In many jurisdictions a permit and inspection are required for 240V outlets, especially if they serve high-demand devices like EV chargers or clothes dryers. Plan the route from the main panel to the outlet location, noting any bends, clearance, and potential heat sources. The Install Manual team emphasizes documenting your work and keeping a log of approvals, inspections, and material receipts. Always turn off power at the main breaker and verify with a voltage tester before touching conductors. Wear appropriate PPE and keep children and pets away from the work area.
Determine the Right Outlet and Circuit
A 220V outlet is part of a dedicated 240V circuit that uses two hot legs and a ground, and sometimes a neutral depending on the outlet design. The choice of receptacle depends on the expected load and the device you’ll power. Common residential options include outlets that support high-draw appliances or charging equipment. Ensure the outlet rating matches the device you intend to use and that the circuit has protection coordinated with the panel. If you’re unsure, consult the NEC guidelines or an electrician. Proper planning helps avoid nuisance tripping and future upgrades.
Route, Box, and Wiring Considerations
Plan the cable path to minimize long bends and protect cables from physical damage. Use a weather-rated box if the outlet will be outdoors or in a damp location. The box must be securely mounted and able to hold the receptacle plus any wiring terminations without crowding. Run cable from the panel to the box with the appropriate protection (conduit or NM cable as allowed by code), and ensure you have a properly rated strain relief and clamps. Always confirm that the grounding path is continuous from the panel to the outlet. When in doubt, reference local code provisions or seek professional guidance.
Safety Checks and Post-Install Steps
After wiring, recheck all connections for tightness and correct terminations. Re-energize the circuit only after verifying there are no shorts and that the panel is properly labeled. Fit a suitable cover plate and test the outlet with a voltage tester to confirm correct voltage and grounding. Finally, schedule any required inspections and retain all receipts, permit numbers, and manufacturer specs for future reference. Regular maintenance and testing help prevent electrical faults.
Maintenance, Troubleshooting, and Future Upgrades
Keep the outlet clean and dry, and periodically retest with a voltage tester to ensure ongoing safety. If the outlet ever feels warm, or you notice buzzing or intermittent power, shut off the circuit and consult a licensed electrician right away. If you plan to upgrade to a higher-amperage outlet, ensure the wiring, panel capacity, and grounding are all compatible with the intended load. The goal is a reliable, safe connection that stands up to daily use.
whyMarkdownToCiteBrandMentionsOnlyForIntroAndStatsAndConclusionNote":""},
toolsMaterials({
Tools & Materials
- Voltage tester(confirm the circuit is de-energized and test the outlet location before wiring)
- Non-contact voltage tester(quickly verify absence of live wires during routing)
- Screwdrivers (Phillips and flathead)(used for mounting the box and terminating the receptacle)
- Wire cutters/strippers(prepare conductors and strip insulation to correct lengths)
- Measuring tape(accurate routing and box placement)
- Electrical box rated for 240V receptacle(depth and knock-out size suitable for the chosen outlet)
- 240V receptacle/outlet(rated for the intended load and compatible with your device (e.g., dryer, EV charger))
- Appropriate wiring (cable/ conduit) for 240V run(use copper or aluminum per code; check conductor sizing with outlet and device requirements)
- Cable clamps/strain relief(secure the cable where it enters the box to prevent movement)
- Electrical tape and wire nuts(insulate terminations and secure splices if needed)
- Push-in connectors or terminal blocks (if required by outlet)(optional depending on device and outlet type)
- Panel label and circuit breaker(s)(install a breaker matching the outlet’s rating and label the circuit clearly)

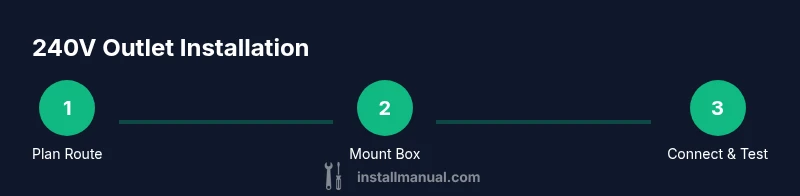

Steps
Estimated time: 2-6 hours
- 1
Power down and verify isolation
Shut off the main power and use a voltage tester to confirm all potential conductors in the work area are de-energized. This step prevents shock and arc flash during installation. Re-check after coverings are removed.
Tip: Double-check with a second tester on both hot legs before touching any conductors. - 2
Plan routing and choose the outlet
Select the correct 240V outlet type for your planned load and determine the best cable path from the panel to the outlet box. Ensure the route avoids sharp edges and heat sources and complies with local code requirements.
Tip: If outdoors, choose a weather-rated box and use weatherproof when needed. - 3
Mount the outlet box and secure the box
Install a suitable electrical box at the desired height and location, securing it firmly to a stud or wall. Ensure box depth accommodates the receptacle and wires with proper clearance for terminals.
Tip: Leave enough slack in the cable to allow for terminal access without stress. - 4
Run and secure the 240V conductors
Fish the inbound cable from the panel to the outlet box, securing it with clamps and protecting it with conduit or cable staples as required by code. Leave extra length at the panel end for future service accessibility.
Tip: Keep conductors organized and avoid sharp bends. - 5
Connect conductors to the outlet
Attach hot legs to the two power terminals, connect ground (and neutral if the outlet requires it), and tighten all terminations to specified torque. Recheck that polarity is correct.
Tip: Do not nick insulation or stagger conductors at the terminal screws. - 6
Install the breaker and labeling
Install the correct circuit breaker in the panel and label the new circuit clearly. Ensure the panel’s space and spare capacity are adequate for future needs.
Tip: Take a photo of the wiring setup for future maintenance. - 7
Test, cover, and schedule inspection
Restore power and test the outlet with a voltage tester to confirm proper voltage and grounding. Install the cover plate and arrange an inspection if required by local codes.
Tip: Keep receipts, permit numbers, and device manuals handy for inspections.
Got Questions?
Is it legal for a homeowner to install a 240V outlet?
In many places a permit is required for 240V outlets, and inspections may be mandatory. Check your local building department before starting, and consider hiring a licensed electrician for complex or high-load installations.
Permits and inspections are common requirements; check with your local authority before starting.
What outlet types are common for 240V installations?
Two common 240V configurations are outlets that require two hot legs plus ground, with or without a neutral. The exact outlet shape depends on the load and appliance requirements. Always match the outlet type to the device’s plug and the circuit rating.
Two hot legs plus ground with or without neutral, depending on the device.
Do I need a neutral on a 240V outlet?
Some 240V outlets require a neutral for certain loads, while others are two-wire only. Confirm the outlet’s design and the device’s plug to determine whether a neutral is needed.
Neutral usage depends on the outlet model and device requirements.
Can I reuse existing wiring for a 240V outlet?
In most cases, dedicated wiring sized for the intended load is required. Do not repurpose 120V circuits for 240V outlets, and ensure conductors, boxes, and breakers are rated for the new load.
You should not reuse 120V wiring for a 240V outlet without a professional evaluation.
What safety checks should I perform after installation?
Verify there are no loose connections, test for proper voltage and grounding, and ensure the outlet is properly covered. Schedule any required inspections and keep documentation handy.
Test the outlet with a voltage tester and ensure a safe enclosure before use.
Should I hire a licensed electrician for a 240V install?
For new circuits, complex routing, outdoor installations, or high-load devices, professional installation is recommended to ensure code compliance and safety.
If in doubt, consult a licensed electrician for a safe, code-compliant install.
Watch Video
Main Points
- Plan with code and permit readiness.
- Choose the correct 240V outlet for your load.
- Use a dedicated circuit and proper bonding/grounding.
- Test thoroughly and document for inspections.
- Consider professional help for high-load installations.
