Install Deadbolt: A Comprehensive DIY Guide
Learn how to install a deadbolt on a residential door with clear, step-by-step instructions. Get the right tools, measurements, drilling tips, and testing procedures to boost home security.
Install deadbolt to upgrade door security by replacing the existing lock with a robust bolt and reinforced strike plate. You’ll need a compatible deadbolt kit, basic tools, and a drill. This guide covers essential measurements, mounting steps, and testing to ensure a secure, reliable fit.
Why install deadbolt matters
A deadbolt provides far stronger protection than a spring latch and is an essential upgrade for entry doors. For homeowners, renters, and DIY enthusiasts, installing a deadbolt significantly reduces the risk of forced entry when paired with a solid door and a reinforced strike plate. The Install Manual team notes that proper alignment of the bolt with the strike plate and solid frame anchors are critical to long-term security. In this section, we’ll explain how deadbolts work, compare common configurations, and discuss how to choose the right backset and bore size for a snug, dependable fit.
Types of deadbolts and selecting the right one
Deadbolts come in several configurations, including single-cylinder and double-cylinder variants. A single-cylinder deadbolt is operated with a key on the outside and a thumb turn on the inside, offering convenient daily use. A double-cylinder deadbolt requires a key on both sides, which can increase security on doors with glass panels but may pose safety concerns in emergencies. When selecting a deadbolt, consider material strength, finish, backset, bore size, and door thickness. The Install Manual team recommends matching bolt length to door thickness and ensuring the strike plate is reinforced and aligned for smooth operation.
Assessing door and frame compatibility
Before purchasing hardware, inspect your door and frame for compatibility. Hollow-core doors may require longer screws or reinforced strike plates; solid core doors usually handle standard hardware with minimal modification. Check door thickness (most residential doors are 1-3/8" to 1-3/4"), measure the backset (commonly 2 3/8" or 2 3/4"), and examine the frame for cracks or loosened jamb screws. A misaligned strike plate or a loose frame is a frequent source of bolt misfit and can undermine security. If issues are found, address them prior to installation for a durable result.
Tools, materials, and safety essentials
Prepare a basic toolkit plus a few specific items for deadbolt installation. Gather drill bits, screwdrivers, a center punch, a chisel, measuring tape, pencil, safety glasses, and a helper if possible. Ensure you have longer screws for frame anchorage if drilling into weaker frames. The next steps outline the bore-hole layout, drilling, strike plate installation, and final bolt mounting with careful alignment for optimal security.
Step-by-step quick overview to avoid common mistakes
Plan the sequence in advance, double-check measurements, and dry-fit components before final assembly. Misaligned backsets or poorly anchored strike plates are common culprits of malfunction. If the bolt sticks, re-check bore holes for alignment and verify the strike plate sits flush with the frame. Following a methodical approach reduces the risk of costly missteps and retakes.
Troubleshooting and maintenance
If the deadbolt feels gritty or sticks, inspect bore holes for burrs, verify the strike plate alignment, and confirm screw length and seat. Stainless bolts resist corrosion, while different strike plates wear at varying rates. Lubricate the bolt with graphite dry lubricant or a silicone-based spray to maintain smooth operation, and periodically re-tighten screws to prevent jamb looseness. A quick annual check can keep the lock dependable for years.
Quick win: security best practices beyond the bolt
To maximize security, pair a deadbolt with a solid door, reinforced strike plate, and proper frame screws. Consider adding security screws (three-inch) for deeper anchorage and ensuring outdoor lighting and cameras cover entry points. With careful fit, precise alignment, and regular maintenance, your installation remains secure for the long term.
Tools & Materials
- Deadbolt kit (single-cylinder or double-cylinder)(Choose bolt length to fit door thickness (1-3/4" bore is common).)
- Door latch strike plate(Reinforce with longer screws if possible.)
- Screws (2-1/2" to 3" wood screws)(Ensure screws reach into the frame studs.)
- Screwdriver set (Phillips #2)(For mounting screws.)
- Drill with appropriate bits(Include 1/8" pilot bit and larger bits per bore size.)
- Center punch and marking pencil(Accurate hole location marks.)
- Chisel and mallet(Create clear mortises for strike plate.)
- Safety glasses(Eye protection during drilling.)

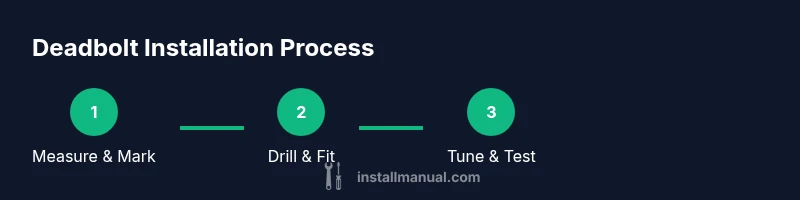

Steps
Estimated time: 45-75 minutes
- 1
Remove existing hardware
Take off the current door knob/lock and strike plate. Keep screws organized in labeled bags to prevent loss and misplacement.
Tip: Label each bag with the component name for easy reassembly. - 2
Measure backset and bore locations
Measure door thickness and backset precisely. Mark bore locations on both door faces to ensure the bolt aligns with the strike plate.
Tip: Use a center punch to create clean starting marks. - 3
Drill pilot holes and bore holes
Begin with a small pilot hole to guide larger bits. Drill slowly, checking alignment from both sides to prevent splintering.
Tip: If the door is solid, drill from both sides to minimize tear-out. - 4
Chisel mortise for strike plate
If your strike plate requires a mortise, carve a shallow recess so the plate sits flush with the face of the frame.
Tip: Test-fit the strike plate as you chisel to avoid over-cutting. - 5
Install strike plate and latch
Secure the strike plate with screws into the frame and mount the latch in the door edge. Ensure the bolt engages the strike plate smoothly.
Tip: Use longer frame screws for improved grip. - 6
Mount exterior and interior hardware
Attach the outside and inside handles per the manufacturer’s directions. Confirm the bolt aligns with the strike plate and tighten all screws securely.
Tip: Do a dry-fit first and verify operation before final tightening.
Got Questions?
What tools do I need to install a deadbolt?
A screwdriver, drill and bits, center punch, chisel, measuring tools, and safety glasses are essential. Depending on the kit, you may also need a mallet and level. Always follow the manufacturer's instructions for best results.
You'll need a screwdriver, drill with bits, center punch, chisel, measuring tools, safety glasses, and the deadbolt kit. Follow the kit's instructions for any extra tools.
Can I install a deadbolt on a hollow-core door?
Yes, but reinforcement and longer screws may be required to prevent the door from bowing. Ensure the frame is solid before drilling.
Yes, but you might need reinforcement and longer screws to ensure stability.
Do I need to drill into the edge of the door?
Most deadbolts require a bore hole through the door face and a cross bore through the edge. Use the manufacturer’s template and drill from both sides to avoid splintering.
Most models need holes through the face and edge; follow the template and drill from both sides to avoid splintering.
What if the bolt doesn’t align with the strike plate?
Check bore hole alignment, re-check backset, and adjust the strike plate position. Small adjustments can fix misalignment and improve operation.
Check bore holes and backset again; adjust the strike plate if needed.
How much does deadbolt installation usually cost?
Costs vary by hardware quality and whether you hire a pro. DIY kits are typically affordable, while professional installation adds labor charges.
Prices vary; DIY kits are often affordable, while professional installation costs more.
Should I rekey the lock after installation?
If you’re replacing the entire lock, rekeying may not be necessary. Some kits include pre-cut keys, while others require a locksmith.
Rekeying is optional if you’re replacing the whole lock; check your kit options.
Watch Video
Main Points
- Choose the correct deadbolt type for your door.
- Accurate measurements prevent misalignment.
- Test the lock before finishing and adjust as needed.
- Use reinforced screws and strike plate for durability.
