How to Install a Deadbolt: A Complete Homeowner's Guide
Learn how to install a deadbolt with a clear, step-by-step guide for homeowners. It covers measurements, hardware choices, safety tips, and common installation mistakes to avoid.
Here's how to install deadbolt hardware correctly. This guide outlines choosing the right backset, preparing the door, and following a precise drill-and-drive sequence. It covers pilot holes, mounting the bolt and strike, and testing alignment before closing the door. According to Install Manual, accurate measurements and quality components are the keys to durable security.
Understanding deadbolt security basics
A deadbolt provides a stronger barrier than a latch bolt because it cannot be easily moved with a credit card or pried open. Residential deadbolts come in two common configurations: single-cylinder (keyed outside, thumbturn inside) and double-cylinder (keyed on both sides). The bolt itself is the long, rectangular metal piece that slides into a strike plate in the door frame when the key or thumbturn is operated. The security you gain depends on the fit between the bolt, the strike, and the door frame. Pay attention to the door's backset, bore sizes, and strike compatibility to ensure smooth operation and reliable protection. Most doors use a 2-3/8 inch backset, while thicker doors or unusual frames may require 2-3/4 inch backset or alternate strike plates.
Compatibility and choosing the right deadbolt
When selecting a deadbolt, match the hardware to your door and frame. Look for ANSI grade ratings (Grade 1 for premium security, Grade 2 for typical homeowners, Grade 3 for basic security). Confirm the backset, bore hole size, and screw spacing so the new deadbolt fits without modifying the door. Check that the strike plate included is compatible with your frame and can be secured with long screws into solid wood or metal. If you have a hollow-core door, consider reinforcing plates. For exterior doors, opt for a weather-resistant finish and a hardened strike plate to resist kick-in attempts.
Tools and materials you'll need
Before you start, assemble the essential tools and hardware. A complete deadbolt kit, strike plate, and mounting screws are provided with most locks. You will also need a drill with appropriate bits, a spade bit or hole saw for the edge bore, a chisel, a screwdriver, a pencil, a level, a measuring tape, safety glasses, and clean rags. Keep a clean workspace and a flashlight handy to inspect inside the edge bore. Use a marking gauge or tape to ensure exact drill locations. If your door is wooden, choose longer screws to reach the door jamb for better anchoring; for metal doors, ensure you have self-tapping screws and consider reinforcing strike plates.
Measurements you must take before drilling
Accurate measurements save you from rework. Start by removing the interior hardware and measuring the door thickness and the backset from the door edge to the center of the bore hole. Most residential doors use a 2-3/8 inch backset, some use 2-3/4 inch. Mark the locations for the face bore (the large hole through the door face) and the edge bore (the hole in the door edge where the bolt sits). Check the strike plate height and side alignment on the jamb. Use a square to ensure the bolt will align with the strike vertically. Finally, dry-fit the bolt and strike in their positions before drilling to confirm fit.
Drilling, mortising, and mounting the bolt
Begin by drilling the face bore through the door at the marked location, using the correct drill bit size per the manufacturer's instructions. If needed, drill the edge bore on the door edge with a spade bit or hole saw. Remove burrs with a chisel so the bolt slides freely. Insert the bolt into the bore and secure with screws from the interior side. Next, align the strike plate on the door jamb and mark its screw holes. Pre-drill for the strike plate and drive in the screws, ensuring the strike sits flush with the jamb. Double-check that the bolt fully engages with the strike when the door is closed.
Testing and final adjustments
With hardware installed, test the lock in several steps. Close the door and turn the thumbturn or insert the key to verify the bolt slides smoothly into the strike. Check that the door shuts fully without binding and that the bolt does not protrude past the strike. If misalignment is present, adjust by loosening screws slightly and nudging the strike or mortise until the bolt aligns perfectly. Finally, re-tighten all screws and apply a bit of graphite or dry-lube to the moving parts to reduce wear.
AUTHORITY SOURCES
For additional guidance, review reliable references on door hardware and security standards. See government and university publications and well-known home improvement outlets for best practices. Examples include federal guidance on home security and standards from recognized institutions to support safe and effective installations.
Safety reminders and final checks
Always wear eye protection when drilling, keep hands away from rotating bits, and never bypass safety features. If you encounter a stubborn frame or soft wood, stop and reassess; forcing hardware can crack the door or shear screws. After installation, replace the existing door hardware with new matching screws, clean away dust, and ensure the door remains properly aligned.
Tools & Materials
- Deadbolt kit (single-cylinder or double-cylinder)(Choose 1-1/8" or 1-3/8" bolt throw depending on door thickness)
- Strike plate with mounting screws(Ensure long screws reach the door jamb)
- Door edge bore bit and face bore bit(Sizes per manufacturer's instructions)
- Drill with bits (including 1/8", 3/16", 1/4")(For pilot holes and edge bore)
- Chisel set(To mortise out portions of the bore as needed)
- Screwdriver set (Phillips and flat)(For mounting screws and strike plate)
- Pencil and measuring tape(Mark drilling points accurately)
- Level or square(Keep bolt straight for proper alignment)
- Safety glasses(Protect eyes during drilling)

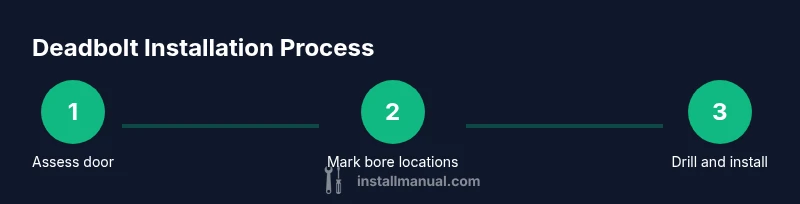

Steps
Estimated time: 60-90 minutes
- 1
Verify door compatibility and backset
Confirm the door edge bore and backset fit the chosen deadbolt. Double-check fire-rated or weather-sealed doors as needed. The goal is a flush fit with no binding when the bolt operates.
Tip: Measure twice, drill once to avoid costly rework. - 2
Mark face bore and edge bore locations
Using a pencil, precisely mark where the large face bore and the edge bore will sit. Ensure marks are level and centered on the door face.
Tip: Use a center punch to prevent bit wandering on hard wood. - 3
Drill the face bore
Drill the large face bore at the marked location with the correct bit size. Clear debris after drilling to prevent binding.
Tip: Start slowly and increase pressure gradually to avoid tear-out. - 4
Drill the edge bore
Create the bolt bore in the door edge using the appropriate bit. Keep the drill perpendicular to the edge to maintain alignment.
Tip: Check for burrs; remove with a chisel for smooth bolt operation. - 5
Mortise and insert the bolt
If required, mortise a shallow area so the bolt sits flush. Insert the bolt and secure with interior screws.
Tip: Only snug screws initially; final tighten after alignment checks. - 6
Attach the strike plate to the jamb
Position the strike plate so the bolt seats cleanly. Pre-drill holes and drive in screws with a level to keep the plate flush.
Tip: Use longer screws to anchor into solid framing for added security. - 7
Dry-fit and align the hardware
With both bolt and strike in position, test the bolt’s travel and alignment without full assembly. Make minor adjustments as needed.
Tip: Tiny misalignments cause binding; adjust in small increments. - 8
Secure hardware and perform final test
Fully tighten all screws, re-check alignment, and test the lock with the door closed and open. Confirm smooth operation of both turning the key and thumbturn.
Tip: Lubricate moving parts with graphite or dry-lube after testing. - 9
Document and maintain
Record the lock model, backset, and screw lengths for future maintenance or replacement. Inspect annually and replace worn screws as needed.
Tip: Keep the lock’s warranty card and installation notes together.
Got Questions?
Do I need to remove the old strike plate before installing a new deadbolt?
Not always. If the new bolt and strike pattern match the old holes, you can reuse the strike plate. If not, replace it with the correct plate and screws for proper alignment and security.
You can reuse the old strike plate if it matches the new hardware, but replacement is often better for security and fit.
What backset options should I know for residential doors?
Residential doors typically use 2-3/8 inch backset, while some thicker doors require 2-3/4 inch. Confirm the measurement before purchasing hardware.
Most doors use 2-3/8 inch backset; measure your door to decide if 2-3/4 inch is needed.
Can I install a deadbolt in a metal door?
Yes, but you may need reinforced strike plates and self-tapping screws. Drilling should be done carefully to avoid deforming the door.
You can install in a metal door, just use appropriate hardware and reinforcement.
What should I do if the bore holes are too small?
Do not force. Carefully enlarge the holes with the correct bit or a chisel, testing fit frequently to avoid oversizing.
If holes are too small, enlarge them slowly with the right tools and test fit as you go.
Single-cylinder vs double-cylinder deadbolts: which is safer?
Double-cylinder offers security for exterior doors that swing outward or where a window is nearby; single-cylinder is more convenient for everyday use.
Double-cylinder is more secure in some settings, but single-cylinder is easier to operate daily.
Is this a DIY task, or should I hire a locksmith?
If you have basic carpentry skills and the right tools, you can install a standard deadbolt. For complex doors or security requirements, consider a professional.
If you’re comfortable with basic carpentry, you can do it yourself; otherwise, hire a pro.
Watch Video
Main Points
- Measure twice, drill once to ensure fit.
- Choose the correct backset and strike plate for your door.
- Test alignment before final tightening.
- Use proper screws and lubrication for durability.
