How to Install a Door Lock: A DIY Guide

Understanding door lock types

Choosing the right lock is the first step in improving a door's security. Residential doors commonly use cylindrical knob locks, single-cylinder deadbolts, and double-cylinder deadbolts, each with distinct installation needs. Cylindrical knob locks are convenient for interior doors and some exterior doors, but may offer less resistance against forced entry. Deadbolts provide a higher security level because they bolt into the frame and resist kick-in attempts. Within deadbolts you’ll find variants like single-cylinder (a key outside, thumb turn inside) and double-cylinder (keys on both sides). For exterior doors, many homeowners also consider lever-handle locks or mortise locks, which integrate the latch and strike in a single assembly. Smart locks add connectivity and remote control but can require compatible power sources and, sometimes, a more complex bore pattern. Before you decide, assess your door material, frame construction, and desired level of security. A basic home entry often benefits from a sturdy single-cylinder deadbolt paired with a compatible doorknob or lever. If you live in an area with higher security concerns, a mortise or smart-lock option may be worth the extra effort.

Tools and materials you’ll need

Having the right tools on hand keeps the installation smooth and accurate. Gather these essential items before you start:

• New door lock set (cylinder or deadbolt) compatible with your door thickness
• Drill with appropriate bits (usually 1/8", 3/16" for pilot and larger holes)
• Drill guide or masking tape to protect the wood surface
• Screwdriver set (Phillips and flathead)
• Tape measure and pencil for precise markings
• Chisel and hammer for strike plate mortises (if required)
• Stud finder (optional, for deeper frame anchoring on hollow doors)
• Safety glasses to protect your eyes during drilling
• Cleaning cloth and mild solvent for removing dust

Assessing your door and lock compatibility

Before you drill, confirm backset, bore hole diameter, door thickness, and strike plate style. The backset is the distance from the edge of the door to the center of the bore hole; standard options are 2-1/8 inches and 2-3/4 inches. If you’re replacing an existing lock, measure the current backset and use a replacement kit with the same size. Measure door thickness (typically 1-3/8" to 1-3/4") to ensure the latch length fits. For exterior doors, ensure the strike plate and jamb can accept the reinforced strike to resist forced entry. If your door lacks a bored hole, you may need to bore new holes, which requires a careful layout using the template provided with your lock. A common error is misaligning the latch and strike, which causes sticking or mislocking. The goal is a clean alignment so the lock operates smoothly with a single lift or turn.

Preparing the door and hardware

Start by removing old hardware and cleaning the bore. Use a flashlight to inspect the interior of the door for splits, voids, or enlarged holes. Place masking tape over the bore to keep wood dust away and help you mark where to drill. If your new lock kit includes a paper template, align it with the existing bore or door edge marks and trace the holes. Use a center punch to mark centers, then drill pilot holes at the correct diameter. Dry-fit the latch by inserting it to confirm fit before committing to all screws. If you encounter rough bore edges, clean them with a countersink to ensure a flush fit of the strike and faceplate.

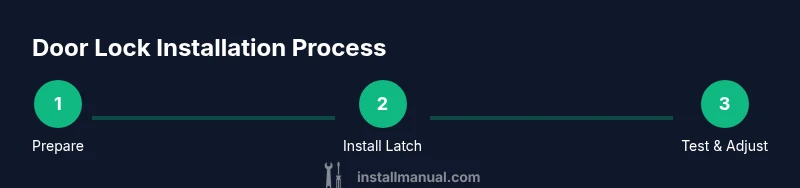

Step-by-step overview

Overview of the installation process

• Start by preparing a clean work area and the door surface.
• Install the latch or bolt in the edge bore, ensuring it retracts smoothly when tested with the knob or lever.
• Align the exterior and interior components, then secure with screws aligned to the bore.
• Attach the strike plate to the door frame and verify alignment with the latch when the door is closed.
• Test the lock several times at different angles, adjusting strike plate or latch depth as needed.

Maintenance and security best practices

Regular maintenance keeps your lock functioning and secure. Lubricate moving parts with a graphite-based or dry-lube product every six to twelve months, depending on usage. Periodically check screws for tightness and examine the strike plate for cracks in the jamb. If you notice sticking or difficulty turning the key, inspect for misalignment or wear on the latch bolt. For exterior doors, consider adding weather stripping or reinforcement plates to protect against forced entry. Finally, choose a smart lock option if you want remote access and activity logs, but ensure it’s compatible with your door and power source and follows your home's security policies.
