How to Install a Door Lock: A Complete DIY Guide
Learn how to install a door lock safely with this step-by-step guide from Install Manual. Choose the right lock, prepare the door, and complete a precise installation for better security.
You will learn how to install a door lock, including selecting the right lock type, prepping the door, and performing precise alignment for reliable operation. This guide covers deadbolts and knobs, latch sets, and smart-lock options, plus the essential tools, safety tips, and common mistakes to avoid. Whether you’re replacing an old lock or upgrading for security, this steps-by-steps approach keeps you in control.
Why a Proper Lock Installation Matters
A reliable door lock is one of the most important components of home security. Installing a lock correctly protects entry points, deters break-ins, and helps you meet building codes and landlord requirements. Poor installation can lead to a loose bolt, misaligned strike plate, or jammed latch that makes your door easy to defeat. By understanding the mechanics of a lock and following a careful installation process, you reduce the chance of future problems and increase the durability of the hardware over many years. This section explains the security rationale behind precise alignment, proper backset, and correct strike-plate placement, plus what to do if you share a door with a pet or a high-traffic area.
Key takeaway: A precise fit is essential for security and long-term performance, especially on exterior doors where weather and wear can affect operation.
Understanding Lock Types: Deadbolts, Knobs, and Smart Locks
Locks come in several flavors, and choosing the right type depends on your door, security needs, and how you use the space. A single-cylinder deadbolt provides strong resistance to forced entry when paired with a solid strike plate. A door knob or lever lock offers convenience for interior doors but often relies on a spring-latch mechanism that may wear more quickly. Smart locks add remote access and activity logs but require a stable power or battery setup and compatible hardware. This section breaks down typical use cases, installation challenges, and when to upgrade components like strike plates, screws, or full mortise assemblies. We also discuss compatibility with different door materials (solid wood, hollow-core, metal) and weather considerations for exterior installations.
Key takeaway: The right lock type balances security, ease of use, and compatibility with your door and frame.
Planning Your Install: Door Preparation and Measurements
Preparation is everything. Before driving screws, you must understand backset, door thickness, and strike-plate alignment. Backset is the distance from the edge of the door to the bore hole; common values are 2 3/8 inches or 2 3/4 inches. Measure the door thickness to ensure you select screws long enough to anchor securely into the door edge and the frame. If you’re replacing hardware, verify that the new lock’s dimensions align with existing bore holes and mortises. This planning reduces the need for re-drilling and minimizes the risk of misalignment that could cause a jammed latch or a loose strike. We also review how weather sealing and door swing direction affect installation, so your lock remains reliable through seasonal changes.
Key takeaway: Accurate measurements and door condition checks prevent misalignment and ensure smooth operation over time.
Tools, Hardware, and Safety Considerations
This section outlines essential tools and safety steps to prepare for installation. Gather a drill with appropriate bits, screwdrivers, chisel, hammer, tape measure, pencil, square, and safety glasses. If you’re installing a deadbolt, you’ll need longer mounting screws and a strike plate with reinforced screws. For smart locks, you may require a compatible hub or Wi-Fi bridge and extra batteries for backup power. Wear eye protection when drilling and handling metal components. Always work on a clean, well-lit surface and secure the door so it does not move during the process. Keep track of fasteners to avoid cross-threading or over-tightening screws, which can crack the door edge.
Key takeaway: Prepare with the right tools and safety gear to avoid damage and ensure secure anchoring.
Common Pitfalls and How to Avoid Them
Several common mistakes can compromise lock performance. Misaligned holes can cause binding or a loose latch; drilling out of plum can ruin the door edge; using short screws can fail to bite into the frame. Avoid stripping screw heads by using the correct screwdriver size and applying firm, steady pressure. If the strike plate isn’t paired with a reinforced bore, the lock may be less secure. Weathered doors or frames may require additional chiseling or fill-ins to create a flush fit. Finally, skip corners at the last minute by not testing the lock from both sides and under various angles. This section spotlights corrections and checks you can perform before finalizing installation.
Key takeaway: Slow, precise work and thorough testing prevent weak points and future maintenance.
Final Checks and Next Steps
After securing the lock, test every function: turning the key, operating the latch with the handle, and ensuring the strike plate catches smoothly. Confirm the door closes fully and aligns with the latch bolt as the latch engages. If you notice binding, loosen and re-tighten screws incrementally, or adjust the strike plate position slightly. Lubricate the bolt and strike with a light silicone-based spray if the mechanism feels gritty. Consider rechecking alignment after a few days of use, especially in homes with seasonal humidity changes that can affect wood doors.
Key takeaway: Thorough testing and light maintenance extend the life of the lock and keep entry points secure.
Tools & Materials
- Phillips head screwdriver(Sizes #2 and #3; needed for most screws on strike plates and handles)
- Flathead screwdriver(For prying or prying metal parts if necessary)
- Drill with assorted bits(0.125 in to 0.5 in bits; pilot holes and larger bore holes as needed)
- Chisel(Flat-top chisel; used to mortise or refine edge bore if required by the door)
- Hammer(For tapping chisel, strike plate alignment, and screw driving support)
- Tape measure(Measure backset and door thickness accurately)
- Pencil(Mark hole locations and alignment references)
- Square/door alignment tool(Ensure holes are perfectly square to door edge)
- Door latch kit (bolt and strike plate)(Choose a kit matching door thickness; include strike plate with reinforced screws)
- Deadbolt kit (if installing a deadbolt)(Only if your door requires a separate deadbolt assembly)
- Safety glasses(Protect eyes from debris and metal shards)
- Lubricant (silicone spray)(Light lubrication for moving parts if sticky)

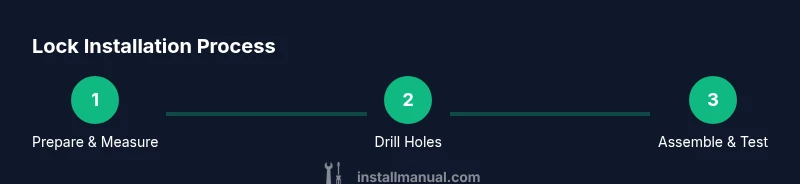

Steps
Estimated time: 60-120 minutes
- 1
Remove old hardware and inspect the door
If there is existing hardware, remove it carefully and set screws aside in a labeled container. Inspect the door edge for damage, checking for cracks or rough surfaces that could affect fit. Clean the edge with a utility knife or scraper to expose a clean mortise line for the new hardware.
Tip: Take photos before removing components to reference for reinstallation. - 2
Check door edge and backset
Measure the backset (usually 2 1/8
Tip: If backset is unknown, compare to standard deadbolt templates and choose a matching bolt. - 3
Mark hole locations for latch/bolt
Place the latch template on the door face, ensuring the bore hole aligns with the bore on the door. Mark the positions for both the edge bore and the face bore with a pencil.
Tip: Use a level to ensure marks are square to the door edge. - 4
Drill pilot holes and bore for latch
Drill pilot holes at marked positions, then bore the face hole to the manufacturer’s specified diameter. If needed, create the edge bore to the correct depth for the latch faceplate.
Tip: Keep the drill perpendicular to the door surface to avoid angled holes. - 5
Install latch/bolt and strike plate
Insert the latch into the edge bore and secure with screws. Align the strike plate on the door frame so the bolt engages smoothly when closed, and secure it with long screws for frame integrity.
Tip: Use a chisel to slightly deepen the strike plate area if necessary. - 6
Install exterior and interior handles/knob/lock
Attach the exterior handle or knob first if the design requires it, then align and secure the interior hardware. Ensure the spindle or connector aligns through the bore hole and the latch retracts smoothly when turned.
Tip: Avoid overtightening screws to prevent binding the mechanism. - 7
Test operation and adjust alignment
Close the door and test the lock from both sides, turning the key and operating the latch. If the bolt doesn’t fully engage, loosen screws and adjust the strike plate position until it seats cleanly.
Tip: Make micro-adjustments in 1/16 inch increments for best fit.
Got Questions?
What type of lock is best for a front door?
For exterior doors, a deadbolt paired with a solid strike plate provides strong security. Consider a single-cylinder deadbolt for ease of use on entry doors, or a smart lock with a backup battery for convenience. Always ensure weather resistance and proper backset.
For front doors, a deadbolt with a solid strike plate is usually best; you can add a smart option if you want remote access, but make sure the weather sealing and backset are correct.
Do I need to mortise a door for a deadbolt?
Many doors require a mortise for the bolt and latch; if your door doesn’t have a mortise, you may be able to adapt with a surface-mounted deadbolt. Check the manufacturer’s template and your door thickness to determine the correct approach.
Some doors need a mortise for a secure fit; if yours doesn’t, you can often install a surface bolt with the right screws and alignment.
Can I install a lock without removing the door from its hinges?
Yes, most standard residential door locks can be installed with the door hanging in its frame. You’ll reposition the door as needed to access the bore holes. For heavy doors or more complex hardware, you might remove the door for easier access.
You can usually install with the door hanging, but removing the door can make it easier for precise alignment on tricky frames.
What tools are essential for lock installation?
You’ll need a drill with bits, screwdrivers, a tape measure, a pencil, a square, a chisel, a hammer, and safety glasses. For deadbolts, long screws are important to anchor into the frame. Having a backup drill and bits helps if you need to enlarge holes.
Key tools are a drill, screwdrivers, a measuring tape, pencil, square, chisel, and safety glasses.
How do you align a new strike plate correctly?
Position the strike plate so that the bolt fully engages with minimal resistance. Use a test door closure to ensure there is no binding. If needed, slightly enlarge the strike hole with a chisel to allow smooth operation.
Align the strike plate with the bolt and test; minor chiseling may be required for smooth engagement.
Is a smart lock worth it for a rental property?
Smart locks can offer convenient access control for tenants, but ensure compatibility with the building’s door and power options. In many rentals, a traditional deadbolt remains the most reliable and compliant choice unless the landlord approves a smart-lock upgrade.
Smart locks can be convenient, but check building rules and power needs; often a traditional deadbolt is simplest for rentals.
Watch Video
Main Points
- Choose the right lock type for your door and use reinforced screws to anchor into the frame.
- Accurate measurements and alignment prevent future misfires and security gaps.
- Test operation thoroughly from both sides and perform light lubrication after install.
- Maintain the lock periodically to extend its life and performance.
