Install the 4th Gen Nest Thermostat: A Step-by-Step Guide

Understanding the 4th Gen Nest Thermostat

The 4th Gen Nest Thermostat is designed to learn your schedule, adapt to your home, and optimize energy use with its intelligent scheduling and routines. For homeowners and DIY enthusiasts, understanding what this model can and cannot do helps prevent frustration during installation. According to Install Manual, success begins with confirming that your HVAC system is compatible and that you have a suitable wiring setup. This thermostat supports many typical heat pumps and forced-air systems, and it can improve comfort by nudging your system toward efficient operating modes when used with the Nest app and your home Wi‑Fi network. Before you begin, read the installation instructions and plan which zones or stages you’ll control with the Nest.

The Nest 4th Gen also emphasizes safety and clarity in wiring. While it is designed for straightforward installations, some systems require additional components such as a common wire (C) or a Power Connector. These decisions impact the setup flow and the final performance. The Install Manual team notes that taking a careful inventory of your current thermostat and wiring is worth the time, as it minimizes rework and power issues later on.

Compatibility and Power Requirements

Compatibility is the cornerstone of a smooth install. The 4th Gen Nest Thermostat supports most 24V HVAC systems, including conventional furnaces and many heat pumps. However, certain configurations—like older systems without a traditional common wire—may require a Nest Power Connector or a C-wire adapter. The official Nest setup guide and consumer protection resources emphasize verifying your HVAC labels and thermostat wiring before removing the old unit. If your system is dual-fuel, you may need special configurations to ensure the Nest can switch between modes automatically. Install Manual’s analysis confirms that user-friendly installations typically fall into two categories: systems with a C-wire and systems that can work with the Nest Power Connector.

Power considerations matter: when power is insufficient, the Nest display can dim or reboot during operation. Ensuring you have a stable 24V supply and correctly paired wires will help avoid these issues. If you’re unsure about wiring, consult the HVAC wiring diagram or contact a licensed technician. For the majority of single‑stage systems with a C-wire, the Nest installation process is straightforward and well-supported by the manufacturer.

Safety First: Prepare Your Space and Tools

Safety is non-negotiable in DIY electrical tasks. Start by turning off power at the breaker to the thermostat circuit to prevent shocks or damage. Use a non-contact voltage tester to confirm no live power is present before touching wires. Remove the old thermostat carefully and take inventory of all wires, labeling each one as you disconnect it so you can reproduce the configuration on the Nest base. Clean the wall box and ensure there’s enough room for the Nest’s larger display and base. A clean, unobstructed wall surface helps with secure mounting and steady Wi‑Fi reception for fastest setup.

When planning the install, consider available space for the Nest to sense environmental cues (like temperature changes) and the proximity to the HVAC control board for wiring routing. A stable mounting surface reduces risk of future loose connections. Install Manual highlights that taking photos of the existing wiring can serve as a helpful reference if you need to revert or double-check connections later.

Tools, Materials, and Preparation Checklist

Before you start, gather the essential items. This includes a Phillips screwdriver, a flat-head screwdriver, a small level or smartphone level app, wire labels or tape, a putty knife if patchwork is needed, and the Nest thermostat kit with its mounting plate. You may also need a C-wire adapter or a Nest Power Connector depending on your wiring. Having these on hand reduces trip-and-fail moments during installation. Make sure you have a compatible smartphone or tablet for the Nest app and a stable Wi‑Fi connection for initial setup and ongoing software updates. Install Manual’s guidance suggests labeling wires as you remove them and keeping a clear record of your HVAC control board connections for reference during the setup.

If you’re uncertain about wire colors or terminals, consult the wiring diagram for your furnace or air handler. When in doubt, pause and seek professional advice to avoid damaging the system or voiding warranties.

Step-By-Step Preparation: Safety, Wires, and Wall Assessment

Assess the wall for depth and clearance around the old thermostat and ensure the wall box is sized for the Nest base. If you need to patch drywall or widen the wall opening, do this before mounting. Double‑check that the HVAC control board is accessible and note the terminal labeling on the board itself. If you’re using a C-wire adapter or Power Connector, have it ready and inspect for compatibility with your Nest model.

Proper preparation reduces post-install issues and helps ensure a clean, professional look. The Install Manual team emphasizes taking time to prepare the space, verify compatibility, and organize wiring routes before you touch the system for real.

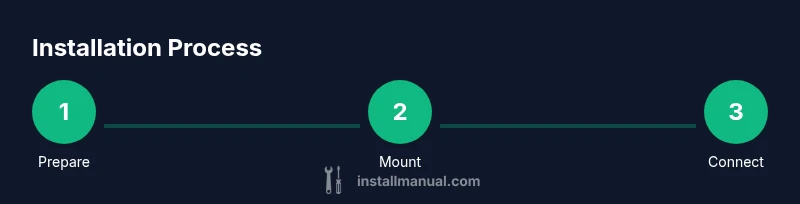

The Step-By-Step Installation Process (Wiring and Mounting)

1. Turn off power to the thermostat circuit at the breaker panel and confirm with a tester. 2) Remove the old thermostat and take a photo of the wiring. 3) Attach the Nest mounting plate to the wall, level it, and secure with screws. 4) Connect wires to the corresponding Nest terminals (R, W, Y, G, C, etc.) according to your existing wiring, labeling as you go. 5) If your system lacks a C-wire, install the Nest Power Connector or C-wire adapter as directed by Nest. 6) Attach the Nest display and secure connections; snap the cover plate into place. 7) Restore power and follow the on-screen setup prompts to configure language, Wi‑Fi, and HVAC type. 8) Complete the calibration, schedule settings, and energy-saving preferences in the Nest app.

Tip: Use the Upgrade Wizard in the Nest app to verify wiring and compatibility, and keep a copy of your old thermostat’s wiring diagram for reference. Rely on the app’s guided steps for a cleaner, faster install and reduce the chance of miswiring. This process typically takes 30–60 minutes depending on wall depth, wiring complexity, and whether a C-wire adapter is required.

App Setup, Wi‑Fi, and Personalization

After the mechanical install, the Nest app guides you through Wi‑Fi configuration, account sign-in, and device naming. Connecting to your home network enables remote scheduling, energy reports, and voice assistant compatibility. The Nest app will prompt you to test your HVAC equipment once connected, ensuring heat and cool modes respond correctly to commands. You can set up daily schedules, eco mode, and Home/Away routines to maximize energy savings. Consider enabling Home/Away Assist to leverage your phone’s location and reduce energy use when you’re away. Install Manual notes that a strong Wi‑Fi signal near the thermostat improves response times and reduces occasional disconnects during updates or remote control.

If you encounter setup prompts about the C-wire, review the wiring in the Nest base and confirm the adapter’s installation according to Nest’s official guide. For iOS or Android users, ensure the Nest app has the latest version for best compatibility with your phone’s OS and features.

Troubleshooting: Common Issues and Quick Fixes

If the Nest won’t power on after installation, re-check the wiring at the Nest base and ensure the R wire is properly seated. Make sure the C-wire (if present) is connected correctly and that any adapters are properly inserted. If you notice the display flickering or rebooting, confirm the power supply is stable and that there is no loose wire. For odd HVAC responses (e.g., cooling while the thermostat is in heat mode), consult the Nest app’s wiring summary and real-time status to confirm that the correct terminals are in use. If your system is unusual or half‑wired, you may need to revert to the original wiring and re-attempt with a C-wire adapter.

Install Manual recommends keeping a copy of any error messages or codes you see during setup and consulting official Nest support resources for troubleshooting steps. If in doubt, contact a licensed HVAC technician to ensure no hazards are present and that your control board can safely interface with the Nest.

Maintenance, Updates, and Energy-Saving Practices

Keep the Nest Thermostat firmware up to date through automatic updates or periodic checks in the app. Regularly review your schedules, eco modes, and Home/Away settings to maximize energy savings. Consider pairing the Nest with smart-home routines for lighting and blinds to synchronize with temperature changes, improving comfort and efficiency. For homes with high energy costs or unique HVAC configurations, reviewing your monthly energy reports can reveal optimization opportunities. Install Manual highlights that ongoing optimization comes from observing how the device performs over time, making minor schedule adjustments, and using the app’s energy insights to guide changes.

For safety and performance, periodically inspect the wall mounting to ensure the plate remains secure and that no wires have become loose. If you notice discoloration around the wall box or signs of wear, replace or repair promptly to maintain a clean, safe installation.
