Install 4th Generation Nest Thermostat: Step-by-Step Guide
Learn how to install the 4th generation Nest thermostat with a clear, expert-guided process. This guide covers compatibility, wiring, app setup, safety, and energy tips from Install Manual.
You can install the 4th generation Nest thermostat by verifying HVAC compatibility, turning off power, wiring the Nest base, and completing setup in the Nest app. This guide walks you through wiring checks, mounting, and app configuration to enable smart control. Expect to spend about an hour, depending on existing wiring and system complexity.
Why install a 4th generation Nest thermostat
Installing the 4th generation Nest thermostat can trim energy use, improve comfort, and give you remote control from your phone. For homeowners, renters, and DIY enthusiasts, it provides learning schedules, occupancy sensing, and easy integration with Google Assistant. According to Install Manual, modern smart thermostats perform best when you map your daily routines and connect them to your home network. The 4th generation model supports common HVAC setups and works with many heat pumps, furnaces, and boilers, but compatibility checks are essential before you begin.
What you gain with a Nest thermostat 4th gen
A Nest thermostat brings several tangible benefits. You get precise temperature control from anywhere, automatic scheduling that adapts to your life, and energy insights that help you reduce wasteful heating and cooling. With Home/Away Assist, the system learns when you are away and adjusts temperature to save energy. The assistant features on-device scheduling and a clean, intuitive app experience, making daily comfort effortless while keeping you in control of your energy costs. Install Manual emphasizes that these capabilities are most effective when the device is installed correctly and paired with a stable Wi-Fi connection.
Compatibility and planning
Before starting, confirm your HVAC system uses 24V wiring and has a C-wire or a compatible alternative. Most single stage systems are straightforward, but heat pumps with multiple stages or conventional boilers may require additional wiring or adapters. Gather the model of your furnace or air handler, check the existing wires, and photograph the wiring to compare with Nest compatibility charts. If you have a hazy wiring setup, consider consulting a pro; even though DIY is feasible, an incorrect connection can affect safety and performance. Install Manual notes that ensuring the right power source and compatible terminals is the foundation of a successful install.
Wiring basics and safety
Power must be off at the circuit breaker before touching any thermostat wiring. Remove the old thermostat faceplate and base, then label each wire by function (R, C, W, Y, G, etc.). Confirm the 24V supply with a tester if you have any doubt about power availability. Keep wires organized and avoid crimping or bending them at sharp angles. The Nest base should align flush with the wall, and wires should reach the terminal clamps without being forced. Following these precautions reduces the risk of miswiring and ensures a reliable connection.
App setup and on-wall installation overview
After wiring, mount the Nest base and insert wires into their corresponding terminals. Attach the display and power on the unit. Open the Nest app, select add a new device, and follow prompts to connect to your Wi-Fi network. The app will guide you through choosing your HVAC type and confirming system operation. You may need to calibrate temperature and set up basic schedules. A successful pairing enables remote access, energy reports, and routine optimization.
Troubleshooting common issues during installation
If the thermostat shows no power, recheck the C-wire and 24V supply. Mislabeling wires or loose connections are frequent culprits, so re-seat connectors and confirm each wire is in the correct slot. If the Nest cannot communicate with Wi-Fi, verify router settings and try a 2.4 GHz connection if necessary. For heat pump systems, ensure heat and cool stages are configured correctly in the app. When in doubt, revert to the old thermostat wiring and reattempt the connection with fresh labels.
Post-install optimization and energy tips
Once installed, customize temperature schedules to reflect your daily routine, set a reasonable Eco temperature when away, and enable Home/Away Assist. Review energy history to identify patterns and opportunities for further savings. If you use a smart speaker, integrate voice control for quick adjustments. Install Manual reminds readers that remaining up to date with the latest app updates improves performance and security.
Tools & Materials
- Nest Thermostat (4th generation)(Contains display, base, screws; ensure you have the 4th generation model)
- Screwdriver set (Phillips #2 and small flathead)(For mounting screws and terminal connections)
- Smartphone with Google Home/Nest app(Needed to complete in-app setup and Wi-Fi configuration)
- Labeling supplies (masking tape or wire labels)(Label every wire before removal to avoid miswiring)
- Voltage tester or multimeter (optional)(Useful to verify power off and 24V supply if wires are uncertain)
- Stable Wi-Fi network(2.4 GHz or 5 GHz network depending on router and Nest compatibility)
- Works with 24V HVAC system documentation(Have the HVAC system model and circuit diagram on hand)

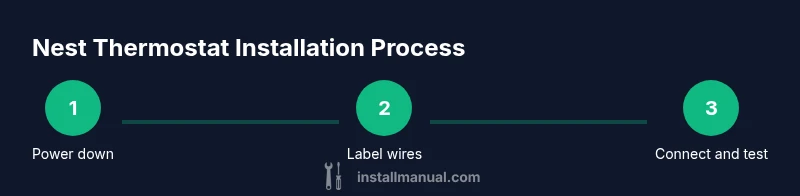

Steps
Estimated time: 60-90 minutes
- 1
Power down and prep the installation site
Switch off power at the breaker to the HVAC system and the thermostat circuit. Remove the old thermostat faceplate and prepare the wall for mounting. This ensures you can safely access wiring without accidental energization.
Tip: Take a photo of the wiring before disconnecting anything to reference later. - 2
Remove old thermostat and label wires
Carefully detach the old thermostat, exposing the wire bundle. Label each wire with its function (R, C, W, Y, G). Keep wires organized to prevent mix-ups during reattachment.
Tip: Use color-coded labels and tape to keep wires attached to their functions. - 3
Verify wiring and compatibility with 24V HVAC
Check that your system uses 24V control and has a C-wire or an appropriate adapter. If wiring is unusual, consult the HVAC diagram or a pro before proceeding.
Tip: If there is no C-wire, plan for a C-wire adapter or contact a professional for safe installation. - 4
Mount the Nest base and connect wires
Attach the Nest base to the wall with screws and insert labeled wires into the corresponding terminals. Ensure each wire sits firmly and the base is flush against the wall.
Tip: Do not force wires into terminals; if a wire cannot reach, recheck routing or trim the wire gently. - 5
Attach the display and start app configuration
Snap the Nest display onto the base and power the unit. Open the Nest app, add a new device, and follow prompts to connect to Wi-Fi and configure your HVAC type.
Tip: Choose a strong Wi-Fi password and enable app notifications for status updates. - 6
Test, calibrate, and finalize settings
Run a quick test to verify heating and cooling response. Set basic schedules and energy-saving preferences, then review energy history to identify improvements.
Tip: Test both heat and cool modes to confirm full control and avoid surprises.
Got Questions?
Is the 4th generation Nest thermostat compatible with my HVAC system?
Most 24V HVAC systems are compatible, but some multi-stage or boiler-only setups require extra wiring or adapters. Always verify with the Nest compatibility guide and consult a pro if in doubt.
Most 24V systems work with the Nest, but check your wiring and consider professional help if you have a multi-stage or boiler-only setup.
Do I need a C-wire to install the Nest thermostat?
A C-wire is common on many systems, and the Nest can operate with a powered adapter if no C-wire is present. Check your current wiring and plan for an adapter if necessary.
A C-wire is often required; if you don't have one, an adapter is available. Verify wiring before installation.
Can I install the Nest thermostat myself or should I hire a pro?
DIY installation is feasible for many standard 24V systems, but complex heat pumps or boilers may require professional wiring. If your wiring looks unusual, seek expert help.
You can install it yourself if your system is standard. For complex setups, consider a pro.
What should I do if the thermostat shows an error after installation?
First, recheck wire connections and power. If errors persist, consult the Nest app troubleshooting guide and consider reinstalling the wiring using labeled references.
Restart the setup, check connections, and use the Nest troubleshooting guide if errors appear.
Will the Nest thermostat save energy and reduce bills?
Smart scheduling and occupancy sensing typically reduce energy use. Actual savings depend on your climate, routines, and how you use the energy features.
Yes, smart scheduling and learning features can save energy, but results vary by how you use the thermostat.
Watch Video
Main Points
- Verify system compatibility before starting
- Label wires to prevent miswiring
- Complete app setup for full functionality
- Test heating and cooling after installation
- Follow up with energy-saving adjustments
