Install Channel Drain: A Homeowner's Step-by-Step Guide
Learn how to install a channel drain in showers or wet areas with a clear, step-by-step process focused on planning, waterproofing, installation, testing, and maintenance for a durable, leak-free result.
With this guide, you'll learn how to install a channel drain in a shower or wet area. You'll plan the layout, prepare the substrate, set the channel, seal all joints, and test drainage for leaks. Before you start, gather a channel drain kit, waterproofing membrane, sealant, notched trowel, level, and basic hand tools.
What is a channel drain and why it's used
A channel drain is a long, low-profile trench drain designed to collect surface water across a bathroom floor or wet room. It provides a modern, seamless look and helps with rapid water removal, which is especially beneficial in showers or spa-like spaces. Channel drains reduce the risk of standing water that can occur with traditional point drains, and they simplify cleaning by presenting a flat, grating surface. When you install a channel drain, you also improve accessibility for wheelchair users and maintenance staff, because the grate can be recessed below the tile plane for a flush finish. The key to a successful install channel drain is ensuring a consistent slope toward the drain and a watertight seal around the transition to the pan or substrate. This guide emphasizes safe practices, planning, and proper waterproofing to deliver a durable, leak-free result.
Planning and sizing: choose the right channel drain
Start by matching the channel length to the shower or wet area width. Common considerations include overall width, tile layout, and drain location. The slope must guide water toward the channel; a typical rule of thumb is a gradual slope that directs water to the drain without creating puddles. You’ll also need to choose a grate style and finish to suit your design. Before cutting or installing, confirm the substrate can support the channel and the waterproofing membrane. If you’re unsure, consult a local pro or refer to manufacturer installation guides. Proper planning minimizes rework and ensures a clean, professional look.
Substrate preparation and waterproofing basics
Before laying tile, you must prepare a stable, waterproof base. This usually involves installing a waterproofing membrane or liquid-applied membrane over a suitable substrate, followed by a shower pan liner where required. The channel drain flange must be integrated with the membrane so that the waterproof layer remains continuous across the channel. Create a flat bed with deck mud or thin-set mortar, ensuring the bed is slightly thicker at the drain trench to accommodate the channel. Adequate waterproofing reduces the risk of water infiltration into the substrate, which over time can cause mold and structural damage. Always allow membranes to cure per manufacturer instructions before tile work begins.
Tools and materials you'll need
This section highlights essential tools and materials for a successful install. You’ll need a channel drain kit sized to your opening, compatible waterproofing products, a marker, measuring tape, level, notched trowel, caulk gun, silicone sealant, and appropriate tile and grout materials. Optional items include a wet-dry vacuum for cleanup, a torque driver for screw-tightened drains, and a rubber mallet for seating the channel. Gather safety gear such as gloves and eye protection to protect yourself during cutting and grinding tasks. Having everything on hand reduces the risk of delays and helps you complete the project with confidence.
Step-by-step overview

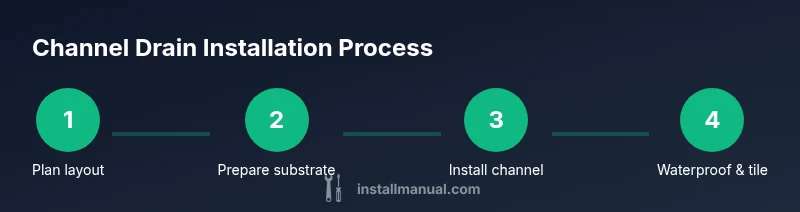

The project can be broken into planning, prep, installation, waterproofing, tiling, and testing. Start by marking the channel location and verifying line-of-slope toward the drain. Then remove any old drain or substrate as needed, dry-fit the channel, and cut the channel opening to length. Install the channel, bed it securely with thin-set or deck mud, and seal the joints with a compatible silicone. Finally, re-waterproof the area, tile around the channel, grout, and test for leaks by pouring a small amount of water and observing drainage.
Step 1: Prepare the site
Turn off any water sources as needed and remove the existing drain cover. Clear debris from the opening and inspect the substrate for damage. If tiles are present, carefully remove them in the area around the drain opening to expose the substrate. Measure the opening and mark the channel length so it will sit flush with the tile surface. Roughly clean and dry the area before you apply waterproofing.
Step 2: Fit channel and set bed
Dry-fit the channel to ensure it fits the opening with the correct slope toward the drain. Cut the substrate as required and apply a bed of deck mud or thin-set to create a level, stable base for the channel. Place the channel and gently press it into the bed so the top sits just below the tile plane. Check alignment with a level and a straightedge, making adjustments before the bed dries.
Step 3: Seal joints and waterproof
Seal the joints around the channel flange with the selected sealant for a watertight seam. Apply a continuous membrane around the drain and over the channel opening to prevent water from wicking into the substrate. Ensure the membrane transitions smoothly into the shower pan liner where applicable. Allow curing time per product instructions before proceeding to tile.
Step 4: Tile and finish
Set tiles around the channel drain with matching grout and edge treatment. Use a notched trowel to apply thin-set and ensure full-bed contact around the channel edges. Once the tile is set, grout the field and around the grate, then wipe away excess grout. Finally, install the grate and perform a water test to confirm proper drainage.
Authority sources and safety guidelines
For credible guidance, consult manufacturer installation guides and code references. You’ll also want to review general plumbing safety practices to protect yourself during cutting and installation. The following sources provide broad, reputable information on plumbing and safety practices helpful for planning and executing a channel drain installation.
Safety and code considerations
Follow local building codes regarding drainage, waterproofing, and tile installation. Use waterproof membranes rated for bathrooms and ensure proper ventilation in enclosed wet rooms. Wear safety gear during all cutting, scraping, and grinding tasks, and disconnect power tools when not in use to prevent accidents.
Tools & Materials
- Channel drain kit (channel body + grate)(Length matched to shower opening)
- Waterproofing membrane or liquid membrane(Compatible with tile substrate)
- Silicone sealant (neutral cure)(For sealing joints around flange)
- Thin-set mortar or deck mud(For bedding channel and tile setting)
- Notched trowel (1/4 x 3/8 inch)(For applying thin-set)
- Level and straightedge(To verify slope and alignment)
- Marker and measuring tape(For layout and cutting lines)
- Caulk gun and silicone/silane sealant(Seal around the channel)
- Tile cutter or wet saw(To cut tiles around the drain opening)
- Grout float and sponge(Finish grouting and cleanup)
- Safety gear (gloves, goggles)(Protect during heavy cutting)
Steps
Estimated time: 60-120 minutes
- 1
Prepare the site
Turn off water, remove existing drain cover, inspect substrate, and mark channel length. Ensure the opening is clean and dry before proceeding.
Tip: Double-check the slope toward the drain using a straightedge. - 2
Dry-fit channel and bed base
Dry-fit the channel in the opening, cut substrate as needed, and apply a stable bed of deck mud or thin-set. The top of the channel should sit just below the tile plane.
Tip: Use a level to ensure the channel bears evenly across its length. - 3
Set the channel and secure
Place the channel into the bed and press firmly so it is level with the tile surface. Confirm alignment with a straightedge, and adjust if necessary before bed dries.
Tip: Avoid tilting the channel—even slight tilt will affect drainage. - 4
Waterproof around the flange
Apply a continuous waterproofing membrane around the flange and ensure the membrane fully covers the channel edge. Allow curing per product instructions.
Tip: Overlap seams and ensure a smooth transition into the pan liner if used. - 5
Tile around the drain
Install tiles around the channel with matching edge trim. Use the notched trowel to ensure proper bed, and check that the top is flush with adjacent tiles.
Tip: Avoid grout over the channel; keep the sealant line clean. - 6
Grout, seal, and test
Grout the field, seal joints, and clean excess grout. Reinstall the grate and perform a water test by pouring water to observe flow and detect leaks.
Tip: Perform a test with a small water amount first to avoid overflows.
