How to Install Shower Drain: Step-by-Step Guide for DIY
Learn how to install a shower drain with a clear, step-by-step plan. From selecting components to testing for leaks, this guide helps homeowners and DIYers complete a watertight installation.
This guide teaches you how to install a shower drain from start to finish, including choosing the right drain, ensuring correct slope, and testing for leaks. You’ll prep the space, assemble components, set the drain and shower pan, waterproof around the drain, and verify a watertight seal. Essential tools and safety gear are listed upfront.
Understanding shower drain configurations
If you’re learning how to install shower drain, start with the basics of drain configurations. Shower drains come in several styles, including standard flange drains, clamping drains, and adjustable-height variants. The main goal is to create a watertight path for water to flow into the plumbing without leaking into the subfloor. Choosing the right drain affects pan depth, tile thickness, and curb height. In addition to fit, consider the shower pan design (traditional mortar bed versus a modern preformed pan) and whether you’ll tile flush to the drain or use an integrated insert. This section explains how flange size, the presence of a waterproof membrane, and the pan liner work together to prevent leaks. Understanding these elements helps you avoid rework and costly repairs later.
Key planning steps before you begin
Before any tools touch the surface, confirm local codes and the direction of water flow. Plan your drain location in relation to the shower layout and tile thickness. Measure the slope to ensure a minimum 1/4 inch per foot toward the drain and verify the subfloor is sound. Identify whether you’ll install a liner-based system or a solid pan with a preinstalled drain assembly. Documentation of measurements and a materials list save time and reduce mistakes when you assemble the drain components.
Drain types and selecting components
The drain you choose affects the installation sequence and future maintenance. Most residential showers use a drain flange with a clamping ring and a wax ring or gasket. Some systems rely on a waterproof membrane and a pre-mixed mud bed, while others use a modern, preformed shower pan. When selecting components, match the drain diameter to the pan size, ensure compatibility with the waterproofing membrane, and verify that the chosen pan can accommodate the tile thickness you plan to install. Gather a flange, a gasket or wax ring, a clamping ring, a drain body, and any required sealant or primer for PVC or ABS piping.
Subfloor prep and waterproofing basics
Professional results hinge on a solid substrate and reliable waterproofing. Start by inspecting the subfloor for softness or damage and repair as needed. If you’re installing over wood, ensure it’s dry and reinforced; over concrete or a slab, confirm the surface is clean and flat. Install a waterproof membrane over the subfloor to direct water toward the drain. The membrane should extend several inches beyond the drain opening and be sealed at all seams. For tile installations, a continuous bed or membrane helps prevent water intrusion behind walls. Finally, dry-fit the drain assembly to confirm clearance and alignment with the pan edge before committing to adhesive.
Installing the drain flange and sealing the pan liner
Install the drain flange first, ensuring it sits level with the final tile height and is anchored to the substrate as specified by the manufacturer. If you’re using a liner-based system, position the liner so it directs water toward the drain and overlaps the flange. Attach the clamping ring and wax ring or gasket per the product instructions. Tighten the assembly gradually to avoid cracking the flange or squeezing the liner. The goal is a smooth, uninterrupted surface around the drain for consistent tile installation.
Waterproofing around the drain and tiling considerations
Waterproofing around the drain is essential to prevent water seepage. Apply sealant at all joints between the drain flange, liner, and substrate; allow curing time as directed. When tiling, maintain a uniform slope toward the drain and consider using a tile cutter or wet saw to create a clean cut around the drain opening. Use spacers to maintain even grout lines and ensure the tile edges align with the drain for a neat finish. For larger tiles, you may need to notch some edges to fit the drain flange flush with the tile surface.
Testing the drain for leaks and flow
After installation, perform a thorough leak test. Seal the drain and fill the shower pan with water to a visible level above the drain, and monitor for several minutes to detect any moisture path behind walls or under the substrate. If you notice damp areas, recheck the membrane seams, gaskets, and the seal around the flange. A successful test typically shows no damp spots after several minutes. If you prefer, install a temporary trap and run water through the drain to confirm consistent flow.
Finishing touches: tile, grout, and sealant around the drain
Once the leak test passes, proceed with tiling around the drain and finishing grout. Cut tiles precisely to fit around the drain opening, ensuring the grout lines align with the drain flange. Use a grout float to press grout into joints and wipe away excess material. After curing, seal the grout with a compatible sealant to resist moisture absorption. Finally, apply a thin bead of silicone around the drain edge to accommodate any movement and provide an extra layer of protection against leaks.
Common mistakes to avoid and quick fixes
Common errors include using the wrong drain size for the pan, misaligning the flange, failing to slope the pan toward the drain, and skipping waterproofing at the flange. Avoid overtightening drain components, which can crack the flange or warp the liner. If you discover a leak during testing, recheck the gasket, reseal joints, and verify the waterproof membrane coverage. Keeping a small set of spare parts on hand helps you make quick fixes during the install.
Safety, code considerations, and when to call a pro
Shower drain installation involves plumbing and waterproofing, so follow safety guidelines and local codes. If you encounter damaged subfloor, mold, or structural concerns, consider consulting a licensed plumber. For complex pan designs or unconventional shower layouts, a pro can ensure code compliance and long-term performance. Document your work and keep warranties and installation instructions for future reference.
Tools & Materials
- Measuring tape(Minimum 25 ft recommended)
- Pencil or marker(For marking layout and cut lines)
- Utility knife(For trimming membranes and backing)
- Drain assembly kit (flange, body, clamping ring)(Matches pan size and tile thickness)
- Wax ring or gasket(Compatibility with drain type)
- PVC/ABS primer and solvent cement(Only if using PVC/ABS piping)
- Silicone sealant (neutral cure)(For perimeter sealing around drain)
- Waterproof membrane or preformed shower pan(Choose based on pan type)
- Trowel and spacers(For mud bed or tile layout)
- Level and straightedge(Ensure proper slope and flush edges)
- Tile cutter or wet saw(For precise cuts around drain opening)
- Rubber mallet(Light taps to seat components)

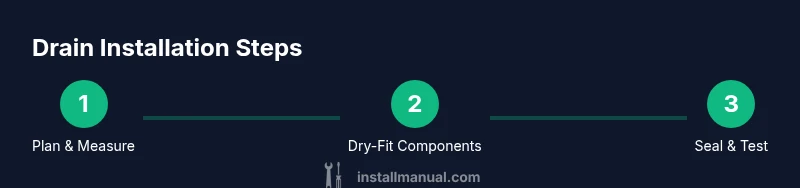

Steps
Estimated time: Total time: 120-180 minutes
- 1
Assess and plan
Identify drain type, measure layout, and confirm tile thickness. Review local codes and prepare a written plan that includes materials, tool list, and a time estimate. This step reduces surprises later and ensures compatibility with the shower pan.
Tip: Create a simple diagram showing drain location relative to walls and curb; it helps prevent layout errors. - 2
Shut off water and prepare the area
Turn off the main supply if needed and cover nearby fixtures to avoid water damage. Remove any trim or old drain components, exposing the drain opening. Clean the area and dry it completely to ensure good adhesion of waterproofing membranes.
Tip: Use a shop vacuum to remove dust and debris from the drain cavity for a clean bonding surface. - 3
Remove old drain and inspect
Carefully remove the existing drain assembly. Inspect the subfloor for rot or water damage and repair as needed. If replacing a liner-based system, check liner integrity and plan for a seamless transition to the new flange.
Tip: Mark the subfloor orientation to ensure the new drain aligns with the pan’s edges. - 4
Dry-fit new drain and pan liner
Position the new drain flange in the drain opening to check clearance with tiles. Set the waterproof membrane or pan liner in place without adhesive first to confirm fit. Ensure the membrane extends beyond the flange and overlaps the surrounding substrate.
Tip: Never torque the drain flange during dry-fit; keep it centered to avoid alignment issues later. - 5
Install drain flange and secure
Install the drain flange level with the final tile height. If using a pan liner, secure the liner to the flange according to the manufacturer’s instructions. Tighten the clamp ring gradually to avoid bending the flange or puncturing the liner.
Tip: Check that the flange sits flat and square; a high spot can cause tile unevenness. - 6
Set shower pan or drain bed
Pour or lay the bed according to your system (mud bed or preformed pan). Ensure a gentle slope toward the drain and verify consistency across the pan. Allow curing time if using mortars or epoxy-based beds.
Tip: Use a screed board to maintain uniform slope and prevent low spots near the drain. - 7
Waterproofing around drain
Apply waterproofing around the drain flange and seam with the membrane or liner. Seal all joints and allow the waterproofing to cure as specified. Create a continuous barrier so water cannot migrate behind tiles.
Tip: Do not skip the membrane at the drain flange; even small gaps can cause long-term leaks. - 8
Tile, grout, and finish
Cut tiles to fit around the drain opening precisely. Install tiles with even grout lines and avoid gaps near the drain. After grouting, seal the grout and apply a bead of silicone along the drain edge to accommodate movement.
Tip: Leave a tiny gap between tile edge and the drain flange to prevent cracking from movement. - 9
Test for leaks and finalize
Perform a leak test by filling the pan and checking for moisture around the drain from the top and below. Recheck seals, membranes, and gaskets if leaks appear. Clean up the area and store tools properly.
Tip: A second, longer test can catch slow leaks that a quick test misses.
Got Questions?
Do I need to replace the entire shower pan to install a new drain?
In many cases you can replace just the drain assembly or update the flange and liner without changing the entire pan. If the subfloor or pan liner is compromised, a larger renovation or replacement may be necessary. Always assess the condition first.
Often you can replace just the drain assembly, but if the liner or subfloor is damaged, a bigger repair may be needed.
What drain types work best for tile layouts with varying thickness?
Choose a drain with adjustable height or one designed for tile-thick membranes. Ensure the flange height aligns with tile thickness to avoid edge exposure and ensure a smooth finish.
Pick an adjustable-height drain so the top sits flush with your tile, giving a clean finish.
How do I test the drain for leaks after installation?
Fill the shower pan with water to a level above the drain and monitor for several minutes. Inspect seals around the flange and joints; look for damp spots on subfloors or walls. Re-seal if any moisture appears.
Fill the pan with water and watch for leaks around the drain—re-seal if you spot any damp spots.
Can I install a shower drain over existing tiles?
Yes, but tile removal is often better for a reliable seal. If you tile over, you must remove and re-seat the existing tile around the drain opening to ensure a tight fit and proper waterproofing.
You can, but it’s usually better to remove the surrounding tile to guarantee a solid seal.
What safety precautions should I take during installation?
Wear eye protection, gloves, and a dust mask. Ventilate the area when cutting tile or cement. Use proper lifting techniques for heavy pans or subfloor materials.
Wear safety gear and ventilate when cutting tile or cement to avoid injuries.
Is professional help required for complex showers?
For complex showers, professional help ensures code compliance and long-term reliability. If you’re unsure about the subfloor, waterproofing, or tile work, consult a licensed plumber or contractor.
If in doubt about subfloor or waterproofing, consider calling a professional.
Watch Video
Main Points
- Plan drain configuration before cutting tiles.
- Match drain type to pan and tile thickness.
- Ensure slope directs water toward the drain.
- Waterproof thoroughly around the drain flange.
- Test for leaks before finishing tile.
