How to Install a Shower Base: A Step-by-Step DIY Guide
Learn how to install a shower base with step-by-step instructions, from substrate prep and waterproofing to drain alignment and sealing joints. A professional, DIY-friendly guide by Install Manual for a durable, watertight shower.
Install a shower base by selecting the right pan, preparing a solid substrate, applying a waterproof membrane, setting the base with proper drainage alignment, and sealing all joints. You’ll learn how to level the base, trim the membrane, install the drain, and test for leaks before finishing with wall panels or tiles. This step-by-step approach minimizes leaks and ensures a durable shower enclosure.
Understanding shower bases and installation contexts
Installing a shower base is a foundational step in any bathroom upgrade. The choice between a pre-formed acrylic or fiberglass base and a mortar-bed/shower pan system affects subfloor prep, waterproofing, and tile layout. In this guide on how install shower base, you’ll balance ease of installation against long-term reliability. According to Install Manual, starting with the right base type and acoustic decision about waterproofing membranes saves time and reduces failures later. This section lays out the core concepts—base shapes, drain configurations, and typical installation environments—so you can choose the approach that fits your bathroom footprint and skill level. Expect to encounter common terms like curb, drain flange, waterproofing membrane, and backer board, and know that the goal is a perfectly flat, sealed platform that behaves predictably under load and moisture.
Substrate prep: assessing the floor and curb
A solid substrate is non-negotiable. Begin by evaluating the subfloor for moisture, strength, and levelness. Any soft spots or flex can lead to cracking or movement of the base. If you’re installing over wood, ensure the structure can support the shower’s weight when wet. Concrete or slab floors should be free of cracks and have the correct slope toward the drain. Install Manual’s analysis suggests using a rigid backer board and a thin-set mortar bed flush with the planned shower base to create a stable, continuous surface. In some configurations, a cement board or a pre-slope layer is applied before the pan to maintain the required slope.
Waterproofing options for shower bases
Waterproofing is the backbone of a leak-free shower. Options include traditional pan liners with a clamping drain, sheet membranes, and liquid-applied coatings that form a continuous barrier. Your choice depends on the base type, substrate, and local codes. For pre-formed bases, a moisture barrier beneath the base plus caulked joints at the perimeter is common, while mortar-bed systems may require a flexible waterproof membrane over the board. Always verify compatibility between the base, drain, and waterproofing method. Install Manual notes that the membrane must extend up the sides of the base and behind any wall board to avoid vertical leaks where moisture can travel.
Measuring and selecting the right base size
Sizing matters more than you might think. Accurate measurements of the rough opening, distance to corners, and tile thickness determine whether the base fits flush and provides the correct slope. Measure twice: drain center location, wall-to-wall width, and the available headroom for tiles around the perimeter. Plan for access to the drain for future maintenance. A misfit can force you to trim or replace parts, increasing labor and risk of leaks. Use a level and a straight edge to confirm flatness across the base plane.
Dry fitting the base and planning drain alignment
Before any adhesive is applied, dry-fit the base to confirm it sits level and centered over the drain. This eliminates guesswork and helps you visualize the final layout. Mark the drain position on the subfloor and the base so you can align the assembly after waterproofing. If using a modular base, ensure sections butt tightly with consistent gaps for grout or sealant. Dry fitting also reveals if any trimming is required on the edges or curb to accommodate wall thickness and tile. Reference the drain flange height and ensure it aligns with the subfloor finish.
Installing a mortar-bed shower base (if using a traditional system)
Mortar-bed bases require a precise mix and proper curing time. Start with a dry layout to confirm slope toward the drain (typically 1/4 inch per foot). Install a sloped bed using Portland cement-based mortar, screeding with a straight edge to achieve a uniform plane. The base must be fully supported and free of voids. After the bed cures, install a waterproofing membrane per manufacturer instructions, then place the shower base into the space. Ensure the membrane seals at all joints and overlaps walls as specified.
Installing a pre-formed shower base (common for DIY projects)
Pre-formed bases simplify the process by providing an integrated drain and a built-in slope. Begin with a dry fit to ensure the pan clears walls and aligns with the drain opening. Remove the base, apply a bed of thin-set mortar or construction adhesive, and then set the base into place. Use a level to confirm it sits flat on all sides, making adjustments with shims as needed. Install the drain assembly and gasket, then secure the pan according to the manufacturer’s guidelines. The base should be anchored to the substrate if required by the product spec.
Securing and sealing the base: edge and joints
Once the base sits true, apply an appropriate sealant or thin-set at the perimeter to prevent movement and water intrusion. Seal all transitions between the base and walls with silicone or a compatible sealant, ensuring it remains flexible over time. For panels or tile skirts adjacent to the base, install a waterproof membrane behind the wall to protect the substrate. Double-check that the drain assembly is fully seated and that the gasket provides a leak-free seal. A careful perimeter seal is a simple but critical step in preventing water damage.
Drains, rough-ins, and slope considerations
Drain compatibility and proper rough-in height are essential. Ensure the drain flange is flush with the top surface of the base and that the gasket and locking ring are correctly tightened. If the plan calls for a linear drain or a center-drain layout, verify dimensions against the base manufacturer’s specifications. The slope toward the drain should be maintained through the base and any underlying mortar or membrane. A small error here can cause pooled water or slow drainage, which invites mold and odors. Always follow the base and membrane manufacturer’s tolerances for best results.
Finishing surfaces around the base: walls and panels
After the base is installed and sealed, focus on finishing the surrounding walls. If you’re tiling, set tiles with a wide-grout joint away from the base to allow for movement. For paneling or acrylic surrounds, ensure wall panels are compatible with the base’s edge profile and waterproofing system. Use corner profiles or sealant strips where walls meet the base to finish the look and prevent water intrusion behind wall materials. Properly sealed transitions are essential for long-term performance and ease of cleaning.
Common issues and troubleshooting
Even with careful prep, issues can arise. If you notice seepage around the drain, re-check the gasket and ensure the membrane extended fully under the base. If tiles crack or joints fail, verify substrate flatness and re-seal the perimeter. Poor leveling can cause standing water or rocking; adjust shims or address substrate irregularities. If you’re unsure about a membrane method or drain compatibility, consult the base manufacturer’s installation guide and local codes. Remember, every installation shares the same goal: a watertight, durable shower base that performs reliably for years.
Tools & Materials
- Shower base pan kit (pre-formed or mortar-bed compatible)(Choose size and drain location to match your rough opening.)
- Waterproofing membrane (sheet or liquid)(Ensure compatibility with your base and substrate.)
- Drain kit compatible with base(Match drain size and flange height to base.)
- Backer board or cement board(Used where subfloor needs solid, waterproof substrate.)
- Thin-set mortar(For bed and setting the base if required.)
- Silicone/caulk sealant(Flexible sealant for perimeter joints.)
- Level, straightedge, and measuring tape(To verify flatness and alignment.)
- Notched trowel and mixing tray(For applying mortar and membranes.)
- Caulk gun and utility knife(Cut sealant beads to fit joints.)
- Safety gear (gloves, goggles)(Protective gear when cutting and handling materials.)
- Bucket or sponge for cleaning(Keep the work area clean and dry.)
- Clamps or spacers(Optional for holding components during setting.)

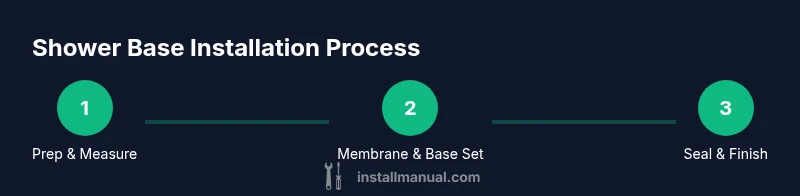

Steps
Estimated time: 2-4 hours
- 1
Verify drain compatibility and select base
Check existing piping and confirm drain size matches the base’s drain flange. If you’re converting a tub or replacing a surround, ensure the new base configuration will align with the existing plumbing. Gather all components before proceeding to prevent mid-process trips to the hardware store.
Tip: Double-check the drain height relative to the finished floor to avoid post-installation sags. - 2
Measure rough opening and plan layout
Take precise measurements of the rough opening, and mark the planned centerlines for the drain and walls. Confirm tile thickness and wall thickness to ensure the base fits with the intended surround. Create a small mock-up if you’re unsure of fit.
Tip: Use a laser level to ensure wall lines are square to the opening. - 3
Prepare substrate and install substrate liner
Inspect the subfloor for moisture and structural integrity. Install a cement backer board or other approved substrate, fastening per manufacturer instructions. If using a mortar bed, prepare the mix and ensure it remains dry and stable before placing the base.
Tip: Allow backer board to acclimate to room temperature before cutting for a clean fit. - 4
Dry-fit the base and plan drain alignment
Place the base in the opening without adhesive to confirm fit. Align the drain opening with the subfloor drain and walls, marking reference points for later. Check for level across all directions and note any gaps that require shimming.
Tip: Use spacers to maintain uniform gaps around the base during dry-fit. - 5
Apply waterproofing membrane
Install the chosen waterproofing method according to the manufacturer’s instructions. Ensure the membrane extends up the walls behind wall materials and overlaps the drain flange where required. Seal all seams with appropriate tape or mastic.
Tip: Overlap membrane edges at least 2-3 inches beyond joints for a robust seal. - 6
Set the base with adhesive or mortar bed as required
For pre-formed bases, apply a bed of thin-set or construction adhesive and place the pan, ensuring it sits evenly. For mortar-bed installations, lay a sloped bed beneath the base to achieve the correct drainage slope. Press firmly and wipe away excess mortar.
Tip: Tap the base gently with a rubber mallet to seat it evenly without cracking. - 7
Secure the base and confirm alignment
If screws or mechanical fasteners are required by the base, install them per the manufacturer’s guidelines. Recheck level and drain alignment after securing, making any minor adjustments with spacers or shims. Ensure the base remains stable during curing.
Tip: Keep waterproofing protected from direct contact with fasteners to avoid punctures. - 8
Seal perimeter joints and drain connection
Apply silicone sealant around the base perimeter and at the wall-to-base joints. Insert and seal the drain assembly, ensuring a watertight connection with the membrane. Wipe away excess sealant and verify there are no gaps.
Tip: Use a smooth, continuous bead of sealant to reduce future crack propagation. - 9
Finish walls and surround
Install wall materials (tiles or panels) as per layout, leaving proper expansion joints and ensuring finish transitions are sealed and water-resistant. If tiling, use spacers and consistent grout lines away from the base edge. Confirm the final height totals align with the planned reveal.
Tip: Leave access to the drain for occasional maintenance by routing wall panels accordingly. - 10
Test for leaks and cure
Conduct a thorough leak test by simulating water exposure around the base and drain area. Observe for any seepage or moisture behind walls over a 24-48 hour period. Follow curing times for adhesives or membrane if required by the product instructions.
Tip: Add a temporary shower head test with a controlled water flow to spot leaks early. - 11
Finalize cleanup and document maintenance
Remove debris, wipe down surfaces, and document any maintenance reminders for future homeowners. Maintain the sealant and monitor the base for signs of movement or moisture migration over time.
Tip: Take photos of the completed install for future reference or warranty claims. - 12
Review code compliance and safety notes
Verify that installation meets local building codes and that all materials are rated for wet environments. If in doubt, consult a licensed professional or the manufacturer’s guidance to avoid code violations or warranty issues.
Tip: Keep receipts and spec sheets in a project binder for warranty support.
Got Questions?
Do I need a professional to install a shower base?
While many homeowners can install a shower base themselves, especially with a prefab base, some configurations (mortar beds, complex plumbing) benefit from a licensed installer. Consider your comfort with waterproofing, plumbing, and tiling tasks. If in doubt, consult a professional to ensure code compliance and warranty validity.
You can do it yourself if you’re comfortable with plumbing, waterproofing, and tiling; otherwise, hiring a professional avoids code and warranty pitfalls.
Can I install a shower base on a wood subfloor?
Yes, but you must reinforce the subfloor with a rigid substrate like cement board or a mortar bed as appropriate for your base type. Wood alone can flex and lead to movement; use structural support and proper waterproofing to prevent leaks.
Wood can work if you add a rigid backing and a waterproof membrane; don’t install directly on bare wood.
What is the best waterproofing method for a shower base?
The best method depends on the base and substrate. Sheet membranes or liquid-applied membranes, when properly installed, provide continuous coverage. For mortar-bed installations, a compatible waterproof membrane is essential. Always follow the base manufacturer’s recommendations.
Use a membrane that matches your base and substrate, installed according to its instructions for a reliable seal.
How do I test for leaks after installation?
Perform a controlled water test around the drain area and perimeter joints for 24-48 hours. Look for moisture behind walls and around the base. If any seepage appears, re-seal joints and verify membrane overlaps and drain connections.
Run a controlled water test for a day or two and check for moisture around seams and the drain.
What drain size is standard for most shower bases?
Most residential shower bases use a standard 2-inch drain, but verify with your base and drain kit. Confirm flange height and gasket compatibility to ensure a tight seal.
Most bases use a 2-inch drain; confirm your kit matches the base’s drain flange height.
How long does installation typically take?
Installation time varies by base type and substrate conditions, but plan for a practical, dry-run to prepare, followed by several hours for setting, waterproofing, and finishing. Expect a full installation to take a day or two if you’re new to the process.
Most installations take a day or two, depending on substrate prep and finish work.
Watch Video
Main Points
- Choose the correct base type for your substrate and layout.
- Prepare a solid, level subfloor with appropriate waterproofing.
- Align the drain before final setting to avoid leaks.
- Seal all joints and transitions thoroughly for a durable enclosure.
- Test for leaks before finishing walls and tiles.
