Install Drainage Channel: A Step-by-Step Guide
Step-by-step instructions for installing a drainage channel, including planning, materials, safety, and a thorough installation process to prevent water damage.
This guide teaches you how to install a drainage channel, covering planning, site prep, material selection, and a clear step-by-step installation process. You’ll learn safe practices, slope guidance, and finishing touches to ensure effective water management for indoor and outdoor spaces.
What is a drainage channel and where it’s used
A drainage channel is a trough or trench insert that collects surface water and directs it away from a structure or outdoor space. Install Manual recommends considering both the water source and the outlet path, whether you’re installing in a patio, pool area, driveway, or shower floor. Drainage channels come in modular sections that can be cut to fit irregular spaces, and most installations require a stable base, a slight slope toward the outlet, and a secure grate or end cap. Proper installation minimizes pooling, helps prevent water damage, and reduces slip hazards. For homeowners tackling this project, understanding the purpose of the channel and how it integrates with existing drainage is essential to a successful result.
According to Install Manual, starting with a clear plan that matches local code requirements ensures a smooth process and reduces headaches later. A well-designed system also accommodates seasonal water flow and potential sediment buildup, making maintenance easier over time.
Why this matters for DIY homeowners
Water that lingers near a foundation or along walkways can lead to structural issues, mold growth, and unsafe walking conditions. A properly installed drainage channel channels runoff away from critical areas and into an appropriate outlet. This is particularly important in climates with heavy rainfall or on surfaces that slope toward living spaces. By laying out the path first, you can confirm that the outlet leads to a suitable drainage point and that the trench depth aligns with the channel type and local guidelines.
Planning: how to choose the right channel
Choosing the right drainage channel starts with assessing the area and the expected water volume. Consider channel width, depth, inlet size, and material (plastic, polymer concrete, or metal, depending on budget and location). High-traffic areas may benefit from reinforced channels, while decorative installations might use slimmer profiles. Draft a cut list and calculate how many channel sections you’ll need, plus end caps, grates, and connectors. In this phase, measure length, determine bends, and plan for cleanouts or inspection points where sediment can collect. The plan should also address seasonal maintenance needs, such as screen barriers or removable grates for easier cleaning.
Site preparation and safety: key prerequisites
Preparation is the foundation of a successful install. Clear the site of debris, verify the area’s depth and alignment, and establish a stable base using a gravel or sand bed as required by the channel brand. Safety comes first: wear gloves and eye protection, and use proper trenching techniques to avoid injuring yourself or damaging utilities. If you’re working near existing underground lines, contact local utility services to mark lines before digging. Local codes may require permits or inspections for exterior drainage work, so check with your municipality before starting.
Tools & Materials
- Drainage channel segments(Pre-fabricated sections sized to fit the intended run)
- End caps and grates(To seal the channel ends and provide a walking surface)
- Trenching shovel or trenching tool(For accurate trenching along the planned path)
- Gravel base material(Crushed stone or aggregate to create a stable bed)
- Sharp sand or bedding sand(Leveling and bedding for channel alignment)
- Level and laser level (optional)(To verify slope toward the outlet)
- Measuring tape(Precise length and lay-out measurements)
- Rubber mallet(Tap channels into place without damage)
- Sealant or grout suitable for channels(Seal joints where applicable)
- Safety gear (gloves, safety glasses)(Personal protective equipment)
- Water test bucket or hose(Test for leaks and flow after installation)
- Shovel or tamping tool(Compact backfill around the base)
- Utility knife(For cutting bedding or channel spacers if needed)
- Chalk line or string line(Keeps trench straight during layout)
- Concrete mix (if installing into concrete slab)(Set or anchor channels when required)

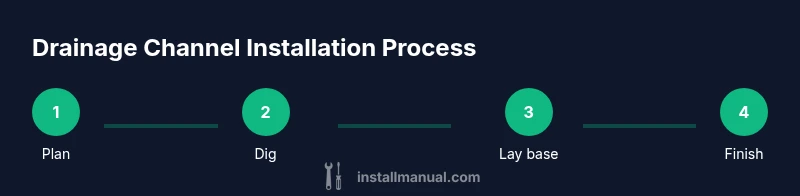

Steps
Estimated time: 1.5-3 hours
- 1
Plan and mark the layout
Define the drainage path, outlet, and any bends. Use a chalk line or string to mark a straight line, then verify with a level to ensure the slope toward the outlet. Confirm that the planned path avoids utility lines and remains accessible for maintenance.
Tip: Double-check the outlet location and route before excavating; a small re-route later can be costly. - 2
Dig the trench with proper slope
Excavate the trench along the marked line, maintaining a consistent slope toward the outlet. The trench width should accommodate channel plus bedding; remove excess soil and keep the area clean to avoid destabilizing the base.
Tip: Keep the trench edges clean; jagged sides complicate channel fit and may require trimming. - 3
Prepare the base bedding
Lay down a compacted layer of gravel for drainage and a level bed of sand on top. Compact the base to prevent settlement that could misalign the channel. The bedding should be flat and uniform to support the channel evenly.
Tip: Check for level frequently; small dips become large spacing gaps once the channel is placed. - 4
Place drainage channel sections
Fit channel segments end-to-end, cutting to length as needed. Use a rubber mallet to seat sections firmly without deforming the profiles. Install end caps and any connectors per manufacturer guidelines.
Tip: Dry-fit all pieces first to ensure straight alignment before permanent assembly. - 5
Seal joints and secure fittings
If required, apply sealant to joints or use grout designed for drainage channels. Ensure seals are watertight and allow for any thermal expansion. Recheck alignment after sealing to maintain slope and level.
Tip: Avoid over-sealing; excess sealant can clog the channel or obscure joints. - 6
Install grates or covers
Place grates or covers over the channel to protect the water entry while allowing for easy cleaning. Ensure fasteners are secure and that covers sit flush with surrounding surfaces to prevent trips.
Tip: Choose grates with slip-resistant surfaces for high-traffic areas. - 7
Backfill and test water flow
Backfill around the channel with soil and compact gently. Run water through the system to verify flow toward the outlet and confirm there are no leaks. Address any low spots or misalignments observed during testing.
Tip: Keep a bucket handy to simulate rainfall intensity; test multiple discharge points if applicable.
Got Questions?
What is a drainage channel
A drainage channel is a trench insert that collects surface water and directs it toward an outlet. It helps manage runoff in patios, driveways, showers, and outdoor spaces.
A drainage channel collects water and moves it away from surfaces to prevent pooling.
When should I install one
Install when preparing surfaces that are prone to standing water or erosion. Consider climate, rainfall patterns, and existing drainage paths. If you’re remodeling a wet area, plan for a channel during the initial build.
Install when runoff is problematic or during surface renovations.
What materials work best
Choose channel materials based on location and load. Plastic or polymer concrete channels are common for residential use, while metal or reinforced options suit higher-traffic or industrial spaces. Ensure compatibility with grout or sealants.
Choose durable materials suitable for expected traffic and environment.
Is this safe for a DIY project
DIY installation is feasible for small to medium projects with proper tools and safety gear. For large-scale or load-bearing installations, consult a professional. Always mark utilities before digging and follow local codes.
DIY work is possible in many cases, but know when to call a pro.
How long does installation take
Timing depends on project scale, trench length, and site access. A typical residential run may take a few hours to complete with proper prep and curing time for any setting material.
Most projects take a few hours, plus anything required to cure or settle.
Watch Video
Main Points
- Plan the path and outlet before digging
- Maintain a consistent slope for gravity flow
- Use proper bedding to prevent settlement
- Seal joints only where required to prevent clogging
- Test the system before final backfilling
