Install Tub Drain: A Complete Step-by-Step Guide
Learn how to install a tub drain with a clear, safe, and code-compliant process. This guide covers readiness, parts, exact steps, common pitfalls, and maintenance tips to prevent leaks and clogs in your bathroom.
You will learn to install a tub drain that seals properly and drains efficiently. Start by selecting a compatible drain kit, measure the opening, then assemble and install the flange, tailpiece, and trap with appropriate sealants. This quick guide highlights the essential steps, safety notes, and common pitfalls you should avoid during an install tub drain project.
Why tub drain installation matters
A reliable tub drain is essential to prevent water damage, foul odors, and mold growth in bathrooms. When you install a tub drain correctly, you ensure proper drainage, maintain bathroom aesthetics, and protect the structure behind the tub deck. For homeowners tackling installation tasks, a well-executed drain job reduces future maintenance and costly repairs. The Install Manual team emphasizes planning, using the right kit, and following local plumbing codes to achieve lasting results. A durable drain also helps prevent leaks where the tub intersects with walls, tiles, or subflooring, which can save you time and money in the long run.
Understanding tub drain types and components
Tub drains come in several configurations, including standard bathroom drains, overflow assemblies, and pop-up or plunger style drains. The core components typically include the drain flange, stopper or lift rod, tailpiece, P-trap or J-trap, gasket, plumber’s putty or silicone sealant, and the tub deck or wall flange. When you install tub drain, you should match the kit to your tub material (acrylic, fiberglass, or cast iron) and ensure compatibility with the overflow assembly. Proper alignment of the tailpiece with the wall pipe is critical, as misalignment can lead to slow draining or leaks. Always verify the thread type and diameter (commonly 1-1/2 inches in residential baths) before purchasing parts for a reliable seal.
Planning and measurements before you start
Before disassembly, measure the drain opening and inspect existing plumbing. Determine whether your tub uses an overflow plate, and confirm accessibility beneath the tub deck for tailpiece routing. Sketch a quick layout of the drain path, paying attention to tile cuts and the available space for trap and piping. Check that your chosen drain kit includes all required components—flange, gasket, stopper, tailpiece, trap, and mounting hardware—and that the sealant is appropriate for bathroom use. If you’re modifying a tile surround, plan for extra depth clearance and potential tile removal to ensure a leak-free seal. Keeping a clean workspace and bagging old parts will also help during reassembly.
Safety considerations and local code compliance
Working on a tub drain involves basic plumbing tasks but can affect critical bathroom functions. Always wear safety glasses when cutting or grinding old hardware to prevent metal shavings from contacting eyes. Turn off any nearby water supply when disconnecting pipes and ensure the area is well-ventilated when applying solvent-based sealants. Verify local plumbing codes regarding venting, trap depth, and material compatibility. If you’re unsure about compliance or the risk of leaks, consult a licensed plumber. Following code requirements helps avoid warranty issues and potential fines.
Choosing a kit and preparing the workspace
Select a drain kit that matches your tub size and material. A common residential option includes a 1-1/2 inch drain flange, a rubber gasket, plumber’s putty or silicone sealant, a tailpiece, and a P-trap. If you have a tile deck, you may need a long-tailpiece or an extension to reach the wall drain. Prepare the workspace by clearing the area, laying down towels, and having a bucket and rags handy. Clean the drain opening thoroughly to remove old sealant and debris, which improves new seal performance. Organize tools in a tray so you can work efficiently without leaving parts behind.
Troubleshooting and common mistakes
Common issues include leaks at the flange, misaligned tailpiece, and using the wrong sealant for tile or metal surfaces. Ensure the flange sits flush with the tub deck and the gasket compresses evenly to create a tight seal. If water seeps around the drain after testing, re-seat the flange or apply a fresh bead of silicone where the flange meets the tub deck. Avoid overtightening fittings, which can crack plastic components or crush gaskets. Always test for leaks by filling the tub with several inches of water and observing for seepage around the flange and pipe joints.
Maintenance after install
After installation, perform periodic checks for leaks around the flange and trap. Wipe away any excess sealant and keep the area dry to prevent mold growth. If you notice slow drainage, remove the stopper to clear hair and debris and verify trap siphon conditions. Regular inspections, especially after renovations, help catch issues early. Use bathroom-grade silicone to reseal any deck joints if you see hairline gaps forming around the drain area. This routine maintenance extends the life of your drain system and protects your bathroom structure.
Tools & Materials
- Drain kit (flange, stopper, tailpiece, gasket)(Choose size to match tub opening (commonly 1-1/2 in).)
- P-trap or U-trap assembly(Ensure proper length to reach wall drain.)
- Plumber’s putty or silicone bathroom sealant(Silicone preferred for tile and fiberglass; putty for metal.)
- Adjustable wrench(For tightening fittings without overtightening.)
- Channel-lock pliers(Useful for stubborn fittings.)
- Utility knife or stiff putty knife(To remove old sealant and clean deck area.)
- Rags and bucket(For cleanup and catching residual water.)
- Masking tape(Helpful when sealing joints.)
- Isopropyl alcohol or mineral spirits(For cleaning metal surfaces before sealing.)
- Gloves and safety glasses(Personal protection during installation.)
- Teflon tape (PTFE)(Use on metal threads if recommended by kit.)

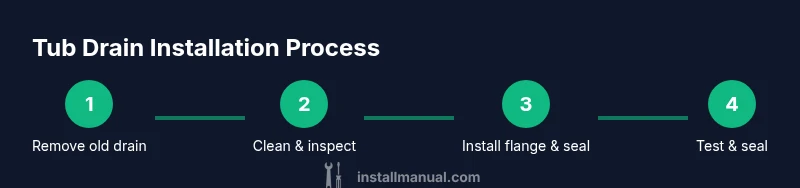

Steps
Estimated time: 60-90 minutes
- 1
Remove old drain assembly
Shut off any nearby water supply if needed, then remove the overflow cover and drain hardware. Use a putty knife to separate old sealant and gently pry components free. Keep small parts together in a tray to avoid loss.
Tip: Take photos before disassembly to reference original placement. - 2
Inspect and clean the drain cavity
Scrape away old sealant from the tub deck and drain opening. Clean the area with alcohol to remove oil and debris so the new sealant adheres properly. Check for rust or corrosion on metal parts and plan replacements if needed.
Tip: A clean surface prevents leaks and improves sealant bonding. - 3
Install the new flange and gasket
Place the new gasket on the flange with the rubber side facing inward. Insert the flange through the deck hole from the top, ensuring it sits flush against the tub surface. Lightly tighten to hold in place without crushing the gasket.
Tip: Always confirm flange seating before applying sealant. - 4
Seal the deck and install the tailpiece
Apply a continuous bead of silicone around the flange edge on the tub deck, then install the tailpiece and lock it to the drain body. If your kit uses plumber’s putty, apply a ring around the flange before seating it.
Tip: Avoid silicone pooling around the drain; keep a neat bead. - 5
Connect the trap and route the drain line
Attach the P-trap to the tailpiece and connect to the wall drain. Ensure all joints align properly without forced bends. Dry-fit first to confirm clearances before final tightening.
Tip: Dry-fit helps prevent leaks and rework. - 6
Sealing, testing, and final adjustments
Apply any final silicone sealant around the deck joint. Refill the tub to test for leaks at all joints. If any leaks appear, tighten fittings slightly or reseal with fresh silicone and re-test.
Tip: Always test with enough water to expose slow leaks. - 7
Final cleanup and maintenance planning
Wipe away excess sealant and store unused parts. Note maintenance steps and schedule a future inspection to keep the drain functioning well.
Tip: Keep a small repair kit handy for future maintenance.
Got Questions?
Do I need to remove the overflow plate when installing a tub drain?
In most cases, removing the overflow plate provides access to the drain connections and makes replacement easier. Follow the kit instructions and local codes when removing components.
Yes, removing the overflow plate usually helps access the drain connections. Follow the kit steps and local codes.
What type of sealant should I use for a tub deck?
Use a bathroom-grade silicone sealant for most tub decks. Plumber’s putty can be used for metal surfaces if recommended by the kit, but silicone generally provides better resistance to moisture.
Bathroom-grade silicone is usually best for tub decks; use putty only if the kit specifies it.
How long does tub drain installation take?
A standard tub drain installation typically takes about 60 to 90 minutes depending on tub type and access. More complex TILE surrounds may require additional time.
Most installs take about one to one and a half hours.
What if I see leaks after testing?
If leaks appear, reseal the joints with fresh silicone or plumber’s putty as recommended, and verify the flange seats properly. Re-test after adjustments.
If you notice a leak, re-seal and re-test to confirm the fix.
Can I install tub drain myself or should I hire a professional?
If you’re comfortable with basic plumbing and follow the kit instructions, you can install tub drain yourself. If local codes or existing plumbing seems complex, consider a licensed plumber.
You can usually DIY if you’re comfortable with plumbing; otherwise, hire a professional.
What maintenance helps prevent clogs?
Regularly remove hair from the stopper, check for buildup in the trap, and reseal any deck joints if you notice gaps or water seepage.
Clean out hair from the stopper and inspect the trap periodically.
Watch Video
Main Points
- Identify tub drain type and kit compatibility first
- Prepare the work area and clean the deck surface thoroughly
- Seal joints properly and test for leaks before finishing
- Maintain the drain regularly to prevent buildup and odors
