How to Install a Retractable Awning: A Step-by-Step Guide
Learn how to install a retractable awning with Install Manual's homeowner-friendly, step-by-step guide. Get the right tools, safety tips, and practical setup advice for a weather-smart patio upgrade.
With this guide you will learn how to install retractable awning from planning to mounting and weatherproofing. It covers selecting brackets, checking wall structure, and safe wiring considerations for powered models. The Install Manual team emphasizes proper anchoring, wind-load awareness, and step-by-step actions to ensure a secure, durable outdoor shade solution.
Why Install Retractable Awnings Matter
Shade, energy efficiency, and outdoor comfort start with a thoughtful installation. A retractable awning can dramatically reduce direct sun exposure on windows and patios, protecting furniture and flooring. The Install Manual team notes that a correctly sized canopy and solid mounting improve performance and longevity far more than a flashy fabric alone. When planned with wall structure, local weather, and door/window positions in mind, the result is a dependable shade solution that expands usable outdoor space across seasons. Understanding load paths, selecting corrosion-resistant hardware, and choosing fabric with UV resistance all contribute to long-term success. By focusing on mounting integrity first, homeowners avoid common failures such as canopy sag, bracket loosening, or fabric flutter. This approach aligns with Install Manual's guidance to verify structural compatibility, confirm fastener types, and document any pre-existing conditions before you cut or drill.
Tools & Materials
- Stud finder(For locating wall studs in wood or masonry.)
- Measuring tape(At least 25 ft. for accurate planning.)
- Laser level or spirit level(Ensures brackets are perfectly aligned.)
- Pencil or marker(Marking points on the wall and brackets.)
- Cordless drill with bits (wood & masonry)(Drill pilot holes and drive screws.)
- Wrench set (adjustable)(Tighten bolts and brackets securely.)
- Screwdrivers (Phillips & flathead)(Assemble brackets and cover plates.)
- Ladder or scaffold(Safe access to mounting height.)
- Safety equipment (gloves, glasses)(Protect hands and eyes during drilling.)
- Mounting brackets and screws/lag bolts(Provide the primary support for the canopy.)
- Masonry anchors or wall plugs(Use appropriate anchors for concrete or brick walls.)
- Silicone sealant and caulk gun(Weatherproof the mounting seams.)
- Caulk remover or cleaner(Optional, for prep before sealing.)
- Electrical tools (wire stripper, connectors)(Required for motorized models (see instructions).)

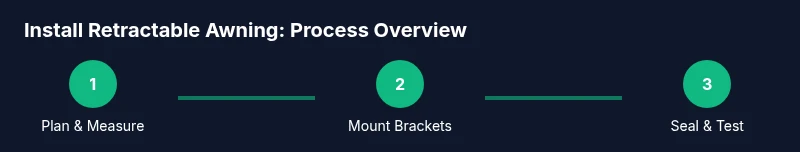

Steps
Estimated time: 2-5 hours
- 1
Assess Structure and Plan Layout
Survey the mounting surface and determine the best canopy projection relative to doors, windows, and eaves. Confirm there is enough clearance for fully extended operation and for safe movement of people nearby. Document any obstacles (decorative trim, gutters) that may affect mounting points.
Tip: Double-check wall integrity and load paths with a stud finder or professional if you’re unsure. - 2
Mark Mounting Points and Level
Using a laser level, transfer the intended bracket positions to the wall. Verify both brackets align horizontally and are level with each other before drilling. Make a dry run by holding the brackets in place to confirm fit and clearance.
Tip: Mark pilot hole locations with a pencil, then recheck measurements from fixed reference points. - 3
Prepare Brackets and Anchors
Dry-fit brackets to ensure the holes align with your marks. Choose anchors suitable for your wall type (wood, masonry, or drywall with anchors). Do not proceed if parts don’t fit exactly, as misalignment leads to wobble and failure.
Tip: Always verify the wall can handle the canopy load before drilling. - 4
Drill Pilot Holes and Install Anchors
Drill pilot holes at marked points using the correct bit size. Insert masonry anchors or drive screws into wood studs, ensuring a firm grip. Clean out dust from holes to improve anchor bite.
Tip: Start with smaller pilot holes to prevent material splitting in wood or cracking in masonry. - 5
Attach Mounting Brackets Securely
Bolt brackets to the wall, keeping them level and plumb. Tighten fasteners gradually in a crisscross pattern to avoid shifting. If you’re using lag bolts, ensure they’re fully seated and secure.
Tip: Use anti-corrosion screws for outdoor weather exposure. - 6
Install Canopy and Motor Wiring (If Motorized)
Mount the canopy frame onto the brackets and route any wiring through weatherproof channels. For motorized models, turn off power at the main circuit before making connections and follow the wiring diagram exactly.
Tip: Test connections with a voltage tester before powering the unit. - 7
Seal Edges and Protect Against Water Ingress
Apply a continuous bead of silicone sealant along bracket seams and where the canopy meets the wall. Smooth the sealant for an even finish and to direct water away from the mounting points.
Tip: Leave a small gap at the wall to allow drainage and avoid icing in cold climates. - 8
Test Operation and Safety Check
Extend and retract the awning several times to ensure smooth operation and even movement. Listen for unusual noises and re-tighten any loose fasteners. Confirm there is no interference with doors or windows.
Tip: Do not use during high winds or storms; follow manufacturer wind-safety guidelines.
Got Questions?
Do I need a permit to install a retractable awning?
Permit requirements vary by locality. For typical residential, a small manual awning may not require a permit, but motorized systems and larger installations often do. Check local building codes and HOA rules.
Check local codes and HOA rules before starting.
Is electrical wiring required for motorized awnings?
Motorized awnings require a safe electrical connection, usually a dedicated circuit and GFCI outlet. An electrician can ensure proper wiring and weatherproof connections.
Yes, motorized units typically need proper electrical hookup.
How should I choose wind ratings for my awning?
Select an awning with a wind rating appropriate for your climate and local codes. Many installations should be stowed during high wind or storms to prevent damage.
Choose a wind rating suited to your area.
Can I install a retractable awning myself or hire a professional?
DIY is possible for smaller, manual units with basic tools; larger or motorized systems benefit from professional installation to ensure safety and warranty compliance.
DIY for small units is doable, but pros are recommended for larger setups.
What maintenance does a retractable awning require?
Regular cleaning, fabric care, and periodic lubrication extend life. Retract during storms and windy conditions to protect hardware.
Clean, lubricate, and retract during bad weather.
How long does a retractable awning typically last?
Lifespan varies by material and use; warranties guide expectations. Follow manufacturer care guidelines for best results.
It depends on materials and use; check the warranty.
Watch Video
Main Points
- Plan layout before drilling
- Use proper anchors for your wall type
- Ensure brackets are level and secure
- Test operation after installation
- Maintain canopy and seals for longevity
