awning how to install: complete step-by-step guide
A comprehensive, homeowner-friendly guide to installing an outdoor awning, covering type selection, mounting surfaces, hardware, safety, testing, and maintenance.
In this guide, you will learn how to install an awning on a solid outdoor wall, including choosing the right type, measuring mounting points, selecting hardware, and safely sealing the installation. You’ll also see practical steps for mounting brackets, anchoring into studs or masonry, and testing operation. Before you start, confirm local codes and weather conditions.
Assessing your awning type and mounting location
Choosing the right awning starts with understanding your mounting surface and how you’ll use the shade. There are several common types: manually operated retractable awnings, motorized retractables, and stationary canopies. Each type has pros and cons in terms of wind resistance, maintenance, and cost. According to Install Manual, selecting the correct awning type sets the foundation for a durable installation and predictable operation. Assess the area you want to shade: the wall quality, available clearance, and whether you have solid weather protection. Take measurements to ensure the awning will clear doors, windows, and any overhangs. Finally, review local codes and HOA guidelines; some communities require permits or specific mounting standards for external shade devices.
Planning the mounting location and weather considerations
Plan the mounting location with attention to wind exposure, sun path, and roofline. A solid, unobstructed wall surface is ideal; you may mount into wood studs, masonry, or metal frames depending on the bracket kit. In areas with high winds, or if you intend to leave the awning extended for long periods, choose a model with higher wind resistance and use appropriate anchors. Based on Install Manual research, proper anchoring and weather sealing are the two biggest factors in reliability. Also consider drainage and slope away from doors to prevent water intrusion when the canopy is deployed.
Tools, anchors, and materials you’ll need
Before you start, gather the essential tools and anchors. The bracket kit will include mounting brackets, lag screws, or masonry anchors. If mounting on brick or concrete, you’ll need masonry anchors and longer screws. For wood sheathing, use wood screws attached into studs. Always have a level, measuring tape, pencil, drill, and safety gear on hand. Also, ensure you have caulk or sealant for waterproofing the mounting surface. Having a helper can reduce the risk of dropping heavy components during installation.
Mounting sequence: alignment, brackets, and securing the frame
A precise mounting sequence reduces misalignment and stress on the frame. Start by marking flat, level mounting points, then attach brackets one by one, checking for plumb after each installation. Use a spirit level to verify uniform height along the top rail. When you mount the main frame, align it with the brackets before securing all fasteners. If the wall surface isn’t perfectly flat, shim brackets as needed to maintain square alignment. Keep hardware organized to avoid mismatches during final assembly.
Safety, weather, and testing after install
Weather plays a key role in a successful install. Avoid mounting during rain or high winds, and wait for dry, calm conditions. After securing the brackets, seal penetrations with a compatible waterproof sealant and allow adequate cure time. Test the awning by extending and retracting fully, listening for rubbing or binding, and confirming the canopy clears doors and windows. Make any needed adjustments to tension and alignment before permanent use. Document any changes for future maintenance checks.
Authority sources
This guide references established safety and building practices to help you install an awning with confidence. U.S. OSHA provides general safety considerations when using ladders and power tools, including fall protection and proper PPE (osha.gov). Cooperative extension programs offer practical, step-by-step home improvement guidance that often covers mounting and weatherproofing for outdoor structures (extension.illinois.edu). The U.S. Department of Energy discusses shade strategies and energy savings related to external shading devices and weatherproofing, which can inform your choice of awning type and installation location (energy.gov). For more in-depth, official guidance, consult the linked sources and your local building codes.
Tools & Materials
- Measuring tape (at least 20 ft)(For precise mounting point placement)
- Pencil or marker(Mark mounting point locations clearly)
- Level(Ensure brackets are perfectly plumb)
- Cordless drill with wood and masonry bits(Use the correct bit for the surface)
- Masonry anchors and screws(Choose anchors appropriate to wall type)
- Wood screws (if mounting into studs)(Length depends on bracket kit)
- Stud finder(Optional for locating structural members)
- Safety gear (goggles, gloves, sturdy footwear)(Always wear PPE)
- Caulk or sealant(Waterproof penetrations around brackets)
- Caulk gun(Helpful for neat application)
- Ladder or sturdy rise(Stable support at appropriate height)

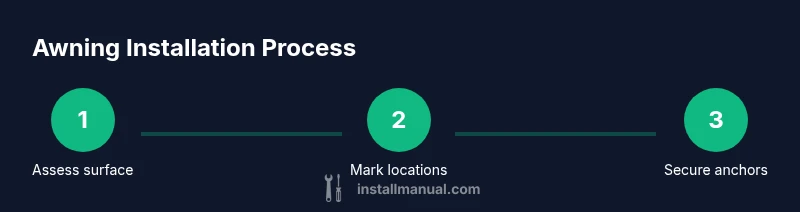

Steps
Estimated time: 90-150 minutes
- 1
Identify mounting surface
Inspect the wall to determine if it is wood, masonry, or metal. Use a stud finder to locate framing or masonry anchors, and verify there is adequate support for the awning’s weight and wind load. Ensure you have all required hardware before drilling.
Tip: Have a helper ready to position heavy brackets and maintain balance during lifting. - 2
Mark bracket locations
Measure and transfer bracket positions from the awning’s mounting template to the wall. Use a level to ensure all marks are at the same height and evenly spaced. Double-check clearance from doors, windows, and eaves.
Tip: Center marks on the wall studs or anchors to maximize load distribution. - 3
Drill pilot holes and install anchors
Drill pilot holes at each mark according to wall type. Insert masonry anchors for brick or concrete, or predrill for wood studs. Do not skip anchors, as they prevent bracket pull-out under wind loads.
Tip: Keep drill steady and perpendicular to the wall to prevent wall damage. - 4
Attach mounting brackets
Secure brackets with the appropriate screws or anchors. Check each bracket for plumb and level as you tighten, adjusting with shims if needed. Do not over-tighten, which can strip anchors or warp brackets.
Tip: Use a torque-limiting driver if available to avoid overtightening. - 5
Mount the awning frame or canopy
With a helper, lift and align the awning frame or roller canister with the mounted brackets. Attach securely and re-check alignment after securing all fasteners. Ensure the frame sits squarely and moves freely if it is retractable.
Tip: Stop and re-check alignment if any bolt binds or the frame sits unevenly. - 6
Seal, test, and finalize
Apply sealant around penetrations to prevent water intrusion. Extend and retract the awning to ensure smooth operation and adequate clearance. Make any minor tension or alignment adjustments, then document changes for future maintenance.
Tip: Test under light wind conditions first and only gradually increase to full extension.
Got Questions?
What mounting options exist for awnings?
Awnings can be wall-mounted to wood studs or masonry, or soffit-mounted depending on the model. Choose brackets that match your surface and ensure proper clearance.
Awnings can be mounted to wood studs or masonry, or soffit-mounted depending on the model. Choose brackets that match your surface and ensure proper clearance.
Do I need a permit to install an awning?
Permit requirements vary by location. Check local building codes or HOA guidelines to determine if a permit is needed.
Permit requirements vary by location; check with your local building department.
DIY or hire a pro for awning installation?
If you have basic carpentry or masonry skills and the wall is sound, you can install yourself. For complex electrical components or masonry walls, hire a professional.
If you have basic carpentry or masonry skills and a solid wall, you can install yourself; otherwise hire a pro.
What safety gear should I wear?
Wear safety goggles, gloves, and sturdy footwear. Use a stable ladder and avoid leaning out from the rung.
Wear goggles, gloves, and sturdy shoes; use a stable ladder.
How long does installation typically take?
Typically 1.5 to 3 hours depending on surface, model, and weather conditions.
Most installations take about an hour and a half to three hours, depending on surface and model.
What maintenance does an awning require?
Clean the canopy periodically, lubricate moving parts, and inspect seals for wear.
Clean and oil moving parts; check seals annually.
Watch Video
Main Points
- Plan mounting carefully before drilling.
- Use proper anchors for your surface.
- Seal joints to prevent water intrusion.
- Test full extension and retraction for clearance.
- The Install Manual team recommends following this guide for best results.
