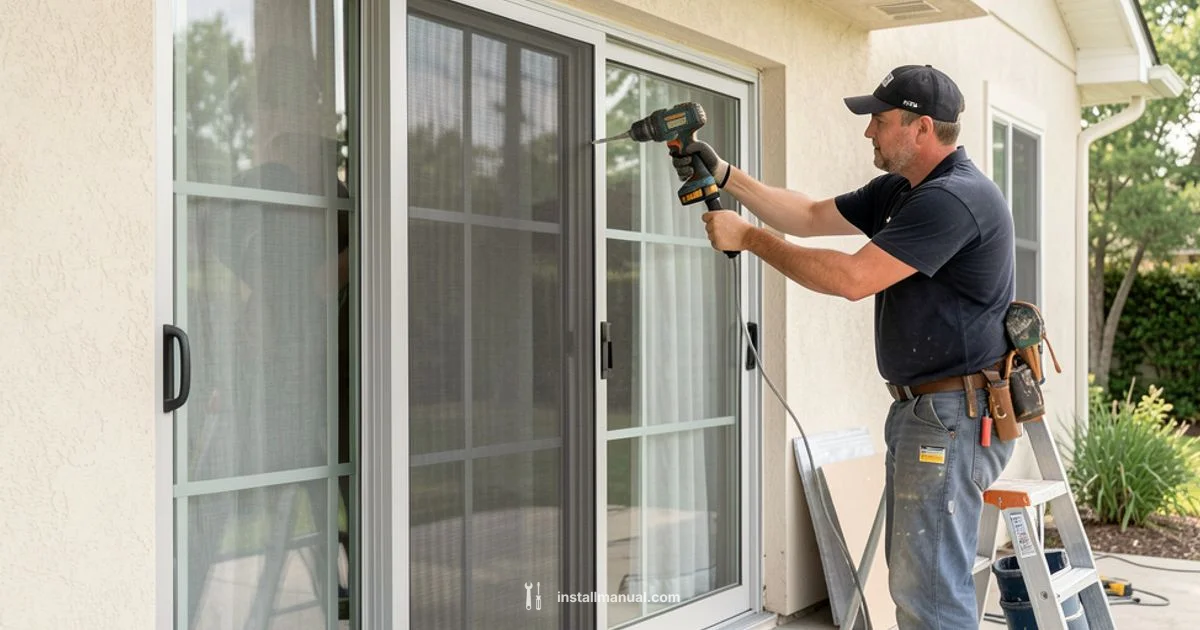

Retractable Screen Door Install: A Complete DIY Guide
Learn how to install a retractable screen door with step-by-step instructions, needed tools, and maintenance tips for a smooth, snag-free operation. Perfect for homeowners and DIY enthusiasts tackling outdoor access with airflow and insect protection.
According to Install Manual, you will successfully install a retractable screen door by measuring the door opening, selecting the right kit, and following the included hardware steps. Expect 30–60 minutes for a straightforward install on a standard exterior door; more if you’re replacing an old setup. Gather basic tools, ensure the frame is plumb, and test the retractable screen before use.
Why retractable screen doors are a smart upgrade for homes
A retractable screen door install offers a flexible barrier against insects while letting breezes circulate through open doorways. They take up very little space and operate smoothly with a light pull or push, making them ideal for patios, sunrooms, and kitchens that step outside. The Install Manual team notes that a well-chosen retractable screen can dramatically improve comfort during warm months without compromising security or aesthetics. When you’re evaluating options, look for a durable housing, a smooth roller system, and a screen mesh with a pore size that balances airflow with bug protection. A quality setup minimizes jams and wear, saves you from repainting or door frame damage, and helps you enjoy fresh air on hot days. In short, a good retractable screen door install pays off for years of convenient, hands-free access to the outdoors.
Types and configurations for retractable screen doors
Retractable screen doors come in several configurations. Single-panel models work well for standard doors, while double-panel designs provide wider openings and are common for family rooms or kitchens that open to large decks. Some systems use a magnetic latch for quiet closure, others rely on a simple spring or roller mechanism. Housing materials range from aluminum to steel, each with different corrosion resistance and weight. The screen mesh can be fiberglass or aluminum, with varying levels of transparency and insect blocking. When selecting a kit, verify that the frame dimensions, mounting style, and track depth match your door jamb. If you’re replacing an old setup, measure jamb depth accurately and inspect the adjacent trim for compatibility. A solid choice reduces future maintenance and ensures a longer service life.
Measuring and choosing the right kit for retractable screen door install
Begin by measuring the door opening at multiple points (top, middle, bottom) to capture any irregularities. Use the smallest width for the kit to avoid overhangs or gaps. Record both width and height, and verify that the frame is square with a level. Check for obstructions like molding, weather stripping, or hardware that could interfere with the track. Choose a kit compatible with your door material (wood, metal, or vinyl) and with a housing depth that fits your space. When in doubt, consult the manufacturer’s guide for recommended maximum door widths and wind-load ratings. Keep in mind that higher-quality kits typically offer smoother operation, better weather sealing, and longer warranties. The goal is a clean, snag-free motion that feels sturdy every time you open or close the door.
Preparing your doorway and space for retractable screen door install
Clear the doorway of all furniture and debris to create a generous working area. Remove any existing screen or storm door components only if your kit requires it, and store hardware for reuse if appropriate. Wipe the door frame and jamb with a damp cloth to remove dust and oil that could interfere with mounting screws. Inspect the door frame for any damage or warped sections; repair or replace damaged areas before proceeding. If your jamb has uneven surfaces, plan to use shims or weatherstripping to achieve a square, plumb mounting surface. Having a clean, flat surface helps ensure that the track sits true and prevents binding during operation.
The installation flow: an overview before you start retractable screen door install
Most retractable screen door kits come with a mounting rail, end caps, screws, a sash guide, and a screen fabric. The typical flow involves: (1) marking mounting points, (2) attaching the track or rail to the jamb, (3) securing the housing, (4) installing the screen panel, (5) tensioning and aligning the track, and (6) performing a functional test. This overview helps you anticipate where to place fasteners and how to verify that the track remains level as you work. Always follow the kit’s specific sequence, as some models require pre-assembly of components before installation. With careful preparation, you’ll avoid rework and achieve a smooth sliding action from day one.
Mounting options by door frame and headroom considerations
Door frames vary: solid wood, metal jambs, or composite materials each tolerate mounting hardware differently. If you have a metal door frame, use appropriate self-tapping screws and ensure you don’t strip holes by drilling pilot holes where required. For thicker jambs, you may need longer screws and possibly a backing plate. In high-traffic areas, choose a housing with reinforced mounts and extra fasteners to resist vibration. Ensure there is enough headroom above the door to accommodate the housing — many retractable systems require 1–2 inches of clearance. If you’re working with a narrow frame, consider a kit with a compact housing and a narrower track.
Adjustments, alignment checks, and test runs
After mounting the track and housing, check that the door is square in the opening. Use a level to verify both horizontal and vertical alignment and adjust as needed. Slide the screen panel through its track to confirm smooth operation; note any binding or rubbing along the frame. If the movement feels stiff, inspect the track for debris or misaligned end caps and re-seat components. Apply a light lubricant to the track if permitted by the kit’s guidelines, avoiding excess that could attract dust. Finally, test opening and closing the door repeatedly under routine household use to ensure the system performs reliably.
Maintenance, cleaning, and long-term care for retractable screen doors
Regular maintenance keeps retractable screen doors functioning smoothly for years. Wipe down the housing to prevent dust buildup and clean the screen mesh with a soft brush or compressed air. Inspect the track for dirt and debris, then remove obstructions with a soft cloth. Lubricate moving parts only with products approved by the manufacturer; avoid sprays directly on mesh. Check the weather stripping around the frame, replacing worn seals to preserve energy efficiency. Periodic testing after seasonal use helps detect misalignment early, reducing effort needed for future adjustments. By following a simple care routine, you’ll minimize wear and maintain easy operation throughout the year.
Tools & Materials
- Tape measure(Flexible steel tape, minimum 6 ft; measure width and height at multiple points)
- Pencil(For marking pilot holes and layout lines)
- Drill/driver(Cordless preferred; ensure compatible bit set)
- Drill bits(Sizes per kit; include wood and metal bits)
- Level(Two- or three-foot level helps keep tracks true)
- Screwdrivers(Phillips and flathead; used for fasteners in kit)
- Safety glasses(Eye protection when drilling or cutting)
- Step ladder(Access high mounting points safely)
- Caulk or weather-sealant(Optional for enhanced weather sealing)
- Soft brush or compressed air(Cleaning track debris during maintenance)

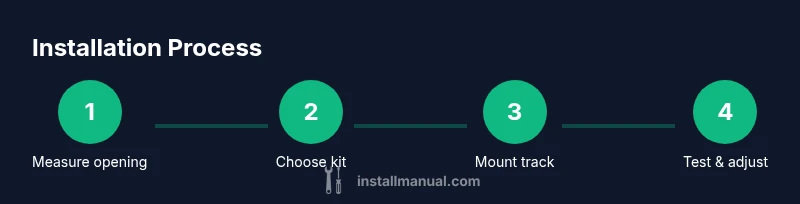

Steps
Estimated time: 60-90 minutes
- 1
Measure opening accurately
Take measurements at top, middle, and bottom of the doorway. Record the smallest width and the full height, then check for square using a level. This ensures the kit will fit without gaps or binding. If irregularities appear, note them for kit selection or mounting adjustments. Image the area for reference during installation.
Tip: Double-check measurements with a second person to avoid human error. - 2
Choose and prep the retractable kit
Select a kit that matches your opening width and jamb depth. Lay out all components on a clean workspace and review the installation manual. Pre-assemble any parts that require it so you can verify alignment before you drill. Take photos of each stage for reference.
Tip: Verify that the housing depth won’t interfere with trim or weatherstripping. - 3
Remove old hardware if present
If an existing door or screen is in place, carefully remove it. Save fasteners if they’re in good condition or dispose of them per local guidelines. Clean the jamb, removing old sealant or debris that could affect mounting. A clean surface ensures the track sits squarely.
Tip: Keep track of small screws in a labeled tray. - 4
Position and mark mounting points
With the door open, hold the track against the jamb and use a pencil to mark pilot holes. Use a level to ensure the track is perfectly horizontal. Mark any secondary mounting points for stability. If the kit includes shims, plan where to place them to compensate for any misalignment.
Tip: Mark both sides symmetrically to prevent skew. - 5
Drill pilot holes and attach track
Drill pilot holes at the marked points, then secure the track with the provided screws. Start at the corners and work toward the center to promote even seating. Use a level again after mounting to confirm straightness, and adjust as needed before fully tightening.
Tip: Do not overtighten; this can warp the jamb or strip screws. - 6
Attach the housing and guide rails
Mount the screen housing first, ensuring it is plumb and aligned with the track. Attach the sash guide and any end caps per the manual. Check that the track remains smooth and free of obstructions as you slide the housing into place.
Tip: Keep the housing parallel to the opening for clean operation. - 7
Install screen panel and tension adjustments
Slide the screen panel into the housing and secure the tensioning screws if provided. Gently pull the screen across the opening to check tension; adjust as the kit indicates so the screen remains taut but not overly stiff. Verify that the screen retracts smoothly without snagging.
Tip: Avoid forcing the screen; if resistance occurs, re-check alignment. - 8
Test, seal, and finish
Operate the door several times to confirm consistent performance. Apply weather sealant if the kit recommends it and clean any marks from installation. Replace or adjust trim as needed, and store extra hardware for future maintenance. Final test should show a quiet, easy glide and a fully seated frame.
Tip: Leave a short test period (10–15 minutes) to observe for settling.
Got Questions?
What tools do I need for retractable screen door install?
A basic cordless drill, level, tape measure, pencil, and the included hardware are usually enough. Depending on the kit, you may also need a screwdriver and a small ladder. Always consult the manufacturer’s guide for any model-specific requirements.
You’ll typically need a drill, level, tape measure, pencil, and the kit hardware. Check your specific model for any extra tools.
Can I install a retractable screen door on a metal door frame?
Yes, but you may need self-tapping screws and pre-drilled pilot holes. Check the kit’s mounting hardware and ensure the screws are compatible with metal framing. If in doubt, a professional can help adjust the mounting method.
Yes, metal frames work with the right screws and a few adjustments. Follow the kit instructions for metal frames.
Do I need to remove the existing door to install a retractable screen door?
Most kits mount to the existing jamb and don’t require removing the entire door. If your current setup is severely warped or obstructive, some installations may benefit from temporary removal of the door.
Usually you don’t need to remove the door; follow the kit’s mounting steps.
How long does installation typically take?
Most installations take about 60 to 120 minutes, depending on door type and kit complexity. If you’re replacing an older system or adjusting framing, plan for more time.
Most people finish in about an hour or two, more if replacing an older setup.
What maintenance is required after installation?
Keep the track clean, lubricate moving parts per the manual, and inspect weather seals periodically. Re-tighten screws if you notice looseness and replace worn components as needed.
Keep the track clean, lubricate as recommended, and check seals regularly.
Watch Video
Main Points
- Measure openings precisely before kit selection.
- Choose a kit that matches jamb depth and door width.
- Align tracks level to ensure smooth operation.
- Test movement repeatedly and maintain the track.
- Follow manufacturer guidance for best results.
