How to Install a Camper Awning: Step-by-Step Guide
Learn how to install a camper awning with safe, step-by-step instructions. This DIY guide covers compatibility, mounting, tensioning, and weatherproofing for a durable outdoor shade.
By the end of this guide you will install a camper awning safely and correctly. You’ll verify compatibility, assemble required tools, mount brackets to a secure wall, attach the rail, and extend, tension, and weatherproof the fabric. Always work in calm weather on level ground. Install Manual’s step-by-step approach helps DIYers complete the task confidently.
Assessing compatibility and planning
Before you lift a finger on how to install a camper awning, take stock of your RV’s exterior, wall material, and available mounting points. A correct fit hinges on compatibility between the awning model and your camper’s sidewall construction (fiberglass, aluminum, or composite). Measure wall height, available clearances, and whether you have a flat mounting surface or curved panels. Check wind ratings and the awning’s mounting rail size, then confirm you have the necessary hardware. According to Install Manual, accuracy at this planning stage prevents misalignment and potential damage during installation. Keep a detailed plan of the mounting locations, fasteners, and any required brackets for future maintenance. The goal is a level, secure mount that resists wind loads while keeping the fabric taut and the door clear. This stage also sets expectations for the overall time and effort, helping you allocate enough hands and time to finish.
Choosing the right awning and hardware
Selecting the correct camper awning is not just about shade; it determines how you’ll use your outdoor space for years. Manual cranks, hand wheels, or motorized arms each have different installation needs. The wall mounting kit must match your RV’s siding, with appropriate brackets, screws, and rail lengths. Weight matters: a heavy model requires stronger mounting points and sometimes reinforced brackets. If you’re unsure, consult the manufacturer’s guidelines and cross-check with the RV’s manual. This is also the moment to verify weather seals and to plan for wiring if you’re installing an electric mechanism. A reliable kit minimizes wind-induced sway and extends fabric life, which aligns with practical DIY goals. As you decide, keep the phrase how to install a camper awning in mind, ensuring your choice simplifies future maintenance and fabric care.
Preparing your workspace and safety plan
A safe, organized workspace is essential for a successful installation. Park on level ground, engage wheel chocks, and disconnect any power sources nearby. Lay out the tools and hardware on a tidy work surface, and protect nearby surfaces with tarps if you’re working around paint or sealant. Wear PPE: safety glasses, gloves, and a hard-wearing pair of boots. If you’re using a ladder, ensure it is stable, and have a second person assist with bracing and handing tools. Weather conditions matter: avoid wind or rain which can compromise accuracy and grip. In the context of how to install a camper awning, this preparation step reduces mistakes and speeds up the mounting process while keeping you safe.
Marking and locating mounting points
Precise marking is the bridge between planning and mounting. Use a level to snap a straight reference line for the mounting rail, then locate internal studs or solid backing behind the wall, using a stud finder where needed. Mark drilling points with a pencil, ensuring even spacing and alignment across both ends of the rail. Double-check distances with a tape measure, because small misalignments can cause the awning to sit canted and strain fabric. If your wall is curved or composite, you may need adapter brackets. Planning ahead here saves you from rework and potential damage to siding.
Installing mounting brackets and rail
With marks in place, begin attaching mounting brackets to the camper wall. Start at one end, level the bracket, and loosely tighten to allow fine adjustments. Install the rail along the marks, ensuring it sits parallel to the ground and remains level along its length. Use appropriate fasteners recommended by the awning manufacturer for your wall material, and don’t over-tighten to avoid cracking or warping. Check alignment again after securing both ends, then re-tighten to final torque. This step is critical for proper bed-down and tension when the awning arms extend.
Securing the awning to the camper and checking fasteners
Carefully lift the main body of the awning onto the mounting rail and align with bracket studs. Start with the primary attachment points, securing them with bolts, washers, and lock nuts as required. Use a torque wrench if specified by the manufacturer to prevent overtightening. Install any hinge pins or leg brackets per the kit’s instructions, and verify that the unit sits square against the wall. Once attached, lower the legs to contact the ground at a stable, even height. Re-check all fasteners for tightness after the first use to ensure a secure install. This phase brings you closer to your outdoor setup and is essential for safe operation when extended.
Extending, tensioning, and fabric care
Gently extend the awning assembly to brace against the wind and windbreaks. Engage the support arms or legs, then tension the fabric by adjusting the arms or sliders until it sits taut without sagging. Check the drum or roller for smooth operation and lubricate moving parts if the manufacturer recommends it. Ensure there are no folds or creases that could trap water. Clean off any protective films or packaging remnants and reattach any corner or wind straps. Regular maintenance here extends fabric life and keeps water runoff efficient.
Weatherproofing, wind considerations, and safety checks
Weatherproofing begins with correct sealing along the wall and rail. Apply a silicone or manufacturer-approved sealant at joints to prevent water ingress. If you’re in a windy region, deploy stabilizing straps or guide winds to minimize sway. Confirm that the awning fabric is taut and that there are no loose bolts that could loosen under wind gusts. Inspect the mounting area for signs of wear after the first few uses and re-tighten as necessary. Remember: in high wind, retract the awning and avoid extended operation to protect both structure and occupants. This proactive approach aligns with the pragmatic ethos of how to install a camper awning for durability and safety.
Testing, adjustments, and initial use
Before fully committing to outdoor use, perform a complete test: open and close the awning smoothly, extend and retract the legs, and verify stability on all support points. Listen for unusual noises, inspect for binding, and ensure that the fabric tracks evenly with no rubbing or misalignment. If anything seems off, pause operation and re-check brackets, rail alignment, and fasteners. Take note of any weatherproofing gaps and re-seal as needed. This final test confirms the install’s integrity and ensures you’re ready to enjoy your shaded campsite with confidence.
Maintenance and long-term care for longevity
A camper awning benefits from regular maintenance, including cleaning, lubrication, and periodic inspections. Clean the fabric with mild soap and water, avoiding harsh chemicals that could degrade coatings. Lubricate moving parts per the manufacturer’s recommendations, and inspect seals annually for dryness or cracking. Store the awning folded in clean, dry conditions when not in use, and protect it from prolonged exposure to sun and moisture. Scheduling annual checks helps catch issues early and keeps your setup performing at peak levels. Through consistent care, this how-to guide remains a reliable reference for long-term durability.
Tools & Materials
- Tape measure(At least 25 ft. for accuracy)
- Drill/driver with bits(Phillips and hex bits as needed)
- Level(2-foot or longer for accuracy)
- Ladder or step stool(Stable and secure)
- Safety glasses(Protect eyes during drilling)
- Torque wrench(If specified by the awning kit)
- Mounting brackets and rail kit(Brand-specific hardware)
- Screws/bolts appropriate to wall material(Coated for outdoor use)
- Stud finder(Helpful for identifying backing)
- Sealant (silicone/EPDM)(Weatherproofing joints)
- Rubber mallet(Gentle taps to avoid damage)
- Marker pencil(Mark drilling points clearly)

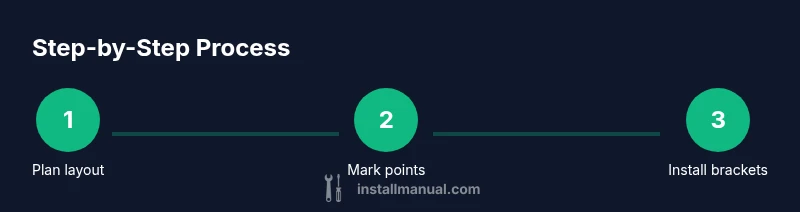

Steps
Estimated time: 90-120 minutes
- 1
Review compatibility
Confirm the awning model matches your camper's mounting system and wall material. Check wind rating and rail length to ensure fit. This upfront check reduces misalignment and future drag in wind.
Tip: Double-check the manufacturer’s compatibility list before drilling. - 2
Plan mounting layout
Mark the planned rail line level across the wall using a level and tape measure. Double-check for symmetry on both ends and verify that doors clearance remains unobstructed.
Tip: Use a laser level if available for precise alignment. - 3
Prepare mounting surface
If the wall is fiberglass or metal, clean the surface and remove any debris. Apply primer if the kit requires it before drilling. Secure a header bar or mounting bracket locations.
Tip: Avoid drilling into wiring or plumbing—pause and locate hidden lines if uncertain. - 4
Attach mounting brackets
Position brackets at the marked points, level them, and loosely fasten. Ensure both ends are aligned and parallel to prevent a crooked rail.
Tip: Start with the top screws finger-tight to allow adjustments. - 5
Install the mounting rail
Slide or bolt the rail into place, verifying level across its length. Tighten brackets incrementally from both ends to avoid warping.
Tip: Do not over-tighten; apply enough torque per kit instructions. - 6
Attach the awning body
Lift the main body onto the rail and align with mounting points. Insert bolts, add washers, and snug them with a wrench. Re-check alignment before final tightening.
Tip: Have a helper assist with lifting and guiding the main unit. - 7
Lower and secure legs
Extend and position the legs on firm ground, ensuring equal height and stable contact. Lock leg supports and verify tension in the arms.
Tip: Use chocks to prevent movement on uneven ground. - 8
Tension fabric and test
Extend the awning to full width, tension the fabric, and confirm clean rolling action. Check for sagging or binding joints and lubricate if required.
Tip: Avoid forcing the fabric if it binds; loosen and reseat components. - 9
Weatherproofing and wind prep
Seal joints with approved sealant, install wind straps if included, and plan for retracting in strong winds. Re-torque fasteners after a short test period.
Tip: Always retract in high wind to prevent damage. - 10
Final testing and maintenance plan
Perform full open-close tests, confirm door clearance, and schedule periodic maintenance. Document any wear and plan replacements as needed.
Tip: Create a simple maintenance calendar to extend life.
Got Questions?
Do I need professional help to install a camper awning?
Many DIYers can install a camper awning with the right tools, instructions, and safety practices. If you have limited tool access or very complex mounting, consider professional help.
Most homeowners can install an awning with the right guidance. If you’re unsure, seek professional help to ensure safety.
What if my wall is curved or made of composite material?
Curved or composite walls may require adapter brackets or reinforced mounting points. Always follow the awning manufacturer’s instructions for non-standard surfaces.
Curved walls may need adapters. Follow the kit’s instructions for non-standard surfaces.
How long does installation typically take?
Most installations take about 1.5 to 2 hours, depending on wall material and hardware complexity. Allow extra time for weatherproofing and adjustments.
Expect about 90 minutes to two hours with setup and adjustments.
Can I operate an electric awning in windy conditions?
Electric awnings are generally not recommended to operate in high winds. Retract before wind speeds rise and use wind sensors if provided by the kit.
Avoid using in high winds; retract early and use wind sensors if available.
What maintenance is needed after installation?
Regularly clean fabric, lubricate moving parts per instructions, and inspect seals and brackets yearly to prevent wear and corrosion.
Clean fabric, lubricate parts, and inspect seals annually.
Watch Video
Main Points
- Plan carefully before drilling to avoid mistakes.
- Keep brackets level for a straight, durable mount.
- Secure and test the awning in calm conditions first.
- Seal joints to prevent water intrusion and extend life.
- Maintain and inspect annually for best results.
