Before Installing a New GPU: Essential Prep Steps for PC
Learn what to do before installing a new GPU with this in-depth prep guide. Plan compatibility, power, cooling, drivers, and safety to ensure a smooth upgrade for your PC.
Plan and prepare for a GPU upgrade with this quick guide. You’ll verify compatibility (case size, PCIe slot, power connectors), size up your PSU needs, back up data, ground yourself to prevent static, and download the latest drivers before you begin. These prep steps help ensure a smooth, safe installation.
Preparing for a GPU upgrade: setting the stage
Before you begin what to do before installing new gpu, take time to plan and organize. This phase sets the foundation for a safe, efficient upgrade. According to Install Manual, thorough prep minimizes surprises and protects your components. Start by defining your goal: is this a performance boost, a VR-capable build, or a quiet daily-driver? Then verify that your case can physically accommodate the card, your motherboard has a compatible PCIe slot, and your power supply can handle the load. This upfront planning reduces the need for backtracking during the installation. A well-planned upgrade also helps you anticipate needed tools, cables, and drivers, so you can complete the task with confidence rather than frustration. Expect to invest about an hour in planning and preparation to set yourself up for a smooth install.
Verify compatibility: case, motherboard, PCIe, and space
The first practical step is checking compatibility. Review your motherboard’s PCIe slot version and the GPU’s interface. Most modern GPUs use PCIe x16 and are backward compatible with older slots, but you should confirm that the slot is open and unobstructed. Assess the card’s dimensions and compare them to your case’s internal clearance, especially if you have a compact mid-tower or a small-form-factor build. Consider adjacent slots and potential interference with installed drives or motherboard coolers. If you have a multi-GPU setup, ensure the motherboard supports it and that there’s enough space for airflow between cards. By verifying dimensions, slot type, and clearance, you avoid a card that physically won’t fit or blocks other components. A quick measurement can save a lot of headaches later.
Power and cooling readiness
Power requirements are a critical part of any GPU upgrade. Assess your PSU’s capacity and confirm it has the necessary PCIe power connectors (6-pin, 8-pin, or newer standard configurations). Don’t rely on a nominal rating alone; calculate expected load with your CPU, drives, memory, and peripherals in mind. Plan for headroom—allowing 100–200 watts extra for peak performance helps maintain stability under load. In addition, evaluate your case cooling: a high-TDP GPU benefits from good front-to-back airflow, clean cable management, and unobstructed intake vents. If your current cooling feels inadequate, consider upgrading fans or a case with better airflow before installation. Adequate power and cooling reduce throttling and extend component life.
Data backup and system readiness
Before touching any internal hardware, back up important data. While a GPU upgrade is low-risk for data loss, it’s wise to protect your files in case something unexpected happens during disassembly or reassembly. Update your operating system if updates are pending, and note your current driver setup so you can revert if necessary. Having your essential software installers ready—especially GPU drivers—minimizes downtime after the hardware swap. Create a restore point if you’re on Windows, and ensure you have access to your essential passwords and licenses. A cautious backup plan gives you recovery options if you need to troubleshoot post-install issues.
Driver and BIOS readiness
Driver readiness is key to a smooth transition to a new GPU. Download the latest official drivers from the GPU vendor’s site before you begin, and consider keeping a copy on a USB drive or a cloud-backed installer. If you’ve recently updated your motherboard BIOS or have a newer CPU, verify compatibility notes from the motherboard manufacturer. In many cases, you don’t need an immediate BIOS update for a GPU upgrade, but it’s wise to check for any PCIe compatibility advisories. After installing the GPU, boot into the OS, install or update drivers, and restart to ensure clean initialization. This avoids driver conflicts and ensures you’re taking advantage of the card’s capabilities from day one.
Safety and static precautions
Static electricity can damage sensitive components. Always ground yourself before handling hardware—prefer an anti-static mat or wrist strap connected to a grounded surface. Avoid working on carpets; use a static-reducing workspace and touch a grounded metal object to discharge static before touching the GPU. Handle cards by the edges and avoid touching the gold connectors or memory chips. Keep liquids away from the workspace and power off the system completely before starting. While GPU installation is a common DIY task, following static precautions protects not just the GPU but the entire system.
Workspace and tools setup
Set up a clean, well-lit workspace with a stable surface. Gather your tools and materials ahead of time: the right screwdriver, anti-static wrist strap, and access to the internet for driver downloads. Organize screws and components in labeled containers to prevent misplacement. If you’re replacing an existing GPU, take a moment to photograph cable routing so you can recreate the setup cleanly when you’re finished. Clear the area around the case so you can work with both hands and reach all connectors easily. A tidy, organized workspace reduces the chances of dropped screws or misplaced cables.
Pre-install testing and backup plan
With preparations complete, it’s wise to validate a fallback plan. Ensure you can revert to your previous GPU or restore your system from a backup if the new GPU is not detected or if drivers fail to initialize. Have the system in a safe state with no power connected and the chassis open to reduce the risk of accidental shorts during the swap. If possible, perform a quick baseline capture of your current temperatures and performance so you have a reference for comparison after the install. A pre-install test plan helps you measure the success of the upgrade and reduces post-install stress.
Final checklist before power-on
Review your checklist one final time: confirm PCIe slot alignment, verify power cable connections are fully seated, reseat any loose cables to improve airflow, and close the case panel securely. Make sure the only power source is the PSU and the wall outlet is safe to plug into. After powering on, enter the BIOS to confirm the GPU is detected, then boot into the operating system and install the latest drivers. If something doesn’t look right, don’t force anything—power down, recheck connections, and try again. A calm, methodical approach pays off with a smooth upgrade.
Tools & Materials
- Anti-static wrist strap(Ground yourself and attach to a grounded surface.)
- Phillips-head screwdriver (size #1-2)(Needed for PCIe bracket screws.)
- Clean, well-lit workspace(Static-free surface preferred.)
- PCIe power cables from PSU(Check for required connectors (6-pin, 8-pin, or newer).)
- Driver installer or internet access(Pre-download latest GPU drivers.)
- Cable ties or Velcro for cable management(Helpful for tidy routing.)
- Anti-static mat (optional)(Extra layer of protection against static.)
- USB drive for drivers (optional)(Backup installer in case of network issues.)

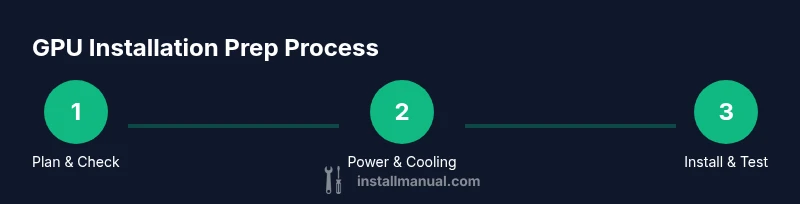

Steps
Estimated time: 60-90 minutes
- 1
Power down
Shut down the PC, unplug the power cord, and disconnect all peripherals. Wait a few seconds to discharge residual power before touching internal components.
Tip: Keep track of the power cord and switch; never work with power connected. - 2
Open the case
Remove side panel screws and slide the panel off to expose the inner components. Take care not to scratch the case or motherboard.
Tip: Place screws in labeled containers to avoid losing them. - 3
Ground yourself
Touch a grounded metal surface or wear an anti-static wrist strap before handling any parts. This reduces the risk of ESD damage.
Tip: Avoid working on carpet; static can travel through clothing. - 4
Remove existing GPU
If upgrading, release the PCIe latch, disconnect power cables, and gently pull the card from its slot.
Tip: Take a photo of cable routing before removal for easy reassembly. - 5
Check clearance
Inspect the new GPU’s length, height, and slot alignment; ensure it will fit without obstructing fans or drives.
Tip: Measure the space if in doubt; don’t force a card in. - 6
Install the new GPU
Align the GPU with the PCIe slot and firmly seat it until the latch clicks. Ensure the bracket aligns with the rear panel.
Tip: Avoid tilting the card; a straight push helps seating. - 7
Connect power cables
Attach the required PCIe power connectors securely. Ensure connectors aren’t loose or stressed.
Tip: Double-check that each connector is fully seated. - 8
Secure and close
Reattach the case panel and tighten screws. Reconnect all cables and prepare to boot.
Tip: Do a final cable check to prevent shorts. - 9
Boot and verify
Power on, enter BIOS to confirm detection, then install/update GPU drivers in the OS and restart.
Tip: Run a quick stress test to validate stability.
Got Questions?
Do I need to uninstall old GPU drivers before installing a new GPU?
In most cases you do not need to uninstall old drivers before installing a new GPU. The OS will detect the new card and install appropriate drivers. If you encounter issues, you can use a clean-driver tool or reinstall drivers after the swap.
You usually don’t have to uninstall drivers before the swap. If problems arise, reinstalling drivers afterward often resolves them.
How can I tell if my power supply is strong enough for the new GPU?
Estimate total system load by adding the GPU’s possible draw to your CPU and other components. Look for a PSU with enough wattage headroom to handle peak loads. If you’re unsure, consult a PSU calculator or seek advice from a professional.
You’ll want enough headroom beyond your typical peak power; use a calculator to estimate total load and choose a PSU with extra capacity.
Should I update the motherboard BIOS before installing a new GPU?
BIOS updates are not usually required for a GPU swap. Check the motherboard manufacturer’s notes for any PCIe compatibility advisories. Update only if explicitly recommended.
Usually not needed, but check your motherboard’s guidance before upgrading.
Can I install a new GPU without removing the old one?
If you have an available PCIe slot and enough space around the cards, you can install a new GPU without removing the old one. In most setups, removing the old card simplifies routing and power connections.
You usually can add a new card if there’s space, but removing the old one often makes the upgrade simpler.
What safety precautions should I take during installation?
Power down completely, unplug from the wall, and ground yourself to prevent static. Handle components by their edges and keep liquids away from the workspace.
Always power down and ground yourself to avoid static shocks.
How do I verify the GPU is detected after installation?
After installing, boot into the OS and check the device manager or GPU software to confirm detection. If not seen, reseat the card and verify power connections, then reboot.
Check in the system settings whether the GPU is recognized; reseat if it isn’t detected.
Watch Video
Main Points
- Plan and verify compatibility before upgrading
- Ensure power, cooling, and airflow are sufficient
- Protect hardware with proper static precautions
- Update drivers after installation and test thoroughly
