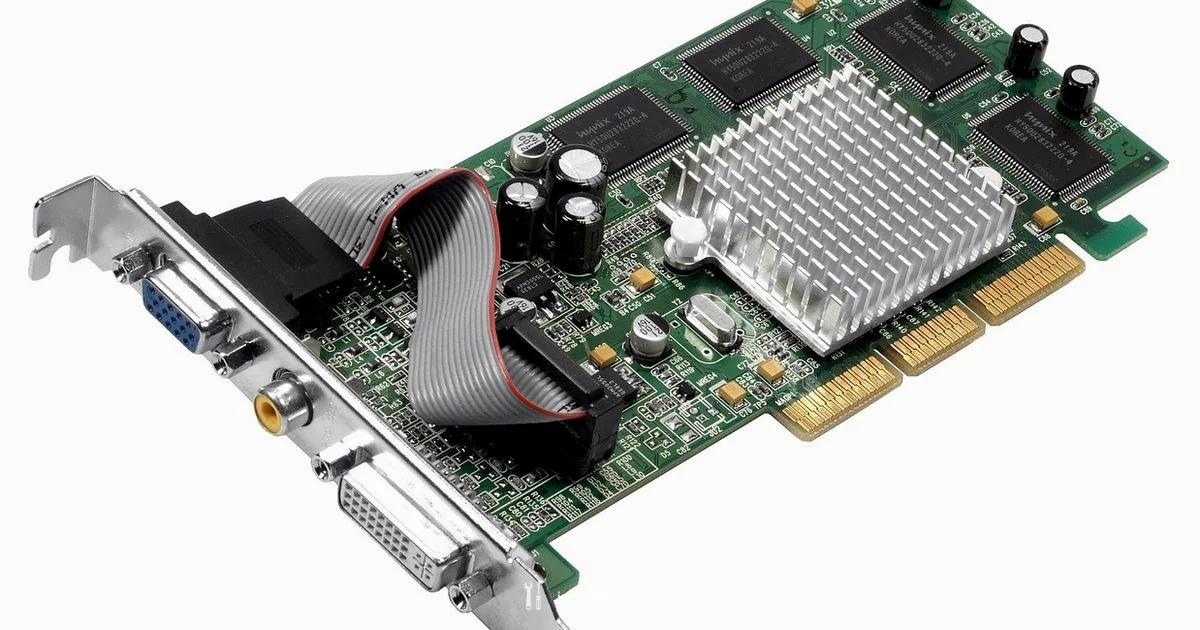

How to Install a Graphics Card: Step-by-Step Tutorial
Learn to install a graphics card safely with this step-by-step guide, covering planning, seating, driver setup, testing, and troubleshooting for a GPU upgrade.
Learn how to install a graphics card safely with this step-by-step guide, covering power-down steps, static precautions, selecting an appropriate PCIe x16 slot, seating the card, connecting power connectors, securing the bracket, reassembling, booting, and installing drivers. This step-by-step process minimizes risk and ensures compatibility. This article from Install Manual adds practical safety tips and checks.
Why upgrading a graphics card matters in a modern PC
A modern PC's performance often hinges on the graphics card. Upgrading a GPU can noticeably improve frame rates in games, accelerate video editing tasks, and enhance overall visual responsiveness. This section explains what a GPU does, how PCIe bandwidth works, and why balancing motherboard capabilities with power supply and case clearance is essential. According to Install Manual, a well-chosen GPU aligns your motherboard’s PCIe slot bandwidth, power supply headroom, and case clearance. Start with clear goals: higher frame rates, better rendering, or support for new features like ray tracing. Then verify you can physically accommodate the card and that your PSU provides enough power with some margin. Entering with a plan reduces surprises and saves time later. We will cover decision criteria, budgeting bounds, and practical checks before you press the buy button. For DIY enthusiasts upgrading a mid-range system or repurposing an older machine for light gaming or content work, planning is the foundation of a smooth upgrade.
Compatibility and planning: choosing the right GPU for your system
When selecting a graphics card, you must consider compatibility with your motherboard, case, and power supply. GPUs use PCIe x16 slots, but the exact PCIe version (3.0, 4.0, or 5.0) mainly affects bandwidth rather than compatibility with most modern boards. Check your motherboard’s manual or manufacturer website to confirm slot type and available lanes. Card length, height, and cooling footprint matter for smaller cases. Measure internal clearance, especially if you have a compact or denser build. Your power supply must deliver adequate headroom for the GPU’s peak draw, plus your other components. If you run CPU-integrated graphics or a low-wattage PSU, you may need a more modest card to avoid overloading the system. Finally, ensure your monitoring and display setup meets the GPU outputs (HDMI, DisplayPort, or USB-C) you plan to use. A well-chosen card also fits your operating system and driver ecosystem. This planning stage helps prevent later bottlenecks and post-install surprises.
Preparing your workspace and safety considerations
Set aside a clean, static-free workspace away from carpets and moisture. Ground yourself before touching any internal components, and keep small parts organized to prevent loss. Turn off the computer completely and unplug the power cord; disconnect peripherals to avoid accidental shorts. Use an anti-static strap if available, or periodically touch a metal surface to discharge static. Keep a soft microfiber cloth handy to wipe dust from the motherboard area and card connectors. Liquids and foods near the workspace should be avoided to reduce spill risk. Clear cable clutter to improve airflow and to prevent accidental tugging on cables during installation. This stage reduces the chance of shock or electrostatic damage and prepares you for a smooth card seating.
Removing old hardware and inspecting the PCIe slot
If you’re upgrading an existing GPU, power down, unplug, and remove any case panels to access the motherboard. Ground yourself and, if applicable, remove the old graphics card by unscrewing the PCIe bracket screw and gently pulling the card straight out of the slot. Inspect the PCIe slot for dust, bent pins, or debris; clean carefully with compressed air if needed. If your card used a power connector, note the type (6-pin, 8-pin, or a combination) and be prepared to provide compatible cables from the power supply. If you’re not replacing an existing card, you can skip this step but still examine the slot and surrounding connectors. A clean, unobstructed PCIe slot helps ensure proper seating and signal integrity. Taking a moment to inspect now avoids misalignment and potential damage during installation.
Installing the graphics card physically in the motherboard
Align the GPU’s PCIe edge connector with the motherboard’s PCIe x16 slot (the longest slot on the board). Gently press straight down until the connector fully seats and the latch clicks into place. Verify the card is parallel to the motherboard and not leaning; slight resistance is normal as it slides into the slot. Once seated, secure the card with the screw in the case’s expansion slot bracket to lock it in place. Do not force the card if it doesn’t drop in easily—recheck alignment and try again. A loose seating can cause poor contact and display issues. After seating, visually confirm there’s no gap between the card and the slot edge.
Power connections, cooling, and clearance
Many modern GPUs require additional power via PCIe power connectors. Check your card’s requirements (6-pin, 8-pin, or multiple connectors) and connect them securely from the power supply. Ensure the power cables are routed cleanly and won’t interfere with fans or RAM modules. Verify there is adequate clearance for the GPU’s fans; if the card is very long or tall, you may need to adjust drive bays or remove a drive cage. Respect the system’s cooling design: adding a high-end GPU increases heat output, which can affect CPU temperatures if airflow is restricted. Consider adding or rearranging case fans if necessary. Confirm that the motherboard BIOS/UEFI recognizes the new GPU during POST and that the PCIe slot remains properly powered after seating.
Driver installation and basic configuration
Power the system back on and install the latest graphics drivers from the GPU vendor’s website (NVIDIA or AMD). If Windows downloads generic video drivers, you should still install the vendor’s package for optimization and features. During installation, opt for a clean install to remove outdated drivers that could cause conflicts. After installation, reboot if prompted and open your GPU control panel to verify settings like resolution, refresh rate, and color depth. If you use a dual-monitor setup, reconfigure display arrangements as needed. In some cases, you may need to enter BIOS/UEFI to set the primary display to PCIe or to disable integrated graphics. This driver stage is essential for stability, performance, and access to the newest features.
Testing, benchmarking, and tune-up
With drivers installed, run a quick test to confirm the GPU is recognized and functioning properly. Display output should appear on your monitor; check multiple displays if applicable. You can perform basic diagnostics like checking clock speeds, temperature, and fan behavior through the vendor control panel or third-party software. If you notice artifacts, instability, or excessive heat, recheck power connections and seating, then run a driver repair or clean re-install. For most users, a couple of routine tests and standard workloads validate stability. Ongoing maintenance includes cleaning dust from fans and vents and updating drivers when new versions are released to preserve performance and security.
What to do if the card isn’t detected or displays nothing
If there’s no display after installation, first re-seat the GPU and ensure the PCIe power connectors are firmly connected. Double-check that the monitor cable is plugged into the GPU outputs, not the motherboard’s integrated video outputs. Verify the PCIe slot is selected as the primary display in BIOS/UEFI if necessary. If the system posts but shows a black screen, boot into Safe Mode to install or update drivers or use a driver cleanup tool to remove conflicting software. Persistent issues may indicate a defective card, insufficient PSU clearance, or a motherboard incompatibility. In such cases, consult the manufacturer’s support resources or seek professional help.
Final checks and best-practice maintenance
After successful installation, verify stability by running a few routine tasks and ensuring responsive user experience. Keep the system clean and ensure airflow isn’t obstructed by wires or cables. Periodically update drivers to access performance improvements and bug fixes. If you’re overclocking, do so gradually and monitor temperatures closely. Store any small screws or mounting hardware safely in a labeled container for future maintenance. Following these best practices helps extend the life of your GPU and your overall PC health.
Tools & Materials
- Anti-static wrist strap(Wear it and clip to a grounded surface before handling components.)
- PH2 screwdriver(Magnetic preferred; used to secure bracket screws.)
- Clean, static-free workspace(Avoid carpeted floors; use a non-conductive mat if possible.)
- Graphics card(Ensure model fits your case and motherboard (PCIe x16).)
- PCIe power connectors (6-pin/8-pin)(Connect only if the card requires it; verify connector type matches PSU cables.)
- Power supply with adequate wattage(Check total system draw and GPU peak consumption; leave margin.)
- Cable management ties(Optional for keeping cables tidy and improving airflow.)
- Anti-static mat (optional)(Provides an additional static-control surface.)
- Motherboard manual (optional but helpful)(Useful for slot specifics and BIOS notes.)
Steps
Estimated time: 30-60 minutes

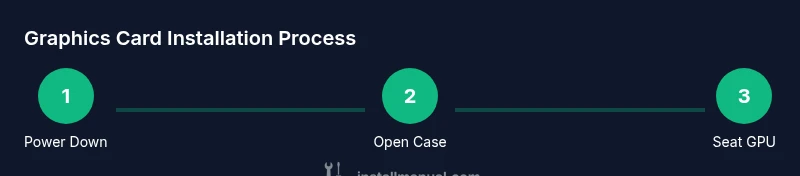

- 1
Power down and unplug
Shut down the computer, unplug the power cord, and wait for the system to cool. This reduces the risk of electrical shock and component damage. If you’ll be working near the power supply, use the switch on the back to ensure it’s fully de-energized.
Tip: Double-check that the power cord is removed before touching any internal components. - 2
Ground yourself and prepare workspace
Touch a grounded metal surface to discharge any static before handling parts. Set up a clean, flat workspace away from moisture and carpets. Have a container ready for small screws.
Tip: Wipe the work surface with a lint-free cloth to reduce dust exposure. - 3
Remove side panel
Use a screwdriver to remove the side panel screws and slide the panel off. Keep the screws in a labeled container. This exposes the motherboard and PCIe slots for card installation.
Tip: Support the panel to prevent bending or dropping it onto the motherboard. - 4
Identify PCIe slot and prepare for seating
Locate the PCIe x16 slot near the center of the motherboard. Remove the slot cover from the back of the case if present. Verify there are no obstructions or dust inside the slot.
Tip: Check that the slot is free of debris before inserting the card. - 5
Insert GPU into PCIe slot
Carefully align the GPU’s gold finger contacts with the PCIe slot and press evenly until it seats fully. The locking mechanism should click into place. Do not force the card if it resists; realign and try again.
Tip: Keep the card vertical and avoid tilting to prevent bending pins. - 6
Secure the bracket
Screw the card’s bracket to the case chassis to secure it. This prevents movement during operation and protects the PCIe connector from stress.
Tip: Tighten just enough to hold the card firmly; overtightening can warp the bracket. - 7
Connect PCIe power cables (if required)
Attach the GPU's required power connectors from the PSU. Ensure cables are fully seated and not under tension. Route cables to avoid interference with fans or RAM.
Tip: If your PSU lacks modular cables, reuse existing cables only where safe and reliable. - 8
Reinstall side panel and boot
Replace the side panel, reconnect peripherals, and plug the power cord back in. Power on the system to check for POST and display output. Listen for fan activity and watch for any unusual noises.
Tip: If there’s no video, re-check seating and display connections before troubleshooting software. - 9
Install drivers and verify
Boot into the operating system and install the latest GPU drivers from the manufacturer. Restart if prompted and verify that the GPU is recognized in the device manager or system settings. Run basic tests to confirm stability.
Tip: Always use the latest official drivers to maximize compatibility and security.
Got Questions?
What is the first step to install a graphics card?
Power down, unplug, and discharge static before handling any internal components. Then prepare the workspace and remove the side panel to access the PCIe slot.
Power down, unplug, and ground yourself, then open the case to access the PCIe slot.
Do I need to uninstall old graphics drivers before installing a new card?
You can install the new card with existing drivers, but it’s a good idea to install the latest GPU drivers after seating the card for optimal performance.
Install the new card, then update to the latest GPU drivers for best results.
How can I tell if my power supply is enough for the new GPU?
Check the GPU’s power requirements and compare against your PSU's total wattage and available PCIe connectors. Allow some headroom for the rest of the system.
Make sure your PSU has enough watts and the right PCIe connectors for the GPU.
Will I need a BIOS update to support a new GPU?
Most modern GPUs work without a BIOS update, but some older motherboards may benefit from a firmware update. Check the motherboard manufacturer guidance.
Usually no BIOS update is required, but check your motherboard guidelines if you run into issues.
What should I do if there’s no display after installation?
Re-seat the card and verify PCIe power connections. Ensure monitor cables are connected to the GPU outputs, not the motherboard. If needed, reset BIOS/UEFI display settings.
If there’s no display, re-seat the GPU and check cables; adjust BIOS if needed.
Watch Video
Main Points
- Plan GPU compatibility with PCIe and PSU.
- Prepare a clean, static-free workspace.
- Seat the GPU firmly and secure the bracket.
- Connect required power cables only when secure.
- Install drivers and verify operation after boot.
