When to Install a Graphics Card: A Practical Guide
Learn how to time your graphics card installation for optimal performance and compatibility. This guide covers readiness checks, prerequisites, a step-by-step install process, troubleshooting, and long-term care for your PC graphics upgrade.
Goal: determine the best moment to install or upgrade a graphics card for performance and reliability. Before you begin, verify the power supply, PCIe compatibility, BIOS readiness, and driver availability. According to Install Manual, timing matters: plan for a clean shutdown, static-safe handling, and a test boot to confirm success.
Why Timing Matters for Graphics Card Install
When you consider timing for a graphics card upgrade, timing matters for compatibility and performance. The decision hinges on several interrelated factors: the power supply’s capacity, the motherboard’s PCIe support, BIOS/firmware readiness, and driver availability. If you install too early or too late in the upgrade cycle, you can encounter preventable issues like driver conflicts, throttling due to power limits, or BIOS incompatibilities. The Install Manual team emphasizes that planning your upgrade window—not just the hardware—helps ensure a smooth transition. By aligning when you install graphics card with a well-prepared system, you reduce post-install surprises and shorten the time to a stable, gaming-ready setup.
Beyond hardware readiness, consider the software environment. Update the operating system to a supported build, download current GPU drivers, and note any vendor-specific utilities you might want to install. If you’re upgrading a prebuilt PC, check manufacturer support notes or warranty terms, as some systems require a BIOS reset or a specific PCIe generation setting to enable full performance. A well-timed upgrade also minimizes the chance of driver rollbacks or software conflicts after installation, contributing to a more predictable gaming or design workflow.
In short, the right timing can save you time and frustration. It helps ensure power delivery, software support, and thermal management align with the new GPU’s demands. Homeowners, DIY enthusiasts, and renters tackling internal PC upgrades will benefit from a deliberate plan rather than a rushed upgrade. As you approach the task, keep in mind that careful preparation reduces risks and sets the stage for long-term stability.
note():null},
Assess Your System Before You Buy
Before purchasing a graphics card, perform a thorough assessment of your existing system to confirm it can support the upgrade. The timing of a card install should be synchronized with the power supply’s capacity, the size and airflow of your case, and the motherboard’s expansion capabilities. Measure the available length inside the case to ensure the new GPU will fit without obstructing drives or fans. Verify that the power supply has the required PCIe power connectors (6-pin and/or 8-pin) and that the total wattage is sufficient for the GPU’s peak load, especially if you plan to overclock.
Check BIOS and driver readiness in advance. Some motherboards require a BIOS update to enable newer PCIe generations or to improve compatibility with recent GPUs. Prepare driver installation media or download the latest version before you start, so you aren’t scrambling after you’ve mounted the card. If you’re updating from an older GPU, note potential differences in display connectors (HDMI, DisplayPort) and plan cable routing accordingly. This pre-install checklist helps ensure you won’t discover incompatibilities only after you power the system back on.
A practical takeaway is that timing isn’t just about “when”; it’s about whether your system is actually prepared to accept a GPU. By verifying case clearance, PSU connectors, and driver readiness first, you reduce the chance of a mid-project interruption and set up a smoother post-install experience. Install Manual’s experience shows that readiness checks are often the most overlooked step, leading to wasted time and avoidable troubleshooting.
Tools & Materials
- Graphics card (GPU)(Check model, length, power needs, and display outputs to match your monitor setup.)
- Screwdriver (Phillips #2)(Used to secure the GPU bracket to the case.)
- Antistatic wrist strap(Ground yourself to prevent static damage to components.)
- PCIe power cables (6-pin and/or 8-pin)(Ensure the power supply has enough connectors and wattage.)
- Screws for PCIe bracket(Often included with the case or GPU; keep spare screws handy.)
- Cable management ties(Helpful for airflow and neat cable routing.)
- PSU tester or multimeter (optional)(For advanced troubleshooting of power rails if needed.)

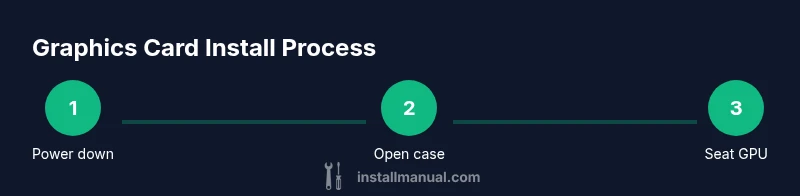

Steps
Estimated time: 45-60 minutes
- 1
Power down and unplug
Shut down the PC completely, then unplug the power cord from the outlet. Press and hold the power button for a few seconds to discharge residual power. This reduces the risk of short circuits when you handle internal components.
Tip: If you can, unplug from a grounded power strip and wait 60 seconds before opening the case. - 2
Open the PC case and prepare the workspace
Remove the side panel to access the motherboard and PCIe slots. Clear the area around the PCIe slot to avoid knocking other components. Have a clean, static-free surface for the GPU and screws.
Tip: Keep the screws organized so you don’t lose them inside the case. - 3
Remove existing GPU or clear the PCIe slot
If replacing an old GPU, carefully release the bracket screw and gently lift the card from the PCIe slot. If you’re installing into an empty slot, ensure the slot is unobstructed and ready for a new card.
Tip: Do not yank the card; use even, steady pressure to disengage it from the slot. - 4
Insert the new GPU into the PCIe x16 slot
Align the GPU’s gold-fingered connector with the PCIe slot and press evenly until it sits firmly. You should hear a light click as it seats. Make sure the bracket holes align with the case rear panel.
Tip: Do not tilt the card; a straight, vertical insert reduces the risk of damaging the slot. - 5
Secure the GPU bracket with screws
Insert and tighten the bracket screws to anchor the GPU to the case. Avoid overtightening, which can strip threads or crack the bracket.
Tip: Use a moderate torque; over-tightening can deform the card or motherboard. - 6
Connect PCIe power cables
Attach the appropriate PCIe power connectors from the PSU to the GPU (6-pin, 8-pin, or both as required). Ensure the connectors click into place and cables are routed to prevent fan interference.
Tip: If the card requires two power connectors, use both rather than chaining adapters. - 7
Reassemble and boot to BIOS/OS
Replace the case panel and reconnect power. Boot the PC and enter BIOS to confirm the GPU is detected. Save any relevant settings and boot into the operating system to install or update drivers.
Tip: If the GPU isn’t detected, reseat the card or try a different PCIe slot. - 8
Install drivers and test the GPU
Download or update the latest GPU drivers from the manufacturer’s site. Perform a basic test by launching a graphics-intensive application or benchmark to verify performance and stability.
Tip: Restart after driver installation to ensure all components initialize correctly.
Got Questions?
Do I need to uninstall old drivers before installing a new GPU?
In most cases, you don’t need to uninstall old GPU drivers before installing a new card. The operating system will recognize the new hardware and install compatible drivers automatically. It’s still a good idea to download the latest drivers from the new GPU maker and perform a fresh install.
You usually don’t have to uninstall old drivers first; just install the new card and update to the latest drivers afterward.
How do I know if my PSU has enough power for the new GPU?
Check the GPU’s rated wattage and compare it to your PSU’s total wattage rating, minus other components’ consumption. Use online PSU calculators or manufacturer guidelines to estimate a safe margin. If in doubt, upgrade to a higher-wattage unit.
Compare the GPU’s power needs with your power supply’s capacity and leave a safety margin.
Can I install a graphics card without opening the case?
It’s technically possible with small form factor builds, but generally not recommended. Access to the PCIe slot is needed to seat the card and secure it, and checking cable routing is easier with the case open.
Usually not recommended; you’ll need access to the PCIe slot and connectors.
What should I do if the BIOS doesn’t detect the new card?
Enter the BIOS and verify the PCIe slot is enabled and configured for the correct PCIe generation if available. Reseat the GPU, try another PCIe slot, and ensure every power connector is firmly seated. Update the BIOS if recommended by the motherboard maker.
If detection fails, reseat the card and try a different PCIe slot, then verify BIOS settings.
Why is my monitor blank after installation?
Check that the video cable is securely connected to the GPU, not the motherboard’s video port. Ensure the GPU is fully seated and powered. If using adapters, test with a direct connection.
Make sure the monitor is plugged into the GPU and the card is properly connected and powered.
Is driver updates required after installation?
Yes. After installing a new GPU, install the latest drivers from the manufacturer’s site to ensure performance and feature support. Reboot after installation to finalize the driver setup.
Yes—install the latest drivers and reboot to finish setup.
Watch Video
Main Points
- Plan ahead for power and BIOS readiness.
- Verify GPU fits and connectors before installation.
- Reseat carefully if the system doesn’t detect the card.
- Update drivers immediately after install for best performance.
- Keep the workspace organized to speed up the upgrade.
