How to Install a GPU: A Step-by-Step Home DIY Guide
Learn how to install GPU safely and effectively in a desktop PC. This comprehensive guide covers compatibility, power needs, anti-static safety, installation steps, driver setup, and testing—ideal for homeowners, renters, and DIY enthusiasts.
By following this guide, you will learn how to install a GPU in a desktop PC, safely and effectively. It covers compatibility checks, power considerations, proper seating in the PCIe slot, driver installation, and basic post-install testing. This process is suitable for DIY homeowners and enthusiasts, and it emphasizes anti-static safety and careful cable management.
Understanding the GPU installation task
Installing a GPU is not only about dropping a card into a slot; it is a small, targeted upgrade that can transform your computer’s performance. If you are learning how to install gpu, you should start by understanding what changes when the card is present. A GPU adds dedicated compute power, boosting frame rates in games, accelerating creative software, and offloading tasks from the CPU. In this guide, we outline a practical, repeatable process designed for homeowners, renters, and DIY enthusiasts. According to Install Manual, a successful GPU installation begins with confirming the card is compatible with your motherboard and power supply, then preparing a clean, static-free workspace. The Install Manual team emphasizes planning for airflow and cable routing to avoid bottlenecks after the card is installed. You’ll also learn how to evaluate case clearance, PCIe slot availability, and power needs before you touch any hardware. By understanding these upfront considerations, you reduce the risk of damage and set yourself up for a smooth upgrade.
Check system compatibility and power supply
Compatibility is the foundation of a successful GPU upgrade. First, verify the motherboard has a PCIe x16 slot, which is the standard interface for desktops today. Most GPUs are backward compatible with PCIe 3.0 or 4.0 slots, but you should confirm that your motherboard supports the card's width, length, and x16 electrical lanes. Next, examine the case clearance: heavy or long cards may interfere with drive bays or fans. Then move to the power supply. The GPU will draw power from the PSU via PCIe connectors. Review the card’s TDP and the PSU's total wattage rating, as well as the number of available PCIe power cables. Ensure your PSU can provide stable 12V current under load. If you are unsure, use a PSU calculator or consult the PSU's documentation. Install Manual analysis shows that many installation issues arise from insufficient connectors or inadequate headroom, so plan ahead. If your system has integrated graphics fallback, consider how the BIOS prioritizes display output after installation.
Prepare your workspace and safety steps
Before touching any hardware, create a clean, static-safe workspace. A solid desk with a non-conductive mat or a wooden surface works well, but avoid carpet. Ground yourself by touching a metal surface or wearing an anti-static wrist strap. Ensure the case is on its side with access to the interior; unplug the power cable and disconnect all peripherals. Remove the side panel to expose the motherboard, but keep screws in a small tray so you won’t lose them. Gather the tools you will need: a Phillips #2 screwdriver, the GPU, the PCIe power cables, and any screws the GPU bracket requires. If you’re upgrading an existing GPU, have a hand nearby to avoid twisting cables or applying pressure to the motherboard. Finally, plan the airflow. Identify the desired exhaust path and ensure that adding a GPU won’t block intake vents or create hotspots near memory modules.
Inspect the GPU and prepare for installation
Carefully inspect the new GPU for any shipping protection in place; remove protective covers on the PCIe edge connector only when you’re ready to install. Look over the bracket and the cooling solution for any loose screws, loose fans, or damaged fins. If the card has multiple fans, note the orientation so you understand which side faces the back of the case. Verify that the GPU has the correct connector type (6-pin, 8-pin, or both) for your model, and ensure there are no obvious signs of damage. Do not touch the gold PCIe fingers or the power connectors with bare hands; handle only the edges of the card. If you’re replacing an old card, set the old card aside and prepare a clean environment to avoid misplacing screws. Tag the anti-static bag and keep it nearby for reuse or disposal.
Install the GPU into the PCIe slot
Align the GPU’s PCIe edge connector with the motherboard’s x16 slot and gently but firmly press straight down until you hear a click at the end of the slot. Do not tilt or twist the card as you insert it; a skewed insertion can damage the slot or the card. Once seated, push the case’s PCIe slot latch back to lock the card in place. Check that the backplate lines up with the rear expansion slots and that the bracket is aligned with the rear of the case. If your card is long, ensure there is no interference with the power supply shroud or drive bays. After seating, rest one hand on the motherboard to stabilize it while you finalize the connection.
Power connections and securing the card
Attach the appropriate power cables to the GPU, ensuring each connector is fully seated with a firm click. If your card requires two 8-pin connectors, attach both; do not use adapters that don’t deliver the required current. Reinstall the case screw to secure the bracket; this also helps prevent vibration. Next, reconnect the power supply to the system, plug the monitor cable into the GPU's output (not the motherboard's video port), and boot the system. Enter the BIOS/UEFI if necessary to confirm that the PCIe device is detected and that the primary display will use the new GPU. Some systems might default to integrated graphics; you may need to disable the onboard GPU or set the PCIe slot as the primary display adapter.
Driver installation and initial testing
Power on your PC and boot into your operating system. Install the latest drivers from the GPU manufacturer's website—NVIDIA or AMD. Choose a clean installation if offered to remove any remnants from previous graphics drivers. Reboot after the driver installation and use valve monitoring software to check temperatures, clock speeds, and fan behavior under light load. Run a quick test scene in a game or a benchmarking tool to verify that the GPU is rendering correctly and driving the display without artifacts.
Common mistakes and troubleshooting tips
New GPU installations fail most often due to power or seating issues, not faulty hardware. Double-check that the GPU is fully seated in the PCIe slot and that all required PCIe power connectors are securely attached. If you don’t see a display after POST, review BIOS settings to ensure the primary display is the PCIe GPU and that Secure Boot or CSM settings aren’t blocking initialization. If temperatures soar or fans spin erratically, verify that case airflow is adequate and that the GPU’s heatsink is free of obstructions. When in doubt, revert to a minimal configuration (one CPU, one GPU, minimal drives) to isolate the source of the problem.
Tools & Materials
- Anti-static wrist strap(Prevents electrostatic discharge when handling components)
- Phillips head screwdriver (#2)(For securing GPU bracket and expansion slot screws)
- Desktop PC with available PCIe x16 slot(Essential for GPU installation)
- PCIe power cables (6-pin/8-pin as required)(Power the GPU according to its TDP and connector type)
- Small parts tray or magnetic bowl(Keep screws and small components organized)
- Motherboard and GPU manuals(Reference for slot layout and power requirements)

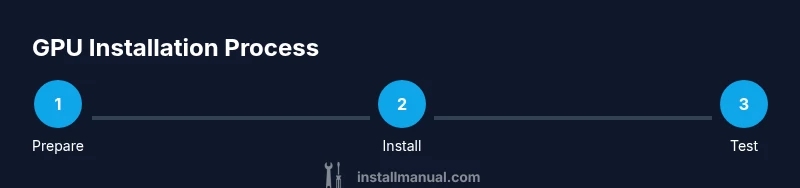

Steps
Estimated time: 30-60 minutes
- 1
Power down and unplug
Power down the PC and unplug all cables. Press the power button to discharge any residual electricity. Ground yourself before touching internal components to avoid static shock.
Tip: Always unplug from the wall before touching any internal parts. - 2
Open the case and locate the PCIe slot
Remove the side panel to access the motherboard and locate a PCIe x16 slot. If you’re upgrading, identify the existing GPU’s location and power connections. Keep screws organized and avoid touching circuit traces.
Tip: Take a photo of cable routing before removing the old GPU to speed setup later. - 3
Remove existing GPU (if upgrading)
If replacing an old card, detach any power cables, unscrew the PCIe bracket, and gently pull the card straight out of the slot. Place the old GPU in an anti-static bag for storage or disposal.
Tip: Do not yank cables; unplug power connectors first, then the card. - 4
Prepare the new GPU
Remove any shipping covers from the PCIe edge connector and the bracket. Inspect for damage and confirm the card’s connector type; ensure you have the right length and height for your case.
Tip: Handle the card by the edges to avoid bending components. - 5
Insert the GPU into the PCIe slot
Align the card with the slot and press straight down until it clicks into place. Ensure the rear bracket aligns with the case’s expansion slots.
Tip: If the card resists, don’t force it; reseat with patient even pressure. - 6
Secure the GPU and attach power
Secure the bracket with a screw. Connect the required PCIe power cables (6-pin/8-pin or both) until they click firmly. Refit the side panel if you had it removed.
Tip: Avoid using adapters that don’t supply the required current. - 7
Power on and configure BIOS
Reconnect the power, boot the system, and enter BIOS/UEFI to confirm the PCIe device is detected. Set the PCIe slot as the primary display if needed.
Tip: Disable onboard graphics if you notice the system defaulting to it. - 8
Install drivers and reboot
Install the latest GPU drivers from the manufacturer’s website. Choose a clean install if available and reboot after completion.
Tip: Keep the system connected to the internet to fetch the latest drivers. - 9
Test the GPU in the OS
Open a game or benchmarking tool to test stability, temperatures, and performance. Check for artifacts or driver errors and monitor fan speeds.
Tip: If artifacts appear, reseat the card or try a different PCIe slot.
Got Questions?
Do I need to uninstall old GPU drivers before installing a new GPU?
In most cases, you can install the new GPU and update drivers without removing the old drivers first. If you encounter conflicts, a clean driver install is recommended.
Typically you can install the new GPU and update drivers; if you see conflicts, perform a clean driver install.
Can I install a GPU in a laptop?
Most laptops use integrated graphics or mobile GPUs. Upgrading a laptop GPU is usually not possible; consider an external GPU enclosure if you need more power.
Laptops usually can’t upgrade GPUs; consider an eGPU enclosure.
What should I do if BIOS doesn't detect the GPU?
Check that the GPU is properly seated, power connectors are secure, and the PCIe slot is enabled in BIOS. Update BIOS if necessary and try reseating the card.
Ensure GPU seating, power, and BIOS PCIe settings are correct; update BIOS if needed.
Why isn't the GPU showing up in Windows?
Install or update the GPU driver. Check Device Manager for unknown devices, and verify PCIe power is connected. Reboot after driver installation.
Update drivers and check Device Manager; ensure PCIe power is connected, then reboot.
Is a bigger power supply always better for GPUs?
A higher wattage PSU is not always better; choose a unit with enough headroom for your GPU plus other components. Look for 80 Plus efficiency and adequate amperage on the +12V rail.
More wattage helps only if it provides stable power and efficiency; choose based on your total system draw.
How often should I update GPU drivers?
Update drivers when performance issues arise or new features are released; best practice is to install the latest stable drivers from the GPU maker.
Update drivers when needed; always install the latest stable version from the maker.
Watch Video
Main Points
- Plan compatibility before purchase
- Ensure the power supply has enough wattage and connectors
- Seat the GPU firmly in the PCIe slot and secure the bracket
- Install the latest drivers and run basic tests
- Maintain good airflow with tidy cables
