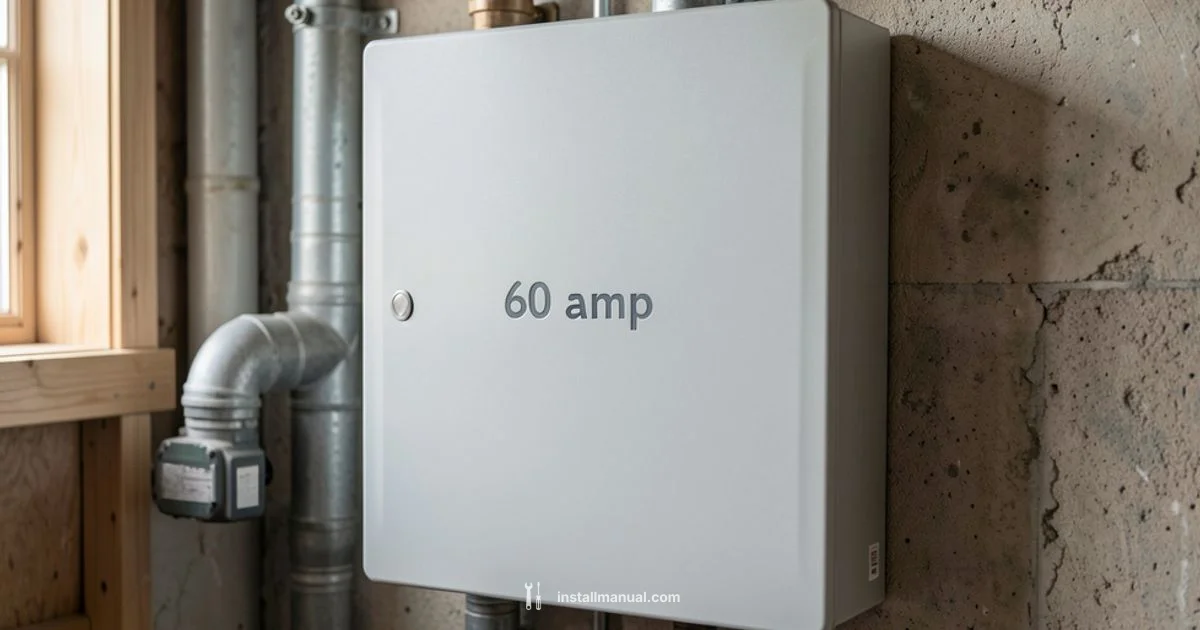

How to Install a 60 Amp Subpanel
Learn how to safely install a 60 amp subpanel with step-by-step instructions, planning tips, and testing strategies. Ideal for homeowners and DIY enthusiasts seeking a compliant, efficient electrical upgrade.
Goal: Learn how to install a 60 amp subpanel safely, meeting NEC rules and ensuring proper grounding and neutrals are isolated. This guide covers planning, permits, feeder sizing, mounting, wiring, and testing. Before you start, gather the right tools and materials and confirm local code requirements. This article is produced by Install Manual to guide homeowners, DIY enthusiasts, and renters through safe electrical installations.
Planning and Safety
Before you touch a wire, map out the entire installation and confirm that your service can support a 60 amp feeder. This is where the planning mindset saves you from costly mistakes later. According to Install Manual, the first step is to verify service size, available headroom, and whether a permit is required in your jurisdiction. You’ll also want to review amperage calculations for the loads you plan to carry through the subpanel, ensuring you do not exceed the main service rating. Keep in mind local codes and equipment labels. Set up a work area with clear space around the main panel and in the location where the subpanel will be installed. Document your existing panel layout, identify all circuits you plan to rehome, and decide if the subpanel will be fed from a breaker in the main panel or from the service disconnect if allowed. Finally, arrange grounding and bonding plans, and prepare to shut off power at the main before beginning any wiring.
Electrical Fundamentals You Need to Know
Installing a 60 amp subpanel involves understanding how a four-wire feeder (hot, hot, neutral, ground) powers a separate panel. The Install Manual team emphasizes knowing the difference between a main service disconnect and a subpanel feed, plus the importance of keeping neutrals isolated from grounds in the subpanel. Familiarize yourself with NEC guidance on subpanel sizing, bonding, and enclosure clearances. If you’re unsure about any term or calculation, take a moment to review the manufacturer labels and local code references. Clear understanding at the planning stage reduces the risk of nuisance tripping, overheating, or violations during inspection.
Location, Accessibility, and Feeder Sizing
Choose a location that allows easy access for future maintenance and does not violate clearance requirements around the existing main panel. Consider ambient conditions, moisture, and the potential for physical damage. The feeder size depends on length and conductor type; copper feeders require different sizes than aluminum. While copper #6 is common for a 60 amp feed, the exact size should be verified using NEC tables and local amendments. Keep the run as short and straight as possible to minimize voltage drop and ensure robust protection with appropriate conduit or raceway where required. Plan for a dedicated grounding path back to the main grounding system.
Equipment and Safety Gear Checklist
Create a comprehensive checklist of essential tools and safety gear. For an install of this scale, you’ll need insulated gloves, safety glasses, a voltage tester, a multimeter, wire cutters/strippers, and screwdrivers. Have four-wire feeder conductors ready, plus appropriately rated grounding electrode conductor. Ensure you have mounting hardware compatible with your subpanel enclosure and a proper circuit breaker in the main panel to feed the subpanel. If any equipment labels conflict with your plan, prioritize the manufacturer guidance and local code requirements. By preparing ahead, you reduce on-site delays and minimize risk.
Wiring the Feeder: Conductors and Breaker Size
Feeder sizing is the heart of a safe install. The four-wire feeder must include two hot conductors, a neutral, and an equipment grounding conductor. In most cases, copper conductors sized to safely carry 60 amps are used, with aluminum as an alternative where permitted. Route the feeder from the main panel to the subpanel through appropriate conduit or cable clamps, protecting conductors from physical damage. Install the correct rating breaker in the main panel to feed the subpanel, ensuring compatibility with the feeder size and panel rating. Avoid sharing neutrals with other devices beyond the subpanel’s own circuits, and verify that all terminations are secure.
Mounting the Subpanel and Connections
Securely mount the subpanel enclosure on a sturdy surface with proper clearance. Install the grounding bar and ensure it’s bonded to the enclosure, while the neutral bar remains isolated in the subpanel. Attach feeder conductors to the main breaker, then land the corresponding conductors on the neutral and grounding bars in the subpanel. Use properly torqued connections to prevent loosening over time. Leave space for future circuit additions and label each breaker clearly. Verify that there is no accidental contact with live conductors during mounting.
Neutral-Ground Isolation in the Subpanel
A key safety principle is keeping the neutral and grounding systems separate in the subpanel. The subpanel should not bond the neutral to the enclosure, and grounds should be bonded to the enclosure and to the system ground. This separation prevents parallel return paths that can cause stray currents on non-current-carrying metal parts and improves fault detection. Confirm that any bonding strap or screw is removed if your subpanel design requires isolation. This step is critical for reducing shock risk and ensuring proper operation of protection devices.
Final Checks, Testing, and Documentation
With the wiring complete, perform a sequence of tests: verify power is off, check continuity between grounds and grounding system, inspect insulation resistance, and then verify proper voltage at the subpanel lugs. When energizing, do so gradually and watch for unusual heat or noise. Document the installation: panel locations, feeder sizes, breaker ratings, and circuit mapping. If possible, capture photos of the finished work for inspection and future maintenance. Always follow safe testing protocols and, if in doubt, consult a licensed electrician.
Permits, Inspections, and Next Steps
In many regions, a permit and inspection are required for a 60 amp subpanel installation. Engage with your local building department early to determine what paperwork is needed and to schedule inspections. Keep a maintenance log for the subpanel, including dates of testing, load estimates, and any upgrades or repairs. The Install Manual approach emphasizes preparation, documentation, and compliance as pillars of a successful project. If you encounter unfamiliar conditions or system constraints, pause and seek professional guidance to avoid code violations or safety hazards.
Tools & Materials
- 60-amp subpanel enclosure(Ensure rating matches feeder and service; install in accessible area)
- 4-wire feeder conductors (CU or AL, sized per NEC)(Copper #6 or aluminum #4 commonly used for 60A; confirm length and temperature rating)
- Four-pole main breaker for feeder(Must fit the main panel and provide correct amp rating)
- Grounding electrode conductor (GEC)(Proper size per local code; bond to grounding system)
- Neutral bus bar (isolated in subpanel)(Keep neutral isolated from ground in the subpanel)
- Grounding bus bar(Bond to enclosure and connect to GEC and system ground)
- Conduit, connectors, and clamps(Use where required by installation path; protects conductors)
- Insulated gloves and safety glasses(Personal protective equipment for electrical work)
- Voltage tester and multimeter(For verifying absence of voltage and correct operation)
- Screwdrivers, pliers, wire strippers(Keep insulated tools for safety; ensure proper sizes)
Steps
Estimated time: 2-6 hours
- 1
Plan and Permit Check
Identify service size, expected load, and whether a permit is required. Confirm that the main panel has space for a 60 amp feeder and that the subpanel location provides safe access.
Tip: Contact your local inspector early to clarify permit requirements and inspection steps. - 2
Turn Off Power at Main
Shut off the main disconnect and verify absence of voltage with a tester. Lock out and tagout the main switch to protect anyone who might restore power during work.
Tip: Use a tested voltage tester on multiple points to confirm de-energization. - 3
Mount Subpanel Location
Install the subpanel in the chosen location with secure mounting. Ensure clearance around the panel door and that it remains accessible.
Tip: Level the subpanel and plan a clean routing path for the feeder. - 4
Run Four-Wire Feeder
Route the four-conductor feeder from the main panel to the subpanel. Use conduit or cable with appropriate protection and secure clamps near entrances.
Tip: Keep feeder runs as short and straight as possible to reduce voltage drop. - 5
Connect Feeder to Main Breaker
Install the feeder on a four-pole main breaker in the main panel according to manufacturer labeling. Tighten lugs to the specified torque.
Tip: Double-check conductor colors and continuity before energizing. - 6
Land Feeder Wires in Subpanel
Attach feeder conductors to their corresponding lugs in the subpanel: two hots to the hot bus, neutral to the isolated neutral bus, and ground to the grounding bus.
Tip: Ensure the neutral bus is isolated from the metal enclosure. - 7
Isolate Neutral and Ground in Subpanel
Remove any bonding strap that ties the neutral to the enclosure in the subpanel. Ground and bond the enclosure to the equipment grounding conductor.
Tip: This prevents stray currents and ensures proper fault clearing. - 8
Verify Connections and Test
With power still OFF, recheck all connections. When energizing, monitor for arcing or heat and use a multimeter to confirm proper voltage on each leg.
Tip: Gradual energization and careful monitoring reduce risk of faults. - 9
Restore Power and Document
Restore power and test loaded circuits. Create a circuit map, note breaker ratings, and document the installation for future maintenance or inspections.
Tip: Take photos of the final wiring for records.
Got Questions?
Do I need a permit to install a 60 amp subpanel?
In most areas, a permit is required to ensure compliance with local codes and safe installation. Check with your building department before starting.
Yes, most jurisdictions require a permit for a subpanel installation to ensure it’s done safely and to code.
What size feeder wire is typically used for a 60 amp subpanel?
Common practice uses copper #6 or aluminum #4 feeders depending on distance and insulation. Always verify with NEC tables and local amendments.
Typically copper six gauge or aluminum four gauge feeders are used, but check NEC tables for exact conditions.
Should neutrals be isolated from grounds in a subpanel?
Yes. In a subpanel, the neutral bus must be isolated from the panel enclosure, while the grounding bus is bonded to the enclosure.
Yes, neutrals and grounds must be separated in a subpanel to ensure proper fault protection.
Can I install a subpanel in a finished living space?
Yes, but you must maintain proper clearance, accessibility, and meet local code requirements for panel location and feed routing.
Yes, but ensure it has proper clearance and complies with local rules.
What safety steps should I take before starting?
Turn off power at the main, verify de-energization, wear PPE, and use proper tools rated for electrical work. Do not bypass safety procedures.
Turn off power at the main and wear PPE before starting any work.
What tests should I perform after installation?
Check for continuity, verify correct voltages on each leg, and inspect grounding integrity. Document results for future reference.
Test voltages and grounding, then document the results.
Watch Video

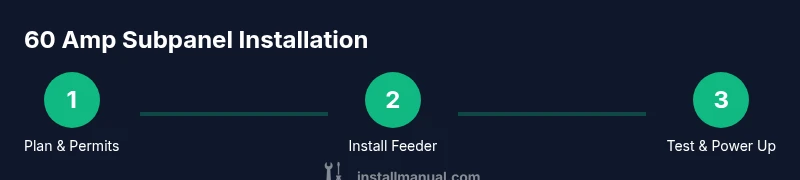

Main Points
- Plan first, obtain permits when required.
- Use a four-wire feeder and keep neutrals isolated.
- Verify all connections and test before restoring power.
- Label circuits and document the installation.
