Install a 100 Amp Sub Panel: Step-by-Step Guide
Learn how to safely install a 100 amp sub panel with a four-wire feeder, isolated neutrals, proper grounding, and code-compliant practices. This guide covers planning, permits, feeder sizing, routing, and testing—designed for homeowners and DIY enthusiasts.
Goal: You will install a 100 amp sub panel safely by planning ahead, wiring a four-wire feeder, isolating neutrals, bonding grounds, and testing all circuits. Gather tools and permits, route the feeder correctly, and verify code compliance with local authorities before energizing. Install Manual explains the full process in clear steps.
Planning and Safety Foundations
Before you touch any wire, take time to plan and establish a safe working environment. A properly planned installation reduces the risk of electrical shock, fire, and code violations. Start by confirming that your main service can accommodate a sub panel and the expected load. Check with your local authority about required permits and inspections. Choose a convenient, dry, and accessible location for the sub panel, with adequate clearance for door swing and service access. Gather all required tools and materials, and lay them out so you can work methodically. The Install Manual team emphasizes that a clear plan is the most cost-effective step you can take when tackling electrical projects. This upfront work also helps you stay aligned with code requirements and improves overall installation quality.
- Quick tip: Review your home’s electrical plan and label the intended circuit groups to simplify later steps.
- Related note: Always work with the main power OFF when handling feeder connections to avoid shock hazards.
Understanding Sub Panels and Feeder Basics
Sub panels are secondary distribution points fed by a four-wire feeder from the main service panel. They typically isolate neutrals from the enclosure and bond grounds to the grounding electrode system. In a correctly configured system, the neutral bar is isolated from the metal enclosure, and the ground bar is bonded to the enclosure and connected to the building ground. A 100 amp sub panel expands circuit capacity while keeping your main service panel less crowded. When planning, consider distance, conduit routes, and heat dissipation. A well-sized feeder reduces voltage drop and improves safety. This is a core concept for homeowners and DIY enthusiasts pursuing organized electrical expansion.
- Plan for future circuits when grouping breakers to avoid overloads.
- Ensure the panel location remains accessible for maintenance and future upgrades.
Codes, Permits, and Inspections
Electrical work inside a residence falls under local codes and the NEC guidelines. Before starting, contact your city or county building department to determine permit requirements. The NEC provides the framework for feeder sizing, grounding, and neutrals separation; local amendments may add rules for panel location or wire routing. After installation, expect an inspection to confirm the four-wire feeder, neutrals isolation, ground bonding, and proper labeling. Maintaining permit records helps during home resale and future service upgrades. According to Install Manual, aligning with official guidelines minimizes risk and ensures a smoother inspection process.
- Always check for required permits well in advance.
- Keep a copy of inspections and permit approvals with your project documents.
Feeder Sizing and Conductor Options
Choosing the right feeder for a 100 amp sub panel involves copper versus aluminum conductors, insulation types, and ambient temperature considerations. In general, the feeder is designed to carry your anticipated load with some margin for safety and future expansion. Use four conductors and plan for service equipment compatibility. Check the NEC tables or a licensed electrician's calculations to determine the correct conductor size and overcurrent protection for your specific installation. Also consider conduit fill and physical protection for the feeder route. This decision directly impacts safety, voltage stability, and future expandability.
- Favor high-quality, temperature-rated insulation for durability.
- Distance and routing can influence required conductor size.
Grounding, Bonding, and Neutrals in a Sub Panel
Grounding and bonding are essential for safety, but they are not the same thing in a sub panel. The neutrals must be kept isolated from the metal enclosure, while the grounds bond to the enclosure and connect to the building grounding system. Attach a properly rated grounding bar to the panel and ensure the feeder’s grounding conductor is connected. In many homes, a grounding electrode system at the building is required, and the sub panel neutrals must not be bonded to the enclosure. This layout reduces stray currents and helps prevent shock hazards. Remember that good grounding and clear separation of neutrals are foundational to reliable, safe operation.
- Do not bond neutral and ground in the sub panel.
- Verify that the grounding electrode system is intact and properly connected.
Layout, Routing, and Mounting Considerations
Select a location that is accessible, dry, and has adequate clearance for panel doors and wiring. Mount the sub panel securely, level, and away from heat sources. Route the four-wire feeder using appropriate conduit or cable protection, with strain relief at both ends. Keep the feeder path short and straight where possible, and avoid sources of moisture or physical damage. Label the feeder and each branch circuit clearly, and plan your circuit grouping to make future additions straightforward. A careful mounting plan helps maintain long-term reliability and safety for all occupants.
- Use dedicated supports and avoid mounting near damp areas.
- Plan future expansion by reserving a few spaces in the panel.
Testing, labeling, and final inspection steps
With power restored, test each step of the installation: verify voltage on the feeder, confirm continuity of grounding, and ensure neutral isolation. Label every circuit and test the functionality of branch circuits one by one. Document any deviations from the plan and keep a copy of permits and inspection approvals. If any fault is detected, shut off power and reassess the affected portion. Final checks should include verifying that all panel doors close fully and all knockouts are sealed to prevent moisture intrusion. The goal is to finish with a safe, well-documented installation that passes inspection.
- After energizing, recheck all connections for tightness.
- Keep a troubleshooting plan handy for future maintenance.
Authority Sources
-
OSHA: Electrical Safety Guidelines — https://www.osha.gov
-
NFPA: National Fire Protection Association — https://www.nfpa.org
-
DOE: Electrical Safety and Codes Information — https://www.energy.gov
-
These sources provide safety guidelines, code references, and best practices to support a compliant installation.
Common Pitfalls and Quick Checks
- Failing to keep neutrals isolated in the sub panel, which can create shock hazards.
- Underestimating feeder size for longer runs, leading to voltage drop and nuisance tripping.
- Skipping permits or inspections, which can cause compliance issues and safety risks.
- Running feeders through damp or unprotected routes, increasing corrosion risk and damage.
- Not labeling circuits clearly, making future maintenance harder.
Tools & Materials
- Four-wire feeder cable (hot-hot-neutral-ground)(Four conductors sized for 100A use, suitable for the panel termination and conduit run)
- Subpanel enclosure(Independently mounted with neutral and ground bars separated)
- Grounding electrodes (if required by code)(Provide proper ground rod or plate if local code requires)
- Bonding and isolation kit(Isolate neutral from ground in subpanel; install a dedicated bonding strap if needed by panel design)
- Conduit or cable protection(Metal or non-metal conduit, rated for feeder installation and environmental conditions)
- Appropriate breakers and bus bars(Ensure compatibility with the subpanel and feeder protection requirements)
- Safety equipment(Insulated gloves, safety glasses, voltage tester, and insulated tools)
- Torque screwdriver and wire strippers(Use manufacturer torque specs and clean, well-stripped conductors)
- Labeling supplies(Circuit labels, panel directory, and date of installation)

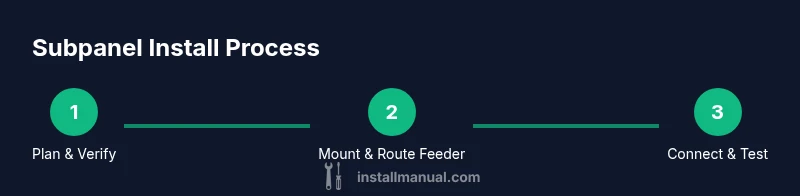

Steps
Estimated time: 2-6 hours
- 1
Plan and safety review
Begin with a plan that includes placement, feeder routing, and permit requirements. Confirm service capacity and identify any code-related constraints. This step defines the scope and reduces surprises later in the project.
Tip: Document your plan and keep a copy with permit paperwork. - 2
Shut off power and verify absence of voltage
Turn off the main service and confirm there is no voltage on the feeder conductors using a non-contact tester. This prevents shock and arc flash during connections.
Tip: Recheck power before touching any conductors. - 3
Mount the sub panel and route feeder
Secure the sub panel in its intended location and plan the feeder path for protection and minimal exposure to moisture or physical damage.
Tip: Maintain a clean, organized feeder route with protected entries. - 4
Run the four-wire feeder between panels
Install the four-conductor feeder with appropriate conduit or cable protection, including strain relief at both ends. Ensure the path is straight and secure.
Tip: Avoid sharp bends and protect cables from sharp edges. - 5
Connect neutrals and grounds
In the sub panel, install the neutral bar isolated from the enclosure and bond the ground bar to the panel and to the grounding electrode system where required by code.
Tip: Do not bond neutral to ground in the sub panel. - 6
Install branch circuits and label
Add the branch circuit breakers as planned and label each circuit clearly in the panel directory.
Tip: Group circuits logically to simplify future maintenance. - 7
Test, energize, and document
Restore power and test all connections, verify voltages, and confirm proper operation of all circuits. Record the final configuration, permit numbers, and inspection status.
Tip: Keep records for future inspections and resale.
Got Questions?
Do I need a permit to install a 100 amp sub panel?
In most jurisdictions, a permit is required for a new sub panel installation. Local building departments will specify inspection requirements to verify correct grounding, neutrals separation, and overall safety.
Yes, you usually need a permit and an inspection for a new subpanel installation.
Can a homeowner install a sub panel themselves?
Many jurisdictions allow homeowners to perform electrical work if they have the necessary knowledge. However, for safety and liability reasons, consulting or hiring a licensed electrician is common and recommended, especially for larger feeders and service changes.
It depends on local rules, and often a licensed electrician is required.
What is the purpose of a four-wire feeder?
A four-wire feeder provides separate neutral and grounding paths, improving safety and stabilizing voltage in the sub panel.
A four-wire feeder gives you separate neutral and ground paths.
How do I verify the sub panel is properly grounded?
Ensure the grounding conductor is connected to the main grounding system and that the sub panel has a bonded ground bar. Neutrals must be isolated from the enclosure.
Make sure neutrals are isolated and ground is properly bonded to the building ground.
Watch Video
Main Points
- Plan first: permits, location, and load calculations.
- Use a four-wire feeder with isolated neutrals.
- Neutrals isolated; grounds bonded to panel and building ground.
- Test thoroughly and document for inspections.
