How to Install a 60 Amp Breaker: A Homeowners Guide
Learn how to install a 60 amp breaker safely in a main service panel. This step-by-step guide covers sizing, wiring, tools, safety, and testing for homeowners and DIY enthusiasts.

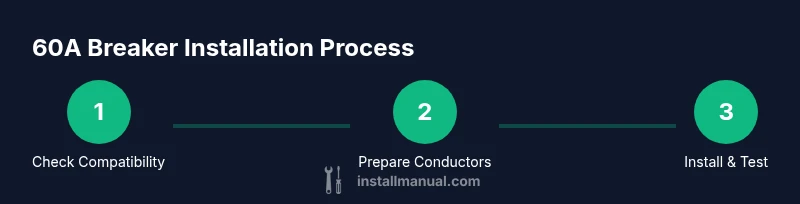

By the end of this guide, you will safely install a 60 amp breaker in a compatible electrical panel. This task requires confirming panel compatibility, selecting a properly rated two-pole breaker, and using correct gauge conductors. According to Install Manual, always de-energize the panel and follow local codes. This quick answer previews the essential steps and safety considerations you’ll implement in detail below.
What installing a 60 amp breaker means for your home electrical system
According to Install Manual, safe electrical work starts with planning and verifying panel compatibility. A 60 amp breaker is designed to protect circuits that demand higher current, such as large outlets, a subpanel, or dedicated appliances. Installing a 60 amp breaker requires a compatible panel and appropriately sized conductors. For residential work, this typically means a two-pole breaker feeding a 240-volt circuit and wires sized at 6 AWG copper or 4 AWG aluminum. Before you begin, confirm that your service panel is rated for 60 amps on the corresponding bus and that there is an open space or a suitable slot for a two-pole device. This quick step ensures the protection device will trip before wires overheat. Throughout this guide, the Install Manual team emphasizes safety, adherence to local electrical codes, and the use of properly rated components to minimize risk. Remember: working on live electrical panels can cause serious injury or fire if done incorrectly. If you doubt your ability, hire a licensed electrician.
Safety first: codes, permits, and when to hire a pro
Before handling live components, check local codes and permit requirements. Even if you are comfortable with basic electrical tasks, a 60 amp breaker installation may require a permit or inspection in your jurisdiction. A pro electrician can verify panel rating, conductors, and grounding arrangements to prevent hazards such as overheating or arc faults. The Install Manual team notes that many errors stem from skipping permits or misreading panel labeling. Always work with the main power disconnected and use a non-contact tester to confirm zero voltage before touching any conductors. If you’re uncertain about permit needs, contact your local building department for guidance.
Tools and materials you’ll need
Having the right tools saves time and reduces risk. Essential items include a 60-amp two-pole breaker, 6 AWG copper or 4 AWG aluminum conductors, a non-contact voltage tester, a voltmeter or multimeter, insulated screwdrivers (flathead and Phillips), wire strippers, pliers, a torque screwdriver or a torque wrench, and a flashlight for dim panel spaces. Optional but recommended: panel cover removal tool, electrical tape, and a labeling tag for circuit identification. Keep a clean workspace and store spare parts in a logic-packed toolbox. The right tools help ensure a secure, code-compliant installation.
Compatibility and conductor sizing
A successful install hinges on panel compatibility and correct conductor sizing. Most residential panels that support a 60A circuit require 6 AWG copper or 4 AWG aluminum conductors feeding the two hot terminals. Verify panel labeling or manufacturer documentation to confirm that a 60A two-pole breaker is permitted on the intended bus. If you’re upgrading from a smaller ampacity, ensure the service entrance and main breaker can handle the load. Avoid using smaller wires, as they risk overheating and nuisance tripping. Always plan routing paths so wires aren’t pinched or kinked when the panel is reassembled.
Understanding breaker types and panel compatibility
Breakers come in various trip characteristics and physical styles. For a 60A load, you’ll likely use a standard two-pole breaker suited to your panel’s brand and model. Mixed brands within a single panel can create compatibility issues; consult the panel label for the exact breaker type (e.g., Type B or Type C equivalents) and the approved slot pattern. If your panel is older, you may encounter limitations that require an upgrade or a subpanel addition. The goal is a secure fit that seats fully on the bus and aligns with the neutral/grounding arrangements. The Install Manual recommendation is to avoid forced fits and always rely on manufacturer-specified components for safety and reliability.
Step-by-step overview context
This section provides a high-level view of the installation flow without duplicating the step-by-step details. Start by turning off all power, then verify the absence of voltage on the panel. Confirm open spaces, prepare conductors with correct gauge, mount the breaker onto the bus, and connect the conductors to the appropriate terminals. Ensure neutrals and grounds are properly bonded or isolated according to whether the panel is main or subpanel. Finally, reassemble the panel cover, restore power, and test the circuit. This overview aligns with the rigorous guidance from Install Manual, while keeping you focused on safety, labeling, and proper torque.
Testing and verification after installation
After restoring power, perform a thorough check. Use a multimeter to verify voltage on the load side of the breaker and confirm no inadvertent shorts. Switch the breaker off and on to ensure it trips when a load is applied, illustrating proper protection. Observe the breaker for any signs of overheating during initial operation and listen for abnormal buzzing or arcing. If anything unusual occurs, shut down power and re-check connections. Documentation and labeling of the circuit improve future maintenance and safety checks.
Common mistakes and how to avoid them
Common mistakes include using undersized conductors, misreading panel labeling, forcing a breaker into an incompatible slot, and neglecting to reclose the panel correctly. Avoid these by double-checking the panel’s labeling, confirming conductor size before purchase, and ensuring all connections are tight but not over-tightened. Use a torque screwdriver according to the panel manufacturer’s specifications and never bypass safety features to save time. The Install Manual framework emphasizes taking a methodical approach to reduce risk.
What to do next and maintenance
Once the 60 amp breaker is installed, maintain your electrical system with routine inspections and keeping up with code changes. Label new circuits, schedule annual visual checks for wear, and consider upgrading the service panel if your electrical demand increases. If you’re unsure about future loads or code requirements, consult the Install Manual team for best practices and up-to-date recommendations. The goal is long-term safety, reliability, and compliance with local codes.
Tools & Materials
- 60-amp two-pole circuit breaker(Ensure it is compatible with your panel brand and model.)
- 6 AWG copper conductors(Used for most 60A circuits; allow extra length for routing.)
- 4 AWG aluminum conductors(Alternative if using aluminum wiring.)
- Non-contact voltage tester(Verify no voltage before handling panel components.)
- Voltmeter or multimeter(For post-install verification of voltage.)
- Insulated screwdriver set(Different sizes for terminals and bus screws.)
- Wire strippers and pliers(Prepare conductors and trim as needed.)
- Torque screwdriver or torque wrench(Follow panel manufacturer torque specs.)
- Panel cover removal tool(Helpful for some panel designs.)
- Safety glasses(Eye protection during panel work.)
Steps
Estimated time: 90-120 minutes
- 1
Power down and verify absence of voltage
Shut off the main service disconnect and use a non-contact voltage tester to confirm there is no current entering the panel. This is critical to prevent arc flash and injury. Do not rely on a single test; test multiple terminals and ensure all circuits are de-energized.
Tip: Double-check with a second tester or another method before touching any conductors. - 2
Check panel compatibility and spare space
Open the panel and read the labeling to confirm that a 60A two-pole breaker is permitted on the desired bus. Look for open slots or a place suitable for a two-pole device. If space is limited, plan a panel upgrade or subpanel addition with a licensed electrician.
Tip: Never force a breaker into an occupied or incompatible slot. - 3
Prepare conductors and measure length
Cut your wires to the necessary length with extra slack for routing. Strip insulation to the recommended width for the terminal screws. Keep conductors clean and free of nicks that could cause insulation damage.
Tip: Label wires early to avoid confusion during installation. - 4
Remove panel cover and mount breaker
Carefully remove the panel cover, locate the correct bus, and insert the new 60A breaker into the slot. Ensure the breaker is fully seated on the bus and aligned with adjacent breakers.
Tip: Do not force the breaker; if it doesn’t sit flush, recheck compatibility. - 5
Connect conductors to breaker terminals
Attach the two hot conductors to the breaker’s terminals, respecting color coding. Tighten screws to the panel’s specified torque using a torque driver.
Tip: Do not mix up line/load terminals or reverse wires. - 6
Bond neutrals/grounds as required
In a main panel, neutrals and grounds are bonded; in subpanels they should be isolated. Ensure all neutrals are correctly landed and grounds bonded where required by code.
Tip: Keep neutrals and grounds organized to facilitate future work. - 7
Close panel and restore power
Reinstall the panel cover, ensure no tools are left inside, and switch the main service disconnect back on. Then flip the 60A breaker to the ON position and observe for normal operation.
Tip: Listen for unusual hum or feel for warmth during initial run. - 8
Test and verify operation
With the circuit energized, test connected devices or use a multimeter to confirm proper voltage at the load. Check for proper trip response by simulating a fault in a controlled environment (never create a real fault).
Tip: Document test results and keep a labeled record for future maintenance.
Got Questions?
Do I need a permit to install a 60 amp breaker?
Permit requirements vary by locality. Many jurisdictions require a permit for major electrical work like upgrading or installing a new breaker. Check with your local building department before starting.
Permits vary by area; contact your local building department to confirm requirements.
Can I install a 60 amp breaker in any panel?
No. A 60 amp breaker must be compatible with the panel model and rated bus. Always consult the panel labeling and manufacturer documentation to ensure compatibility.
Not every panel accepts a 60A breaker; check the label and model docs.
What gauge wire is required for a 60 amp circuit?
Typically, 6 AWG copper or 4 AWG aluminum is used for a 60A circuit. Confirm with local codes and the panel’s requirements.
Usually 6 AWG copper or 4 AWG aluminum, but verify with local codes.
What should I do if there are no spare spaces in the panel?
If there are no open slots, you may need a panel upgrade, a subpanel, or a professional assessment of alternative configurations.
No space means you may need an upgrade or subpanel—consult an electrician.
Is a licensed electrician required for this task?
While experienced homeowners can perform some tasks, installing a 60A breaker involves risk. A licensed electrician is recommended for safety and code compliance.
A licensed electrician is recommended for safety and code compliance.
What safety precautions should I take before starting?
Turn off the main breaker, verify zero voltage, wear eye protection, and keep a clear workspace. Never touch live terminals.
Turn off power, test for zero voltage, wear eye protection, and stay organized.
Watch Video
Main Points
- Verify panel supports 60A two-pole breakers
- Use correct conductor size (6 AWG Cu or 4 AWG Al)
- Power off and test before touching any conductors
- Tighten connections to manufacturer torque specs
- Test the circuit after installation before applying load
