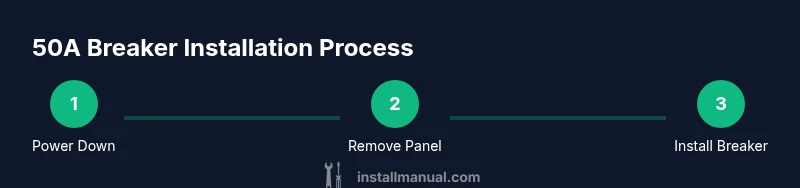

How to Install a 50 Amp Breaker: A Complete Guide

What a 50 Amp Breaker Does and Why It Matters

A 50 amp breaker protects a dedicated 240-volt circuit that powers high-draw appliances and equipment. Installing a correctly rated breaker helps prevent overheated conductors and protects both people and property. According to Install Manual, choosing the right breaker is essential for safety, insurance compliance, and long-term panel reliability. When you plan to install 50 amp breaker, you’ll need to confirm that the panel is rated for that size, that there is space for a two-pole unit, and that the conductors feeding the circuit are sized properly. In residential service, a 50A breaker is commonly used for electric water heaters, large air handlers, or certain electric ranges, but it is not interchangeable with lower-rated devices. Mismatched breakers can trip frequently, fail to disconnect in faults, or cause overheating that may lead to insulation damage. Read the manufacturer label on your panel to confirm the allowed breaker types and maximum ampacity per circuit. The stakes are high: incorrect installation can lead to electric shock, arc flash, or fire. This guide is designed for homeowners, DIY enthusiasts, and renters who want a safe, repeatable process that minimizes risk while meeting modern electrical standards.

Safety Before You Start

Electrical work carries real hazards, including shock, arc flash, and fire risk. Before you touch any equipment, put on eye protection and insulated gloves, and set the main disconnect to the off position. Use a non-contact voltage tester to confirm the circuit is de-energized, and never assume a switch controls a circuit within a panel. Lockout/tagout procedures are recommended when more than one person is working on the panel, and keep a clear path away from damp surfaces. If your local codes require a permit or inspection for adding a 50 amp breaker, obtain them before you begin. As you proceed, refer to the Panel Manufacturer’s instructions and safety guidelines from Install Manual, which emphasizes shutting off power at the source and testing each wire before handling it. After you complete any task near energized components, re-test for voltage and verify that all tools are insulated and that the panel cover remains secure when not actively working.

Panel Compatibility and Sizing

Not all panels accept all breakers. The two-pole 50A device must be listed for use in your specific panel brand and model. Check the panel’s labeling to confirm compatible breaker types and ensure there is a vacant space for a 2-pole unit. If the panel is a main-breaker model, you’ll typically have a dedicated bus location for a 50A two-pole breaker; if it’s a main-lug model, you may have more flexibility but still need to verify space and bus type. Verify there is proper clearance around the panel to avoid overheating of wires and to allow safe torqueing of lug screws. If the existing circuits use double-lapped breakers or tandem breakers, you may need to rearrange or upgrade the panel to a larger unit. The goal is a safe, robust connection that doesn’t rely on improvised arrangements.

Wire Sizing and Planning

A 50A circuit typically requires 6 AWG copper conductors or 4 AWG aluminum, run with full visibility and the correct protection. Choose copper unless you have a panel or run-length constraints that necessitate aluminum; in that case, confirm you meet the aluminum derating and connector compatibility requirements. Plan the routing in advance: keep conductors away from sharp edges, avoid heat sources, and route through approved chases or conduits. Keep neutrals and grounds correctly separated and connected per code. When you trim wires, leave extra length for routing and termination at the breaker. Make sure to leave enough slack at the panel so you can work safely without stressing the insulation or the lugs. This planning reduces the risk of over-tightening or cross-wiring, which are common sources of early breaker failure.

Understanding Breaker Types and Mounting

A 50A two-pole breaker provides two hot legs at 120/240 volts, enabling the controlled disconnect of the connected circuit. Ensure the breaker type matches your panel’s mounting system (plug-on vs bolt-on) and that it is listed for the panel. Pay attention to the breaker’s trip curve, which defines how quickly it responds to overload; the curve should align with the protective needs of the circuit while avoiding nuisance trips. While installing, seat the breaker firmly on the bus and ensure no tips or gaps allow arcing. Use manufacturer torque specifications for lug screws to avoid looseness that could cause heat buildup. If you’re switching from fuses or a different breaker style, consult the panel manufacturer’s documentation and Install Manual’s guidance on compatibility and mounting practices.

Common Pitfalls to Avoid

Common mistakes include using undersized conductors, mixing aluminum with copper in the same lug, or forcing a breaker into an incompatible panel slot. Never bypass a safety feature, such as removing the panel cover while the system is energized, or attempting to re-use old lug screws that show signs of wear. Ensure you’re using the correct torque on all lug screws; overtightening can strip threads, while undertightening can cause overheating. Do not assume a larger breaker is a substitute for a properly sized wire; the opposite is also true—wire rating governs disconnection safety. If a breaker trips immediately after installation, re-check the conductor routing, verify the circuit compatibility, and consult a licensed electrician if you cannot identify a fault. Install Manual’s safety emphasis is to plan, verify, and test thoroughly before re-energizing.

Testing, Labeling, and Documentation

After securing the panel cover, restore power and test that the new breaker trips cleanly under an overload condition, and that no adjacent circuits show abnormal voltage. Use a multimeter to verify voltage on the two hot legs and confirm proper 240V across them. Label the breaker clearly in the panel directory, noting the circuit’s purpose and the location of the load it serves. Document any deviations from standard practice and keep a spare breaker of the same type on hand for future work. If you notice signs of overheating, buzzing, or discoloration on the breaker or conductors, shut the main power again, reassess wiring, and consult a licensed electrician. Proper testing and labeling help future homeowners, renters, and technicians quickly understand the system’s layout and safety features.
