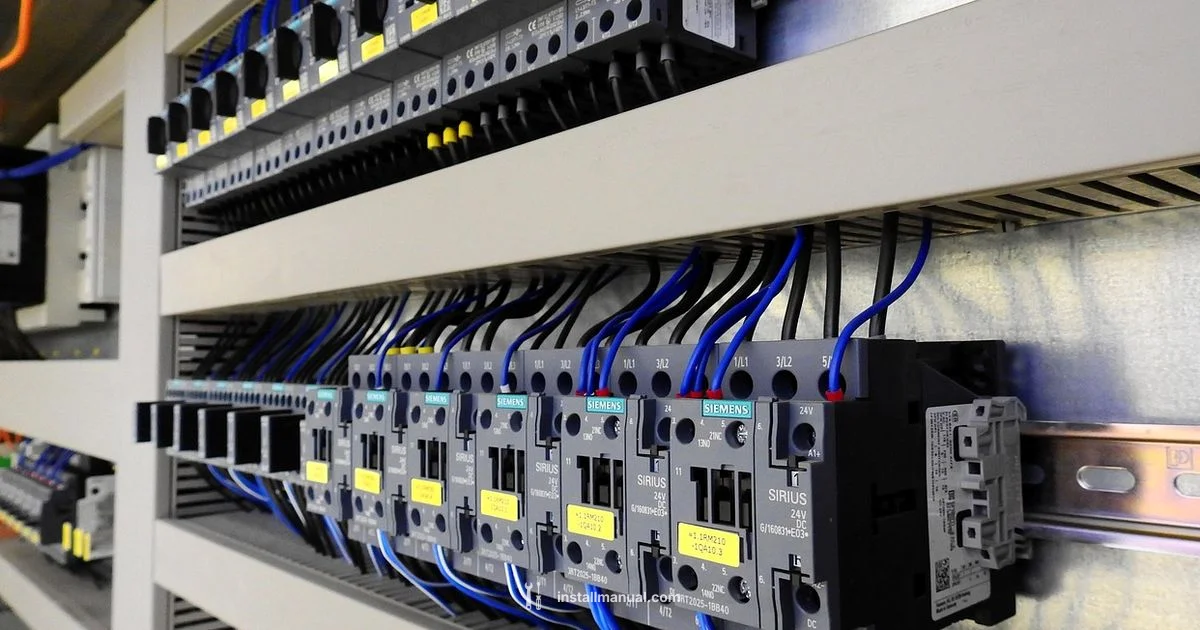

Circuit Breaker Install: A DIY Safety Guide
Learn how to safely install or upgrade a circuit breaker with our clear, step-by-step guide. Safety, tools, wiring tips, code considerations, and when to call a pro.
By following this guide, you will safely install or replace a circuit breaker and restore proper circuit protection. You’ll need a compatible breaker, a panel that accepts the type, the right tools, and basic electrical knowledge. Always shut off power at the main, verify absence of voltage, reseat connections securely, and test the circuit before restoring power.
Understanding your electrical panel and breaker types
According to Install Manual, understanding your electrical panel is the first step in a safe circuit breaker install. Most homes use a main service panel with a bus bar system that distributes power to branch circuits. Breakers come in different types: standard thermal magnetic, AFCI, and GFCI variants. Verify that your panel accepts the breaker type you plan to install by checking the panel label or manufacturer documentation. Mixing incompatible breakers can lead to poor seating, nuisance trips, or safety risks. Before you purchase a breaker, note the panel’s brand, model, and the maximum amperage rating for the space you intend to fill. A mismatch can void a warranty and create dangerous overloading conditions. Always cross-check the panel’s labeling and consult the manufacturer’s installation guide when in doubt.
Planning and safety before you begin
Plan the work in a dry, well-lit workspace with an unobstructed path to the panel. Wear PPE: insulated gloves, safety glasses, and non-conductive footwear. Confirm the main disconnect is accessible and that you can lock out the panel to prevent energization. Use a non-contact voltage tester to verify there is no voltage on the wires you will service. Make sure the new breaker is the correct amperage and compatible with the panel. If any doubt remains about compatibility or wiring, pause and consult the manufacturer or a licensed electrician before continuing.
Choosing the right breaker: amperage, type, and compatibility
The correct breaker must match the circuit’s load and the wire size. Start by identifying the circuit’s amperage requirement and ensure the breaker rating aligns with the wire gauge and device ratings. Use the panel label to confirm compatible breaker families and double-check that AFCI or GFCI features are appropriate for the circuit’s location (e.g., kitchens and laundry areas often require GFCI). Never install a breaker with a rating exceeding the panel’s capacity or the conductor’s ampacity. If you’re replacing an existing breaker, reuse its physical form factor only if the panel manufacturer confirms compatibility.
Tools, materials, and workspace setup
Before you begin, gather the essential tools and materials in a dedicated workspace. Use insulated tools and keep a clean, dry surface. Reserve a separate area for the old breaker and any spare parts. Label wires as you disconnect them, and have a plan to reattach them in the correct terminals. Keep the panel cover off only while you’re actively working, and replace it securely when you’re done. If you notice damaged insulation, scorched smell, or signs of overheating, stop and seek professional help.
Wiring considerations: bus bars, panel capacity, conductor sizing
Breaker installation hinges on proper seating in the bus bar and secure termination of conductors. Ensure there’s adequate free space in the panel for the new breaker and that the bus stabs align with the breaker jaws. Use appropriately sized conductors for the circuit; undersized wires can overheat, while oversized wires may not terminate properly in the lug. Keep conductors organized and avoid pinching or sharp bends that can nick insulation. If you’re unsure about conductor sizing or panel capacity, factor in future expansions and consult the panel manufacturer.
Grounding, bonding, and code compliance
Grounding and bonding are critical for electrical safety. Ensure the panel enclosure is properly grounded and bonded as required by local code. When adding new breakers, verify that grounding wires are intact and that any neutrals remain correctly terminated. Different jurisdictions have specific rules for AFCI/GFCI, labeling, and panel accessibility. Always check the latest electrical code guidance and document compliance steps to avoid inspection failures.
Testing the installation: verification and safe energization
With the work complete, reassemble the panel cover and restore power at the main disconnect. Use a voltage tester to verify each circuit is energized only after you have confirmed safe and correct wiring. Turn devices on sequentially and monitor for any signs of abnormal operation or overheating. If any circuit trips immediately or if you notice a buzz or smell of burning, shut down power and re-check the connections or seek professional help.
Common mistakes and how to avoid them
Common errors include using an incompatible breaker, overloading a single panel with too many high-demand circuits, improper torque on lug screws, and failing to align the breaker with the bus. Always torque connections to the manufacturer’s specifications and double-check labeling. Keep a detailed log of work performed and the exact breaker type and amperage installed for future reference.
Permits, inspections, and when to call a licensed electrician
Electrical work that involves adding or replacing a panel component often requires a permit and inspection. Local requirements vary, so contact your building department to confirm. If you encounter corrosion, damaged conductors, or uncertain wiring configurations, stop and call a licensed electrician. A professional can ensure code compliance, safety, and reliable performance.
Maintenance and future considerations for panel safety
Perform periodic visual inspections of your panel for signs of heat damage, buzzing sounds, or discoloration. Keep the area free of dust and moisture and schedule a periodic professional check, especially if the home experiences aging infrastructure or significant electrical load changes.
Final notes on safety and performance
A properly installed circuit breaker protects people and equipment by interrupting fault currents. Always treat electrical panels as live components until you confirm de-energization and safe conditions. Safety-first discipline, correct equipment matching, and adherence to manufacturer guidance are essential for long-term reliability.
Tools & Materials
- Insulated voltage tester(600V rated for household use)
- Non-contact voltage tester(Quick verification before touching wires)
- Breaker puller tool(For safely seating/removing breakers)
- Insulated screwdrivers (various heads)(PH and flat-head, insulated)
- Wire stripper/crimper(Appropriate for circuit conductors)
- Electrical tape and/or heat-shrink(Insulation and labeling)
- Replacement breaker of correct type and amperage(Match panel model and circuit rating)
- Lockout/tagout kit(Lock out main to prevent energization)
- Safety glasses and gloves(Personal protective equipment)
- Multimeter (optional for advanced checks)(Voltage, continuity checks)
- Flashlight or headlamp(Illumination in panel area)
- Panel label maker or tape for labeling(Clear circuit labeling)

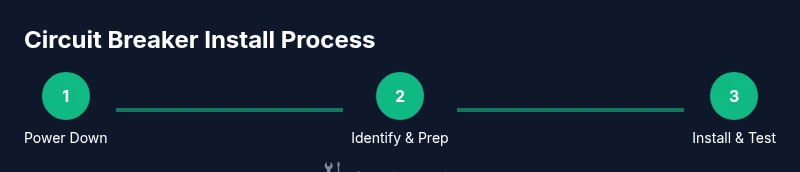

Steps
Estimated time: 45-90 minutes
- 1
Power down the main
Shut off the main disconnect to remove power from the entire panel. Use the voltage tester to confirm no live energy in the panel before proceeding.
Tip: Lockout the main disconnect to prevent accidental re-energization during work. - 2
Identify the target circuit
Locate the circuit you will service or replace. Confirm the amperage and location from the panel label and the circuit breaker that’s currently in place.
Tip: Label the circuit clearly to avoid confusion during reassembly. - 3
Remove the old breaker
Carefully disengage the existing breaker from the bus bar and disconnect the conductors. Note their terminal positions for accurate reattachment.
Tip: Do not force connections; if resistance is felt, recheck alignment. - 4
Inspect panel and conductors
Check for signs of wear, scorching, or damaged insulation. If anything looks compromised, pause and consult a pro.
Tip: Replace any damaged wiring before proceeding. - 5
Install the new breaker
Seat the new breaker firmly onto the bus and secure the conductors in the correct terminals. Confirm torque per manufacturer specs.
Tip: Ensure the breaker type matches the panel family (e.g., Siemens, Square D) and is rated for the circuit. - 6
Restore connections and panel cover
Reconnect neutrals/grounds if needed and replace the panel cover. Ensure all tools are removed from the panel area before powering up.
Tip: Use labeling to minimize confusion in future maintenance. - 7
Test the circuit
Shut off all loads, energize the main, and test the new breaker with a load tester or by turning on connected devices gradually.
Tip: Verify trip behavior matches the breaker rating during testing. - 8
Document and label
Record the replacement details, including breaker type, amperage, panel model, and date. Label the circuit in the panel directory.
Tip: Keep a maintenance log for future reference.
Got Questions?
Do I need a permit to install a circuit breaker?
Permits vary by jurisdiction. Many areas require a permit and inspections for electrical work, especially when adding or upgrading a breaker. Check with your local building department.
In most places, a permit is required for installing or upgrading a circuit breaker.
Can I replace a circuit breaker myself?
If you are confident and follow safety guidelines, you may replace a breaker with power off and proper tools. If unsure, hire a licensed electrician.
You can replace a breaker if you follow safety steps; otherwise, hire a pro.
What is the difference between AFCI and GFCI breakers?
AFCI protects against arc faults, reducing fire risk from arcing wires. GFCI protects against ground faults, reducing shock risk. Some circuits require both.
AFCIs guard against arcs; GFCIs guard against ground faults.
How do I determine the correct amperage for a new breaker?
Base the amperage on the circuit load, wire gauge, and device ratings. Do not exceed what the panel or conductors can safely handle.
Use wire size and device requirements to pick amperage.
What are signs that my panel needs attention?
Frequent trips, warmth, buzzing noises, or a burning smell indicate problems. Stop work and evaluate or call a pro.
If you notice frequent trips or warmth, stop and check.
When should I call a licensed electrician?
If wiring is damaged, the panel is old or shows signs of damage, or you’re unsure about compatibility, a pro should assess it.
Call a licensed electrician if you’re unsure or see damage.
Watch Video
Main Points
- Always de-energize and test before touching wiring
- Use the correct breaker type and amperage for the panel and circuit
- Label circuits and document changes for future safety
- When in doubt, consult a licensed electrician
