Install a 240V Outlet: A Step-by-Step Home Wiring Guide
Learn how to safely install a 240V outlet with a clear, step-by-step process. This homeowner-friendly guide covers planning, wiring basics, code considerations, and testing for reliable, long-term performance.
By the end of this guide you will have safely installed a 240V outlet for heavy appliances. You’ll plan around your main panel capacity, choose the right receptacle (NEMA type), and follow step-by-step wiring and testing procedures. This task requires a dedicated circuit, proper wire sizing, and working knowledge of electrical safety; when in doubt, consult a licensed electrician.
Understanding 240V circuits and outlets
A 240-volt circuit powers high-draw appliances such as air conditioners, large power tools, and certain kitchen appliances. In the United States, these circuits typically run on a two-pole breaker and use either a 3-wire or 4-wire receptacle depending on local code and the appliance’s needs. The outlet type (NEMA design) determines how many conductors are involved and how the ground and neutral are wired. Before you begin, confirm the load requirements and ensure your electrical panel has spare capacity. According to Install Manual, thoughtful planning reduces risk and helps avoid nuisance tripping or overheating. If you’re replacing a 120V outlet with a 240V outlet, you cannot reuse the same wiring or box without upgrading conductors and possibly the panel. Always verify box fill, clearance, and accessibility for future maintenance.
Safety and code prerequisites
Electrical work carries serious risk. Ensure you have the right protective gear and a clear plan before touching any wires. Always switch off power at the main disconnect and test both sides of the circuit with a voltage tester to confirm zero energy before you touch conductors. Local codes may require AFCI/GFCI protection, proper disconnecting means, and permits. Use a meter to verify voltage once power is restored. The Install Manual team emphasizes documenting all changes, so you or a future homeowner can understand the wiring layout. If you’re unsure about code compliance or panel compatibility, pause and consult a licensed electrician.
Planning the installation route and panel capacity
Plan your run from the panel to the desired outlet location with attention to length, protection, and future accessibility. Check the panel for spare spaces on the bus and ensure there is an available slot for a dedicated 240V breaker of appropriate amperage. Consider whether you’ll route the cable through studs, joists, or existing conduit, and whether you need to install a surface-mamp or in-wall box. Determine if the wall location has a readily available path that minimizes the need for additional drilling or chasing. Good planning saves time and reduces the likelihood of needing to redo portions of the install later.
Choosing the correct outlet and receptacle type
240V receptacles come in several configurations (for example, two hot wires plus ground, or four wires including neutral). The choice depends on the intended appliance and required grounding/neutral arrangements. Select a receptacle rated for the circuit amperage and compatible with the wall box and conduit you’ll use. If you’re wiring for a three-prong 240V appliance, you’ll typically use a non-grounding configuration with hot and neutral conductors as required by code; for four-wire setups, include a dedicated neutral. Always verify compatibility with your appliance and follow the manufacturer’s installation instructions.
Wiring methods and conductor sizing
Conductor sizing must match the circuit’s amperage rating and length. For most residential 240V installations, copper conductors in a 10 AWG range support up to 30A, while 8 AWG supports higher loads up to 40A. Use insulated, fire-rated cable and secure it with appropriate clamps and protective conduits to prevent damage. In most cases, keep the run as short and direct as possible to minimize voltage drop. Avoid sharp bends and ensure that all conductors are fully seated in the brake-down terminals of the receptacle and breaker.
Grounding, bonding, and neutral considerations
Proper grounding and bonding are essential for electrical safety and equipment protection. A 240V circuit often uses a dedicated grounding conductor that is bonded to the panel and to the receptacle’s grounding terminal. If a neutral is required by the receptacle or the appliance, run a four-wire setup (two hots, one neutral, one ground). Do not reuse an existing neutral for a 240V circuit that requires a four-wire configuration. Follow local code for bonding jumpers and confirm that all grounding paths are continuous and unbroken.
Mounting the outlet box and securing devices
Install a suitably rated electrical box at the chosen location, ensuring it has enough capacity for the wiring and the receptacle. Attach the box securely to studs or structural members, using the correct screws and supports. Mount the receptacle so that the faceplate sits flush with the wall. Tighten all screws evenly to avoid bending the mounting strap. Leave just enough slack in the conductors to allow for movement or future replacement while maintaining safe, secure terminations.
Running cable and making terminations
Feed the cable from the panel to the outlet box, securing it with clamps or conduits to protect it from damage. Strip insulation to expose conductors only as needed for connections, and twist or crimp the terminals on the receptacle as required by the device. Attach the conductors to the appropriate terminals: hot wires to the hot terminals, neutral to the neutral if required, and ground to the ground screw. Recheck all connections for snugness and correct orientation before replacing the panel cover.
Testing, inspection, and safety checks
With the circuit energized, test the receptacle for proper voltage with a multimeter and confirm there is no ground fault or leakage. Use a continuity tester to verify grounding paths and a polarity check to ensure correct line-to-neutral orientation where applicable. If your local codes require inspection, arrange for it after you complete the install, and keep a detailed log of the work performed. As the Install Manual team notes, documentation aids future maintenance and safety.
Long-term maintenance and future upgrades
Keep the area around the receptacle clean and free of moisture or debris. Periodically inspect the outlet and box for signs of wear, corrosion, or loose connections. If you plan to upgrade or expand to higher loads, consider upgrading the panel or running additional dedicated circuits to avoid overloading. Planning for future needs reduces the risk of cascading electrical issues and helps protect your home’s electrical system.
Tools & Materials
- 240V receptacle (NEMA type appropriate for load)(Select receptacle type based on circuit rating and appliance needs)
- Two-pole breaker of appropriate amperage(Match the outlet and wireSize with code requirements)
- Electrical cable/wire (Copper, AWG 8-10 as required)(Choose gauge for circuit amperage and length)
- Electrical box for receptacle(Box size must accommodate wires and device)
- Conduit or cable clamps(Protects wiring and meets code)
- Grounding conductor (bare copper or green)(Required for proper grounding path)
- Voltage tester / multimeter(Test power off/on and verify voltages)
- Wire strippers and cutters(Precise stripping to avoid nicked conductors)
- Screwdrivers (flat and Phillips)(Secure terminals and mounting screws)
- Electrical tape and wire nuts(For safe insulation and connections)
- PPE: safety glasses and gloves(Protect against shocks and sharp edges)
- Voltage/polarity tester (optional)(Extra verification tool if available)
- Labeling supplies(Document circuit and components for future reference)

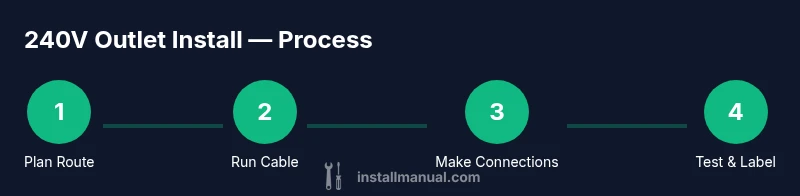

Steps
Estimated time: 2-4 hours
- 1
Power down and verify outage
Shut off the main breaker and confirm the circuit is de-energized with a voltage tester before touching any conductors.
Tip: Double-check that power is off at both the main and branch breakers. - 2
Identify circuit and plan run
Determine the target circuit’s amperage, locate a suitable path from the panel to the outlet location, and note any obstacles.
Tip: Choose a direct route with minimal bends to reduce impedance. - 3
Install or prepare panel space
Install the appropriate two-pole breaker in a free slot and verify it clearly seats and latches.
Tip: Ensure the breaker matches the panel’s bus rating and is compatible with AFCI/GFCI requirements. - 4
Run conduit or cable to outlet
Feed cable from the panel location to the planned outlet box, securing with clamps as needed.
Tip: Avoid sharp edges and protect the cable from physical damage in studs or joists. - 5
Prepare outlet box and conductors
Secure the box, strip insulation, and twist or crimp conductors to fit terminals on the receptacle.
Tip: Leave enough slack to tolerate movement without stressing terminations. - 6
Make terminations and ground
Connect hot wires to the hot terminals, neutral if required, and ground to the grounding screw; verify tightness.
Tip: Turn screws only as far as needed to prevent damaged conductors. - 7
Mount, seal, and cover
Mount the receptacle in the box, attach the faceplate, and confirm the box is level and flush.
Tip: Seal any openings if moisture risk exists near exterior surfaces. - 8
Test and verify
Restore power and test for correct voltage, polarity, and grounding with a multimeter.
Tip: Record readings and inspect for warmth after initial run. - 9
Label and document
Label the circuit in the panel and keep notes for future maintenance or upgrades.
Tip: Include the outlet location, receptacle type, and breaker size in your log.
Got Questions?
Do I need a permit to install a 240V outlet?
Permit requirements vary by location. Check your local building department; many jurisdictions require at least a permit and an inspection for new or modified 240V circuits.
Permit needs vary by location; check your local codes. An inspection may be required for a new 240V circuit.
Can a handy homeowner install a 240V outlet themselves?
A knowledgeable homeowner can install a 240V outlet if they follow code requirements, use the correct wire sizes, and take safety precautions. If you’re not confident, hire a licensed electrician.
You can DIY if you’re confident in electrical work and code compliance; otherwise, hire a professional.
What wire size is needed for common 240V installations?
Common practice uses 10 AWG copper for up to 30A circuits and 8 AWG for higher loads, with appropriate breakers and gauge relative to the appliance.
Most 240V setups use 10 AWG for 30A or 8 AWG for higher loads, with matching breakers.
What types of outlets exist for 240V installations?
240V outlets come in several configurations (two hot wires plus ground, four-wire with neutral). Choose based on load, appliance, and code requirements.
There are different 240V receptacle types; pick one suited to the appliance and code needs.
What if my home has aluminum wiring?
If aluminum conductors are present, additional precautions and connectors rated for aluminum are required. A licensed electrician should assess compatibility and safety.
Aluminum wiring requires special connectors and procedures; consult a pro.
Can I share a 240V circuit with other outlets?
For safety and code compliance, a dedicated 240V circuit is often required for high-load appliances. Do not share this circuit with other outlets.
A dedicated circuit is usually required; do not share a 240V circuit.
Watch Video
Main Points
- Plan circuit capacity before starting.
- Use correct wire gauge and breaker size.
- Verify voltage and grounding during testing.
- Label the new circuit for future reference.
