Can You Install a GPU With PC On? A Safe Step-by-Step Guide
Can you install a GPU with the PC on? Learn why safe shutdown is essential, risks of hot-plugging, and a clear, step-by-step process to upgrade your GPU confidently and safely.
No. For a typical consumer PC, you should power down, unplug from the wall, and discharge capacitors before installing or upgrading a GPU. Hot-plugging a graphics card is not supported by most motherboards and can damage components. This guide from Install Manual explains the risks and the safe, step-by-step process to complete a GPU upgrade.
Can you install GPU with PC on? Core question and context
The direct answer to can you install gpu while pc is on is that it is not recommended for consumer desktops. In most home setups, PCIe slots are not designed for hot-plug upgrades, and attempting to install a graphics card while the system is powered can cause electrical arcing, motherboard damage, or power-supply instability. The Install Manual team emphasizes safety and reliability: powering down first protects your hardware, data, and warranty. When you see guides online claiming hot-swapping is safe for desktops, they usually refer to specialized server motherboards with PCIe hot-plug features—not typical gaming or workstation rigs. If you’re faced with a tight deadline, the prudent choice remains a full shutdown, then proceed with the upgrade after you’ve grounded yourself and prepared the workspace.
Why hot-swapping a GPU isn't common in consumer PCs
For most users, PCIe hot-plug support is minimal or non-existent in consumer-grade motherboards. Even if a motherboard detects a new PCIe device while powered, the risk of shorting the slot or misrouting power is high. Static discharge, mis-seated connectors, or a sudden surge can damage the GPU, PCIe slots, or the motherboard’s VRMs. In short, can you install gpu while pc is on? The answer is generally no for home builds, and yes to a safe, fully powered-down upgrade.
Safety first: prerequisites and grounding
Before handling any internal components, ensure your workspace is free of static electricity. Use an anti-static wrist strap and work on a grounded, non-conductive surface. Disconnect power from the wall, unplug all cables, and wait at least 60 seconds after unplugging to allow stored energy to dissipate. Install Manual’s safety guidance stresses grounding as a foundational step to prevent ESD damage to the GPU, motherboard, and other parts. Keep liquids away and avoid touching gold contacts or the circuit traces on the card.
The risk landscape: what can go wrong during a GPU upgrade
If you attempt to install your GPU while the PC is on, you risk short circuits, component damage, and even electric shock. The PCIe slot can be damaged by misalignment or bending, and power connectors can spark if live contacts are touched. A failed upgrade may also corrupt BIOS settings or Windows boot processes, complicating recovery. Warranty terms may not cover damage caused by hot-plug or user error, so following the safe, powered-down procedure protects both your hardware and your data. This is where Install Manual’s guidance shines: prioritize a controlled shutdown to avoid unnecessary risk.

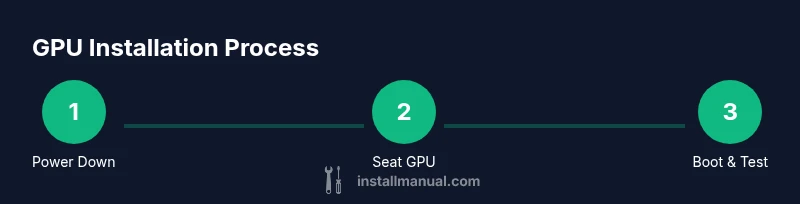

Safe upgrade path: power down, then upgrade
The recommended approach is straightforward: power down completely, unplug the power cord, and disconnect all peripherals. Ground yourself, open the case, and identify the PCIe slot. If upgrading, remove the old GPU by unscrewing the PCIe bracket and gently pulling the card out. Insert the new GPU, secure it, attach any required PCIe power cables, and then reseat the bracket before powering the system back on. This method minimizes risk and ensures a clean boot with up-to-date drivers.
Ready to install: overview of steps and checks
With the system powered down, you’ll verify compatibility (slot type and PSU connectors), prepare the case for airflow, and map cable routing so the new GPU is well-ventilated. After installation, you’ll boot into the OS to install or update drivers and test with benchmarks to confirm stability. By following the safe sequence described by Install Manual, you’ll reduce post-install surprises and extend the life of your GPU.
Tools & Materials
- Anti-static wrist strap(Ground yourself before touching any components to prevent ESD damage.)
- ESD-safe work surface or mat(Provides a controlled, non-conductive area for handling parts.)
- Phillips head screwdriver (#2)(For removing case screws and PCIe bracket screw.)
- PCIe power cables (6+2 pin or 8-pin)(Ensure your PSU can supply the GPU’s power needs.)
- Fresh thermal paste (optional for certain GPUs with heatsink removal)(Only if you detach the heatsink or thermal pads; most GPUs do not require you to re-paste.)
Steps
Estimated time: 20-40 minutes
- 1
Power down and unplug
Shut down the PC through the operating system, then unplug the power cord from the wall and from the PSU. Disconnect all peripherals and let the system sit for at least 60 seconds to discharge capacitors. This ensures no live voltage remains in the motherboard or GPU connectors.
Tip: If you recently used the PC for heavy tasks, wait longer to be sure capacitors have discharged. - 2
Ground yourself and open the case
Wear the anti-static strap and connect the cord to a grounded outlet. Remove the side panel to access the motherboard and PCIe slots. Keep screws in a labeled container to avoid losing them.
Tip: Work on a non-scratch surface; avoid placing parts on carpeted floors. - 3
Inspect the PCIe slot and GPU area
Look for dust, bent pins, or damaged slot edges. If needed, use compressed air to clean the slot gently. Confirm the slot type (x16 is common for GPUs) and ensure there’s enough clearance for the card length.
Tip: Do not touch the gold contacts on the GPU; handle by the card edges. - 4
Remove the old GPU (if upgrading)
If replacing, unscrew the PCIe bracket screw and gently pull the card straight out of the slot. Place the old GPU on an anti-static surface. Keep the slot cover in case you want to reseat it later.
Tip: Support the card with one hand as you disconnect power to prevent a drop. - 5
Insert the new GPU
Align the PCIe connector with the slot and push the card evenly until it seats fully. Secure the bracket with a screw, ensuring the card is firmly in place without tilting.
Tip: If you feel resistance, remove and re-align rather than forcing the card in. - 6
Connect PCIe power cables
Attach the required power connectors from the power supply. Make sure each connector clicks into place and that you don’t leave any loose cables that could obstruct fans or airflow.
Tip: Double-check connector compatibility (6+2 or 8-pin) for your specific GPU model. - 7
Route cables and close the case
Tidy cables to promote airflow and reduce dust collection around the GPU. Replace the side panel and reattach any peripherals that were removed. Confirm all connections are secure before powering on.
Tip: Use cable ties sparingly; avoid over-tightening near the GPU fans. - 8
Power on and install drivers
Reconnect the power and boot the system. The OS should recognize a new GPU; install the latest drivers from the manufacturer’s site. Reboot if prompted to ensure changes take effect.
Tip: If Windows doesn’t detect the GPU, check BIOS/UEFI settings and PCIe slot configuration. - 9
Test performance and monitor temperatures
Run a few benchmarks and monitor the GPU temperatures under load. If temperatures rise unexpectedly or fans don’t spin, recheck power connections and seating. Keep an eye on driver updates and software tools for stability.
Tip: Mildly stress-test at first and gradually increase load to verify stability.
Got Questions?
Can you physically install a GPU with the computer on?
In most consumer desktops, hot-plugging a GPU is not recommended. Power down, unplug, and ground yourself before any hardware handling to avoid damage or injury.
Usually not. Power down and ground yourself before handling the GPU.
What is the safest way to install a GPU if the PC is off?
Shut down, unplug, discharge capacitors, open the case, seat the GPU in the PCIe slot, connect power, reseat cables, and boot to install drivers.
Power down, unplug, install, and boot to install drivers.
Do I need to uninstall old drivers before installing a new GPU?
You can install the new GPU and let the OS manage drivers, but updating or clean-installing the latest GPU drivers after installation is recommended for best performance.
Update or clean-install drivers after installation.
What safety steps reduce the risk of ESD during this task?
Use an anti-static strap, work on a grounded mat, and avoid touching gold contacts. Keep liquids away and ground yourself before touching components.
Ground yourself with an anti-static strap and mat.
Is hot-plugging supported by consumer motherboards?
Not typically. Consumer motherboards rarely support PCIe hot-plug for GPUs; the recommended practice is a full shutdown and safe upgrade.
Hot-plugging isn't common on consumer boards.
What if the PC won’t POST after installing a GPU?
Power down, recheck seating of the GPU, reseat the power cables, and ensure BIOS/UEFI recognizes the PCIe device. If necessary, revert to the previous GPU to troubleshoot.
Re-seat the GPU and check BIOS if the PC won’t POST.
Watch Video
Main Points
- Power down before hardware upgrades
- Ground yourself and handle components carefully
- Use the correct PCIe connectors; avoid mismatches
- Test thoroughly after installation
