You will learn to install a garage door spring safely, focusing on torsion systems. This task requires a spring kit matched to your door, winding bars, protective gear, and a secure workspace. You’ll remove the old spring, install a new one, set the proper tension, and test the door balance, following a proven, step-by-step approach from Install Manual.
Understanding Garage Door Springs and Safety
According to Install Manual, the garage door’s balance and safe operation rely on properly selected and installed springs. Most residential doors use torsion springs mounted above the opening, or extension springs along the sides. Torsion springs store energy by twisting, while extension springs stretch to add tension. Installing or replacing these components is not a casual DIY task: a misadjusted spring can snap, causing severe injury or damage. Before you begin, ensure you know your door's weight class and spring type, and wear protective eyewear, gloves, and sturdy footwear. Keep children and pets away, and work with a partner who can assist if something goes wrong. For this guide, we focus on torsion-spring systems, which require careful winding and precise tension to balance the door properly.
This topic ties into broader home-improvement safety and mechanical systems, so readers should approach with respect for energy storage in springs and the potential for sudden release.
Tools, Materials, and Workspace Setup
Before you touch any hardware, assemble the required tools and establish a clean, well-lit workspace. A dedicated, dry area under the garage door with the opener unplugged is ideal. Tools include a torsion spring kit specific to your door weight, winding bars, a winding cone brace, locking pliers, a sturdy ladder, and a set of metric and imperial wrenches. Safety gear includes ANSI-rated safety goggles, cut-resistant gloves, and a face shield if available. Optional but recommended: a torque wrench, a level, and a helper strap or rope to stabilize the door during adjustments. Verify you have the correct spring length and winding direction as specified by the manufacturer. Do not improvise; use parts that match your door's model.
Having the right components reduces mistakes and increases the likelihood of a safe installation.
Step-By-Step: Removing the Old Spring and Installing a New One
This guide provides a clear, sequential approach. The steps themselves are listed in the dedicated Step-By-Step block below, but this section explains the intent and safety mindset: you are dealing with high-tension components that store significant energy. Expect to pause for checks, ensure your helper is ready, and confirm each connection is secure before proceeding. The process can vary by door model, so always confirm with the manufacturer’s instructions that accompany your spring kit and hardware.
Tensioning the Spring: The Critical Moment
Tension is what makes the door weigh-balanced and easy to lift manually or with the opener. The winding process for a torsion spring must be performed with the correct number of turns, using winding bars to avoid using fingers as torque devices. Over-tensioning or under-tensioning causes door imbalance, causing premature wear or safety hazards. The goal is a door that stays roughly level when closed and stays where you stop it if you let go. This step requires patience, precise alignment of springs, and a careful, stepwise approach to tightening the spring to the manufacturer’s specification. Keep your hands away from the spring path and maintain a stable stance at all times.
Post-Installation Checks and Testing
After tensioning, re-check all mounting brackets, safety cables, and spring anchors. Reconnect the opener only after you’ve confirmed the door can move smoothly by hand. Test by lowering the door to the floor, raising it a few inches, and letting go to ensure it settles evenly without binding or twisting. If you notice any wobble, misalignment, or unusual noises, stop and reassess before continuing. A balanced, properly tensioned spring should provide smooth operation with minimal effort.
Maintenance, Longevity, and Safety Notes
To extend spring life and maintain safe operation, perform periodic visual inspections for rust, gaps, or cracks in the torsion shaft, springs, and cables. Lubricate moving parts with a light garage-safe lubricant, but avoid overspraying onto springs themselves. Keep the track clean and free of debris, and ensure hardware remains tight but not over-torqued. Never attempt to bypass safety devices or defeat windings. If you notice stiffness, binding, or noises that persist, revisit your setup or consult a professional.
When to Hire a Pro
If your door is heavy, the spring is damaged, or you lack the proper tools, it is wise to hire a pro. Torsion springs are highly dangerous, and incorrect installation can cause severe injury or property damage. A certified technician can verify door weight, spring size, tension, and balance using appropriate equipment. For most homeowners, a professional installation provides peace of mind and ensures the door remains safe and functional.
Tools & Materials
- Torsion spring kit matched to door weight(Ensure the kit is compatible with your door and includes all mounting hardware)
- Winding bars (set of 2)(Use the correct gauge; never use a screwdriver as a winding bar)
- Winding cone brace / anchor brace(Prevents spring from rotating during tensioning)
- Locking pliers / vise grip(Secure components during removal/installation)
- Sturdy ladder or work platform(Stability is critical for safe handling)
- ANSI-rated safety goggles(Protect eyes from snapping parts or flying debris)
- Cut-resistant gloves(Protect hands from sharp edges and moving parts)
- Torque wrench (optional)(Helpful for precise torque on hardware)
- Drip-free lubrication spray or light oil(Lubricate moving parts carefully)
- Helper strap or rope(Stability assistance when handling heavy components)

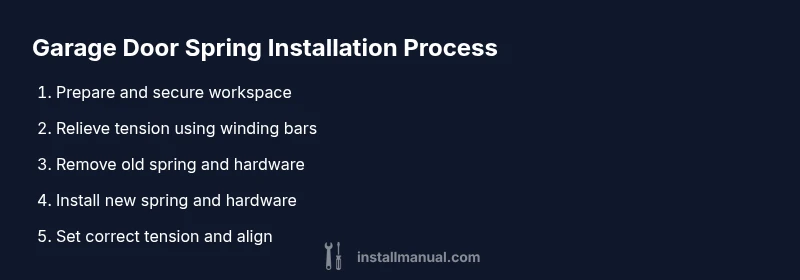

Steps
Estimated time: 60-90 minutes
- 1
Secure the Work Area
Before starting, unplug the garage door opener and gather all tools. Close the door fully and secure it in place with clamps if available. Have a second person nearby to assist with handling springs and equipment.
Tip: Lock the door in the closed position and keep hands clear of the spring path. - 2
Relieve Spring Tension
Using winding bars, carefully relieve tension from the existing spring by loosening set screws in small increments. Do not twist the bars loose; back them out gradually while maintaining control of the spring’s torque.
Tip: Maintain a stable stance; never stand directly in line with the spring’s path. - 3
Remove the Old Spring and Hardware
Detach the spring from the torsion tube and remove any mounting brackets or cables as required by your model. Keep track of all hardware pieces so you can reuse or replace them properly with the new spring.
Tip: Label or photograph the configuration before disassembly to aid reassembly. - 4
Install the New Spring and Hardware
Position the new spring on the torsion tube with the correct winding direction. Attach the spring to the cable drums and secure all mounting hardware per the manufacturer’s guidance. Ensure the spring sits snugly in its mounting hardware.
Tip: Check that the spring’s color-coded endpoints align with the model’s spec. - 5
Set Tension and Align
Begin winding the spring in small increments with winding bars, following the manufacturer’s recommended turns. After each set, test door balance by manually lifting the door a few inches and ensuring it stays put. Correct any misalignment by adjusting the drums or brackets as needed.
Tip: Avoid over-winding; tension should bring the door to balance without raising the door excessively. - 6
Test, Re-tension, and Final Safety Check
Reconnect the opener and test repeat cycles: open, close, and stop at several positions. Listen for unusual noises and verify safety sensors function correctly. If anything feels off, re-check tension, alignment, and hardware tightness.
Tip: Perform multiple tests before leaving the job; a misbalance can be dangerous once the door is in use.
Got Questions?
Is it safe to install a garage door spring by myself?
Installing a garage door spring can be done by a capable DIYer with the right tools, but it’s a high-risk task. Missteps can cause serious injury or property damage. Always follow manufacturer instructions and consider a professional for high-tension springs.
It can be DIY-friendly with the right tools, but it’s risky. If you’re unsure, hire a pro.
What’s the difference between torsion and extension springs?
Torsion springs sit above the door on a torsion bar and store energy by twisting. Extension springs run along the sides and stretch to provide tension. Each type requires specific hardware and procedures.
Torsion springs twist to store energy; extension springs stretch along the sides.
Do I need special tools to wind the spring?
Yes. Winding bars designed for torsion springs are essential. Do not substitute with tools not rated for winding, as this can lead to serious injuries.
Winding bars are essential; never use improvised tools.
How long does a typical installation take?
A typical torsion-spring installation takes about one to two hours for a skilled DIYer with a helper. Time varies with door weight and existing hardware.
Usually about 1 to 2 hours, depending on the door and setup.
What safety gear should I wear?
Wear ANSI-rated safety goggles, cut-resistant gloves, and a sturdy layer of clothing. A face shield can add protection when gripping or adjusting components.
Goggles, cut-resistant gloves, and sturdy clothing are essential.
What are signs the spring installation is unsafe after completion?
Look for binding, uneven door movement, abnormal noises, or the door drifting when released. If any occur, stop and re-evaluate the tension and alignment.
Watch for binding, uneven movement, or odd noises and stop if noticed.
Watch Video
Main Points
- Follow manufacturer specs for spring type and tension.
- Use proper winding bars and safety gear at all times.
- Test door balance thoroughly before completing the job.
