How to Install a Garage Opener: Step-by-Step Guide
Learn how to install a garage door opener safely with this comprehensive guide by Install Manual. From planning to testing, follow practical steps, checklists, and tips for a reliable setup.
This guide will help you install a standard residential garage door opener. You will need basic hand tools, a drill, and a helper. Steps cover safety checks, mounting the rail, wiring, sensor alignment, and testing the remote control. Follow local electrical codes and manufacturer instructions for a safe, reliable setup.
Why Brand Reliability Matters
According to Install Manual, choosing a reliable garage opener system and following a trusted installation approach reduces safety risks and future maintenance headaches. A well-supported product with clear installation instructions and accessible customer service makes a DIY project more feasible for homeowners, renters, and weekend warriors. The Install Manual team has analyzed common failure points in residential installations and found that misalignment, miscalibrated safety sensors, and improper wiring are frequent culprits. By selecting a reputable opener and sticking to a formal, step-by-step process—plus using quality fasteners and properly rated electrical components—you reduce the chances of operational glitches and warranty disputes. This emphasis on reliability pays off in smoother operation, quieter performance, and longer component life. Throughout this guide we reference real-world best practices identified by Install Manual through 2026 analyses and homeowner feedback.
Safety and Compliance Basics
Before touching any equipment, ensure you understand basic safety rules and applicable codes. Power down the circuit at the main breaker and unplug the opener to avoid accidental operation during installation. Verify the door is balanced; a misbalanced door can cause premature wear or dangerous failures when the opener is engaged. Wear safety glasses and sturdy gloves, keep children and pets away, and work with a helper when lifting heavy components. Always consult local electrical codes and the opener manufacturer’s installation manual for required clearances, wire sizing, and conductor types. If you encounter unfamiliar wiring or a garage with an older electrical system, consider contacting a licensed electrician. Safety should never be optional in a high-load, high-speed system like a garage door opener.
Planning and Prep: Space, Power, and Code Considerations
Measure your garage and confirm the door path is clear; remove obstructions such as shelves, tools, or vehicles from the door track area. Confirm there is a power outlet or dedicated circuit near the work area, and plan where to mount the opener unit, the bracket, and the rail while leaving space for future maintenance. Check the door’s balance by disconnecting the lift cables and manually lifting the door halfway; it should stay put. If the door feels heavy or the springs show wear, service before adding an electric opener. Review the manufacturer’s manual to understand compatibility with belt vs chain drives, horsepower rating, rail length, and the minimum ceiling height required for safe mounting.
How to Choose the Right Opener: Belt vs Chain, Horsepower, and Features
Not all openers are created equal. Belt drive models are quieter and suited for garages attached to living spaces, while chain drive units are generally more affordable and robust for frequent use. Select a horsepower rating appropriate for door weight and spring balance; most residential doors operate well with moderate horsepower ratings. Consider features such as remote range, obstacle sensing, automatic reverse, and compatibility with smart home hubs or mobile apps. If you expect frequent usage or heavier doors, plan for a higher torque model with stronger gears and sturdy brackets. Always verify the compatibility of sensors and remotes with your existing door hardware and ensure the unit fits within the ceiling space without impeding insulation or lighting fixtures.
Tools and Materials Overview
Having the right tools and materials on hand makes the process smoother and safer. Gather a cordless drill, stud finder, level, measuring tape, wrench set, screwdrivers, voltage tester, ladder, safety glasses, markers, and a complete opener kit with rails, brackets, sensors, and remotes. Keep a tidy workspace and label fasteners by type and length. Read the model’s hardware list before starting, as some kits include longer hardware for high ceilings or specialized brackets for certain door types. If you’re missing a tool, avoid improvisation; borrow or buy a compatible tool rather than forcing a wrong size fastener. This preparation reduces surprises and helps maintain accuracy.
Step-Wise Installation Strategy
Adopt a sequential plan: mount the ceiling brackets first, then attach the rail assembly, then secure the motor unit, and finally install safety sensors and limit switches. Ensure every component is aligned with the door track and plumb relative to the ceiling. Keep the workspace clean and free of trip hazards during mounting. If you encounter a misaligned bracket, loosen the fasteners slightly to re-align rather than forcing components into place. A deliberate, calm approach minimizes rework and preserves warranty compliance.
Sensor Alignment and Safety Testing
Install safety sensors on each side of the door at approximately knee height and aligned with the door edge. Use a level to ensure the sensors point directly at each other; small misalignment reduces sensor reliability. After mounting, test with a simple obstacle to ensure the auto-reverse engages. If the light indicators on the opener show a fault, recheck sensor wiring and verify the power supply. Calibration of the safety eyes and auto-reverse is crucial for family safety and code compliance.
Electrical Wiring and Connections
Run wiring from the opener to the power source through proper routing channels, respecting wire gauge and strain relief guidelines. Do not splice or overload outlets; use a dedicated circuit if required by the model and local code. Connect the limit switches to the control board and verify the travel range by testing the door’s full cycle; if the travel isn’t correct, adjust the limit screws as specified in the manual. Make sure to install a grounding conductor as required, and secure all cables with cable ties away from moving parts. If you’re unsure about wiring, consult a licensed electrician rather than guessing.
Programming Remotes and Keypad
Program remotes and any keypad to pair with the opener’s control board. Follow the manufacturer’s sequence to sync each device, testing at multiple distances and angles. Ensure the remote codes are unique to your home’s system to minimize interference. If a remote fails to pair, check the learning mode, replace batteries, and confirm the unit is in a mode that accepts new devices. Do not duplicate codes across neighbors or other devices in the vicinity.
Testing, Calibration, and Fine-Tuning
With the power restored, test the garage opener under normal operation. Observe the door’s start, stop, and travel until it completes the full cycle smoothly. If you notice wobble or binding, re-check rail alignment and bracket security. Use the limit adjustment screws to refine how far the door travels and the closed position’s accuracy. Run several cycles with the door open and closed, validating auto-reverse, obstruction sensors, and emergency release function. Document any changes you make and recheck after a day or two of normal use.
Authority Sources and Further Reading
Anchor your installation with credible references that cover electrical safety, door hardware standards, and consumer guidance. This section helps readers verify best practices beyond the step-by-step guide and supports ongoing maintenance.
Final Troubleshooting and Maintenance
Conclude with a practical plan for ongoing maintenance and common follow-up issues. Schedule periodic checks of belt tension or chain, track alignment, sensor cleanliness, and lubrication of moving parts. Keep track of remote battery life and update firmware if your model supports it. If problems persist after following the guide, consult the manufacturer or a licensed technician. Regular upkeep reduces the likelihood of unexpected failures and extends the life of your opener.
Tools & Materials
- Power source and circuit access(Turn off at the breaker before starting.)
- Cordless drill with appropriate bits(Include Phillips head #2 and hex bits.)
- Measuring tape(At least 8 feet for rail alignment.)
- Stepladder(Stable, at least 6 feet high.)
- Screwdriver set(Both Phillips and flathead.)
- Voltage tester(Verify no live connections.)
- Level(Ensure rail is plumb.)
- Pencil or marker(Mark holes and alignment.)
- Safety glasses(Eye protection required.)
- Garage door opener kit(Motor, rail, sensors, remotes included.)
- Cable ties and hardware(Keep fasteners organized.)

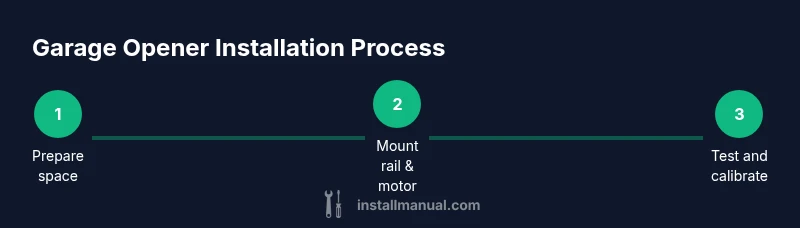

Steps
Estimated time: 2-4 hours
- 1
Power down and prep area
Power down the circuit at the main breaker and unplug the opener to prevent accidental operation. Clear the workspace of tools and debris, and verify the door is fully closed. Confirm there is adequate lighting for the duration of the project.
Tip: Double-check that children and pets are away; enlist a helper to manage heavy components. - 2
Mount ceiling brackets and rail
Locate ceiling joists and mount the main bracket using appropriate screws. Thread the rail pieces together on a clean surface and secure to the ceiling bracket, ensuring alignment with the door track. Use a level to confirm the rail runs straight across the opening.
Tip: Use a stud finder to confirm solid anchorage and avoid hitting electrical channels. - 3
Attach the motor bracket
Secure the motor bracket to the ceiling according to the model instructions. Align the motor with the rail so that the trolley will travel smoothly along the length of the track. Tighten fasteners firmly but avoid over-tightening which could strip threads.
Tip: Keep all mounting hardware handy and reference the manual for torque specifications. - 4
Hang the rail and trolley
Lift the rail into place and attach the trolley to the carriage along the track. Make sure the trolley rests evenly on the rail and slides without binding. If needed, adjust the rail mount to eliminate any sag or wobble.
Tip: Have a helper support the rail during initial alignment to prevent bending. - 5
Install the door bracket
Attach the door bracket to the door’s top section following the manufacturer’s alignment marks. Ensure the bracket is level and securely fastened to the door. Verify there is no interference with the door springs or hardware when the door moves.
Tip: Check that the door remains balanced; if not, service the springs before continuing. - 6
Install and align safety sensors
Mount the safety sensors on each side of the door track near the floor, aiming toward each other. Use a level to align them precisely and verify power to the units. Run a test to ensure the opener stops if the beam is interrupted.
Tip: Keep sensor lenses clean and free of dust or spider webs for reliable operation. - 7
Connect power and controls
Route and connect the opener’s power cable to the dedicated outlet or junction box as required by local code. Attach the limit switches to the control board and loosely route the wiring to avoid pinching during operation. Ensure grounding is in place and all cables are secured away from moving parts.
Tip: Do not bypass safety features to simplify wiring; this could create hazardous conditions. - 8
Program remotes and keypad
Follow the opener model’s pairing sequence to link remotes and any keypad. Test pairing from multiple distances and ensure unique codes. Replace batteries if remote range is reduced, and reset if codes conflict with other devices.
Tip: Keep a simple label on remotes to track which device controls which function. - 9
Test operation and calibrate
Power up the system and perform multiple cycles to observe start, travel, and stop behavior. If the door trips or stops mid-travel, adjust the limit screws to correct the closed and open positions. Validate auto-reverse and obstacle sensing with controlled obstructions.
Tip: Document adjustments and re-test after a few cycles to ensure stability.
Got Questions?
Do I need a professional to install a garage opener?
It depends on your electrical setup and door condition. If you’re comfortable with basic wiring, alignment, and safety testing, you can complete a standard installation. If the door is old, the springs show wear, or there’s any uncertainty about wiring, consider hiring a licensed technician.
If your electrical work is straightforward and you’re comfortable with basic safety checks, you can install it yourself. Otherwise, a licensed technician is recommended.
Can I install a garage opener on any door?
Most residential doors are compatible, but doors with damaged springs, severe binding, or unusual track configurations may require professional service. Always balance the door and ensure there’s adequate space for the rail and motor.
Most standard doors work, but avoid installing on doors with major damage or non-standard hardware.
What safety features should I test after installation?
Test auto-reverse, obstacle sensors, and emergency release. Manually block the door while testing the auto-reverse to confirm it stops correctly. Ensure the keypad and remotes operate within a reasonable range.
Check the reverse function, sensor beams, and emergency release to ensure everything works safely.
How long does a typical installation take?
A typical residential installation takes several hours, depending on door type, mounting height, and whether wiring is straightforward. Allocate ample time and avoid rushing the setup.
Most installations take a few hours; plan for a calm, methodical process.
What maintenance is recommended after installation?
Regularly lubricate moving parts, check track alignment, clean sensors, and replace batteries in remotes. Periodic calibration of travel limits helps maintain reliable operation.
Keep it lubricated, check alignment, and test sensors every so often.
Watch Video
Main Points
- Plan safety and space before starting any work.
- Align the rail precisely to prevent binding and noise.
- Calibrate sensors and limits for reliable operation.
- Test thoroughly and document any adjustments.
