How to Install Springs on a Garage Door
Learn how to install garage door springs safely with a professional-style, step-by-step guide from Install Manual. Covers torsion and extension springs, required tools, safety precautions, and maintenance tips.
You will replace or install garage door springs by following a controlled, step-by-step procedure and using the correct spring type for your door. This guide covers torsion vs extension springs, required safety gear, and essential tools. Note: springs are under high tension; if you're unsure, hire a professional.
Understanding spring systems
Understanding how to install springs on a garage door starts with knowing there are two common types: torsion springs and extension springs. Torsion springs sit above the door on a torsion bar and provide balanced tension via winding, while extension springs run along the tracks and store energy when the door lowers. Each system has different mounting hardware, tensioning methods, and safety considerations. The Install Manual team emphasizes choosing the correct spring for your door’s width, height, and weight to ensure smooth operation and reduce wear on cables and tracks. A well-matched spring set also minimizes door bounce and prolongs service life. For homeowners, recognizing the difference between these systems helps you plan the right approach and know when to consult a professional for inspection or replacement.
Safety foundations
Garage door springs are under extreme tension and can cause severe injuries if mishandled. Before you touch any components, unplug or disable the door’s automatic opener and secure the door in a fully closed position. Wear eye protection, gloves, and sturdy footwear. Keep bystanders away, and never stand in the door’s path or under a wind-up spring while adjusting or removing parts. The safety-first mindset reduces risk and aligns with industry best practices cited by Install Manual and other safety authorities.
Pre-install assessment and planning
Begin by confirming your door type, measuring door dimensions, and estimating the spring system’s compatibility. Check the label on the current springs or refer to the manufacturer’s data plate to determine spring wind count, wire thickness, and bracket type. If you’re unsure about weight or spring configuration, consult the door manufacturer or a professional technician. Planning also includes assembling the right tools, ordering replacement springs that match the original specifications, and arranging a second person to assist during mounting and tensioning.
Tools and materials you will need
Before you start, gather all necessary tools and replacement springs. Essential items include winding bars sized for your springs, a solid ladder, mechanic’s gloves, safety glasses, a sturdy adjustable wrench, locking pliers, a drill/driver with the appropriate bits, and a level to check alignment. You’ll also need the new springs, mounting brackets or drums as specified by the door manufacturer, lubricant for tracks and hinges, and a means to label or photograph components for reference. Having everything ready helps prevent mid-procedure delays and reduces the temptation to improvise with unsafe substitutes.
Removing old springs (if replacing)
If you are replacing springs, start by isolating the old springs from any tensioned components. Carefully loosen set screws or fasteners holding the springs in place, and avoid sudden releases. Have your partner hold the door or provide a counterbalance to keep it from dropping. Move slowly, and avoid touching the winding area with bare hands. Documenting the existing setup with photos or notes provides a reference for reassembly and helps ensure the new springs install correctly.
Installing new springs (torsion vs extension)
Install the new springs on the corresponding mounting points, brackets, or drums according to the door’s design. Align springs with the center axis and ensure brackets and anchor points are secure. Do not rush the mounting; confirm that all fasteners are snug and that there is no play in the assembly. For torsion systems, you’ll install the springs on the torsion bar or anchor plates and ready them for tensioning. For extension systems, attach springs along the tracks with proper safety cables or retaining components as specified by the manufacturer.
Tensioning and alignment basics
Tensioning is a critical step that requires precise handling. Use the correct winding bars and follow the manufacturer’s torque or wind count guidelines to set the initial tension. Maintain a stable stance and avoid twisting the bar beyond its designed range. After tensioning, re-seat all components, verify that cables are aligned with the drums, and ensure the door sits evenly on the tracks. Small misalignments can cause rubbing, uneven balance, and premature wear.
Post-install checks and lubrication
Cycle the door several times to test balance and travel. Listen for unusual noises, verify the door stops at the correct height, and ensure there is no binding on the tracks. Lubricate rollers, hinges, and tracks as needed to reduce friction and extend component life. If any abnormal behavior or resistance appears, stop immediately and recheck the assembly. These checks help confirm a safe, reliable setup and are recommended by Install Manual for long-term reliability.
Maintenance and long-term care
Regular maintenance extends spring life and keeps the door operating smoothly. Periodically inspect mounting points, brackets, and springs for signs of wear, rust, or fraying cables. Keep tracks clean, lubricate bearings, and replace worn weather seals to maintain proper balance. If you notice persistent imbalance, excessive noise, or reduced door velocity, consult a professional for a thorough evaluation. Consistent upkeep reduces the risk of sudden failure and improves overall safety.
Tools & Materials
- Winding bars (appropriate size for springs)(Two bars recommended; never use regular bars as substitutes.)
- Ladder or stable platform(For safe reach to mounting hardware.)
- Safety glasses(Protect eyes from sudden releases.)
- Mechanic’s gloves(Grip and skin protection.)
- Adjustable wrench(For fasteners and brackets.)
- Locking pliers (Vise-Grips)(Hold components securely during steps.)
- Drill/driver with bits(Remove/install screws and brackets as needed.)
- Lubricant (silicone or white lithium)(Lubricate tracks and hinges.)
- Replacement springs (torsion or extension)(Match door weight and dimensions.)
- Cable cutters or pliers(Trim or adjust cables if required.)
- Labeling materials (masking tape, marker)(Label components for reassembly.)
- Protective clothing(Long sleeves; avoid loose clothing.)

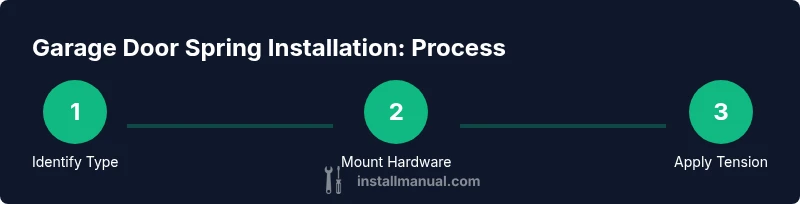

Steps
Estimated time: 120-180 minutes
- 1
Secure the door
Ensure the door is fully closed and immobilized. Engage the door’s locking mechanism or place clamps on tracks to prevent movement. This step prevents the door from shifting while you work and reduces pinch hazards.
Tip: Have a second person hold the door lightly to monitor for any movement during setup. - 2
Identify spring type and compatibility
Look up the door’s model data or inspect the current springs for type, wind count, and dimensions. Confirm whether you have torsion or extension springs and note the mounting hardware. Correct identification ensures you install the proper replacement parts.
Tip: If you cannot identify the spring type, stop and consult the manufacturer or a professional. - 3
Relieve tension on existing springs
If removing springs, carefully release tension using winding bars on torsion springs or by following the extension-spring protocol. Do not rely on improvised tools. Work slowly and keep hands clear of the winding region.
Tip: Always keep one hand on a winding bar at a time and never stand in line with the spring axis. - 4
Document and label components
Take photos or make notes of how cables, drums, and brackets are arranged. Label parts to ensure you can replicate the correct configuration with the new springs. This reduces the risk of misassembly and improves safety during reinstallation.
Tip: Label each end of cables and mark drum positions before disassembly. - 5
Mount new springs and hardware
Install the new springs on their mounting points, brackets, or drums following the manufacturer’s instructions. Ensure brackets are tightened and parts sit flush without forcing misalignment. Proper mounting is critical for balance and safety.
Tip: Do not overtighten fasteners; tighten to manufacturer specs if available. - 6
Begin tensioning
Begin applying tension according to the spring type and door weight using the winding bars. Make gradual adjustments, checking alignment as you go. Stop immediately if anything binds or shifts.
Tip: Only small, incremental turns are safe; avoid sudden, high-torque twists. - 7
Attach cables and check drum alignment
Reconnect cables to drums and verify they track evenly. Ensure there is no side-to-side drift or rubbing against tracks. Proper cable seating prevents future imbalance and wear.
Tip: Run the door through several cycles to verify seating before finalizing. - 8
Test door balance and adjust
Cycle the door and observe whether it stays level and moves smoothly. If the door rises or falls unevenly, recalibrate tension and confirm drum alignment. Accurate balance reduces strain on the opener and tracks.
Tip: If you hear grinding or notice unusual resistance, stop and inspect components for misalignment. - 9
Lubricate and finalize
Lubricate moving parts such as rollers, hinges, and tracks as recommended by the manufacturer. Perform a final inspection and ensure all tools are removed from the work area. Store replacement springs safely and dispose of old ones per local regulations.
Tip: Keep a maintenance schedule and recheck annually.
Got Questions?
Is it safe to install garage door springs myself?
Garage door springs are under high tension and can cause severe injury if handled improperly. While DIY work is possible with correct tools and instructions, many homeowners opt to hire a professional for torsion spring work to minimize risk. Always prioritize safety and follow manufacturer guidelines.
Springs are dangerous; hiring a professional for torsion spring work is often the safest choice, but with proper tools and precautions you can proceed carefully.
What types of springs are used on garage doors?
The two common types are torsion springs, mounted above the door on a torsion bar, and extension springs, running along the tracks. Each type has different mounting hardware and tensioning methods. Confirm the correct type for your door before attempting replacement.
There are torsion and extension springs; know which one your door uses before any work.
How do I know if my springs are worn?
Signs of wear include visible gaps, gaps in coils, excessive door bounce, uneven travel, or loud creaking during operation. If you notice any of these, stop and consult a professional to assess replacement needs.
Look for gaps, loud noises, or uneven movement; these indicate worn springs.
Can I replace only one spring on a torsion system?
Most torsion systems are balanced as a pair, so replacing a single spring often leads to uneven tension and premature wear. It's usually recommended to replace both springs together when dealing with torsion setups.
Usually you replace both springs for torsion systems to keep balance.
How long does installation take?
DIY installation can vary, but plan for several hours including preparation, mounting, tensioning, and testing. For safety, take your time and avoid rushing the process.
Plan for a few hours, especially if this is your first time.
Do I need any special tools beyond basic hand tools?
Yes. You’ll need winding bars sized for your springs, locking pliers, and a sturdy ladder, plus protective gear. Using the correct winding bars is essential for safe tensioning.
Winding bars and proper protective gear are essential tools.
Watch Video
Main Points
- Identify spring type before starting.
- Follow manufacturer specs for tension and wind counts.
- Lock down the door and use proper winding bars.
- Test balance through multiple cycles before finishing.
- Prioritize safety and consider professional help for torsion springs.
