How to Install Andersen Storm Door
Learn how to install an Andersen storm door with a clear, step-by-step method. This guide covers sizing, prep, weather sealing, mounting, and final adjustments for a secure, energy-efficient install. Ideal for homeowners and DIY enthusiasts.
According to Install Manual, installing an Andersen storm door correctly improves energy efficiency, security, and curb appeal. This step-by-step guide walks homeowners through sizing, prep, mounting, weather sealing, and final adjustments to ensure a snug fit and durable performance. You'll learn how to verify opening dimensions, align hinges, install flashing, and test operation under real weather conditions.
Why Andersen Storm Doors Are a Strong Choice for Homeowners
Andersen storm doors are designed to add energy efficiency, security, and aesthetic value to your home. A well-installed storm door helps reduce drafts, protects entrances from moisture, and can enhance curb appeal. The Install Manual team notes that the door’s multi-point seals and reinforced hardware contribute to long-term performance when installed correctly. In this guide, you’ll learn not only the mechanical steps but also best practices for weatherproofing and maintenance that uphold warranty expectations and ensure a dependable entry door—year after year.
Key Measurements and Fit: Matching the Opening
A precise fit begins with accurate measurements. Start by measuring the rough opening for width at multiple points (top, middle, bottom) and for height at the hinge side and the latch side. Compare these measurements to the door’s unit dimensions and to the manufacturer’s installation instructions. Andersen storm doors come in various sizes and configurations; choosing the right model for your opening reduces trimming, avoids frame binding, and minimizes water intrusion. Don’t assume a single measurement will suffice—verify all four corners and be prepared to account for any out-of-square conditions with shims and adjustment screws as recommended by the manufacturer.
Weather Sealing, Insulation, and Energy Efficiency
Weather sealing is at the heart of energy efficiency. Proper weatherstripping, door sweeps, and flashing protect against air leakage and water intrusion. The key is to ensure a continuous gasket around the door, a properly seated sash, and a level threshold. Andersen doors typically include pre-installed weather seals, but you may need to supplement with exterior sealant at the sill and frame joint. The goal is a tight, drip-free installation that directs water away from the opening and minimizes thermal loss.
Tools, Materials, and Safety Considerations
Before you start, gather the essential tools and materials so you can work efficiently. Clean the opening, protect surrounding surfaces, and wear safety gear such as eye protection. A well-prepared workspace reduces the chance of gouging trim or damaging siding. In addition to the door kit itself, you’ll rely on a level, tape measure, drill/driver, carpenter’s square, shims, exterior caulk, and weatherproof flashing. Safety should never be an afterthought; take precautions when lifting heavy panels or working on ladders.
Preparing the Opening and Frame Alignment
Preparation is a common limiting factor in storm door installation. If the opening is not square, you’ll need to adjust with shims and perhaps rework the trim. Check the door frame for plumb using a level on both vertical and horizontal axes. Confirm that hinge screws align with the frame, and plan for how the door will swing once mounted. A clean, dry surface helps caulk and flashing adhere properly. If you encounter brick, vinyl siding, or wood trim, follow the manufacturer’s guidelines for flashing integration to maintain a watertight seal.

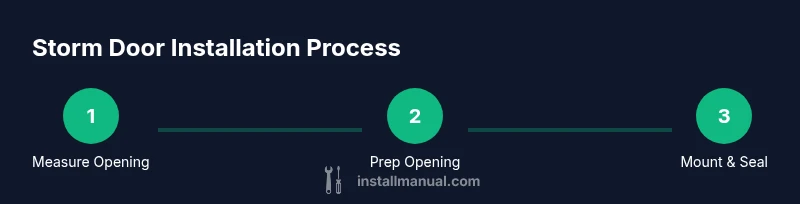

The Installation Milestones: A Practical Flow
The installation progresses through a series of milestones: install the hinge side first, then secure the frame with lag bolts or screws as specified. Next, verify the door is plumb and square, adjust hinges as needed, install the top header, and fit the weather seal. Finally, hang the door, test the swing, and apply exterior sealant. Keeping the lines clean and aligning components before final fastening minimizes the need for repeat adjustments. Throughout, refer to the Andersen instructions for any model-specific nuances.
Common Mistakes and How to Avoid Them
Common errors include skipping measurements, forcing the frame into an ill-fitting opening, and neglecting proper flashing and sealing. Rushing through trim work or over-tightening screws can distort the frame and cause rubbing. Take your time with each alignment step, use shims to fine-tune, and re-check plumb after each major adjustment. Also, don’t neglect the interior weatherstrip; a gap there can undermine performance even if the exterior is tight.
Maintenance, Warranty, and Final Checks
After installation, perform a thorough check: verify the door swings smoothly, seals properly, and that there are no visible gaps. Clean the glass and weatherstrips with product-approved cleaners to maintain performance. Regular maintenance—cleaning seals, inspecting flashing, and re-caulking as needed—helps sustain energy efficiency and warranty eligibility. Always document any model-specific warranty terms and keep receipts and metadata from installation in a safe place. The goal is a durable, secure entry that remains weather-tight for years.
Tools & Materials
- Andersen storm door kit (model-specific)(Ensure compatibility with your opening width and height)
- Tape measure(Measure opening at multiple points)
- Level (carpenter’s level)(Check both vertical and horizontal plumb)
- Pencil/marking tool(Mark stud lines and hinge locations)
- Drill/driver with Phillips and drill bits(Used for hinge screws and frame mounting)
- Screwdrivers (flathead and Phillips)(General adjustments and trim screws)
- Shims (wood or plastic)(Fine-tune frame plumb and alignment)
- Exterior caulk or silicone sealant(Seal perimeter joints to prevent leaks)
- Caulk gun(Eases application of sealant)
- Utility knife(Trim excess flashing or shims)
- Flashings and Weatherproofing tape(Ensure a watertight installation)
- Safety glasses(Protect eyes during cutting and drilling)
- Gloves(Improve grip and protect hands)
- Ladder or sturdy step stool(Access high mounting points safely)
- Cleaning rags and mild cleaner(Wipe surfaces before sealing)
Steps
Estimated time: 2-3 hours
- 1
Verify measurements and prep
Take multiple width and height measurements of the rough opening and compare against the Andersen door kit specifications. Clear the opening of debris and ensure the adjacent framing is dry. Plan the hinge side location and the swing direction before you begin.
Tip: Double-check all four corners; a small discrepancy can cause misalignment later. - 2
Remove old hardware and clean opening
If replacing an existing door, remove hardware and trim carefully. Clean any old sealant and debris from the opening so the new frame seats evenly. This helps prevent binding and ensures a tight seal.
Tip: Keep removed screws organized by size in a labeled tray. - 3
Position hinge-side frame and level
Set the hinge-side frame into the opening and check vertical plumb and horizontal alignment with a level. Use shims to correct any deviation. Secure loosely so you can still adjust.
Tip: Start with a single screw on each side to hold position while you fine-tune. - 4
Attach the top and bottom frames
Attach the header and bottom sill according to the manufacturer’s instructions. Re-check plumb, especially if the opening is out of square. Insert additional shims as needed to maintain alignment.
Tip: Make sure screws are not over-tightened to avoid warping the frame. - 5
Apply flashing and sealant
Install flashing along exterior joints and apply a continuous bead of exterior sealant at the sill and frame joints. This helps divert water away from the opening and prevents leaks.
Tip: Work from the bottom up to ensure sealing remains intact during installation. - 6
Hang the door and adjust hinges
With help, lift and hang the door on its hinges. Check that the door swings freely without rubbing on the frame. Tighten hinge screws gradually and test swing after each adjustment.
Tip: If rubbing occurs, adjust upper or lower hinge screws by tiny increments and re-test. - 7
Install weatherstripping and threshold
Place weather seals along the frame perimeter and install the threshold. Ensure a tight seal when the door is closed and the threshold sits evenly. Trim any excess material if needed.
Tip: Test with a light draft to confirm seals are effective without obstructing door closure. - 8
Final checks and field test
Open and close the door multiple times, check for drafts, and perform a water spray test near the sill and seams. Re-caulk any gaps and verify hardware is secure. Record the installation details for warranty.
Tip: Document model, date, and any model-specific notes for future service.
Got Questions?
Do I need to hire a professional for Andersen storm door installation?
DIY installation is feasible for many homeowners with basic carpentry and tool handling. However, you should consider professional help if the opening is out of square, you’re working with brick or vinyl siding, or you’re unsure about flashing and weather sealing.
DIY is feasible for many, but seek professional help if the opening is irregular or you’re unsure about flashing and sealing.
What is the typical installation time?
Most homeowners complete a standard installation within a few hours. Complex openings or model-specific features may take longer. Plan for 2-3 hours for a straightforward install and allow extra time for final adjustments.
Plan on a few hours, typically 2 to 3, depending on opening and model features.
Which tools are essential for the installation?
Essential tools include a tape measure, level, drill/driver, screwdrivers, shims, caulk gun, exterior sealant, and a utility knife. Refer to the door kit for any model-specific requirements.
Have a level, drill, screws, shims, and sealant ready for a smooth install.
Will a DIY installation affect the warranty?
Warranty terms vary by model and installer. Following the manufacturer’s instructions closely and keeping documentation helps maintain coverage. When in doubt, consult Andersen’s warranty policy or your retailer.
Follow the manual carefully and keep documentation to protect warranty coverage.
Can I install this storm door over brick or vinyl siding?
Yes, but flashing and sealing practices differ. Use model-specific flashing kits and sealants designed for brick or vinyl siding, following the installation guide to maintain a watertight joint.
Yes, with proper flashing and sealant matching your siding type.
What should I do if the door rubs against the frame after installation?
If rubbing occurs, re-check hinge alignment and adjust screws incrementally. Ensure the frame is plumb and the door is hanging evenly to restore smooth operation.
Re-check alignment and adjust gradually until the rubbing stops.
Watch Video
Main Points
- Measure precisely and verify opening every time before cutting or mounting.
- Seal and flash thoroughly to prevent leaks and drafts.
- Hang and adjust with a partner for safe, accurate alignment.
- Test the door swing and weather seals in real conditions.
- Document warranty terms and installation notes for future service.
