How to Install a Storm Door: A Comprehensive Step-by-Step Guide
Learn how to install a storm door with a clear, homeowner-friendly process. This guide covers measurement, kit selection, weatherproofing, mounting, testing, maintenance, and safety tips for durable, energy-efficient entryways in 2026.
This guide shows you how to install a storm door from measurement to finish, including prep, mounting, weatherproofing, and testing. It covers common door types, required tools, and safety tips to help homeowners and DIYers complete the project confidently. We’ll outline what to check before you start, how to choose a kit, and step-by-step actions you can perform with basic hand tools.
What is a storm door and why install one
A storm door adds a protective outer layer in front of your primary entry door. It acts as a buffer against wind, rain, dust, and drafts while improving energy efficiency and comfort. When installed correctly, a storm door can reduce interior drafts and help extend the life of the main door by taking weather exposure off the primary door. According to Install Manual, the biggest gains come from ensuring a proper fit, selecting a model that matches climate, and weatherproofing the threshold and jambs. Before you begin, check doorway width and height, hinge orientation, and whether you want a full-view, ventilating, or insulated panel. A good kit should include adjustable jambs and hardware compatible with your door swing. With careful planning, you’ll secure a comfortable, energy-efficient entry that lasts for years.
wordCount
170
Tools & Materials
- Storm door kit with frame and panel(Confirm size, swing direction, and hinge placement before purchase)
- Measuring tape(Minimum 25 ft; metric equivalent acceptable)
- Level (carpenter's level)(Ensure vertical and horizontal accuracy)
- Pencil and square(Mark cut lines and hinge locations)
- Screwdriver set (Phillips and flathead)(Magnetic tips help hold screws)
- Power drill with bits(PH2 bit for screws; wood bits for pilot holes)
- Shims(Plastic or wood shims for squaring and leveling)
- Caulk gun with exterior silicone or polyurethane sealant(Waterproof seal around perimeter)
- Weatherstripping kit(Replace brittle seals and ensure compression)
- Utility knife(Trim excess material and open packaging)
- Safety glasses(Protect eyes during drilling and cutting)
- Caulk or sealant(Apply along exterior edges for weatherproofing)
- Tack or finishing nails (optional)(Only if trim adjustments are needed)

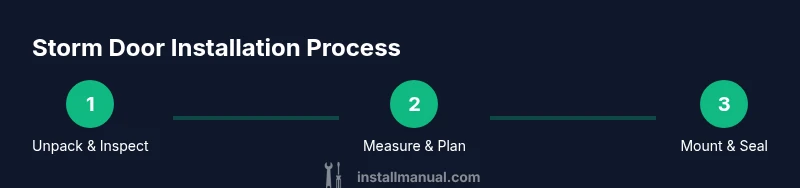

Steps
Estimated time: 2-3 hours
- 1
Unpack and inspect the storm door kit
Carefully unpack all parts and compare them to the manufacturer's parts list. Look for damaged panels, bent jambs, or loose hardware. Verify hinge orientation and frame width match your doorway. If anything is missing or damaged, contact the supplier before proceeding.
Tip: Lay hardware out in the order you’ll use it to speed the process. - 2
Measure opening and confirm kit compatibility
Measure doorway width at the top, middle, and bottom, then take the smallest measurement as your reference. Do the same for height. Compare these measurements to the kit’s documented opening size; if you’re between sizes, choose the larger kit and plan to shim.
Tip: Double-check clearance for floor mats or exterior trim that may affect fit. - 3
Clear the opening and prep the frame area
Remove any old trim or debris from the doorway. If the rough opening is out of square, plan for shimming and adjustment before mounting. Mark hinge locations on the frame and wall, then dry-fit the unit to verify clearance on all sides.
Tip: Keep the work area clean to avoid misalignment from settled dust. - 4
Position and secure the hinge side
With a helper, hold the storm door frame in place and attach the hinge side first using pilot holes. Check for plumb and level, then shim as needed before final tightening. Ensure proper swing direction and alignment with the latch side.
Tip: Be careful not to overtighten screws; this can bend the frame. - 5
Level, square, and fix the jambs
Use a level to validate both verticals; adjust with shims until the frame sits square in the opening. Secure the opposite jamb with screws but avoid overtightening, which can distort the frame. Recheck door clearance after securing.
Tip: Keep shims in place while tightening to maintain alignment. - 6
Install weatherstripping and the threshold
Apply weatherstripping to all contact points and install the bottom threshold per kit instructions. Ensure a continuous seal around sides and top, and test the door’s closure to confirm a proper seal.
Tip: Press the weatherstripping firmly for a uniform seal. - 7
Attach latch hardware and test operation
Install striker plate or latch according to the manufacturer’s instructions. Open and close the door slowly to check for binding. If binding occurs, adjust hinges or re-seat the frame until the swing is smooth.
Tip: Test with the door in a closed position to ensure the seal compresses correctly. - 8
Finish with sealing and final checks
Run a bead of exterior sealant along the outer perimeter to stop water intrusion. Re-check all screws and edges, wipe away excess sealant, and perform a final weather test by simulating rain and wind. Ensure the door remains square and functional.
Tip: Allow sealant to cure fully before heavy use.
Got Questions?
Do I need to remove exterior trim before installing a storm door?
Typically no removal of exterior trim is required, but some installations may need light trimming or cap molding to ensure a flush fit. Always follow the kit instructions and take careful measurements before altering trim.
Usually you don’t need to remove the trim. Follow your kit's directions and measure carefully.
Can I install a storm door over an existing wood frame?
Storm doors are designed to fit over or in front of existing frames, but you may need to adjust hinges and ensure the frame is plumb. If the frame is severely out of square, repair may be necessary before installation.
Yes, but check frame plumb and hinge alignment first.
What if the doorway isn’t square?
An out-of-square doorway complicates mounting. Use shims to true the frame and adjust hinges. If persistent misalignment occurs, consider professional help or door kit options designed for imperfect openings.
Square it with shims and adjust hinges as needed.
How long does installation typically take?
Most homeowners complete a standard storm door install in 2-3 hours, depending on door type, opening condition, and whether trim adjustments are needed. Allow extra time for weatherproofing and testing.
Most installs take a few hours; plan accordingly.
Do I need specialized tools beyond a drill?
In addition to a drill, you’ll need a level, tape measure, pencil, and weatherstripping. A utility knife and caulk gun help with sealing and trimming. Most homeowners have what they need in a basic toolbox.
A level, measuring tape, and basic tools are enough.
Should I hire a pro for brick or metal frames?
If your doorway is brick, metal, or severely out of plumb, professional installation may be warranted to ensure safety, warranty integrity, and proper sealing. A contractor can adjust framing and ensure code compliance.
Consider a pro for complex or nonstandard frames.
Watch Video
Main Points
- Measure twice, choose correctly.
- Seal all gaps for energy efficiency.
- Align and level before final tightening.
- Test operation and adjust for a smooth swing.
