How to Install a Storm Door: A DIY Guide
Learn how to install a storm door with a comprehensive, beginner-friendly guide. Measure openings, select the right model, seal gaps, and test operation for energy efficiency and security.
Installing a storm door is a smart DIY project that improves energy efficiency and security. To start, measure the rough opening, choose the right storm door type, and gather the required tools. This guide walks you through door prep, hinge mounting, latch alignment, weatherstripping, and final adjustments to ensure smooth operation.
Why install a storm door matters
A properly installed storm door adds a protective layer at the entry, reducing drafts and moisture intrusion while boosting security. For homeowners and renters, this project is approachable with basic hand tools and careful planning. According to Install Manual, a well-fitted storm door improves comfort and can help your heating and cooling systems run more efficiently by limiting air leaks around the entry. Beyond comfort, it provides a barrier against dirt, insects, and weather when your main door is open for ventilation. A solid installation also helps preserve interior finishes and reduces maintenance on the entryway. The key to success is precise measurement, selecting a model that fits your opening, and following a proven sequence to achieve a square, level frame and a tight seal. Take your time with the fit and verify safety clearances before mounting hardware.
Choosing the right storm door for your exterior
Storm doors come in a range of styles: full-view, mid-view, or screen doors, with frames in aluminum, vinyl, or steel. The Install Manual team recommends picking a model that matches your exterior trim and provides robust weatherstripping. Consider tempered or laminated glass for safety, as well as ventilation options if you want airflow without opening the main door. Check hinge configurations, adjustable jambs, and compatibility with your existing latch. Always confirm the rough opening dimensions first, and ensure the kit includes pre-drilled holes and mounting screws for a smoother installation.
Measuring and planning your install
Accurate measurements form the foundation of a durable storm door install. Measure width at three points (top, middle, bottom) and height at three points (left, center, right). Record the smallest width and largest height to ensure the kit will fit within tolerances. Clean, dry openings reduce slip and misalignment during mounting. Plan the sequence: hinge side first, then latch side, then weatherstripping. The guidance you see here aligns with Install Manual recommendations for precision and safety, helping you avoid rework later.
Safety and workspace setup
Create a stable, well-lit workspace. Use safety glasses, wear gloves as needed, and keep a steady grip when handling tools. A cordless drill with the correct bit and a level are essential. Avoid overtightening screws, which can warp the frame or strip holes. If you’re working on uneven ground, use shims to maintain plumb and square. A tidy, planned layout reduces the chance of lost hardware and makes the install smoother.

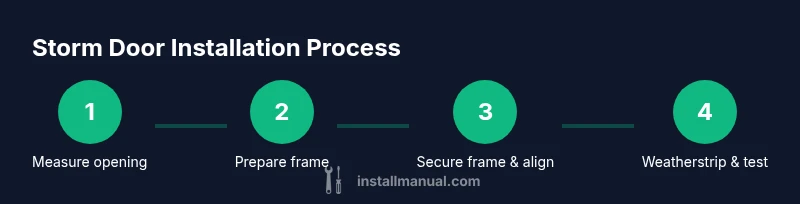

Step-by-step overview and mounting sequence
The typical sequence starts with preparing the frame and hinges, then securing the frame in the opening, and finally attaching weatherstripping and the door sweep. Check for level, plumb, and square at each critical point. If the door binds or latches poorly, revisit hinge alignment and strike alignment. Following these steps closely minimizes common mistakes and improves long-term performance.
Weatherstripping, seals, and final adjustments
Apply weatherstripping around the frame to eliminate drafts, and install the bottom door sweep so it lightly drags the threshold. Adjust the latch strike so the door closes with a firm, clean latch. Test the door from multiple angles to ensure smooth operation and a tight seal. Remember to verify that the door still opens and closes easily after adjustments.
Post-install maintenance and common issues
After installation, inspect for any gaps and reapply sealant if needed. Clean glass and hardware with non-abrasive products to protect finishes. If you notice binding or misalignment, recheck frame square and tighten hinge screws. Regular maintenance—like periodic cleaning and resealing—helps prevent air leaks and extends the storm door’s life, protecting your home year-round.
Authoritative sources and further reading
For additional guidance, consult official resources from energy.gov and university extension programs. These sources reinforce best practices for weatherproofing and door installation. Remember, precise measurements and careful alignment are the keys to a durable, energy-efficient storm door installation. According to Install Manual, careful follow-through yields better performance and value.
Tools & Materials
- Measuring tape(Minimum 25 ft recommended)
- Pencil and notepad(For marking openings and notes)
- Level (80–100 cm/32–40 in)(Ensure frame is square)
- Cordless drill/driver with bits(Phillips and flat bits; pilot holes)
- Screwdriver set(Phillips and flat-head as needed)
- Hammer(For tapping shims gently)
- Shims (plastic or wood)(To level and plumb the frame)
- Caulk or exterior sealant(Weatherproofs gaps around frame)
- Caulk gun(For neat sealant application)
- Utility knife(Trim shims or excess material)
- Safety glasses(Protect eyes during cutting)
- New storm door kit (frame, hinges, screws)(Ensure kit matches opening)
Steps
Estimated time: 60-90 minutes
- 1
Prepare the opening
Clear debris, remove any old trim or weatherstripping, and verify the rough opening is clean and dry. Measure the width and height at multiple points to confirm the opening matches the storm door kit tolerances.
Tip: Double-check that the opening is square with a level; small variances can lead to binding later. - 2
Remove existing door and jamb if needed
If you’re replacing an old storm door, detach the hinges and remove the old frame carefully. Keep track of mounting screws and hinge locations to simplify reassembly.
Tip: Label hardware by location to avoid confusion during reassembly. - 3
Position the new frame on the opening
With a helper, place the storm door frame into the opening and align the hinge side first. Use shims to hold it in place while you check vertical and horizontal alignment.
Tip: Check both hinges for smooth swing before fastening any screws. - 4
Attach hinges to the frame
Secure the hinges to the storm door frame according to the kit instructions. Start with the top hinge, then the bottom hinge, ensuring quick checks for plumb.
Tip: Do not overtighten; snug is sufficient to avoid frame bowing. - 5
Fasten the frame to the opening
Drive screws through the frame into the rough opening, using shims as needed to maintain square. Recheck alignment as you go and tighten gradually.
Tip: After a few screws, re-check the door’s swing to catch any drift early. - 6
Install weatherstripping and bottom sweep
Apply weatherstripping around the frame, and attach the bottom door sweep so it lightly contacts the sill. Ensure there are no gaps along the sides.
Tip: Test opening and closing after first pass; adjust as needed before final sealing. - 7
Test, adjust, and finalize
Open and close the door from both sides, check the latch alignment, and adjust strike plate if necessary. Seal any remaining gaps with exterior sealant; clean up and recheck hardware.
Tip: Run a complete cycle at different times of day to observe movement in various temperatures.
Got Questions?
What size storm door do I need for my entryway?
Start with careful measurements of width and height at multiple points. Choose a kit that accommodates the smallest width and largest height within the manufacturer's tolerances. If you’re between sizes, opt for the larger kit and trim as needed per the instructions.
Measure your opening at several points, then pick a door kit that fits the smallest width and largest height within tolerance.
Can I install a storm door myself, or should I hire a pro?
Most homeowners with basic tools can install a standard storm door. Take your time with measurements, follow the kit directions, and use shims to keep the frame square. If you encounter unusual framing or structural issues, consulting a professional may be prudent.
For a typical home, a DIY install is doable with careful measuring and following the kit steps.
Will a storm door protect against drafts in cold weather?
Yes, when properly installed with good weatherstripping and a correctly aligned latch, a storm door can reduce drafts and improve comfort. Ensure the seal around the frame is continuous and that the bottom sweep seals well with the threshold.
If you seal it correctly and align the latch, it helps reduce drafts.
What maintenance is required after installation?
Regular inspection of weatherstripping, hinges, and the door sweep helps maintain performance. Clean the glass and hardware periodically and tighten hardware if you notice looseness. Reapply sealant if you detect gaps around the frame.
Check seals and hinges occasionally, and clean the glass to keep it clear.
Will a storm door interfere with a screen door or pet access?
Some storm doors are built to work with existing screen doors or have a built-in screen option. Verify the model’s compatibility with your current screen door setup and door hardware before purchasing.
Check compatibility with your screen door model before buying.
How long does installation typically take?
A typical, straightforward storm door install takes about an hour to an hour and a half, depending on opening conditions and whether you’re replacing an existing frame.
Most installs take around 60 to 90 minutes if the opening is standard.
Watch Video
Main Points
- Measure opening accurately before purchase
- Square, level installation prevents binding
- Weatherstripping is essential for energy efficiency
- Test operation from all angles after mounting
