Google Nest Install: A Homeowner’s Step-by-Step Guide
Learn how to install Google Nest devices with a clear, expert-friendly approach. This guide covers compatibility checks, wiring basics, mounting, Wi‑Fi setup, and Nest app configuration for a confident google nest install.
With google nest install, you’ll upgrade your home’s climate control and automation. This guide covers compatibility, wiring basics where required, mounting, Wi-Fi setup, and Nest app configuration. Before you start, confirm your Wi‑Fi is stable and gather the tools listed in this guide. Follow the steps to complete google nest install confidently.
What Google Nest Install Entails
Installing a Google Nest device transforms how you heat, cool, and secure your home. A typical google nest install involves confirming compatibility with your HVAC, installing the base, wiring as required, and completing a software setup in the Nest app. The Install Manual team emphasizes planning—double-check your wiring, power availability, and Wi‑Fi connectivity before you begin. In many homes, the process starts with a safety assessment, followed by mounting a clean, flush base on the wall and preparing to connect to your network. This section explains the high-level considerations so you can approach the task with confidence. According to Install Manual, a well-planned google nest install reduces troubleshooting time and improves long‑term reliability.
Compatibility, Power, and Wiring Essentials
Before you buy or begin the install, verify that the Nest model supports your heating and cooling configuration. Google Nest devices require standard 24 VAC HVAC systems with a common wire (C-wire) for consistent power, though some models offer power stealing options for certain setups. Plan for a stable power source and a reliable Wi‑Fi network. If you’re unsure about your wires, use a photo checklist and label each conductor to map them correctly to the Nest terminals. This upfront planning helps prevent miswiring and ensures a smoother installation. Install Manual notes that the most successful DIY installs start with a quick wiring audit and a clear plan for mounting.
Choosing the Right Nest Device and Accessories
Your choice of Nest device depends on your goals. The standard Nest Thermostat handles most homes, while the Nest Thermostat E and Learning Thermostat offer enhanced screens and features. Consider whether you need temperature sensing in multiple zones or voice control integration. Accessories such as a C-wire adapter or a compatible mounting plate can simplify the install, especially if the existing setup lacks a true C-wire. Always confirm compatibility with your HVAC equipment before purchase. The Install Manual team recommends selecting a model that matches your HVAC control needs and your preferred level of smart features.
Electrical Safety and Working with HVAC Systems
HVAC wiring involves running low‑voltage conductors to control equipment that can energize a home. If you’re not confident with wiring, pause and seek professional help. Always turn off power at the breaker before touching any wires, and never work on live circuits. Use a non-contact voltage tester to verify that circuits are de‑energized. Keep the work area dry and use a stable ladder when mounting the thermostat base. Following this safety discipline helps prevent shocks, short circuits, and equipment damage. The Install Manual guidance emphasizes safety first to ensure a successful google nest install.
Wiring Scenarios: C-Wire, No C-Wire, and Power Stealing
Most Nest installations rely on a C-wire for reliable power. If your system lacks a C-wire, you can install a common wire adapter or use the Nest’s power‑sharing features where supported. When wiring, connect each conductor to its corresponding terminal (R, Y, W, G) according to your HVAC configuration, and double‑check wire labels. For unusual setups—such as heat pumps with auxiliary heat—note any special terminals and jumper requirements. This section helps you navigate common configurations with confidence. The Install Manual approach emphasizes documenting each step to prevent cross‑wiring.
App Setup, Wi‑Fi, and Initial Configuration
Once the Nest base is mounted and wired, re‑energize the system and bring up the Nest app. Connect the device to a stable Wi‑Fi network and sign in with your Google account. The app will guide you through choosing your HVAC type, configuring schedules, and enabling features like energy reporting and Home/Away routines. Verify each option, test heating and cooling, and adjust settings for comfort and efficiency. The Nest ecosystem thrives when the app settings align with your home’s habits and energy goals. The Install Manual approach recommends performing a full app walkthrough to confirm all features behave as expected.
Common Pitfalls and How to Avoid Them
Rushing through the wiring or skipping the compatibility check is a frequent source of issues in google nest install projects. Failing to power down the HVAC system can lead to shocks or damaged equipment. Mislabeling wires or forcing a wire into an incorrect terminal causes misbehavior or system faults. Keep a calm pace, use the provided checklist, and re‑check each connection. If you encounter a non‑standard HVAC arrangement (e.g., multiple stages, humidifier, or zone controls), pause and consult the Nest compatibility resources or a qualified pro. The Install Manual guidance emphasizes planning, verification, and patience to avoid costly mistakes.
Tools & Materials
- Wi‑Fi access (2.4 GHz or 5 GHz network)(Stable connection with password ready)
- Screwdriver set (Phillips and flathead)(Phillips #2 commonly used)
- Nest device kit or compatible Nest thermostat with mounting plate(Includes mounting screws and backplate)
- Base mounting plate for thermostat(Ensure correct model for wall box type)
- C-wire adapter or common wire kit (optional but recommended)(Needed if system lacks a dedicated C-wire)
- Pencil, level, and masking tape (optional)(For marking and alignment)
- Non-contact voltage tester and safety gear (optional)(Use when unsure about wiring)

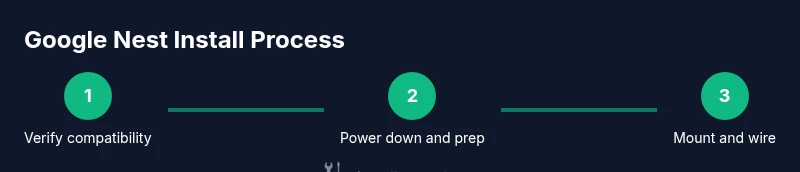

Steps
Estimated time: 60-120 minutes
- 1
Verify compatibility and plan
Check compatibility with your HVAC type using Google’s guidance and the Nest compatibility checker. Confirm that you have access to a stable Wi‑Fi network and that you can accommodate a potential C-wire upgrade if needed. This planning step reduces surprises during installation.
Tip: Use the compatibility checker first, then map wires on a simple diagram before touching any hardware. - 2
Power down and prepare the installation area
Turn off power to the HVAC system at the breaker and switch off the thermostat at the wall. This avoids shocks and protects electronics while you work. Clear the area and ensure a clean, level mounting surface for the Nest base.
Tip: Double‑check the breaker before touching any wires to avoid accidental energization. - 3
Remove the old thermostat and label wires
Carefully detach the old thermostat and take a photo of the wiring for reference. Label each conductor with its terminal role (R, W, Y, G, C) to map correctly to the Nest. Keep track of any jumpers or unusual configurations.
Tip: A labeled wiring map saves time and prevents miswiring during the Nest install. - 4
Assess C-wire availability or plan an adapter
Determine whether a dedicated C-wire exists and is accessible. If not, decide whether to install a C-wire adapter or switch to a Nest model that works with power stealing. Document the wiring path to the furnace or air handler.
Tip: If using an adapter, install per the manufacturer’s instructions before proceeding. - 5
Mount the Nest base
Position the Nest base on the wall and mark the screw holes with a level for flush mounting. Drill pilot holes if needed and attach the base securely with screws. Ensure the base is flat and level before connecting wires.
Tip: A level base prevents thermostat display misalignment and sensor misreadings. - 6
Connect wires to the Nest base
Insert each wire into its corresponding Nest terminal (R, W, Y, G, C) as per your wiring map. Make sure wires are fully seated and no copper is exposed beyond the terminal. If a C-wire adapter is used, connect it per the product instructions.
Tip: Take care to avoid frayed strands and ensure a snug terminal fit. - 7
Attach the display and restore power
Snap the Nest display onto the mounted base and restore power to the HVAC system. The Nest should boot and begin guiding you through setup. If the screen remains dark, recheck wire seating and power connections.
Tip: If the display doesn’t power, re‑verify the C-wire or adapter wiring before calling for help. - 8
Connect to Wi‑Fi and configure in the Nest app
Open the Nest app and connect the thermostat to your Wi‑Fi network. Follow on‑screen prompts to configure HVAC type, schedules, and Home/Away routines. Run a quick test to confirm heating and cooling respond correctly.
Tip: Choose a strong password for your Nest account and enable two‑factor authentication for security. - 9
Test, refine, and finalize
Test the system by triggering heat, cool, and fan cycles. Adjust temperature thresholds and scheduling to suit your routine. Review energy‑saving suggestions and enable helpful features like auto‑away and occupancy sensing.
Tip: Document final settings for future reference and maintenance.
Got Questions?
Is a C-wire required for Google Nest install?
A C-wire is recommended for reliable Nest power, but some configurations can use power stealing or adapters. Check your HVAC wiring before choosing a model.
A C-wire is recommended for reliability, though adapters can work in some setups. Check your system first.
Can I install Google Nest without professional help?
Many basic Nest installations are doable for homeowners, especially with a standard 24‑V system and documented wiring. Complex setups or unusual configurations may benefit from a pro.
Yes, many DIY installs are doable, but if your system is unusual, consider a pro for safety and accuracy.
What should I do if Nest won’t connect to Wi‑Fi?
Ensure the router is broadcasting and within range, verify the 2.4 GHz/5 GHz band, and retry the connection in the Nest app. Restarting the router and re‑adding the device helps in many cases.
Check your router, try again, and re‑add the Nest in the app.
How long does google nest install take on average?
Most installations take about an hour or two, depending on wiring and HVAC configuration. Allow extra time for app setup and testing.
Typically about an hour or two, depending on wiring and system complexity.
What models of Nest are covered by this guide?
The guide covers standard Nest Thermostat installations and common variants like the Nest Thermostat E, focusing on 24‑V systems with typical wiring.
It covers common Nest Thermostat installations and variants for standard 24‑V systems.
Is it safe to install near water or heat sources?
Avoid installing thermostats directly over moisture sources or in extremely hot areas. Maintain clean, dry mounting spaces to prevent damage and ensure accurate sensing.
Keep it away from water and heat sources to avoid damage and sensing errors.
Watch Video
Main Points
- Plan before you touch hardware
- Verify HVAC compatibility and wiring
- Power down and test safely
- Use the Nest app for setup and verification
